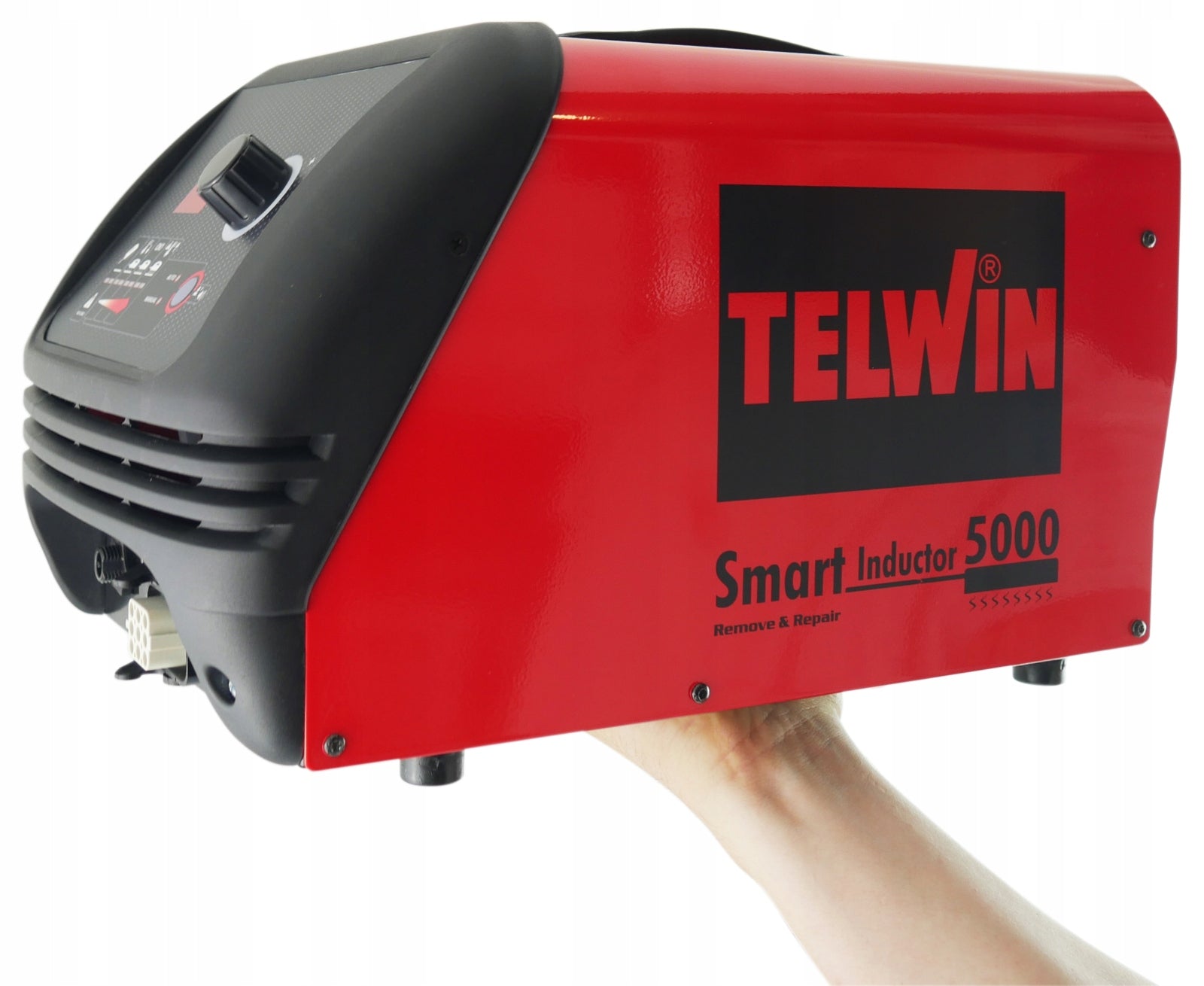

Indukcinis kaitintuvas TELWIN DELUX Smart Inductor 5000

Trumpai apie prekę

Prekė: Indukcinis kaitintuvas TELWIN DELUX Smart Inductor 5000. Kategorija: Oro šildytuvai.

• Gamintojas: Telwin
• Modelis: Smart Inductor 5000 230V 2,3kw DELUX

✅ Induction heating system designed for professional use in body repair and car workshops.

• ✔ HEAT TWISTER - handle for coils
• ✔ SUPER REMOVER - for dismantling windows
• ✔ METAL RELEASER - for heating single-sided screws
• ✔ PAD INDUCTOR - Induction glove
• ✔ GLASS GENIUS - with paint protection for glass disassembly
• ✔ WONDER PEN II - for pulling out dents
• ✔ ceramic reinforcement tape 1m - 1pc.
• ✔ foot switch
• ✔ Coils - 2pcs
• ✔ Mounting bracket
• ✔ Wedges - 3pcs - to pry the glass

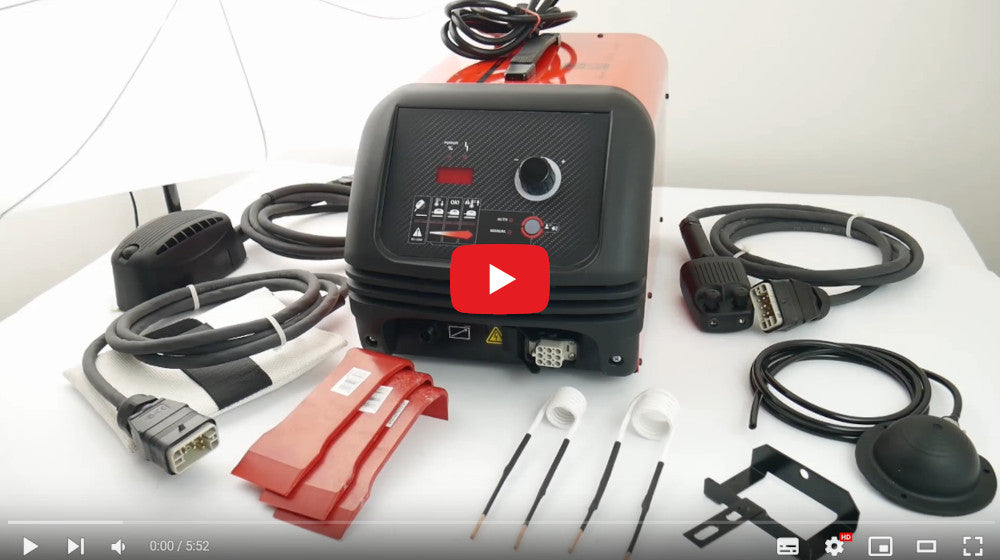

See the induction heater Telwin 5000 in the video:

Copy the link and paste into your browser window

✅ Portable induction heater Telwin 5000 is designed for induction heating of metal elements mainly made of steel.

The main application of the device:

✅ Delete:

• ✔ trademarks
• ✔ stickers
• ✔ decorative strips
• ✔ plastic elements
• ✔ rubber elements glued to the sheet metal

✅ In addition:

• ✔ unlocking rusted screws and spigots
• ✔ lift sheets
• ✔ repair of small damage in sheets
• ✔ easy and fast removal of windscreen, rear window and side windows glued to the vehicle

Technical data:

✅ Power supply parameters

• ✔ Power supply: 230V
• ✔ Number of phases: 1ph
• ✔ Network frequency: 50/60Hz

✅ Technical parameters

• ✔ Max. power: 2.3kVA
• ✔ Induction frequency: 35-100kHz

✅ Physical parameters

• ✔ Protection class: IP21
• ✔ Weight: 10.4kg
• ✔ Dimensions: 390x260x230mm

Main parameters

• ✔ automatically recognizes connected tool
• ✔ the ability to choose manual mode (MANUAL) or auto mode (AUTO)
• ✔ displays the power bar (diode), which is transferred to the item
• ✔ sound signal proportional to the heater power used
• ✔ automatic system for recognizing an object intended for heating
• ✔ the ability to display on the display the functions of the device such as: used tools, percentage power adjustment, alarms

Connection to the network:

• ✔ before connecting the device to the network, check whether the data contained in the device correspond to the voltage and frequency of the network to which you want to connect the device
• ✔ the heater should be connected only to the power system with a neutral cable connected to the ground.
• ✔ the device has a cable with a standardized plug 16A/250V

HEAT TWISTER - Coil holder with long cable

• ✔ Installation of the coil of the handle is very easy and fast. Properly contoured button starts the heating process of the installed coil

SUPER REMOVER

• ✔ Tip for quick removal of glass z surface, which are prepared for painting. This particular tip can even handle strong adhesives, especially on the example of delivery vehicles. Its use allows reuse of glass, maintaining factory built-in gasket, and effectively removes protective stickers from the body.
• ✔ The adhesive heats up through conduction until the sheet metal is peeled off and the glass is released

GLASS GENIUS

✅ A device that has been designed to precisely remove glass from the surface of covered with a protective layer of varnish. It works only in a specific area to protect elements painted with paint. It is an innovative solution that enables accurate operation even in hard-to-reach places, for example in corners. In addition, it allows reuse of glass, while maintaining the factory built-in gasket.

• ✔ The attachment allows you to reuse the glass with the built-in seal. The heat distribution is uniform over the entire length of the inductor.
• ✔ The attachment generates heat by induction and prolongs the effect of separating it on the surface of the sheet metal, allowing better tracking of the shape of the insulation, which must be peeled off.
• ✔ This device is used to heat sheet metal induction method under the car glass located on the glue

PAD INDUCTOR - Induction glove allows you to remove:

• ✔ decorative side strips
• ✔ trademarks
• ✔ adhesive strips
• ✔ vinyl and plastic adhesives
• ✔ rubber elements

✅ The generated heat is separated "ring" under the surface of the glove, which makes the heat less concentrated compared to other tools.

METAL RELEASE

• ✔ Used to heat bolts, nuts, etc. in order to unscrew them from the repaired surface.
• ✔ While the inductor is on, generates strong magnetic fields invisible at the ends. The inductor must be sdirected exclusively at the metal elements that it intends to heat. In no case, do not point the device at body parts!

Wonder Pen II

• ✔ This is a tool for removing small dents and damage caused e.g. without the need to remove the varnish.

➡ The device operates on the principle of electromagnetic induction, so that Wonder Pen II can remove dents without damaging the paint. The device works well in hard to reach places.

• 1 Before use of the device
• 2 After use of the device

Twisted coils

• ✔ 10v m8/m10
• ✔ 14v m12/m14

✅ Ceramic tape type TCZ is a specialized product woven from high quality ceramic yarn, reinforced with inconel wire. It is characterized by excellent insulation properties and is designed to work at high temperatures, providing effective thermal protection in the most demanding conditions.

Application

• ✔ Thermal insulation: Ideal for all types of machinery, equipment, installation and construct requiring heat flow limitation.
• ✔ Heat screens: Effectively protects against excessive heating of surfaces and elements located near heat sources.
• ✔ Soaking processes: Perfectly suited as insulation in welded structure soaking processes.
• ✔ Wire Protection: Provides shield for hoses and cables operating near heat sources, protecting them from overheating.

Technical parameters

• ✔ Raw material: Ceramic yarn reinforced with inconel wire (CrNi with a diameter of 0,1 mm)
• ✔ Maximum instantaneous temperature: 1200°C
• ✔ Maximum continuous operating temperature: 1100°C
• ✔ Losses after roasting: up to 18% – organic fibres burn out in the initial phase without affecting key technical parameters
• ✔ Maximum shrinkage: 3%
• ✔ Density: 0,5 g/cm³ ± 15%
• ✔ Colour: White

✅ The material of inconel reinforced ceramic tape is also used in products such as:

• ✔ Metal Releaser
• ✔ SUPER REMOVER
• ✔ GLASS GENIUS

Foot switch

• ✔ REMOTE CONTROL FOOT PEDAL - allows remote control of the device.

Wedges

• ✔ For challenging glass

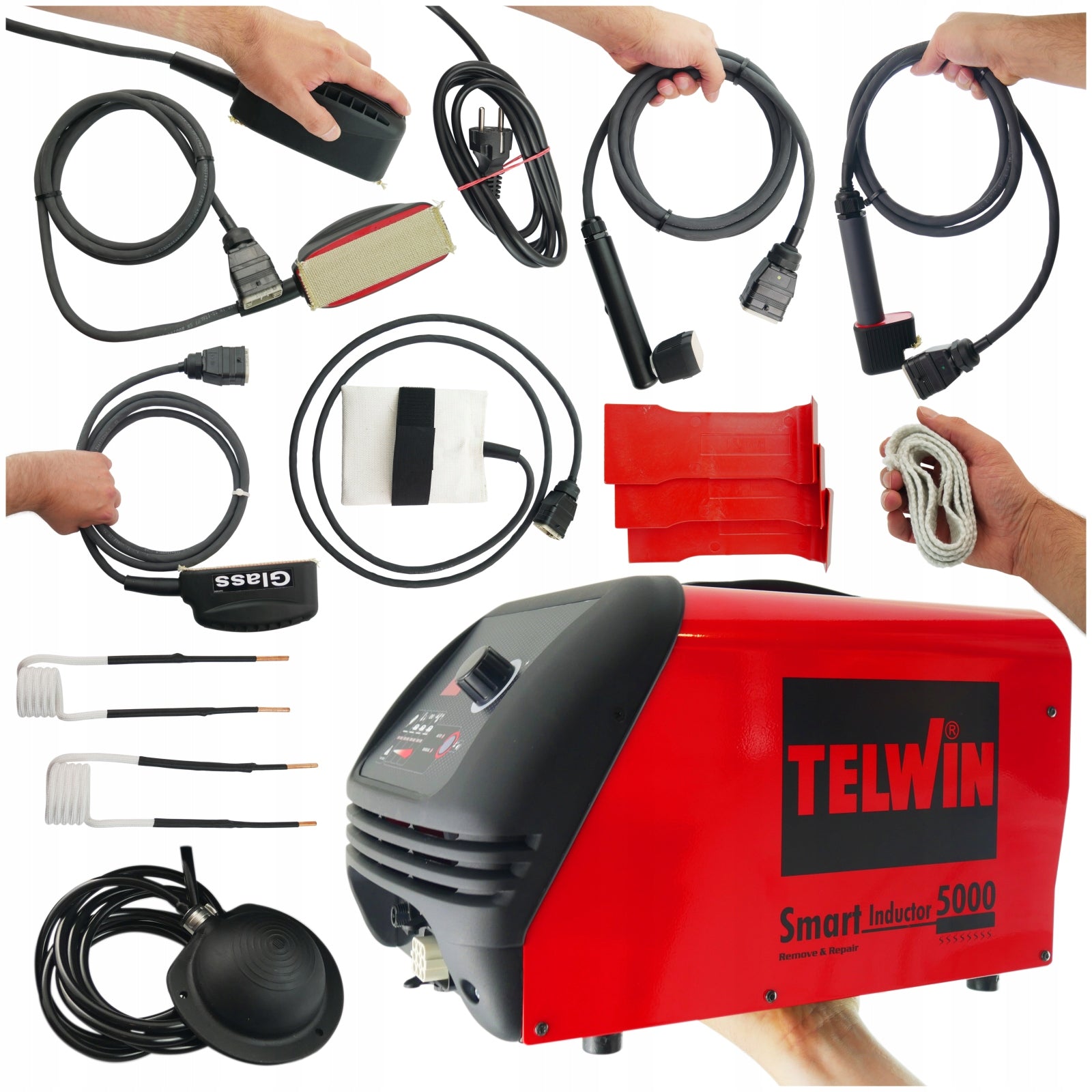

Included in the set:

• ✔ Induction heater Telwin 5000
• ✔ HEAT TWISTER - handle for coils
• ✔ SUPER REMOVER - for dismantling windows
• ✔ METAL RELEASER - for heating single-sided screws
• ✔ PAD INDUCTOR - Induction glove
• ✔ GLASS GENIUS - with paint protection for glass disassembly
• ✔ WONDER PEN II - for pulling out dents
• ✔ ceramic reinforcement tape 1m - 1pc.
• ✔ foot switch
• ✔ Coils - 2pcs
• ✔ Mounting bracket
• ✔ Wedges - 3pcs - to pry the glass
