Inhaliatorius Flaem 4NEB, 4 režimai, suaugusiems ir vaikams

Trumpai apie prekę

Prekė: Inhaliatorius Flaem 4NEB, 4 režimai, suaugusiems ir vaikams. Kategorija: Inhaliatoriai.

• Gamintojas: FLAEM
• Modelis: 4NEB
• Spalva: white

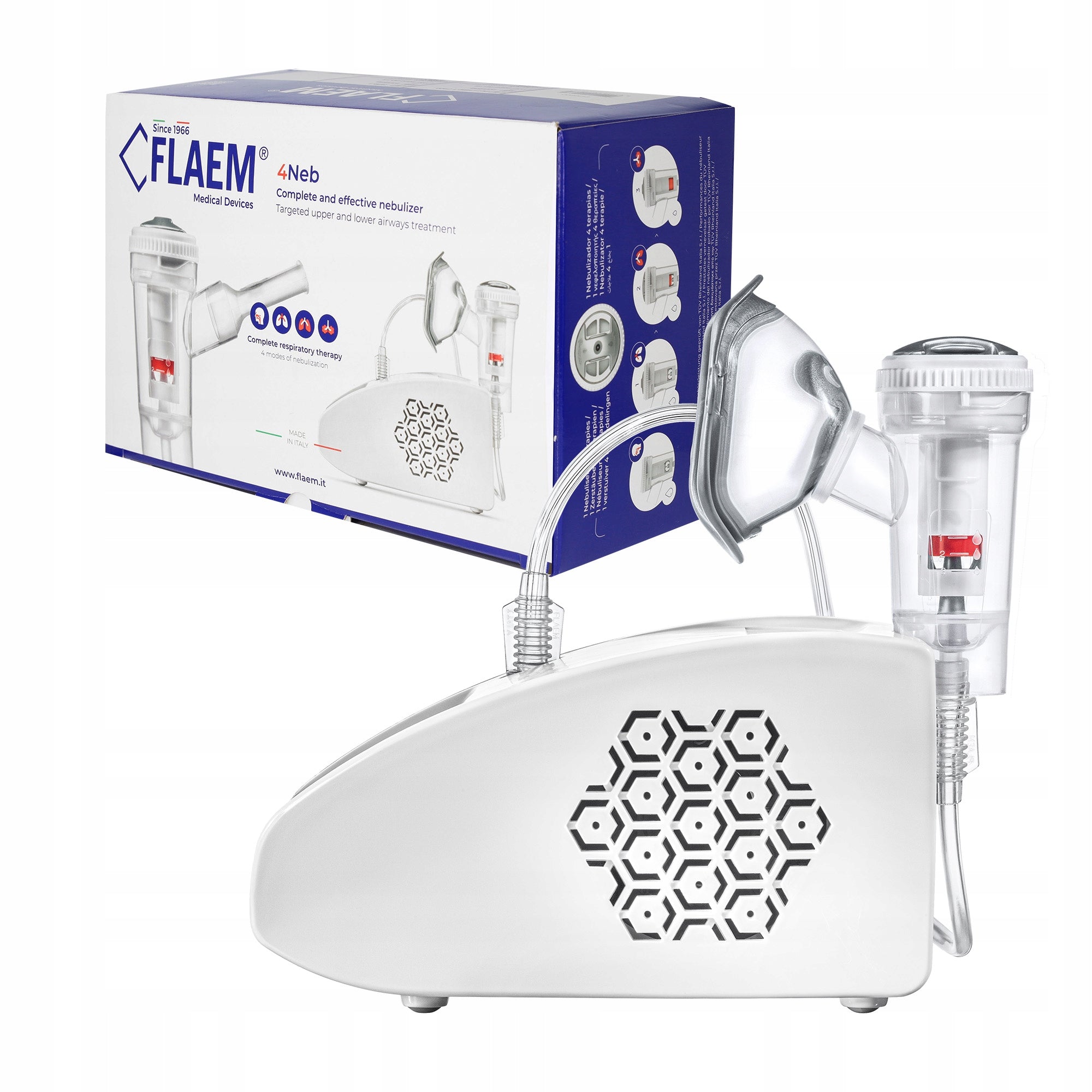

FLAEM 4Neb

Particle size adjustable inhaler for comprehensive respiratory therapy

• Innovative 4 levels of particle size adjustment
• Ergonomic design and continuous operation
• Fit for the whole family
• Soft Touch Masks with Mist Dispersion Limiter
• Compatible with Rhino Clear® and Baby Mask
• Free of bisphelone and phthalates
• Italian quality with TÜV certificate
• High-quality air filter
• Simple hygienization

One device, four depths of therapy - targeted treatment of upper and lower respiratory tract.

Flaem 4Neb is a professional and universal inhaler . It is equipped with an RF9 nebulizer using a patented valve system that allows you to adjust the size of drug molecules and thus enables the treatment of the entire range of respiratory tract.

Comfortable therapy is possible thanks to the operation of the compressor in continuous mode and ergonomic design of the device. The saving of the drug provides a set of matching accessories with a mist dispersion limiter, which guarantee effective inhalation, matched to need for both children and adults.

4Neb is a product made in Europe, from safe, biocompatible materials. His high quality confirms compliance with standards EN 60601-1-2, TUV Rheinland conformity mark and IMQ certificate.

Video presenting Flaem 4Neb available at: https://youtu.be/haCp-ZS72dI?si=K1UmTEoy8AMTvnWz

Innovative 4 levels of regulation

Optimized drug delivery is possible thanks to the modification of particle size – by turning the valve of the RF9 nebulizer you gradually reduce their size, which allows you to tailor the treatment to the indicated area of the respiratory tract , guaranteeing universal and multifunctional operation, regardless of the age and needs of the user.

Wide range of MMAD particle sizes: from 2,49 to 7,71 μm

Directing the mist reduces the risk that the drug will not reach deep enough, thus avoiding less effective treatment. 4Neb allows inhalation from the sinuses, nose and throat through the larynx, trachea and bronchi, aż to bronchioles and pacherzyki płucne, guaranteeing maximum therapeutic effect.

High respirable fraction rate for more effective inhalation

The effectiveness of drug delivery to the lower respiratory tract is determined by the respirable fraction (FPF), which indicates what percentage of particles produced by the inhaler are of the appropriate size to be properly absorbed by the body. Flaem 4Neb, thanks to the advanced RF9 nebulizer technology, reaches the indicationźnik FPF aż to 83,1%.

Video showing the operation of the RF9 nebulizer available at: https://youtu.be/C7Uukbgr68A?si=DNvL217lXFbsw1vU

Durable compressor with continuous operation

Flaem 4Neb is a ideal for supporting daily treatment and respiratory care. The efficient Flaem F400 pneumatic piston compressor allows for many hours of continuous operation with a low noise level, allowing you to control the length of inhalation without having to interrupt the device.

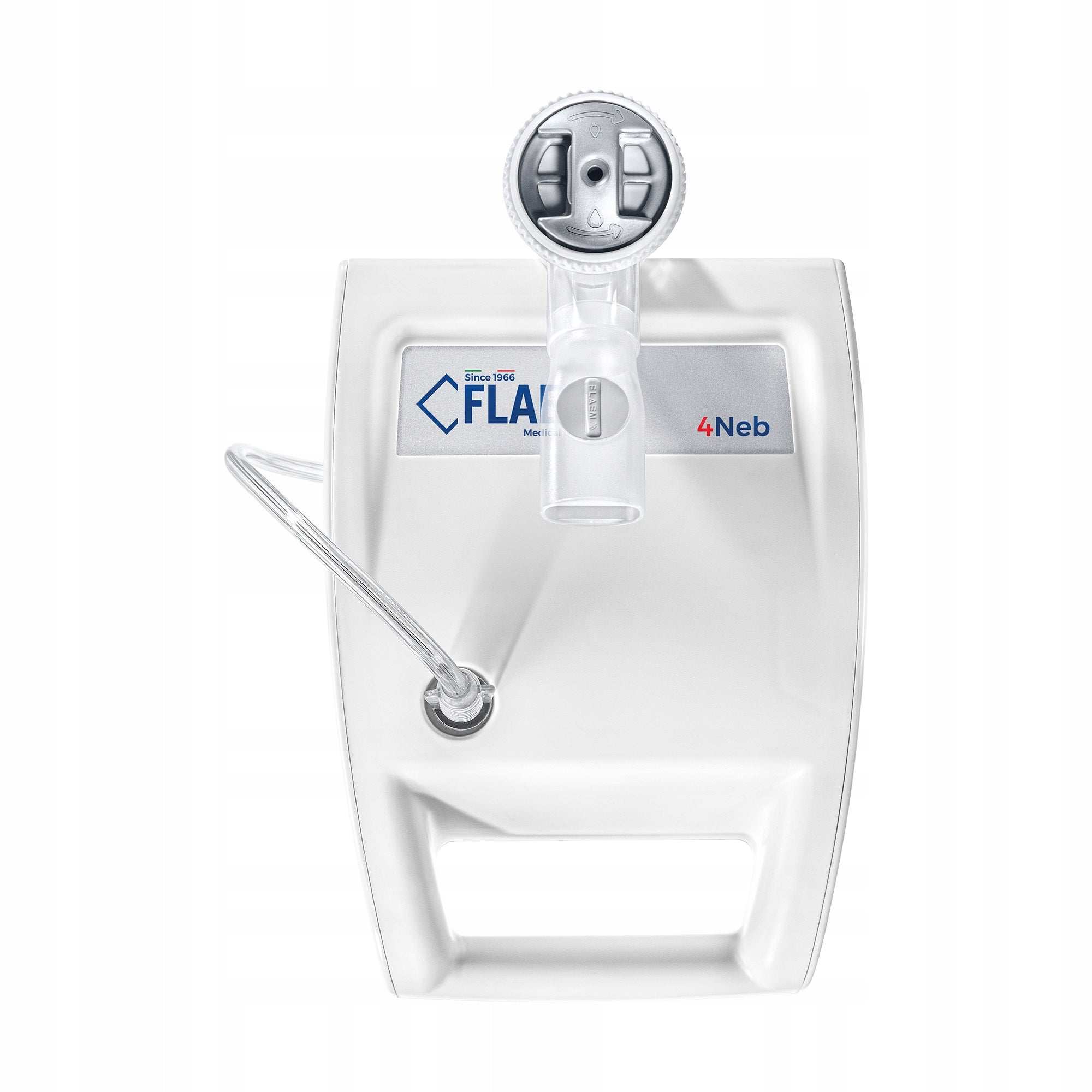

Ergonomic design

The small size of the inhaler and the built-in handle will allow for comfortable operation, and the built-in handle for the nebulizer will maximally simplify the preparation of the device and allow free breaks in the treatment without the risk of pouring liquid. Order during nebulisation will provide built-in cable storage and included in the set practical case, especially useful on the go.

Suitable for the whole family

The drug in the form of a mist is inhaled using accessories. In the set you will find a mouthpiece simplifying inhalation, with built-in valve reducing drug loss and mask in two sizes. All accessories are suitable for children and adults.

Innovative Soft-Touch Masks

Masks Flaem, using the technology Soft Touch are specialized accessories with edge made of soft biocompatible material, fitting without unpleasant pressure, at the same time providing a tight barrier. Additional comfort when inhaling a child using a mask provide rubber bands, which allow you to keep the mask in the right and comfortable position.

Mist dispersion limiter

Both the mouthpiece and the masks contain additional protection against the escape of nebulized medication, i.e. a mist dispersion limiter - a valve that opens and closes , synchronized with the inhalation and exhalation phases, which, thanks to its action , directs the medication mist more precisely , increasing the efficiency and safety of the therapy.

Bisphenol and phthalate free

4Neb is a safe and tested device, manufactured without harmful substances, including bisphenol and phthalates. Proven origin and full biocompatibility of materials combined with a restrictive quality management process is a guarantee of safety of nebulisation.

Italian quality, TÜV Rheinland mark of conformity

Quality you can trust – the Flaem 4Neb inhaler is compliant with EU Regulation 2017/745 for medical devices, and with standards EN 60601-1 and EN 60601-1-11, for the safety and performance of medical equipment. The device is also certified with the TÜV Rheinland conformity mark, an independent third party, guaranteeing an objective opinion.

Simple hygienization

Ease of cleaning is the basis - you can easily disassemble the nebulizer and accessories,a thanks to high quality and made of exactly tested and durable materials you can not only sanitize,but also disinfect the set for three ways,for example, cooking nebulizer and accessories 10 minutes in demineralized or distilled water.

High-quality air filter

The protective barrier both for the user i for the same equipment is the filter with high efficiencyści,which thanks to its structure and high density effectively purifies the air from the room sucked by the compressor,guaranteeing safe inhalation with clean air,without inhalation of impurities, dust and pyłków.

Technical parameters:

Parameters certified by TÜV - YES

Air flow - 9l/min

Nebulisation/administration rate - from 0,23ml/min to 0,53ml/min

MMAD by. EN13544-1- from 2,49μm to 7,71 μm

Respirable fraction < 5 μm (FPF)% - up to 83,1%

Operating mode - continuous

Volume - 55 dB

Operating pressure from the nebulizer - 0,65 bar

Maximum pressure - 1.8 ± 0.3 bar

Minimum administered volume - 2 ml

Maximum administered volume of the drug - 8 ml

Dimensions – 15 x 21 x 11 cm

Weight - 1300g

Power Supply - Network, 230V ~ 50Hz 130VA

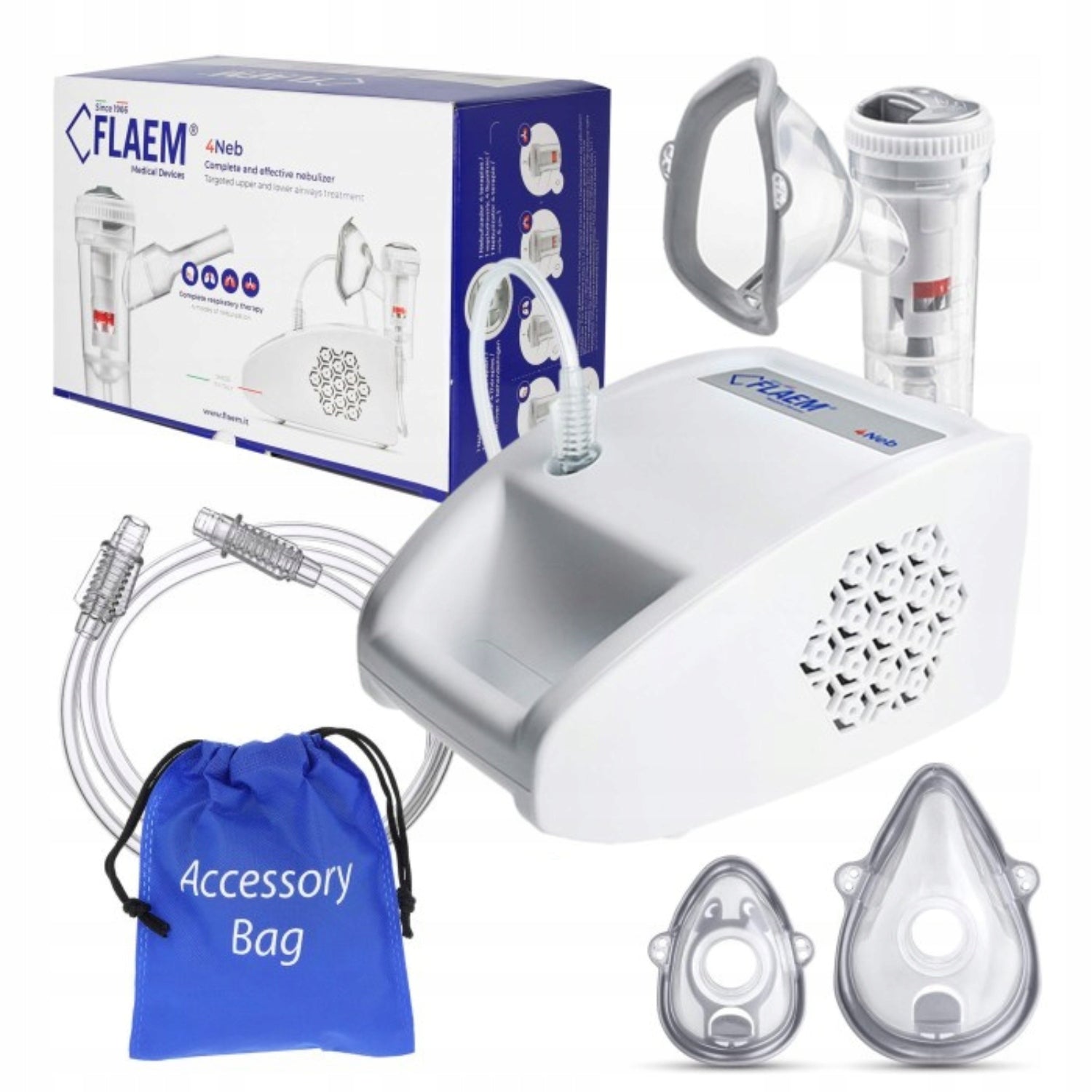

Set Composition:

Compressor

Air hose

RF9 nebuliser

Mouthpiece with valve

Soft Touch mask large

Mask Soft Touch small

Air filter

Bag for accessories

Instructions

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	FLAEM
Parametry	Medical device	yes
Parametry	Medical device type	medical device or in-vitro diagnostic medical device
Parametry	Manufacturer of a medical device	Flaem Nouova S.p.A.
Parametry	Kind	pneumatic (piston)
Parametry	Color	white
Parametry	Operating mode	continuous
Parametry	Power supply	mains
Parametry	Inhalation rate	0.23 ml/min
Parametry	Average MMAD particle size	2.49 µm
Parametry	Medication container capacity	8 ml
Parametry	Noise level	55 dB
Parametry	Airflow	1–8 l/min
Parametry	Product width	8.27 cm
Parametry	Product height	4.33 cm
Parametry	Product depth	5.9 cm
Parametry	Respirable fraction	83.1%
Parametry	Residual value	0.7 ml
Parametry	Product weight	150 g
Parametry	Product weight with unit packaging	1.8 kg
Parametry	Manufacturer code	4NEB
Parametry	EAN (GTIN)	8018294014674
Parametry	Model	4NEB
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
Parametry	Set components	air filter,mask for adults,mask for children,nebulizer (atomizer),air hose
