Inhaliatorius-nebuliatorius ECONStellation su termometru ir druskos pakuote

Trumpai apie prekę

Prekė: Inhaliatorius-nebuliatorius ECONStellation su termometru ir druskos pakuote. Kategorija: Inhaliatoriai.

• Gamintojas: Diagnostic
• Modelis: ECONSTELLATION
• Spalva: white

The subject of sale is:

Compact piston inhaler, designed for continuous operation.

FREE OF CHARGE:

• 5 ampoules of saline

Diagnostic Econstellation Plus is an improved version of the proven ordinary Econstellation. The new model received a stronger housing and a modern look. It is a medical device designed for continuous operation. Ideal for fighting colds, runny nose, troublesome cough, allergies, inflammation of the respiratory tract.

The Diagnostic Econstellation Plus inhaler has been developed to treat asthma, allergies and other respiratory conditions. The device produces an air stream guided through a sterile tube to the nebulizer. When air enters the nebulizer, the medical preparation is sprayed, creating an easy-to-inhale mist.

The device is equipped with an innovative nebulizer with adjustable particle size, spray speed and the ability to work in tilt.

Comparison of the speed of the nebuliser

Nebulizer plug closed:

Negulized quantity: 0,16 ml/min

inhaled quantity: 0,05 ml/min

Nebulizer plug open:

Nebulised quantity: 0,35 ml/min

inhaled quantity: 0,11 ml/min

Advantages of the inhaler:

• super-efficient piston compressor
• designed for continuous operation
• equipped with an innovative nebulizer with particle size adjustment and the ability to work in tilt
• special impact-resistant design
• oil-resistant, the material used is resistant to oily substances
• rich equipment: mask for children and adults nasal forks large and small, mouthpiece, air filter
• ideal for fighting colds, runny nose, troublesome cough, allergies, bronchitis, bronchiolitis, pneumonia.

Upper respiratory tract therapy:

Use the blue aerodynamic fitting without using the particle selector (MMAD - 8,00 µm)

Main indications: sinusitis, pharyngitis, tonsillitis, laryngitis, allergies

Middle respiratory tract therapy:

Use blue particle selector and blue aerodynamic shape (MMAD - 5,44 µm)

Main indications: bronchitis, tracheitis, allergies

Lower respiratory tract therapy:

Use white particle selector and white aerodynamic shape (MMAD - 4,02 µm)

Main indications: asthma, bronchiolitis, pneumonia, aletrgie

Technical data:

• weight about 1,9 kg
• operating conditions temperature: 10°C÷40°C, humidity: 30÷75%
• temperature storage: -40°C÷70°C, humidity: 10÷100%
• working pressure about 0,7 bar, 10 psi
• Spray speed 0,35ml/min with the cap open
• Spray speed 0,16 ml/min with cap closed
• regulation of spraying in the sprayer
• particle size 4,02 / 5,44 / 8,00 µm
• Respirable fraction 36 / 50 / 64 % respectively
• working time for continuous operation
• 5 ml medicine container
• noise level about 65 dB at a distance of 1m

WE ARE AN AUTHORIZED SERVICE POINT OF DIAGNOSIS

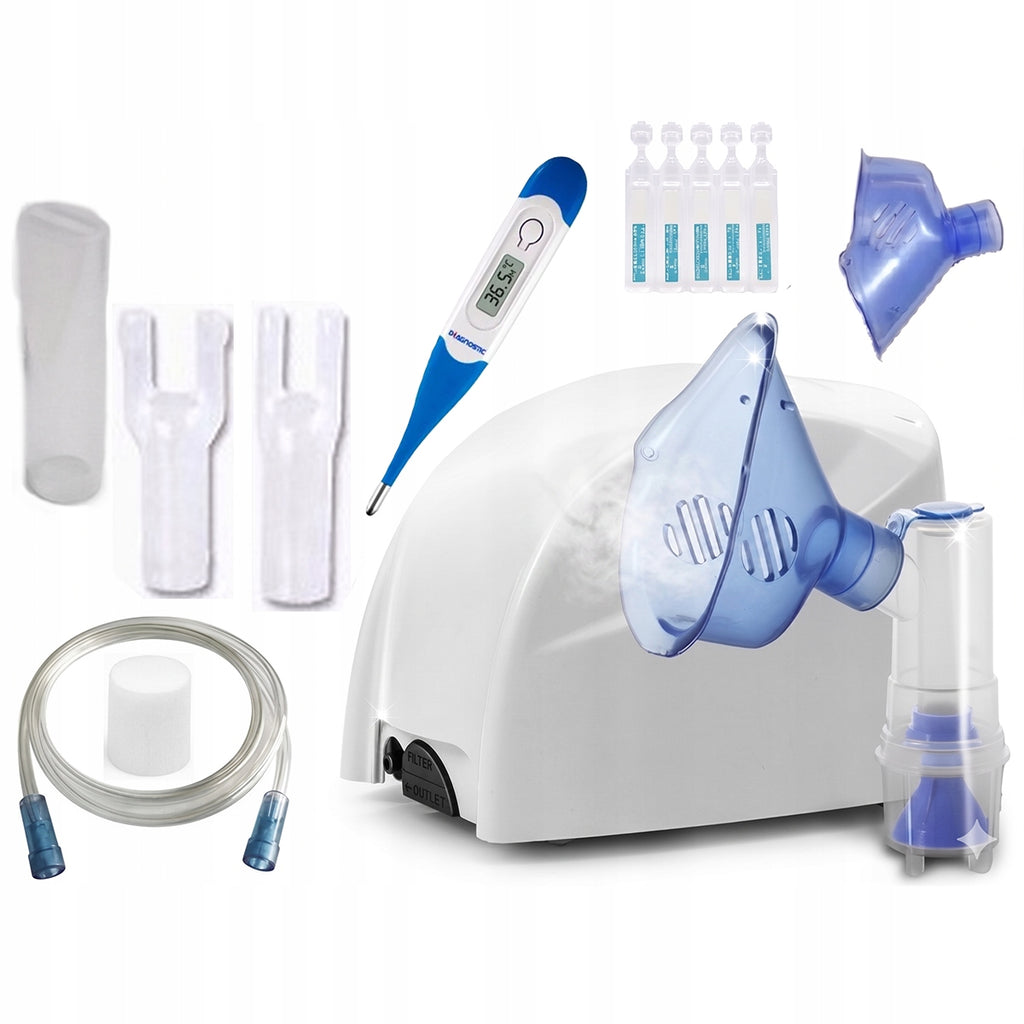

Included:

• Diagnostic Econstellation Plus inhaler
• Mask for children and adults (large and small)
• Air hose
• Additional 5 ampoules of saline
• Nebulizer with particle size regulation
• Mouthpiece
• Nasal tip small and large
• Spare air filter
• Detailed instruction manual in Polish

* The color in the pictures may be slightly different from the color in reality.
