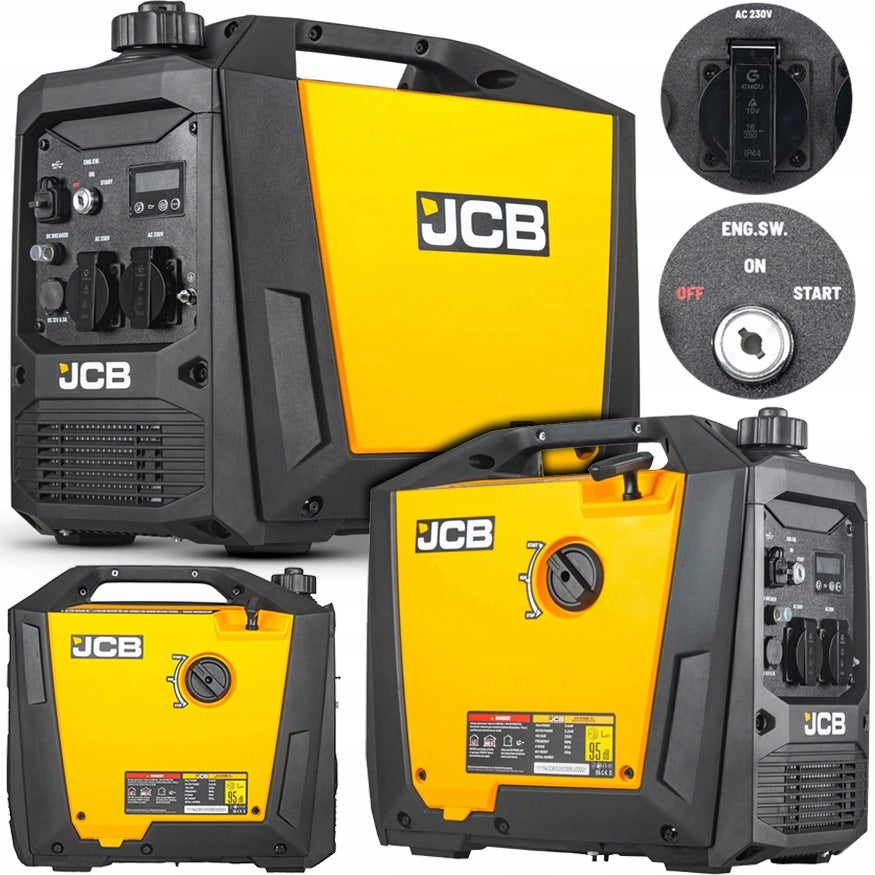

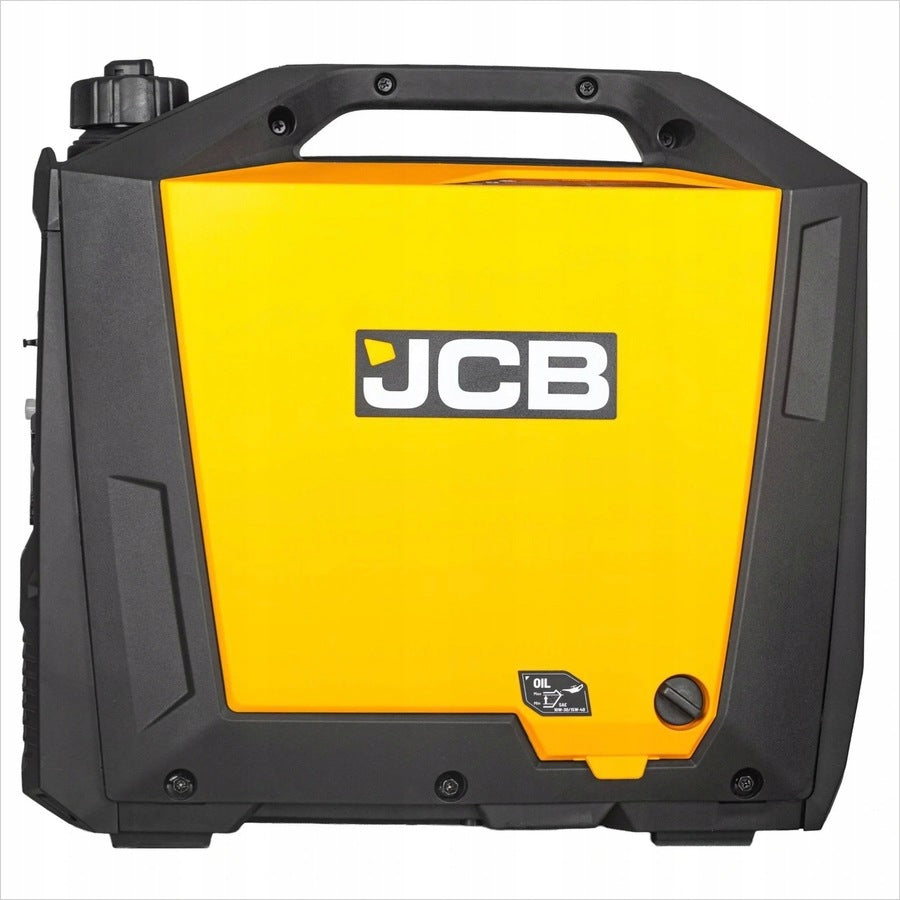

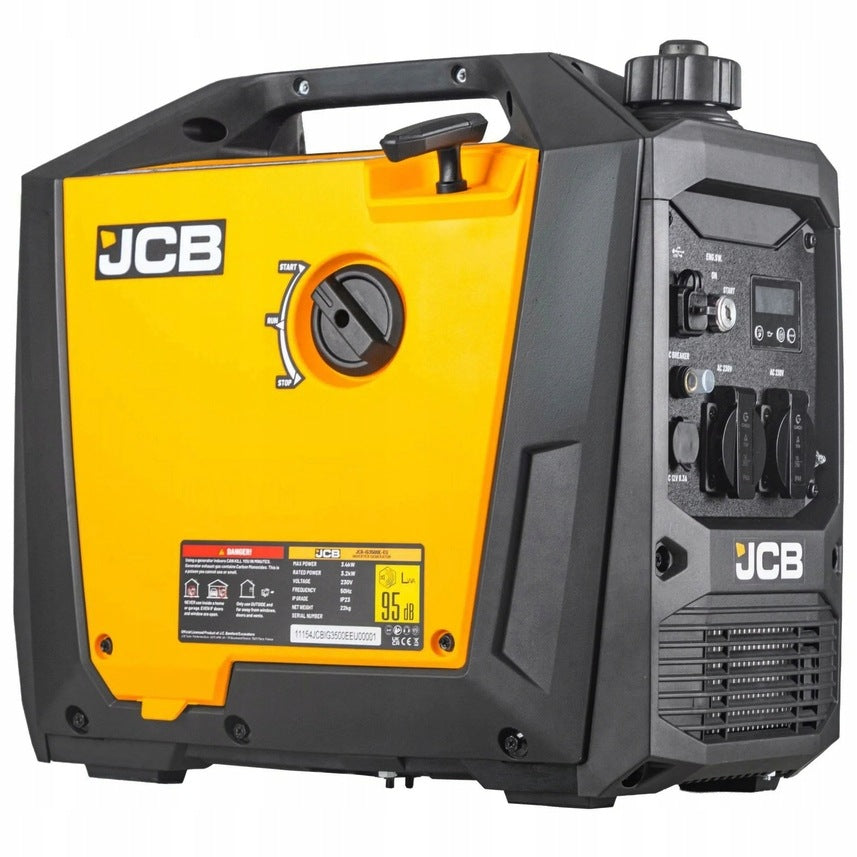

Inverterinis elektros generatorius JCB IG3500, 3,2 kW, 230 V

Trumpai apie prekę

Prekė: Inverterinis elektros generatorius JCB IG3500, 3,2 kW, 230 V. Kategorija: Elektros generatoriai.

• Gamintojas: JCB
• Modelis: IG3500E
• Įtampa: 230 V

JCB IG3500E-EU

JCB IG3500E-EU is a compact inverter unit with continuous power 3200 W and peak power of 3400 W, designed to power single-phase devices 230 V.

It combines high efficiency with small dimensions and weight of only 22 kg, making it well suited both as an emergency power source and a mobile generator for field operation.

Inverter technology provides a more stable voltage than in classic designs with simple AVR regulation, which is important when powering electronics, controllers, measuring devices and equipment requiring good quality current. The Aggregate is also equipped with ECO mode, which adjusts the engine speed to the current load and reduces unnecessary fuel consumption.

The model offers two ways of starting: electric E-Start with a key and manual start, so that operation is convenient, and in the event of battery discharge, the device can still be started classically.

• Continuous power 3200 W – suitable for powering many home, workshop and field equipment
• 3400 W peak power – additional stock at temporary load spikes
• Inverter technology – more stable voltage for more demanding receivers
• Voltage 230 V – full compatibility with popular single-phase devices
• E-Start with key – quick and convenient start-up
• Manual start – additional possibility of starting in an emergency
• ECO mode – automatic adjustment of engine speed to load
• 2 sockets 230 V 16 A – possibility of powering several devices
• 12 V DC output and USB port – additional options for connecting receivers
• Low oil level indicator – protection of the engine against operation with insufficient lubrication
• Overload protection with AC Reset – protection of outputs under too much load
• Suppressor with spark protection – increased safety at work
• Weight only 22 kg – more convenient handling and transport

INVERTER TECHNOLOGY – STABLE POWER SUPPLY:

The JCB IG3500E aggregate uses an inverter system that electronically processes the generated current and stabilizes the output voltage.

Thanks to this, the generator can be used not only for classic power tools and lighting, but also for powering more sensitive electronic devices.

This is especially important when working with:

• consumer electronics
• measuring devices
• controllers
• computer equipment
• automation
• chargers and power supplies

Inverter technology makes the generator a much more versatile power source than basic generators with a traditional design.

E-START AND MANUAL START:

The device is equipped with an E-Start electric start, which allows you to start the engine with a key.

This is a convenient solution especially with frequent use, when there is no need to use the starter cable every time.

At the same time, a classic manual start-up has been left, which can be used emergency, e.g. in case of battery discharge.

ECO MODE – LOWER FUEL CONSUMPTION:

ECO mode adjusts the engine speed to the current load.

With less energy demand, the engine can run at lower speeds, reducing fuel consumption and reducing the load on the power unit.

This is especially practical when powering devices whose power consumption changes over time.

TECHNICAL DATA:

• Producer: JCB
• Model: IG3500E-EU
• Reference: JCB-IG3500E-EU
• Type: inverter aggregate
• Continuous power: 3200 W
• Peak power: 3400 W
• Rated voltage: 230 V
• Frequency: 50 Hz
• Rated current: 13,9 A
• AC sockets: 2 × 230 V 16 A
• DC Output: 12 V
• USB port: yes
• Engine: 4-stroke OHV, 1-cylinder, air-cooled
• Engine capacity: 149,3 cm³
• Engine speed: 4800 rpm /min
• Ignition system: TCI
• Spark plug: A5RTC
• Candle gap: 0,7 – 0,8 mm
• Starting: electric E-Start + manual
• Fuel: unleaded petrol
• Fuel tank capacity: 5 l
• Recommended oil: SAE 10W30
• Oil system capacity: 0,4 l
• ECO mode: yes
• Overload Protection / AC Reset: yes
• Low oil level indicator: yes
• Silencer with spark protection: yes
• Sound power level LwA: 93,6 dB(A)
• Dimensions: 480 × 305 × 440 mm
• Net weight: 22 kg

COMPACT DESIGN AND MOBILITY:

With a continuous power of 3,2 kW, the unit weighs only 22 kg and its dimensions are 480 × 305 × 440 mm.

This makes it easier to transport, store and move between workplaces. This is especially useful on construction sites, plots, during trips or wherever the unit is to be transported regularly.

WHY CHOOSE JCB IG3500E:

JCB IG3500E-EU combines several features that are most important in everyday use of the unit: continuous power of 3200 W, inverter technology, convenient E-Start, ECO mode and compact design.

Two 230 V sockets, 12 V output and USB increase the possibilities of connecting receivers, while overload protection and oil level control help protect the device during operation.

It is a universal unit for the user who needs a mobile source of stable power supply of 230 V, but does not want to give up the convenience of electric start-up and economical mode of operation.
