Inverterinis generatorius Barracuda 10000 SILENT, 10 kW, 400 V

Trumpai apie prekę

Prekė: Inverterinis generatorius Barracuda 10000 SILENT, 10 kW, 400 V. Kategorija: Elektros generatoriai.

• Gamintojas: Barracuda
• Modelis: KM14000iE
• Įtampa: 400 V

______________________________________

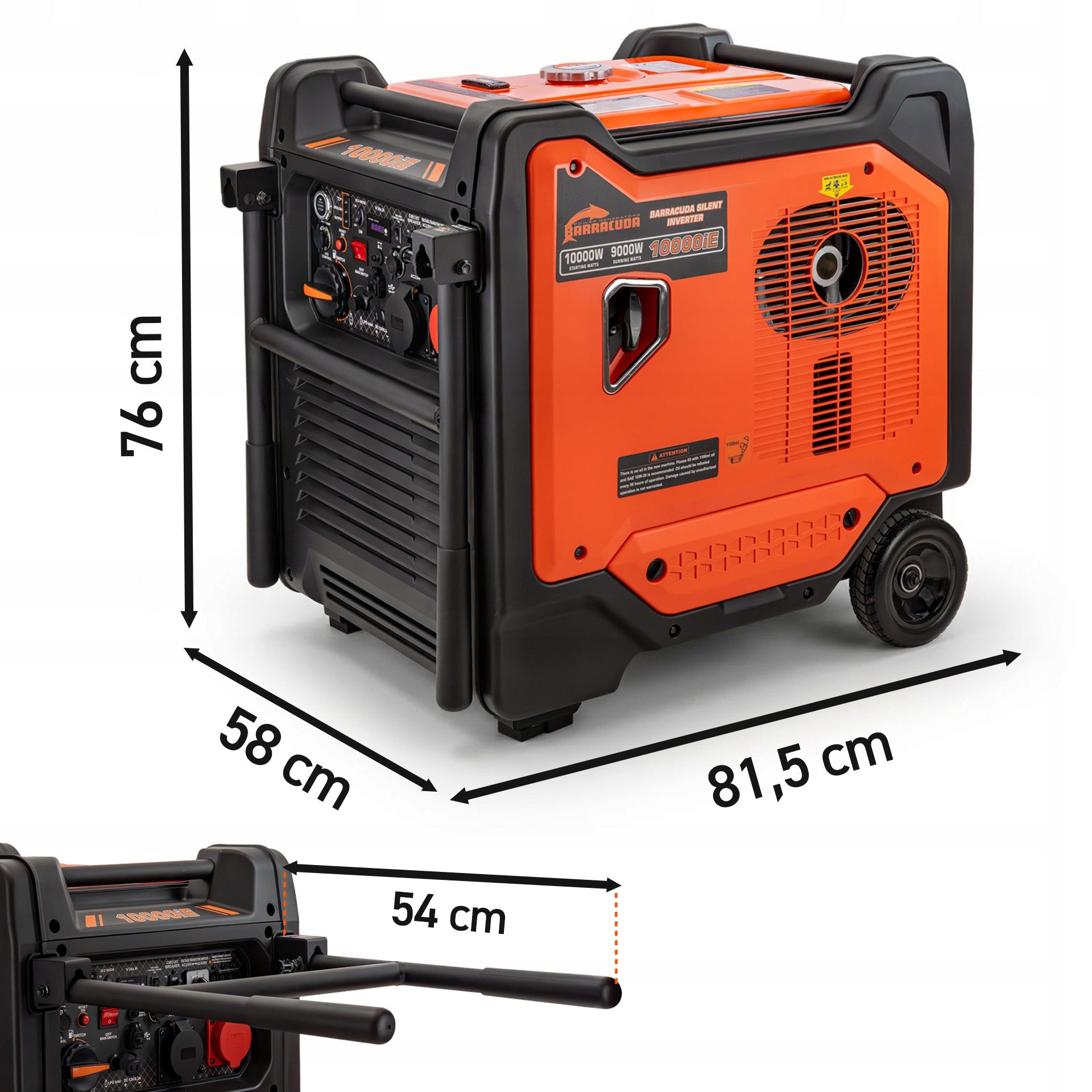

BARRACUDA 10000 SILENT INVERTER

The Barracuda 10000iE SILENT inverter unit is a portable, three-phase power generator in a muted, durable housing. It is irreplaceable in emergency situations during an interruption in the supply of energy and wherever there is no access to the electricity network. An important element of the generator is the inverter, which allows you to power all electrical devices, even the most sensitive to voltage spikes. Provides a stable output voltage of 400V 50Hz, guaranteeing reliable operation of sensitive electronics. The 10000iE inverter unit allows you to generate maximum power at the level of 10kW (12,5kVA), and the constant power that can be loaded is 9kW (11,25 kVA).

______________________________________

Barracuda inverter generators are equipped with AVR INVERTER - the module provides a stable output voltage of 400V 50Hz , ensuring reliable operation of sensitive electronics.

AVR INVERTER technology allows you to power all electrical devices, even those most sensitive to current parameters.

Barracuda inverter generators are used for emergency power supply of electrical devices in:

• home
• office
• campers
• mobile workshops
• boats
• industrial equipment
• medical devices

______________________________________

It allows you to obtain 100% power on a 400V socket and 80% on a 230V socket - the solution used allows you to use the generator both on construction sites and in the household. DOUBLE POWER technology enables the connection of high-power (400V) and single-phase (230V) devices .

The BARRACUDA generator is ideal as a temporary power supply on construction sites to power concrete mixers, welding machines, grinders and many other devices.

In the household for emergency power supply of electronics and household appliances, as well as on a farm for operating fans, milking machines, water pumps, etc.

In most three-phase generators, the power at the 230V socket is only 30%. BARRACUDA 10000 INVERTER offers up to 80% power , which allows you to power high-power single-phase devices such as pumps, compressors, power tools and household appliances. This is a real technological advantage that translates into greater flexibility and comfort of use.

______________________________________

• 230V Socket
• 400V Socket
• 12V DC Socket / 8.3A
• ATS Socket (Automatic Transfer Switch)
• Built-in digital meter (Voltage, Frequency, Hour Meter)
• USB A+C Socket
• Dry Contact Socket - REMOTE START
• Module indicating low oil, overload, and generator status
• ECO MODE Intelligent Engine Control
• LPG Socket
• START STOP Button

______________________________________

• Engine Power (HP): **20 HP**
• Engine Power (kW): **15 kW**
• Maximum Power (400V): **12.5 kVA (10 kW)**
• Rated Power (400V): **11.25 kVA (9 kW)**
• Maximum Power (Enhanced 230V Phase): **10 kVA (8 kW)**
• Rated Power (Enhanced 230V Phase): **8.75 kVA (7 kW)**
• Engine Noise Level: **only 67dB (A) / 7m**
• Output Voltage: **230V/400V, 50 Hz, 12v**
• Tank Capacity: **33 L**
• Fuel: Gasoline => **95 octane**
• Fuel: **LPG**
• Weight: **120 kg**
• Alternator Winding: **Copper**
• **Automatic shutdown in case of low oil**
• The generator has an electronic **AVR INVERTER voltage regulator**

______________________________________

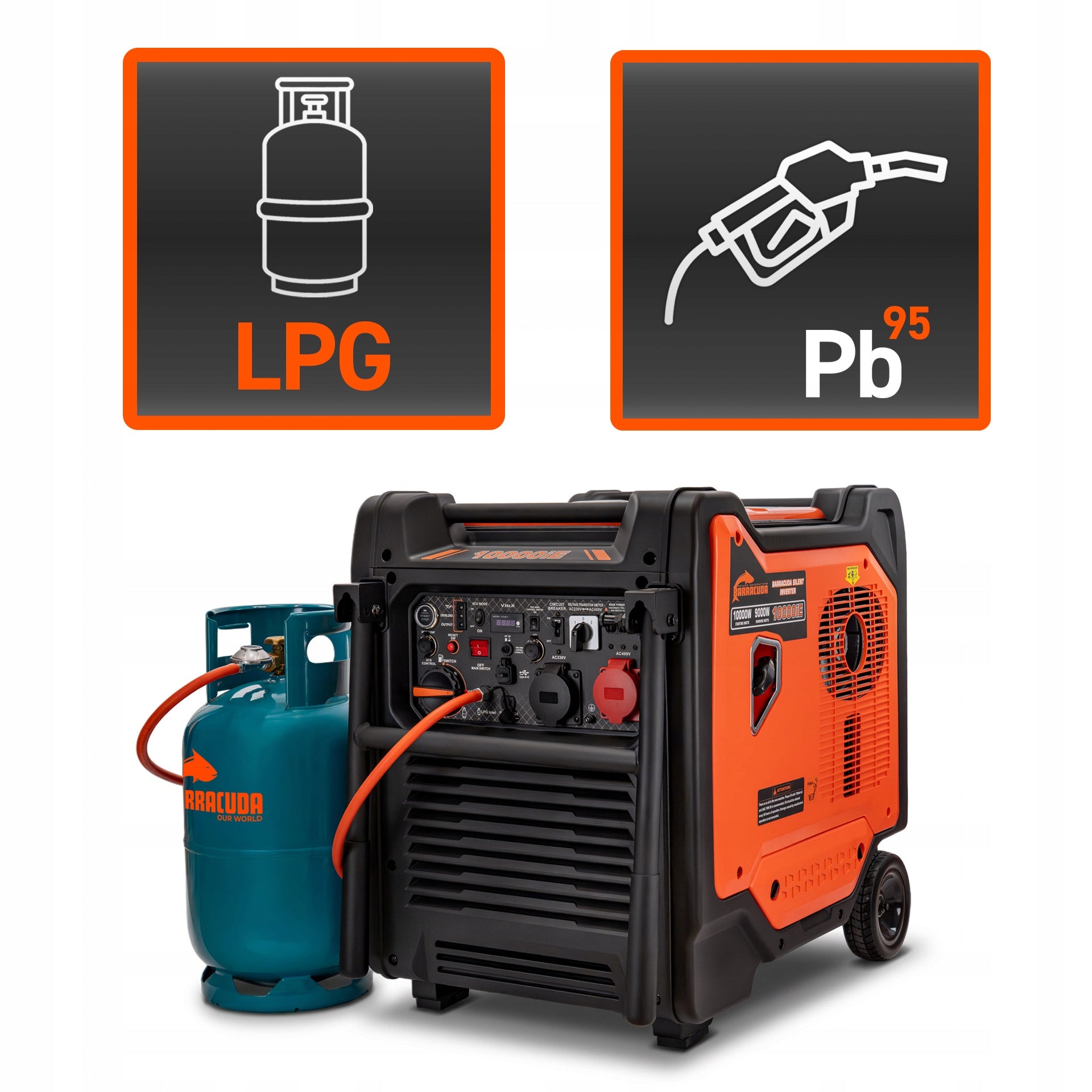

Barracuda 10000 Silent inverter generator runs on both petrol and gas (propane-butane).

The kit includes everything you need to use gas as fuel:

• Built-in reducer that ensures gas supply while the engine is running and protects against gas leakage, and also stops the gas supply when the generator is turned off.
• A 1m gas cylinder connection hose ensures a convenient connection - FREE!
• An additional reducer on the hose that increases the reliability of the gas connection, reduces the pressure level and eliminates the possibility of overloading the gas connection - FREE!

All you need to do is connect the generator to the cylinder and start the engine.

* note - the gas cylinder is not included in the set

______________________________________

• mute housing
• AVR inverter technology
• maximum power 10 kW
• gasoline engine 20 HP
• Electric start
• digit display - displaying V, Hz, H
• 230V socket
• 400V socket
• output 12V
• 2 USB ports
• remote start - the ability to remotely start the unit through an inverter from an energy bank to recharge the batteries
• durable housing
• copper winding of generator
• automatic shutdown in case of small amount of oil
• fuel tank with a capacity of 10 litres with quantity indicator
• ECO MODE Intelligent motor control

______________________________________

The generator has an ECO MODE operating mode that monitors the engine speed depending on the connected load, optimizes fuel consumption and reduces noise levels.

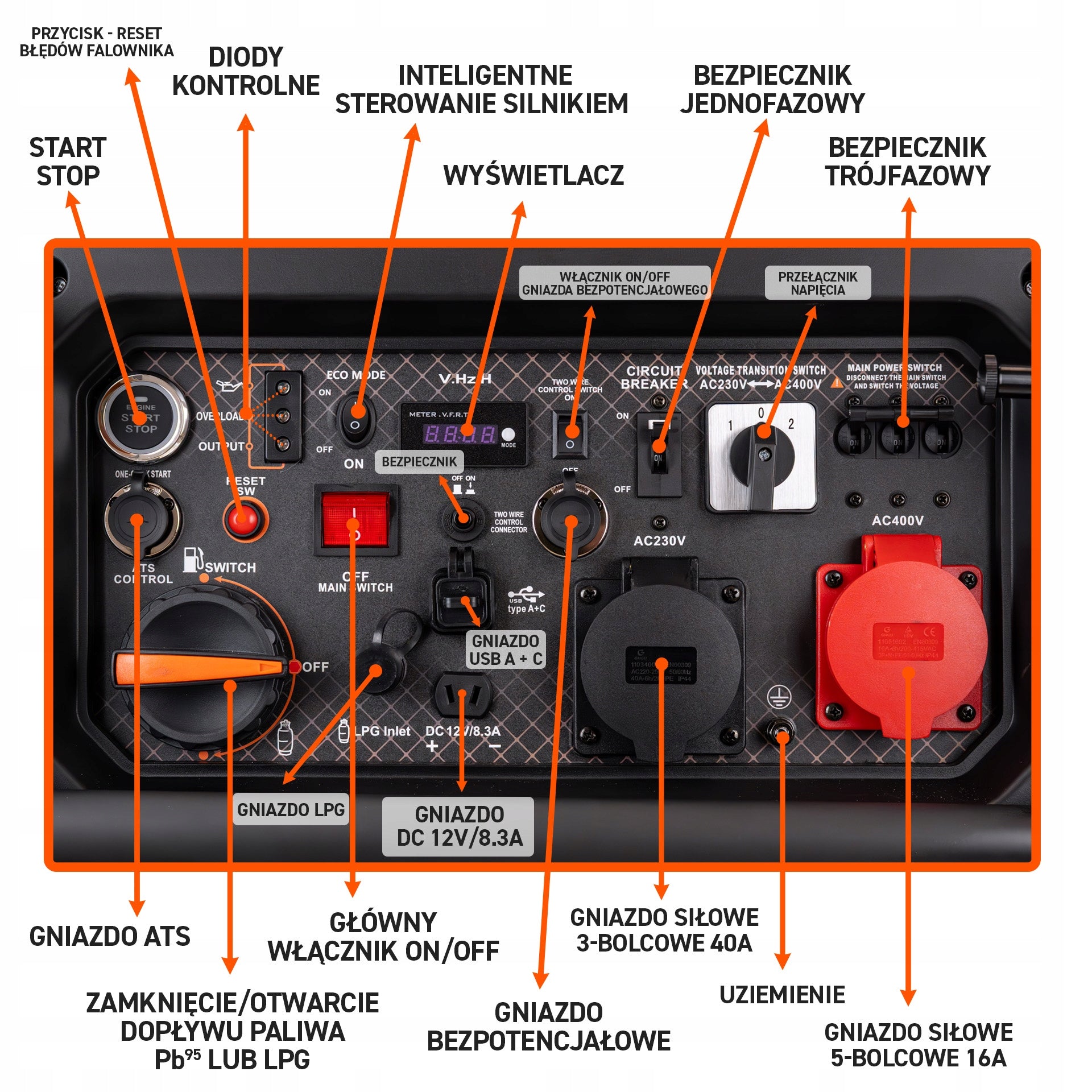

The control panel includes a 230V and 400V socket, 2 USB ports, and a digital counter displaying voltage, frequency and operating hours.

For safety reasons , the unit is equipped with an automatic shutdown when the oil level is low , and the fuel tank is equipped with a fuel level indicator, which facilitates control and ensures safe use.

The 10000iE has a solid and durable soundproof housing that effectively protects against damage.

The unit is equipped with a powerful and durable 20 HP petrol engine , which is resistant to overloads, ensuring reliable operation.

The generator engine is easily started using the START STOP button, remote start (REMOTE START connector or remote control), or manual start.

The generator winding is made entirely of copper, which allows for better efficiency.

______________________________________

The generator used is made of 100% copper . Allows for continuous load of the generator up to 10kW (12.5kVA).

The AVR INVERTER voltage module used provides a stable output voltage of 400V 50Hz , ensuring reliable operation of sensitive electronics.

AVR INVERTER technology allows you to power all electrical devices, even those most sensitive to current parameters m.in : such as:

• computer
• laptop
• five
• refrigerator
• TV
• Radio etc.

______________________________________

This function is typical of modern inverter generators and is very useful for light loads (chargers, lighting, electronics).

In Barracuda 10000iE inverter generator, the ECO MODE is responsible for automatically reducing the engine speed when the load is low - thanks to this, the generator uses less fuel, runs more quietly and wears out less.

Fuel Saver Mode reduces fuel consumption by up to 50% at low loads by reducing engine speed.

______________________________________

Ability to remotely start the generator, for example, via an inverter from a power bank to recharge batteries.

______________________________________

The soundproofed **casing ensures minimal noise levels (67 dB Lpa 7 m), comfortable use, and convenient transport.**

______________________________________

Specifications:

• Brand: **Venol**
• Engine Type: **Gasoline**
• Oil Type: **Semi-synthetic**
• Winter Viscosity Grade: **10W**
• Summer Viscosity Grade: **40**
• Capacity: **1 L**

Application:

**Semi-synthetic engine oil** formulated with a special blend of base oils using unique **ACTIVE POWER technology**. Designed for lubricating the latest gasoline and diesel engines with turbocharging and pump-injector technology. Thanks to the unique ACTIVE POWER technology, it **ensures maximum engine power**. It facilitates cold engine starts and **protects it perfectly against wear in both low and high temperatures**. It keeps the engine perfectly clean, extends oil change intervals, and **significantly reduces fuel consumption**. It is mixable with other branded engine oils.

______________________________________

The connection kit includes all necessary components for easily connecting a gas cylinder to the device, ensuring a leak-proof connection between the gas appliance and the cylinder. It is suitable for use with camping equipment, gas grills, gas stoves, and other appliances requiring a gas connection.

The hose consists of 3 layers:

• Inner rubber layer providing excellent seal.
• Polyester reinforcing layer providing high tensile strength.
• Layer made of special components ensuring the hose's resistance to high temperatures.

The set includes:

• 1m Hose
• Gas Regulator
• 2 x 10-16mm Hose Clamps

______________________________________

• Barracuda 10000iE generator
• 230V plug
• 400V plug
• 12V power cables
• funnel
• cable to a potential-free socket (REMOTE START)
• Remote control START STOP
• spark plug wrench and double-ended screwdriver
• 1L oil FREE!
• 1m gas cylinder connection hose FREE!
• additional reducer on the hose for FREE!

* note - the gas cylinder is not included in the set
