Inverterinis generatorius HEXWELT, 3200W, 230V, 210cc, 10L, benzininis

Trumpai apie prekę

Prekė: Inverterinis generatorius HEXWELT, 3200W, 230V, 210cc, 10L, benzininis. Kategorija: Elektros generatoriai.

• Gamintojas: HEXWELT
• Modelis: HW-API-3500i

Works in the workshop, renovation, plot, going outside the city or a place without access to the electricity grid?

With the HEXWELT HW-API-3500i you can prepare your own energy source and use properly selected electrical devices where there is no constant power supply.

The model combines inverter technology, nominal power of 3000 W, four-stroke engine 210 cm³ and a practical panel with 230 V, USB, USB-C sockets and DC 12 V output.

This is a proposal for people who are looking for a functional unit with specific parameters, with easy access to operating elements and equipment needed to prepare the device for work.

Technical parameters of HEXWELT HW-API-3500i

• Parameter: Value
• Brand: HEXWELT
• Model: HW-API-3500i
• Type: Inverter petrol generator set
• Maximum power: 3200 W
• Nominal power: 3000 W
• Voltage: 230 V
• Frequency: 50 Hz
• Engine: BS170F, four stroke OHV
• Engine capacity: 210 cm³
• Engine power: 7 hp / 5,18 kW
• Fuel tank capacity: 10 l
• Declared working time: 5,5 h on a full tank, without specific load
• Startup: Manual
• AC sockets: 2 × 230 V
• USB ports: USB, USB-C
• DC output: 12 V / 6 A
• Oil capacity: 0,6 l
• Oils indicated in the audit: 10W30, 10W40, 15W30, 15W40
• Generator winding: copper
• Net weight: 24,9 kg
• Gross weight: 27,2 kg
• Package dimensions: 51 × 46 × 52 cm

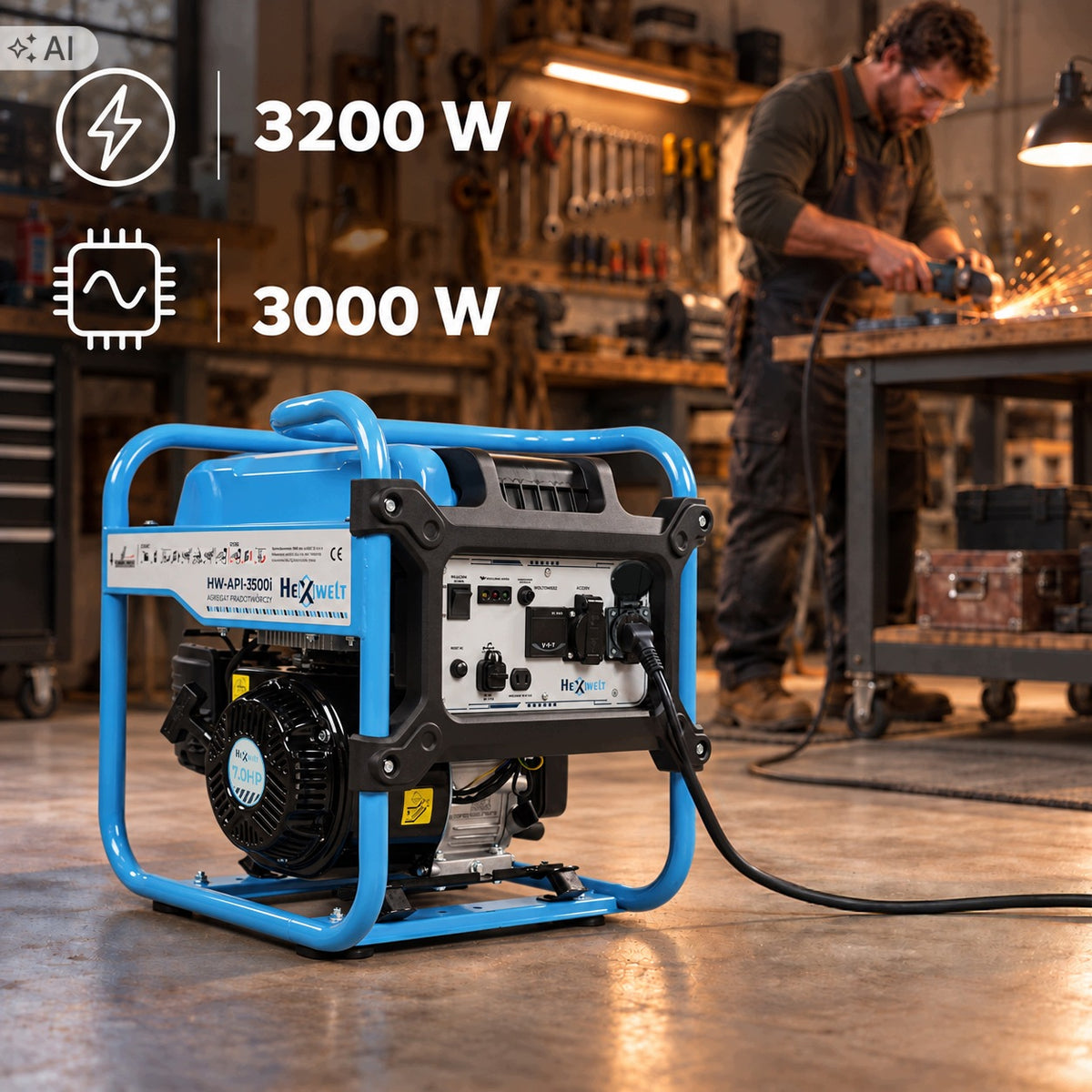

Maximum power of 3200 W – learn about the real possibilities of the unit

3200 W – MAXIMUM POWER

3000 W – NOMINAL POWER

Nominal power of 3000 W is the basic parameter when selecting devices for power supply during normal operation.

The maximum power of 3200 W specifies the upper power level provided for in the device specification.

The unit can power properly selected single-phase receivers, including selected tools, lighting and utility devices.

When selecting receivers, their energy consumption and increased power demand during start-up should be taken into account, especially in the case of devices with electric motors.

You choose a device with a clearly defined power, not just an impressive sounding model name.

Inverter technology – a modern solution for power generation

HEXWELT HW-API-3500i is an inverter aggregate.

The use of inverter technology distinguishes it from classic aggregates without such a system and enables electronic processing of output energy.

This solution is useful when powering devices that require properly selected voltage and frequency.

Output voltage: 230 V

Frequency: 50 Hz

Before connecting particularly sensitive electronic equipment, it is necessary to check its requirements and compliance with the parameters of the aggregate output.

Four stroke engine 210 cm³ – strong construction base

The unit is equipped with a four stroke OHV BS170F engine.

• CAPACITY: 210 cm³
• ENGINE POWER: 7 HP / 5,18 kW

The engine is the engine of the unit and is responsible for driving the system that generates electricity.

The four-stroke OHV design is a solution used in combustion equipment designed for a variety of utility work.

It is worth remembering that the engine power of 7 hp is not the same as the electric power output of the unit, which is 3000 W nominally and 3200 W maximum.

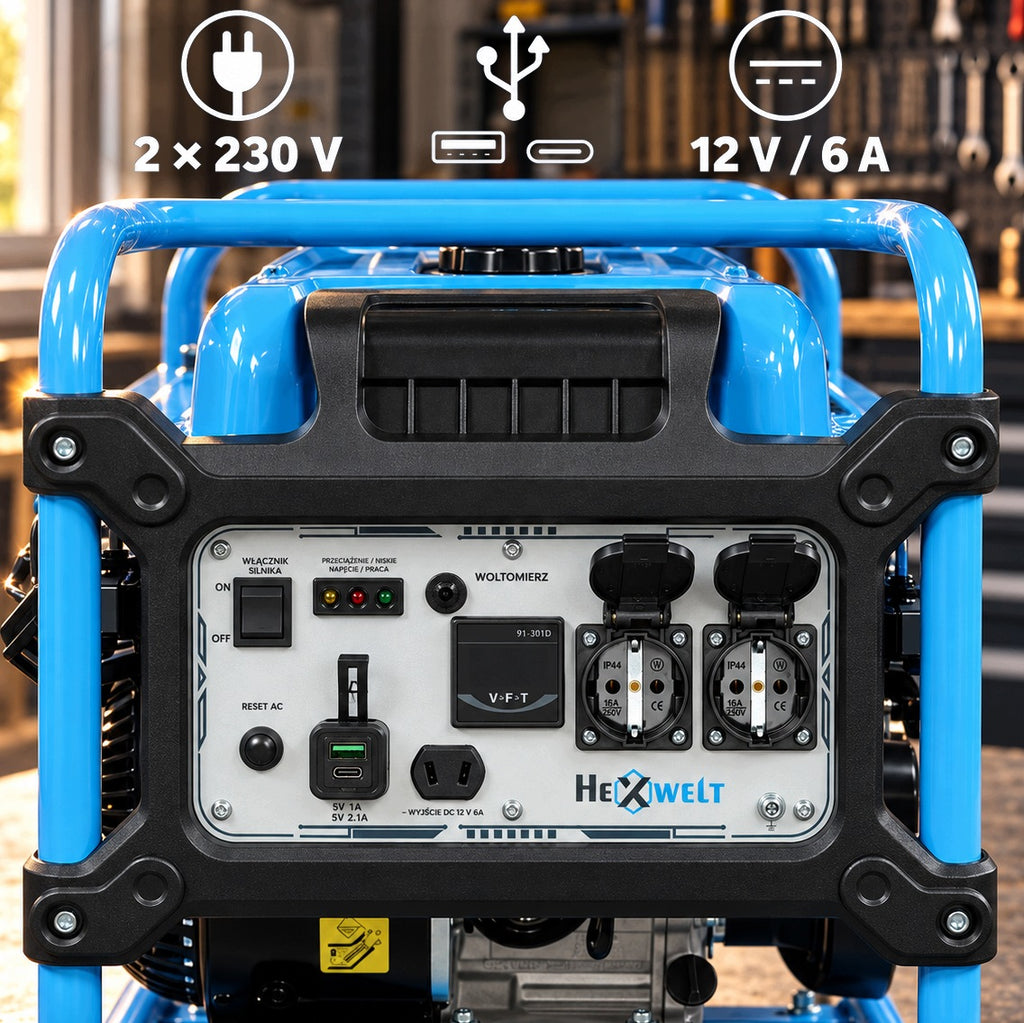

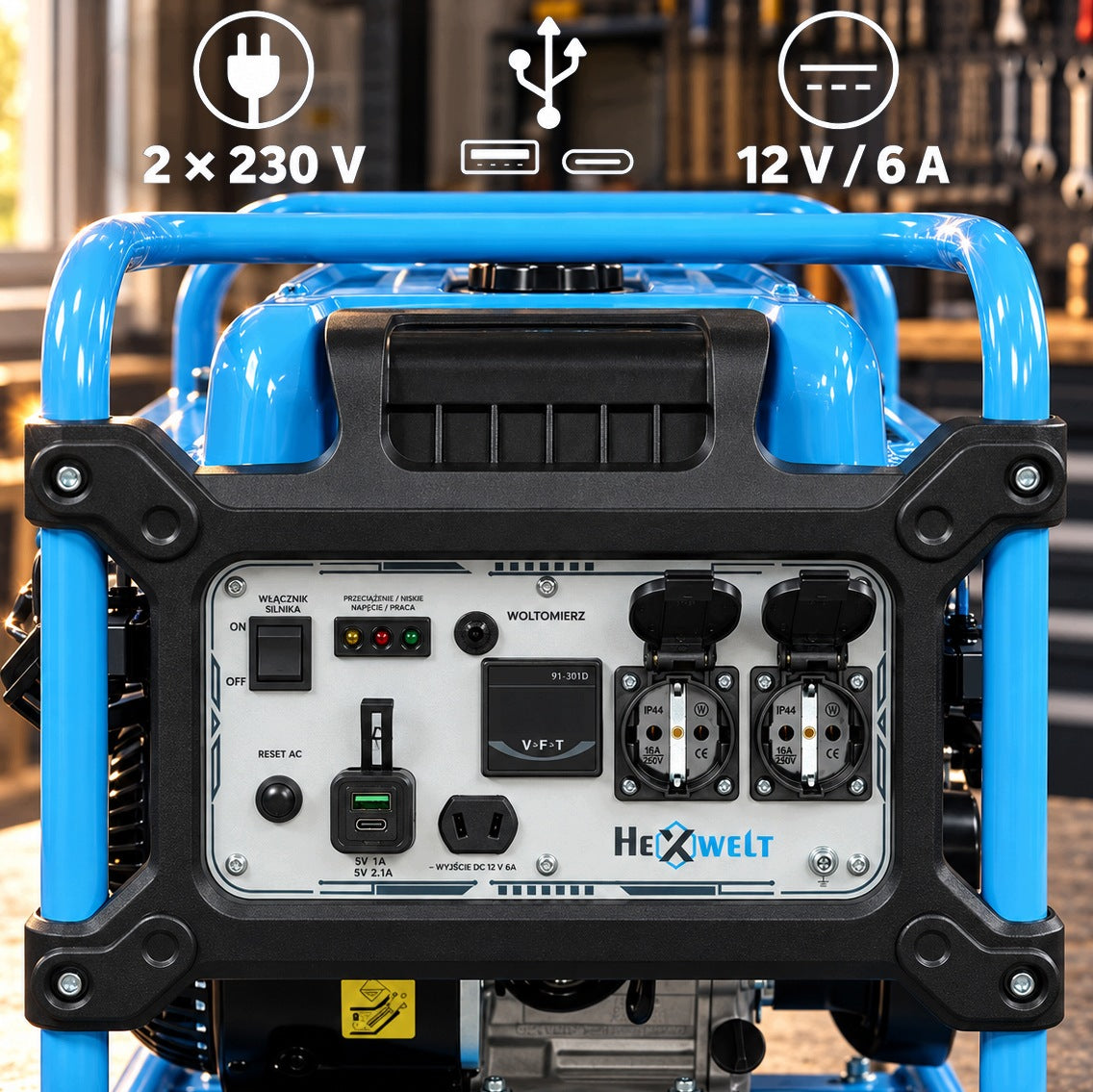

Two 230 V sockets and USB-C – practical power panel

HEXWELT HW-API-3500i offers several types of outputs:

• 2 × AC 230 V socket – for compatible single-phase receivers.
• 1 × USB – for devices that support appropriate USB power supply.
• 1 × USB-C – for devices compliant with port parameters.
• DC output 12 V / 6 A – for the applications provided for this output.

Thanks to this, you can use different ways of power supply, choosing the output to the connected device.

The panel is also equipped with a voltmeter, ON/OFF switch, signal indicator lights and DC circuit protection.

All the most important controls are available on the aggregate panel.

Fuel tank 10 l – more work planning options

TANK CAPACITY: 10 L

• The unit has a fuel tank with a capacity of 10 liters and an indicator of its level.
• This allows you to control the amount of fuel and plan refueling in advance.

Declared working time on a full tank: 5,5 hours.

The actual operating time depends, among other things, on the load of the unit and the conditions of use.

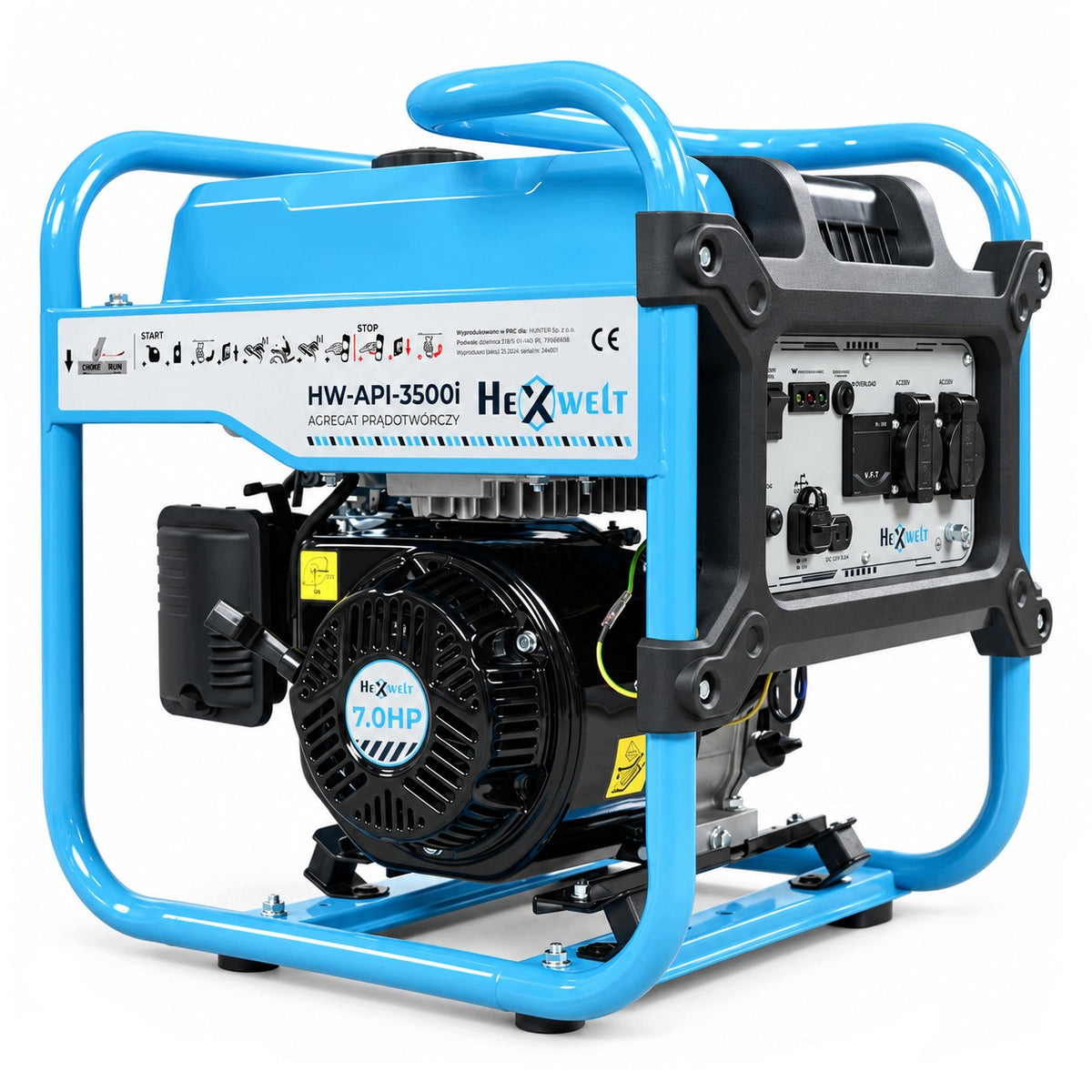

24.9 kg weight – compact design with a transport frame

HEXWELT HW-API-3500i features an open-frame design, providing easy access to the engine, control panel, and maintenance components.

The frame includes handles, making it easy to carry and position the unit exactly where you need it.

This is a practical solution for work around the house, at the allotment, or out in the field.

Please be mindful of the unit's weight when moving it and use safe lifting techniques.

Manual start-up – simple operation of the device

The unit is equipped with a manual starter.

The engine is started using the link mechanism, in accordance with the procedure indicated in the user manual.

The solution does not require a starter battery.

There is also a ON/OFF switch on the panel, and the controls help to observe the operating status of the unit.

Winding generator made of 100% copper

The HEXWELT HW-API-3500i model uses a copper winding of the generator, according to the audit data.

Copper is a material used in the conductive components of electrical machines.

This is an important design detail for buyers who pay attention not only to the power of the unit, but also to the materials used in its construction.

Practical equipment and accessories included

With the aggregate, you get:

• Capacity aggregate HEXWELT HW-API-3500i.
• Instruction manual in 15 languages.
• 2 plugins 230 V.
• 4 anti-vibration pads.
• Key for spark plugs.
• 4 fixing screws with washers and nuts.
• Fuel funnel.

Accessories are equipment provided for the assembly, preparation and basic operation of the unit.

HEXWELT HW-API-3500i – reliable equipment and performance

3200 W peak power, 3000 W rated power, inverter technology, 210 cc engine, 10 L fuel tank, and two 230 V sockets.

Also includes USB and USB-C ports, manual recoil start, copper alternator windings, and included accessories.

Choose a generator with clear specifications that you can verify before purchase to ensure it meets your needs.

Safe operation

This petrol generator must be used outdoors only, in a location with proper ventilation, away from windows, doors, and air vents. Do not use it inside a house, garage, or any other enclosed or partially enclosed space due to the risk of carbon monoxide poisoning.

Connecting the generator to a building's electrical system requires a proper transfer switch and must be performed by a qualified professional.

1. What is the power of the HEXWELT HW-API-3500i?

The unit offers 3200 W maximum power and 3000 W nominal power. When selecting devices, their total power consumption and possible inrush current should be taken into account.

2. Is this an inverter unit?

Yes. The HW-API-3500i uses inverter technology. The output voltage is 230 V and the frequency is 50 Hz. Voltage quality parameters such as THD were not specified in the audit.

3. Can I power my computer, TV or other electronic devices with it?

The unit has an inverter system, but before connecting sensitive electronics, you should check its requirements. The audit documentation does not provide the value of THD, therefore compatibility with all electronic devices cannot be guaranteed.

4. What engine does this unit have?

The four stroke OHV BS170F engine with a capacity of 210 cm³ and a power of 7 hp (5,18 kW) was used. This is the power of the internal combustion engine, not the electrical power at the output of the unit.

5. How many hours does the unit run on one tank?

The audit gives 5,5 hours on a full tank with a capacity of 10 l. However, it does not indicate the load at which this result was obtained. Actual working hours may be different.

6. Does the unit have USB and USB-C ports?

Yes. It is equipped with two 230 V sockets, USB port, USB-C port and DC 12 V / 6 A output. Before connecting the device to USB, check the compatibility of the charging parameters.

7. Is the unit easy to move?

The net weight of the unit is 24,9 kg. The open frame has handles for carrying it. During transport, care should be taken and the weight of the device should be taken into account.

8. How does the unit start?

The HW-API-3500i has a manual start with a link. It is not equipped with an electric start.

9. What oil should I use?

The capacity of the oil system is 0,6 l. The audit lists oils with viscosity 10W30, 10W40, 15W30 and 15W40. The choice of oil should be in accordance with the instruction manual and operating conditions.

10. What is included in the set?

The kit includes a generator, an instruction manual in 15 languages, 2 230 V plugs, 4 anti-vibration washers, a candle wrench, 4 mounting screws with washers and nuts, and a fuel funnel.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Brand	HEXWELT
Parametry	Model	HW-API-3500i
Parametry	Kind	portable
Parametry	Generator type	single-phase
Parametry	Engine	4-stroke
Parametry	Startup	manual
Parametry	Maximum power	3200 W
Parametry	Nominal power of the alternator	3000 W
Parametry	Engine power	7 KM
Parametry	Gasoline tank capacity	10 l
Parametry	Device weight	24.9 kg
Parametry	Fuel type	petrol
Parametry	Frequency	50 Hz
Parametry	Operating time on the tank	5 h
Parametry	Product height	52 cm
Parametry	Product width	52.5 cm
Parametry	Product depth	45.5 cm
Parametry	Additional information	12 V outlet
Parametry	Number of 1-phase outlets	2
Parametry	Number of 3-phase outlets	none
Parametry	Manufacturer code	HW-API-3500i
Parametry	Packaging status	original
