Aprašymas
Trumpai apie prekę

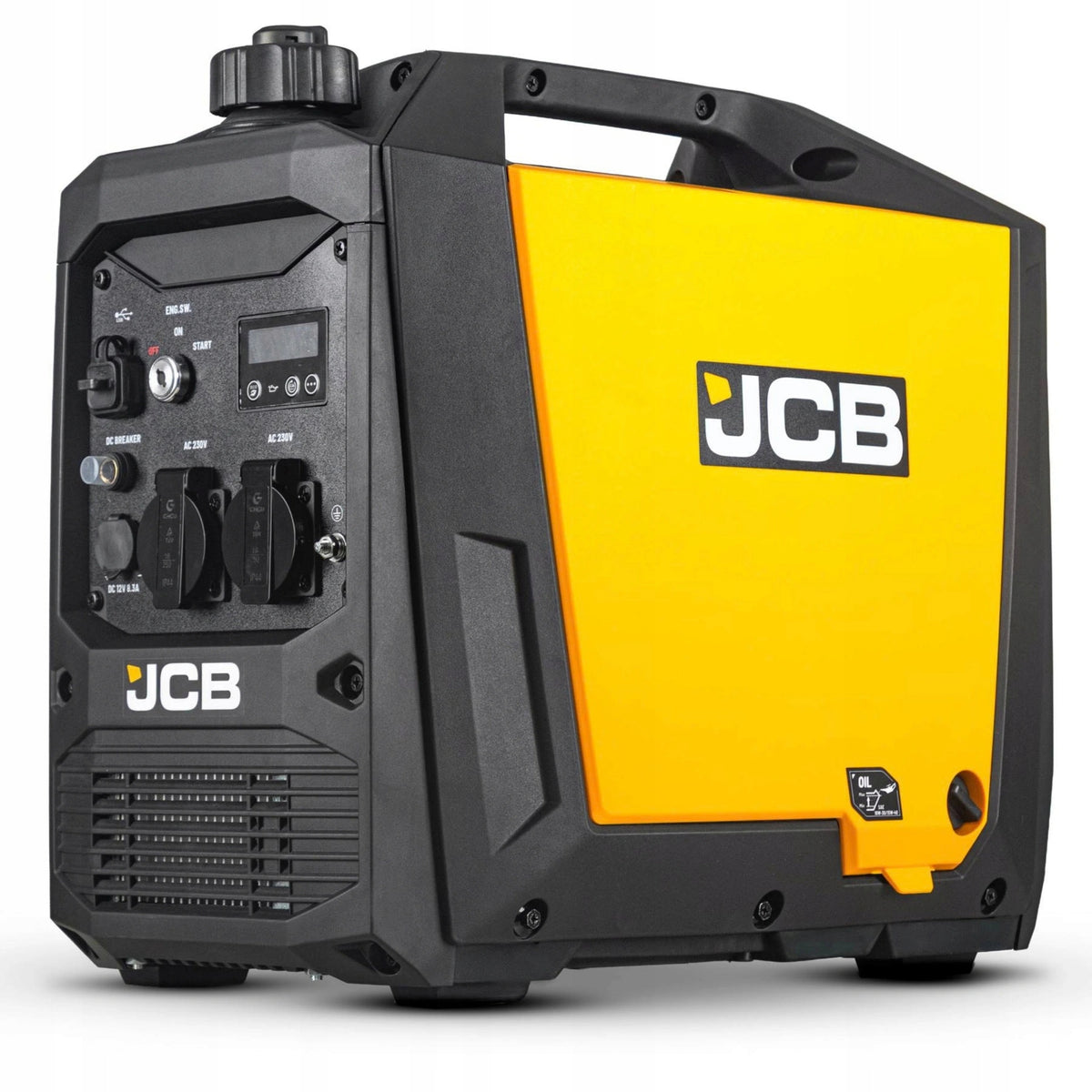

Prekė: Inverterinis generatorius JCB 3,4 kW su elektriniu užvedimu ir USB, namams. Kategorija: Elektros generatoriai.
- Gamintojas: JCB
- Modelis: JCB-IG3500E-EU
Inverter generator set JCB 3,2 kW - power generator for home with E-Start
Inverter generator JCB (JCB-IG3500E-EU) is a 230 V power source with a continuous power of 3200 W and a peak power of 3400 W at a frequency of 50 Hz. It is powered by a four-stroke OHV petrol engine with one air-cooled cylinder with a capacity of 149,3 cm3.
E-Start Electrical Start
The engine is started with a key in the E-Start system, without jerking the cable. The manual starter remains equipped as a backup solution, thanks to which the unit can also be started with a discharged starter battery.
Inverter technology and ECO mode
In the inverter aggregate, the current forms an inverter, not the voltage stabilization itself known from classical aggregates. ECO mode adjusts the engine speed to the current load, so that with less power consumption, the unit runs slower and consumes less fuel. The tank holds 5 L of unleaded petrol.
Technical data
- Continuous power: 3200 W
- Peak power: 3400 W
- Rated voltage: 230 V
- Frequency: 50 Hz
- Rated Current: 13,9 A
- Engine: 4-stroke OHV, single-cylinder, air-cooled
- Engine capacity: 149,3 cm3
- Rotation speed: 5000 rpm /min
- Startup: electric E-Start + manual
- Fuel tank: 5 L
- Oil: SAE 10W30, 0,4 L
- Outputs: 2x AC 230 V 16 A, DC 12 V, USB
- ECO mode: yes
- Net weight: 22 kg
- Dimensions: 480 x 305 x 440 mm
Application
- Emergency power supply for home, CO furnace and basic receivers
- Construction and finishing works with power tools
- Powering electronic equipment and charging devices via USB
- Service and installation out of range of the power grid
- Working lighting, pumps and workshop equipment
Frequently Asked Questions
What is the difference between an inverter unit and a regular one? In a classic aggregate, the current goes straight to the sockets from the alternator, and the voltage stabilizes the AVR system. In the inverter aggregate, the waveform forms an inverter, and the motor can operate at variable speeds in ECO mode.
Is the unit suitable for powering your home? Yes, the continuous power of 3200 W allows you to maintain the basic receivers. Connection to the home installation is made by an electrician with permissions through a network-aggregate switch.
Is the unit single-phase? Yes, the device operates at 230 V and has two AC 16 A sockets.
What oil should I use? The manufacturer provides SAE 10W30 oil in the amount of 0,4 L.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Brand | JCB |
| Parametry | Model | JCB-IG3500E-EU |
| Parametry | Kind | portable |
| Parametry | Generator type | single-phase |
| Parametry | Engine | 4-stroke |
| Parametry | Maximum power | 3400 W |
| Parametry | Nominal power of the alternator | 3400 W |
| Parametry | Gasoline tank capacity | 5 l |
| Parametry | Device weight | 22 kg |
| Parametry | Fuel type | petrol |
| Parametry | Frequency | 50 Hz |
| Parametry | Number of 1-phase outlets | 2 |
| Parametry | European emissions standard | EURO 5 |
| Parametry | Manufacturer code | JCB-IG3500E-EU |
| Parametry | Product weight with unit packaging | 22 kg |
| Parametry | Packaging status | original |
| Parametry | Startup | electric,manual |
| Parametry | Additional information | voltage regulation (AVR),12 V outlet |
