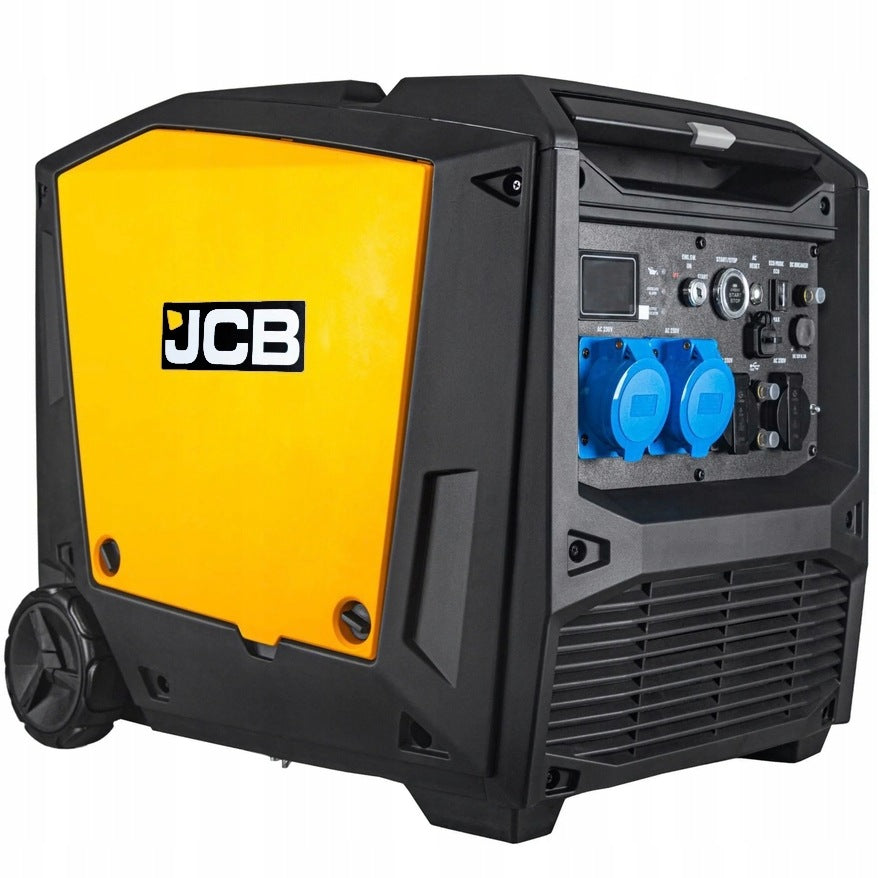

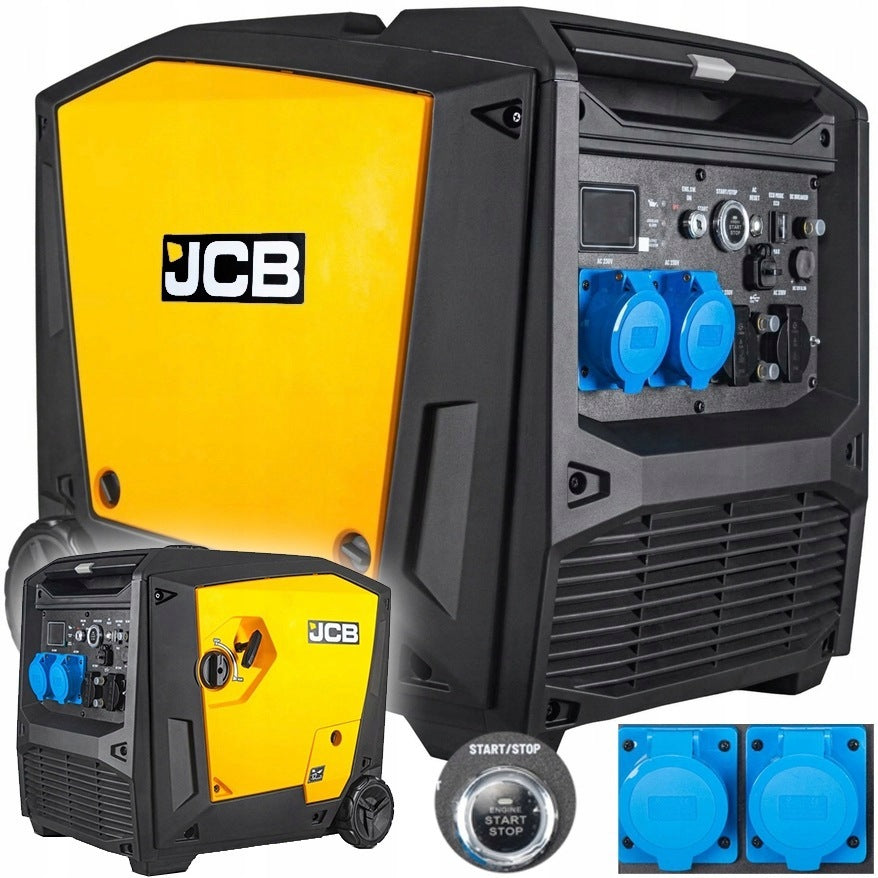

Inverterinis generatorius JCB IG8500E, 7,2 kW, 230V

Trumpai apie prekę

Prekė: Inverterinis generatorius JCB IG8500E, 7,2 kW, 230V. Kategorija: Elektros generatoriai.

• Gamintojas: JCB
• Modelis: IG8500E
• Įtampa: 230 V

DESCRIPTION OF THE PRODUCT:

JCB IG8500E-EU is a powerful inverter unit designed to power demanding single-phase receivers of 230 V. It offers 7200 W of continuous power and 7600 W of peak power, making it a good source of energy for power tools, workshop equipment, construction equipment, electronics and selected household receivers.

The inverter technology ensures stable output voltage parameters, which increases the safety of working with more sensitive electronic and control devices.

The model is distinguished by three ways of starting: classic manual starter, electric E-Start and remote start. This is a particularly convenient solution with frequent use of the unit or when the device is located at a distance from the workstation.

A large fuel tank with a capacity of 16 liters, ECO mode and a closed housing with transport wheels make the IG8500E prepared for more intensive work and convenient movement.

KEY FEATURES:

• Continuous power 7200 W – high efficiency for demanding receivers
• Top power 7600 W – additional stock at temporary load spikes
• Inverter technology – stable power supply also for electronics and control devices
• Voltage 230 V – for popular single-phase receivers
• Socket 230 V 16 A + 230 V 32 A – possibility of connecting receivers with higher current demand
• E-Start – convenient electric start-up
• Manual start-up – additional possibility of starting the unit
• Remote start with remote control – even more convenient operation
• ECO mode – adjusting the engine speed to the current load
• 12V DC output and USB port – additional power supply options
• Overload protection with AC Reset – protection of the output system
• Low oil level indicator – protection of the engine against operation with insufficient lubrication
• Fuel tank 16 l – longer operation without frequent refueling
• Transport wheels – easier movement of the device
• Closed housing – more compact and orderly design

TECHNICAL DATA:

• Producer: JCB
• Model: IG8500E-EU
• Reference: JCB-IG8500E-EU
• Type: inverter aggregate
• Continuous power: 7200 W
• Peak power: 7600 W
• Rated voltage: 230 V
• Frequency: 50 Hz
• Rated Current: 31,3 A
• AC outputs: 1 × 230 V 16 A + 1 × 230 V 32 A
• DC Output: 12 V
• USB port: yes
• Engine: 4-stroke OHV, single cylinder, air-cooled
• Engine capacity: 351,8 cm³
• Engine speed: 4200 rpm /min
• Ignition system: TCI
• Spark plug: F7RTC
• Candle gap: 0,7 – 0,8 mm
• Starting system: manual + E-Start + remote control
• Fuel: unleaded petrol
• Fuel tank capacity: 16 l
• Recommended oil: SAE 10W30
• Oil system capacity: 0,8 l
• ECO mode: yes
• Remote start with remote control: yes
• Overload Protection / AC Reset: yes
• Low oil level indicator: yes
• Sound power level LwA: 95,2 dB(A)
• KpA/KwA uncertainty: 3 dB(A)
• Dimensions: 640 × 500 × 565 mm
• Net weight: 56 kg

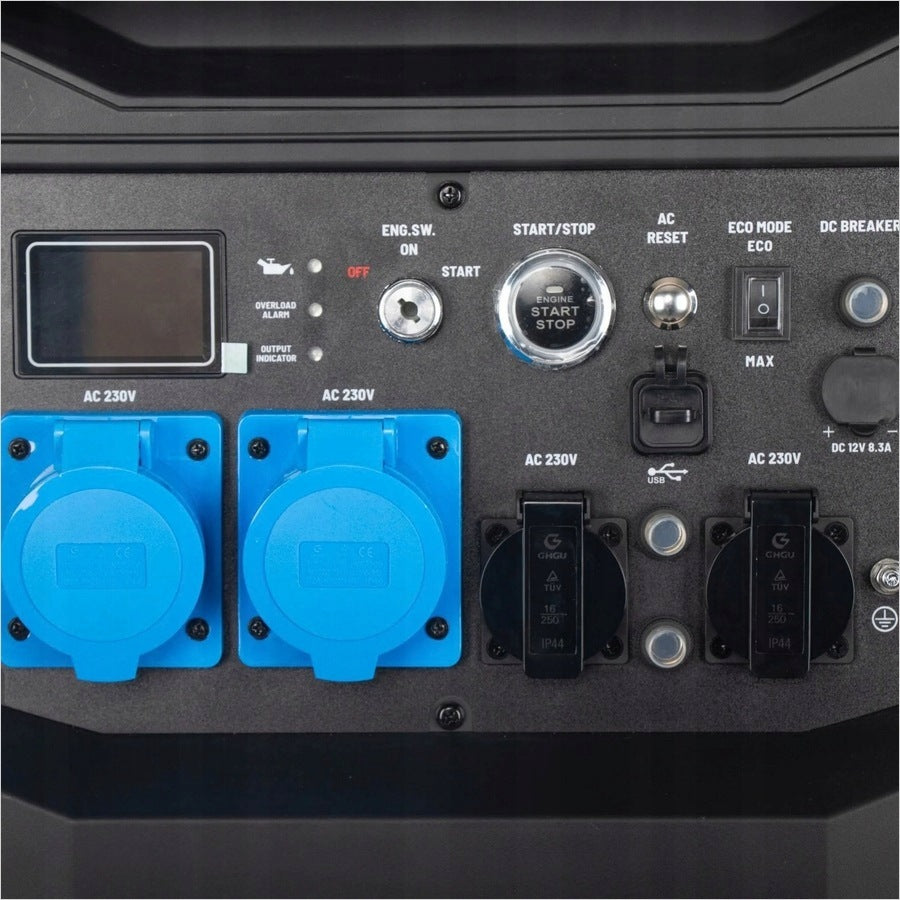

FUNCTIONAL CONTROL PANEL:

The aggregate panel provides access to the most important outputs and functions:

• 230 V 16 A socket
• 230 V 32 A socket
• DC 12 V output
• USB port
• AC Reset function
• exit status indicator
• overload indicator
• low oil indicator
• ECO mode

The 32 A socket is an important advantage for receivers requiring more current than standard devices connected to a typical 16 A socket.

ECO MODE – ECONOMICAL WORK:

The ECO function allows you to adjust the engine speed to your current energy needs.

At a lower load, the engine can run at lower speeds, which helps to:

• reduce fuel consumption
• reduce the load on the drive unit
• limit unnecessary work at high speed
• increase the comfort of use with partial load

ECO mode is particularly practical when the unit is not constantly running at full power.

4-STROKE OHV ENGINE:

The generator is powered by a single-cylinder, 4-stroke OHV gasoline engine with a displacement of 351.8 cc, which is air-cooled.

The engine operates at speeds up to 4,200 RPM and uses a TCI ignition system.

The recommended oil is SAE 10W30, and the oil system capacity is 0.8 liters.

16L FUEL TANK:

The IG8500E model is equipped with a 16-liter gasoline tank.

The large fuel capacity increases convenience during long periods of operation and reduces the frequency of refueling. This is especially important on construction sites, on farms, or when providing emergency power to equipment for extended periods.
