Inverterinis generatorius KS 8100iEG, 8,5 kW, 230V/400V, dviem kuro tipams

Trumpai apie prekę

Prekė: Inverterinis generatorius KS 8100iEG, 8,5 kW, 230V/400V, dviem kuro tipams. Kategorija: Elektros generatoriai.

• Gamintojas: Könner & Söhnen
• Modelis: KS 8100iEG 1/3
• Įtampa: 230.4 V

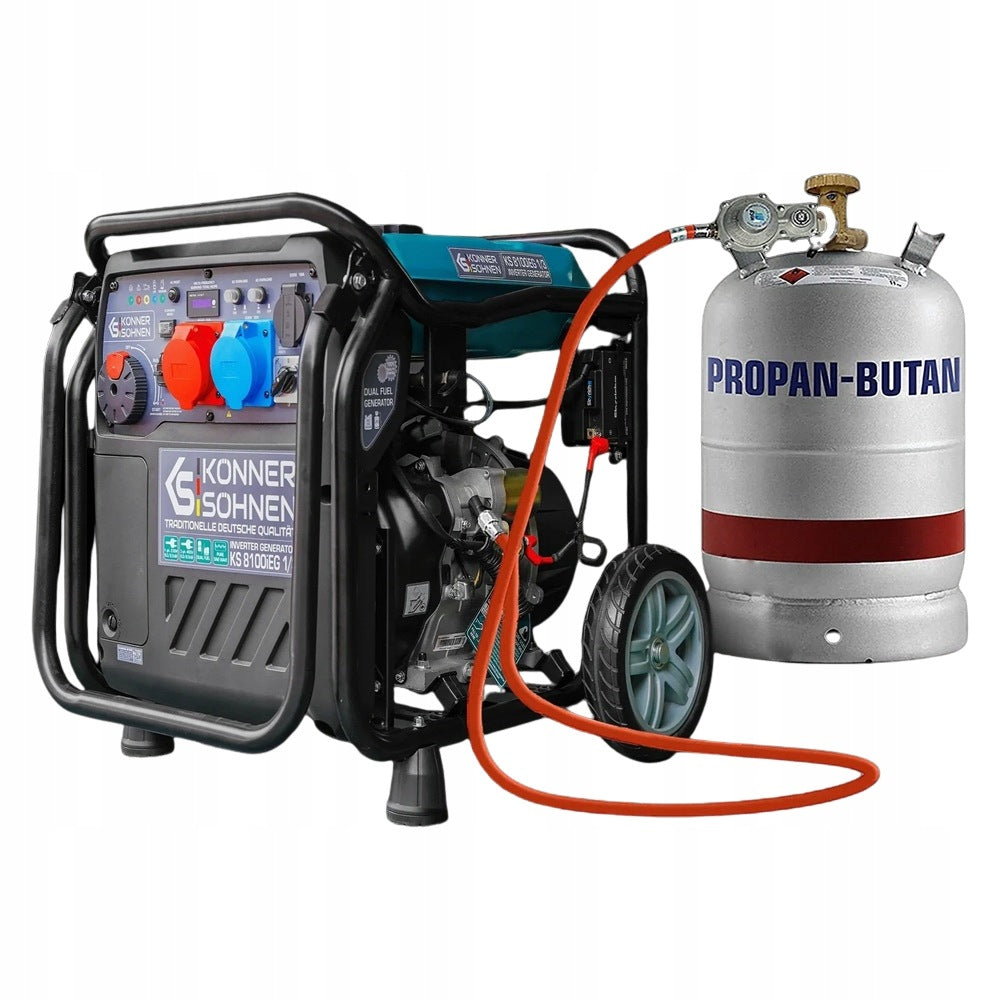

KS 8100iEG 1/3 – Inverter generator set 8,5 kW Dual Fuel

The KS 8100iEG 1/3 is a high-performance inverter generator set designed for users who need a stable and powerful power source for both home and professional applications. The dual-fuel unit (gasoline/gas) gives full flexibility and real savings, and advanced electronics ensure the highest voltage quality – safe for particularly sensitive devices such as medical equipment, measuring electronics or modern HVAC systems.

The generator generates a maximum power of 8,5 kW, whether operating in single-phase or three-phase mode – thanks to the VTS system, which allows you to switch between modes without losing power.

The modern 3 in 1 start integrates suction, fuel valve and electric starter, which simplifies operation to a single movement. Economy Mode reduces fuel consumption by up to 50% at low load, significantly increasing operating time.

Extensive control panel with LED display provides current access to operating parameters – voltage, frequency and motor hours. The set includes a full set of accessories for gas supply, as well as transport elements (wheels, handles, feet).

KS 8100iEG 1/3 is an aggregate that combines high power, reliability and full compatibility with sensitive electronics. Ideal for homes, businesses, construction sites, mobile services and as a professional emergency power source.

KEY BENEFITS

1. Two-fuel engine – runs on gasoline and gas; cheaper operation and longer run time.
2. VTS system – switch between 1-f and 3-f without loss of power.
3. Inverter technology – pure sine, safety for electronics.
4. Maximum power 8,5 kW – a real burden for home and business.
5. Economy Mode – fuel lower by up to 50% with lower loads.
6. Start 3 in 1 – quick and easy start.
7. LED panel – a preview of key parameters on an ongoing basis.
8. Fully equipped set – wheels, handles, reducers, hose, tools.

TECHNICAL SPECIFICATION

Electrical parameters

• Voltage: 230/400 V
• Maximum power: 8.5 kW (230/400 V)
• Nominal power: 8.0 kW
• Frequency: 50 Hz
• Maximum current: 36.9 A / 15.35 A
• Sockets:

  1× Schuko 230 V

  1× CEE 230 V 32 A

  1× CEE 400 V 16 A

• Type of winding: copper

Engine

• Model: KS 480i
• Type: LPG/petrol, 1-cylinder, 4-stroke, air-cooled
• Power: 16 HP
• Engine capacity: 458 cm³
• Oil capacity: 1.1 l
• Startup: electric
• Battery: 1.6 Ah

Exploitation

• Fuel tank: 20 l
• Working time 50% load: approx. 6 h
• Economy mode: yes
• Noise level: 70 / 97 dB (Lpa/Lion)

Dimensions and weight

• Net dimensions: 600×510×560 mm
• Gross dimensions: 730×520×580 mm
• Net weight: 68 kg
• Gross weight: 74 kg

Degree of protection

• IP23M

Equipment set

• Generator
• Documentation
• The Key to Candles
• Gas hose 1,5 m
• Reducer
• Additional reducer
• Funnel
• Screwdriver PH2
• Transport wheels (2 pcs. )
• Handle
• Support feet (2 pcs. )

** When running on gas, the generator power is reduced by 10%.

***Fuel consumption depends on many factors, such as load, fuel quality, season, altitude relative to sea level, technical condition of the generator.

NOTE! The product is sold without engine oil and gasoline. Before the first start-up, the engine oil for four-stroke gasoline engines must be replenished. We recommend 10W-30 or 10W-40 oil. Check the oil level before each start. Use only unleaded petrol with an octane number of 90 to 95, containing no more than 10% ethanol.
