Inverterinis suvirinimo aparatas MOST 10-200 A, 230 V, 8,2 kVA

Trumpai apie prekę

Prekė: Inverterinis suvirinimo aparatas MOST 10-200 A, 230 V, 8,2 kVA. Kategorija: Inverteriniai suvirinimo aparatai.

• Gamintojas: MOST
• Modelis: 5200005421

Welding Kit MOST Pontig 202 AC/DC II

The set was created for light and medium-duty welding using the TIG method in the argon shield (arch glow by the HF ionizer) or MMA wrapped electrode.

The set includes:

• Welding device MOST Pontig 202 AC/DC
• TIG 26 SGRIP welding torch - 4m
• Bulk and electoral handle
• LAMA welding gloves (goat grain leather)

• Tungsten electrode MOST - fi 2.0 x 5zt
• Anthroposperm MOST UFO 400ml

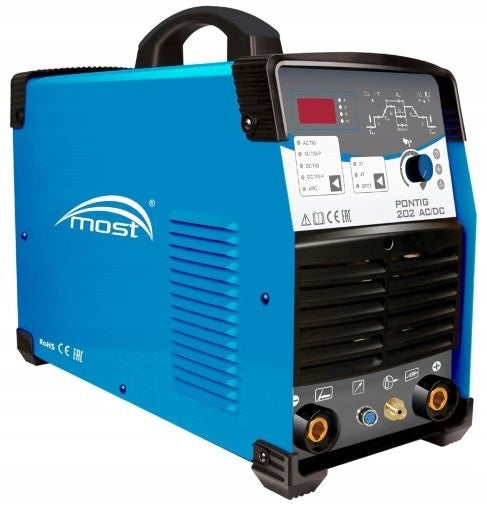

MOST Pontig 202 AC/DC

The inverter welding rectifier can perfectly cope with connecting elements w/w during:

• Welding of aluminium structures, e.g. vehicles, advertisements, etc.
• In the food industry and stainless steel installations
• In the chemical industry and pipelines
• In the craft and manufacture of light objects of steel, stainless steel,

In addition, it will also help during the construction of the yacht (yacht) and during surfacing and regeneration.

The MOST device welds with TIG current with a constant or pulsating waveform with a frequency of 200Hz.

At the time of TIG AC welding, we have available frequency and balance adjustment thanks to which we can achieve the most efficient welding of aluminum while maintaining the proper quality of the weld.

Using the MMA method, we have features such as HotStart and ArcForce.

HotStart - starting welding is much easier. At the moment of arcing, the welding current is briefly increased. This leads to the heating of the material and electrode at the point of contact, as well as to the proper shape of the melt and the weld face (in the initial phase of the welding process).

ArcForce - a function that provides the best settings for obtaining a stable arc and a small amount of chipping. In other words, the electric arc necessary for welding glows uniformly, without short circuits hindering or preventing the connection of materials. During welding, large amounts of chipping are often formed, i.e. drops of melted metals that need to be removed. When turned on, the amount of chipping decreases significantly, and this allows for more comfortable work.

In addition, it is worth mentioning that our device has all the additional functions needed for professional TIG welding (gas pre- and outflow, current build-up, crater filling, etc. )

• display ,
• choice of welding method,
• TIG handle operating mode,
• knob,
• additional functions,
• graph of welding parameters.

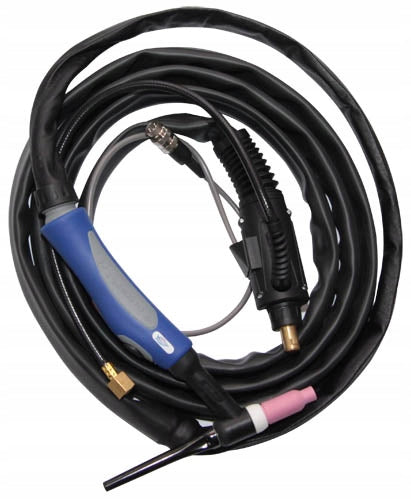

Welding Handle TIG 26 S-Grip 4m

• Cooling: Gas

Technical data according to EN 60 974-7:

• load capacity 35% duty cycle: 125 A AC / 180 A DC,
• diameter of tungsten electrodes: 1,0- 3,2 mm,
• gas flow: 5-12 l/min.

Anti-chipping agent MOST

• agent to prevent chipping from sticking in the welding process,
• facilitates the removal of chipping and impurities from the surface of welded metals and gas nozzles,
• does not contain silicones and solvents.

Welding gloves MOST Lama

• made in the grip and dorsal part of full grain goat leather,
• cuffs are made of cowhide split leather,
• gloves designed for TIG welding,
• without lining,
• length approx. 35cm.

Tungsten electrode MOST fi. 2.0 x 5szt

The most popular electrode for TIG welding.

It is characterized by high durability and good glow, stable arc. Used for DC welding (with negative polarity)

• Composition: 2% - Track / 98% - Tungsten,
• Recognition color: red,
• Type of work: DC,
• Application: Hobby; Workshop; Industrial.

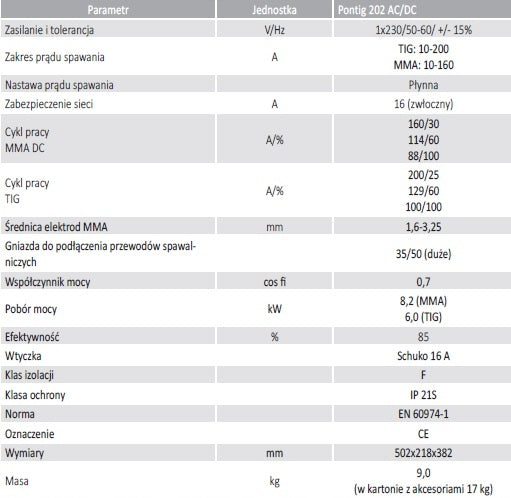

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Brand	MOST
Parametry	Power consumption	8.2 kVA
Parametry	Supply voltage (V)	230
Parametry	Maximum electrode diameter	3.25 mm
Parametry	Device weight	9 kg
Parametry	Welding range	10–200 A
Parametry	Length of ground cable	1.5 cm
Parametry	Welding cable length	4 cm
Parametry	Manufacturer code	5200005421
Parametry	EAN (GTIN)	5906340816804
Parametry	Welding methods	MMA,TIG
Parametry	Additional features	welding mask included,infinitely adjustable welding current,LCD display
