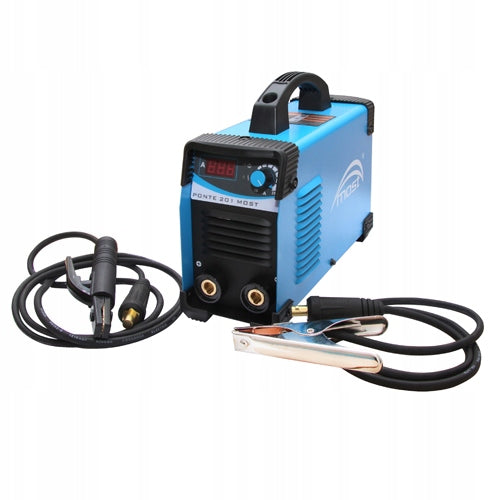

Inverterinis suvirinimo aparatas MOST PONTE 201, 10–200 A, 5,6 kVA

Trumpai apie prekę

Prekė: Inverterinis suvirinimo aparatas MOST PONTE 201, 10–200 A, 5,6 kVA. Kategorija: Invertoriniai suvirinimo aparatai.

• Gamintojas: MOST
• Modelis: 5300030684

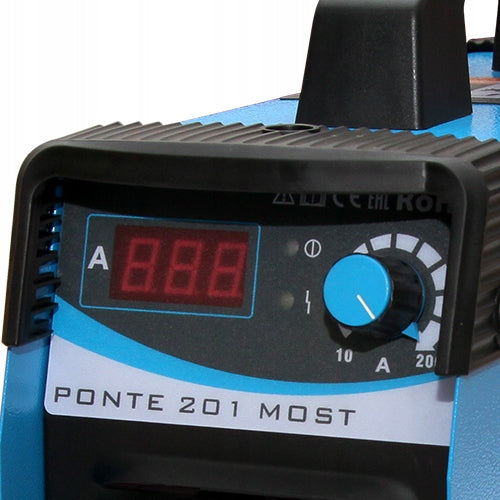

Inverter rectifier for welding with wrapped electrode. The offer of devices under the brand MOST includes a new inverter power source for welding with a wrapped electrode. Modern electronic solutions allowed to reduce the weight of the welding machine to 5,9 kg. PONTE 201 has a liquid crystal display showing welding current in amperes. The housing of the welding machine is durable and aesthetic, plastic elements on its edges protect against damage in the event of a fall. Large 35/50 current sockets were used to connect welding wires. In terms of welding current and stability of the electric arc, the PONTE 201 will satisfy even demanding welders, despite the fact that it is a device with a very simple design.

• Power supply and tolerance: 1x230 V/50-60 Hz
• Welding current range: 10-200 A
• Welding current at duty cycle: (10% - 200 A) (60% - 82 A) (100% - 63 V)
• Maximum current consumption I1 max: 44 A
• Idle voltage: 63 V
• Dimensions: 375x140x290 mm
• Mass: 5,9 kg
• Network security: 16 A
• Isolation class: F
• Protection class: IP 21S

Completion of the device: The device is supplied in a cardboard box, with welding wires (mass and electrode).
