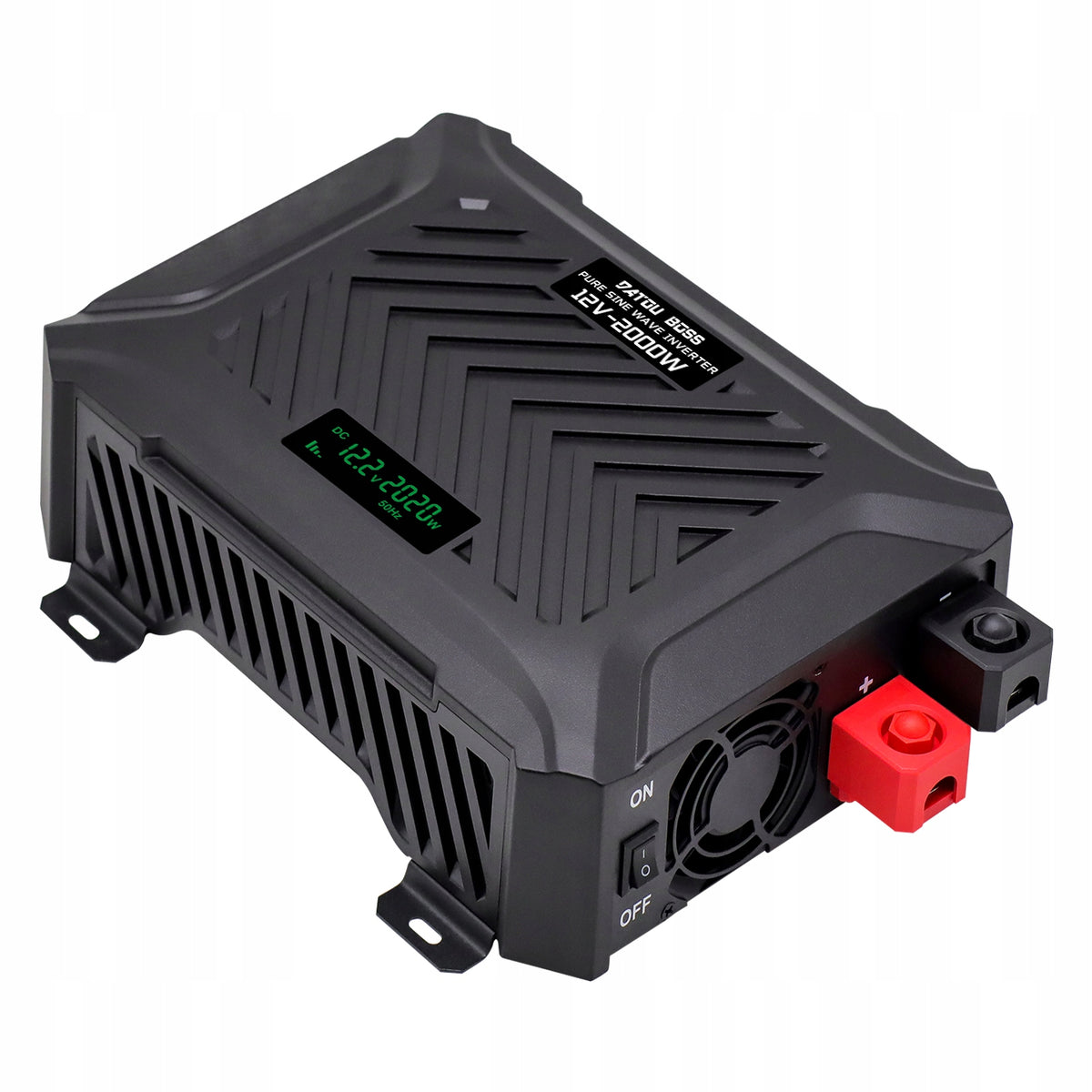

Inverteris DATOUBOSS PSW-E2000W, 12V/230V, 2000W, grynos sinusinės bangos, su USB

Trumpai apie prekę

Prekė: Inverteris DATOUBOSS PSW-E2000W, 12V/230V, 2000W, grynos sinusinės bangos, su USB. Kategorija: Įtampos keitikliai.

• Gamintojas: DATOUBOSS

⚡ DATOUBOSS PSW-E2000W - INVERTER 12V → 230V, PURE SINE WAVE

Powerful DATOUBOSS PSW-E2000W voltage converter designed to power 230 V devices from a 12 V battery installation.

It offers up to 2000 W of continuous power and 4000 W of peak power , and thanks to its pure sine wave, it can also work with devices requiring a stable voltage waveform.

Perfect for campervans, trailers, off-grid installations, utility vehicles, boats, battery systems and as an emergency power source.

🌊 PURE SINE WAVE

The converter generates a pure sine wave , i.e. a waveform similar to the voltage available in a classic power grid.

This is especially important when powering:

💻 laptops and computers

📺 televisions

🔌 chargers

🎥 photo and video equipment

🧊 devices with engines and compressors

🛠 selected power tools

🏕 camper and trailer equipment

Unlike cheap modified sine wave inverters, the PSW-E2000W model is also designed for more demanding electronics.

💪 2000 W CONTINUOUS POWER

The converter offers:

✅ 2000 W rated power

✅ 4000 W instantaneous/peak power

The overload protection is activated at a load of approximately 2200 W.

This is not a device described by the marketing term "2000 W", which actually produces several hundred watts - here the manufacturer declares a full operating power of 2000 W.

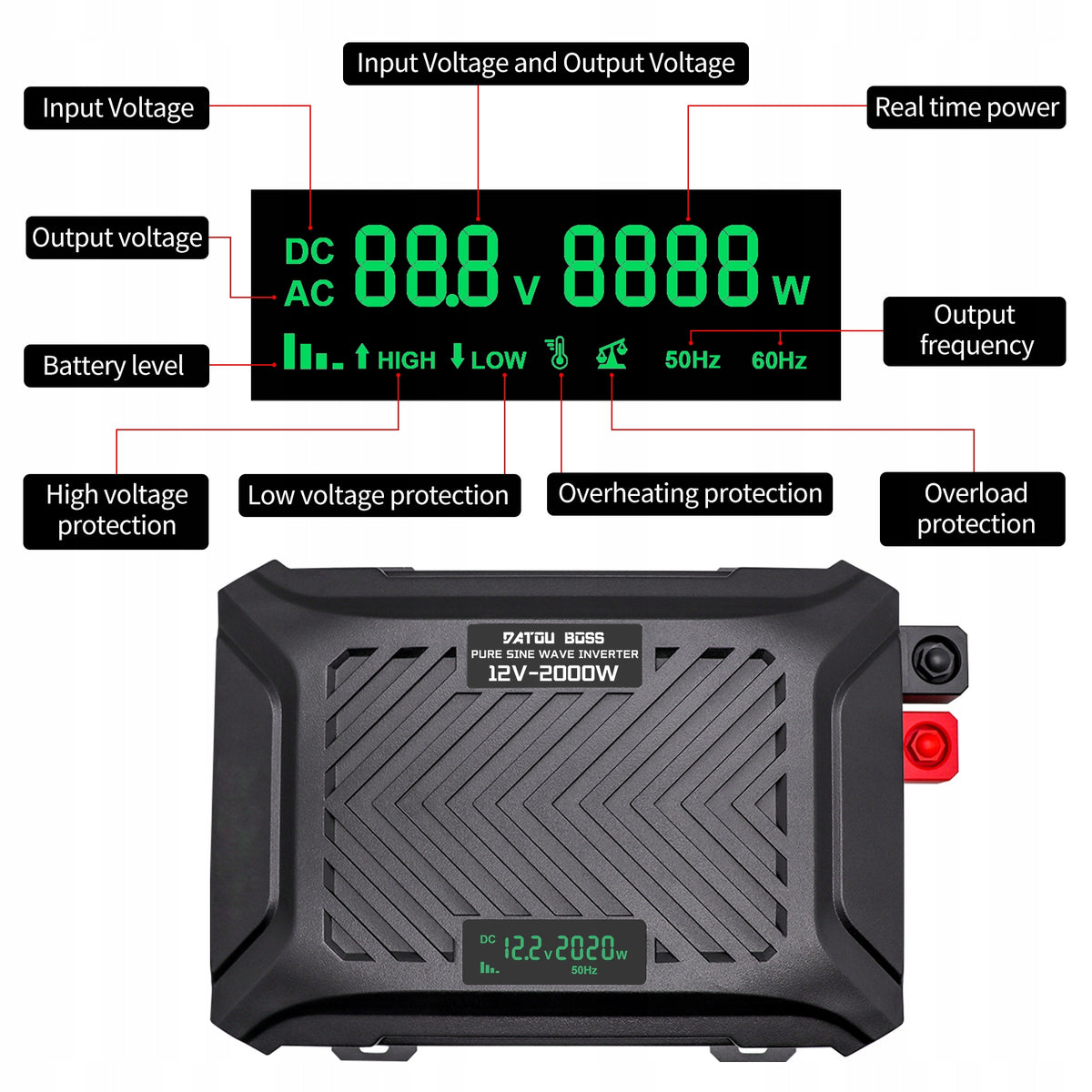

📺 LARGE LCD DISPLAY

The built-in LCD panel allows you to control the most important operating parameters.

On the screen you can read, among other things:

🔹 input voltage

🔹 output voltage

🔹 load level

🔹 power

🔹 frequency

🔹 operating mode

🔹 alarm messages

This eliminates the need to guess what is happening with the installation - basic information is visible directly on the device.

⚙ ADJUSTABLE VOLTAGE AND FREQUENCY

Using the configuration switches you can select the output mode:

220V / 230V / 240V

and:

50Hz / 60Hz

In Polish and European conditions the standard setting will be 230 V / 50 Hz .

🔌 USB + USB-C

The panel also includes ports for powering low-voltage devices:

✅ classic USB 5V/2.1A

✅ USB-C

This allows you to charge your phone, navigation or other devices without taking up a 230 V socket.

🌬 EFFICIENT COOLING

The design uses two ventilation channels and active cooling .

The system is designed to evenly dissipate heat from the power components and reduce losses when operating at higher loads. The manufacturer states an efficiency of at least 90%.

🛡 ENHANCED SECURITY

DATOUBOSS PSW-E2000W has protection against:

✅ battery voltage too low

✅ too high input voltage

✅ overload

✅ overheating

✅ short circuit

✅ improper working conditions

Protection parameters for 12 V version:

• low voltage alarm: approx. 10.5V
• low voltage disconnection: approx. 10V
• automatic resumption: approx. 12.5V
• high voltage protection: approx. 16 V
• thermal protection: approx. 80°C
• overload protection: approx. 2200 W

🚐 WHERE WILL IT BE USEFUL?

The converter is intended for, among others:

🏕 campers and caravanning

🚐 delivery vans

🚚 trucks

⛵ boats and yachts

☀ off-grid photovoltaic systems

🔋 power banks based on 12V batteries

🏠 emergency power supply for devices

🎥 mobile photo/video sets

🛠 field work

🔋 WORKS WITH A 12V BATTERY

The model is designed for 12 V DC installations.

The operating voltage range is approximately:

10-15.7V DC

Due to the power of 2000 W, currents of over 160 A can flow on the 12 V side, so the device must be connected directly to a suitable battery installation.

This is not a converter for connection via a standard car cigarette lighter socket.

📐 TECHNICAL DATA

• Brand: DATOUBOSS
• Model: PSW-E2000W-12V
• Type: DC/AC converter
• Input voltage: 12V DC
• Input range: 10-15.7V DC
• Output voltage: 220 / 230 / 240 V AC
• Frequency: 50/60 Hz
• Rated power: 2000 W
• Peak power: 4000 W
• Waveform: pure sine wave
• Efficiency: ≥90%
• No-load consumption: approx. 0.9 A
• Rated current: approx. 167 A
• USB: 5V/2.1A
• USB-C: yes
• LCD: yes
• Cooling: active, fans
• Overload protection: approx. 2200 W
• Thermal protection: approx. 80°C
• Operating temperature range: approx. -5°C to 40°C
• Working humidity: ≤90%
• Dimensions: approx. 32.5 x 24.5 x 9 cm
• Weight: approx. 3.5 kg
• Markings: CE, FCC, RoHS

The parameters and dimensions correspond to the instructions for the exact variant DT/PSW-E2000W-12V.
