Aprašymas
Trumpai apie prekę

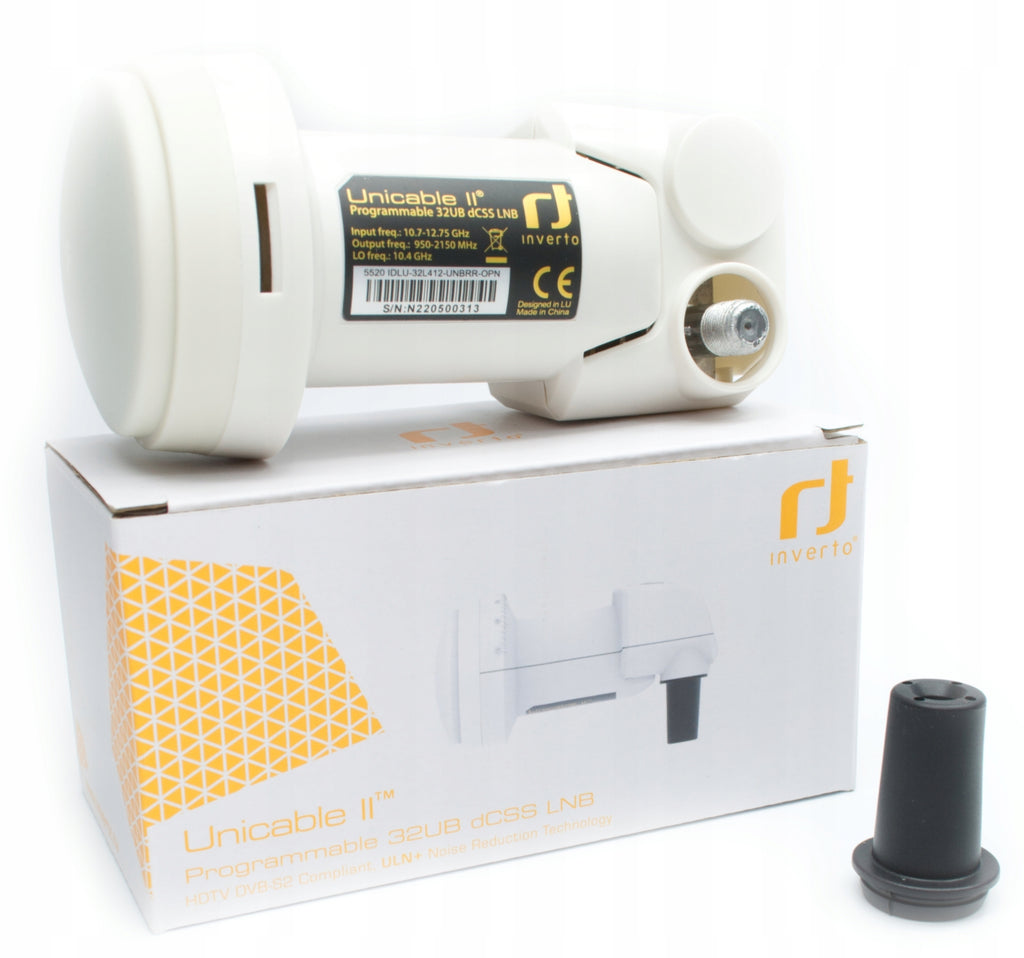

Prekė: Inverto Unicable keitiklis, pritaikytas Polsat Evobox imtuvui. Kategorija: Keitikliai.
- Gamintojas: Inverto
- Modelis: LNB Unicable II SCR 32 UB
The LNB Unicable II INVERTO converter allows for single-wire (serial) signal transmission to 32 receivers. The converter works in two standards:
- Unicable I - EN50494 , 8 channels
- Unicable II - EN50607, 32 channels
The converter is programmed according to the frequencies of Cyfrowy Polsat, which are present in the Evobox PVR decoder. Thanks to this configuration, it is possible to connect the Evobox main decoder (one or two) and from one to three additional Multiroom HD decoders (HD2000 / 3000 / 5500s / 5000 / 6000), in single-wire technology (unicable). For PVR Evobox, use the Evobox1 configuration in the receiver MENU, and for HD decoders, additional channels from the pool from 1 to 4.
The converter, designed by the Luxembourg-based brand Inverto for the European market, provides optimized HD transmission reception capabilities. Manufactured to the highest quality standards, with excellent reception parameters.
- Model: IDLU-32L412-UNBRR-OPN
- Number of participants (Unicable II): up to 32 (EN50607)
- Noise Ratio: 0.1dB
- Input Frequency Range: 10,7 - 12,75 GHz
- Signal gain: min. 55 dB
- Additional Feature: Retractable Weather Protection

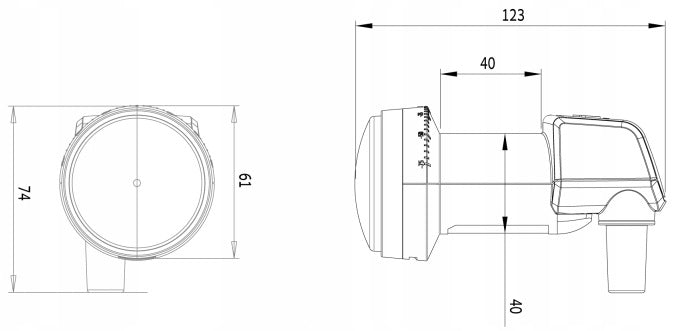

- Dimensions: 137 x 67 x 78 mm
- Head Diameter: 40mm
- Independent operation of serially connected receivers thanks to UNICABLE technology
- Very low phase noise (converter recommended for 8PSK HDTV)
- CH1 1210MHZ (EN50494+EN50607)
- CH2 1420MHz (EN50494+EN50607)
- CH3 1680MHz (EN50494+EN50607)
- CH4 2040MHz (EN50494+EN50607)
- CH5 978MHz (EN50494+EN50607)
- CH6 1028MHz (EN50494+EN50607)
- CH7 1072MHz (EN50494+EN50607)
- CH8 1116MHz (EN50494+EN50607)
- CH9 1160MHz (EN50607)
- CH10 1271MHz (EN50607)
- CH11 1315MHz (EN50607)
- CH12 1359MHz (EN50607)
- CH13 1484MHz (EN50607)
- CH14 1528MHz (EN50607)
- CH15 1572MHz (EN50607)
- CH16 1616MHz (EN50607)
- CH17 2084MHz (EN50607)
- CH18 2128MHz (EN50607)
- CH19 1816MHz (EN50607)
- CH20 1860MHz (EN50607)
- CH21 1904MHz (EN50607)
- CH22 1948MHz (EN50607)
- CH23 1992MHz (EN50607)
- CH24 1728MHz (EN50607)
- CH25 1772MHz (EN50607)
Factory converter is programmed according to the above list, i.e. according to the settings of satellite tuners of Cyfrowy Polsat (e.g. 2x Evobox + Multiroom). The first four frequencies are universal, i.e. compatible with other Canal+ / NC+ decoders and others. For more complex installations, it is possible to individually program and change the frequency of the converter to another.
KONUN0006
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | LNB Unicable II SCR 32 UB Polsat Evobox |
| Parametry | Product weight with unit packaging | 0.5 kg |
| Parametry | Type | unicable |
| Parametry | Brand | Inverto |
| Parametry | Model | LNB Unicable II SCR 32 UB |
| Parametry | Noise factor | 0.1 dB |
| Parametry | Input frequency range | 10.7–12.75 GHz |
| Parametry | Output frequency range | 950–2150 MHz |
| Parametry | Handle diameter | 40 mm |
| Parametry | EAN (GTIN) | 5453002613245 |
| Parametry | Packaging status | original |
