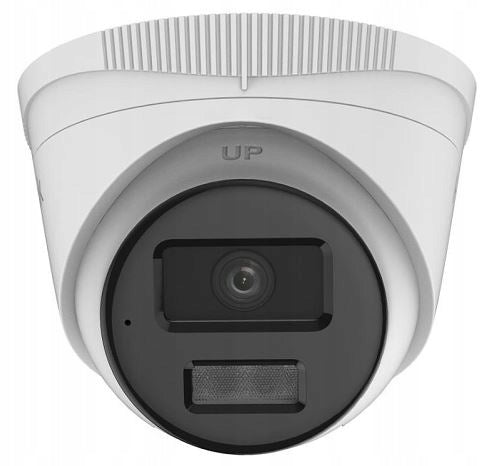

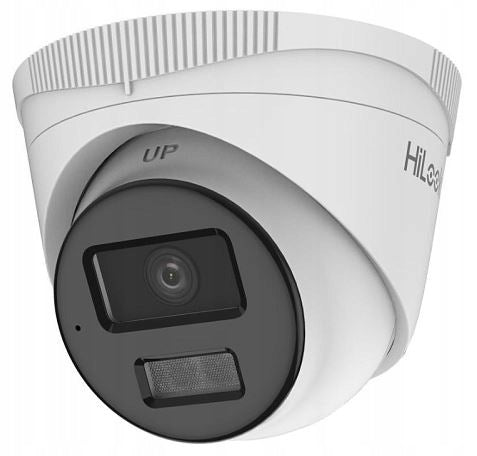

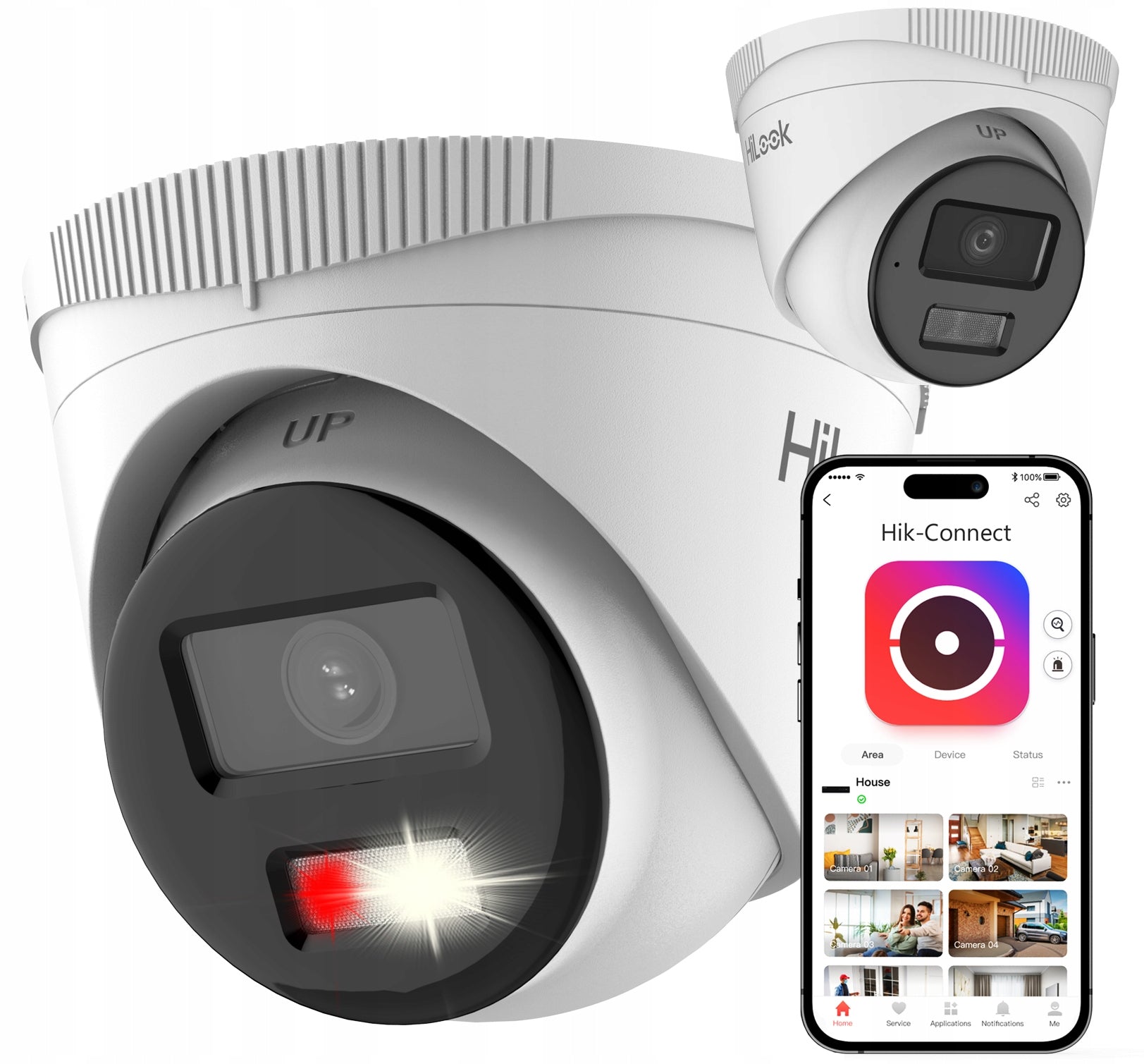

IP kamera HiLook by Hikvision IPC-T240HA-LUC, 4MP, išmanus hibridinis apšvietimas, 20 m, PoE

Trumpai apie prekę

Prekė: IP kamera HiLook by Hikvision IPC-T240HA-LUC, 4MP, išmanus hibridinis apšvietimas, 20 m, PoE. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: IPC-T240HA-LUC HiLook by Hikvision

IP / 4Mpx / 2.8mm / Hybrid Light 20m/15m / IP67 / H.265+ / PoE / Microphone

HiLook IPC-T240HA-LUC model is a new IP model with 4MP resolution, dedicated to small and medium-sized monitoring installations in locations such as homes, companies or shops.

The camera has a built-in dual illuminator (white light + IR) which allows you to record images at night in both color and infrared.

Key features:

• High image resolution in 4MPx 2K - 2560x1440 pixels
• Two illuminators on board the camera: IR and white light with a range of up to 20m / 15m
• Built-in microphone for sound recording
• IP67 sealed outdoor housing
• Power supply via PoE
• Easy installation and operation

Technical parameters:

• Transducer: 1/2.8" Progressive Scan CMOS
• Resolution: 2560 × 1440(4Mpx)
• Lens: 2.8 mm
• Sensitivity: 0,01Lux (0 lux with IR)
• Night mode: Yes, in color or black and white (Smart Hybrid Light)
• IR illuminator: Yes, range up to 20 m
• White light illuminator: Yes, range up to 15 m
• Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Wide dynamic range: dWDR
• Selected image functions: BLC, HLC, 3D DNR
• Built-in microphone: Yes
• Intelligent image analysis: Motion detection, classification of the object "man"
• Remote support: iVMS-4200, Hik-Connect, HiLook App
• Leak-proof class: IP67
• Max. Power consumption: 6.5W
• Operating temperature: -30 to +45 oC
• Dimensions: Ø 110 mm × 102.7 mm
• Power supply: 12VDC, PoE
• Weight: 340g

The camera is sold without a 12V power supply. Compatible power supply is available at auction No. 16007754465.

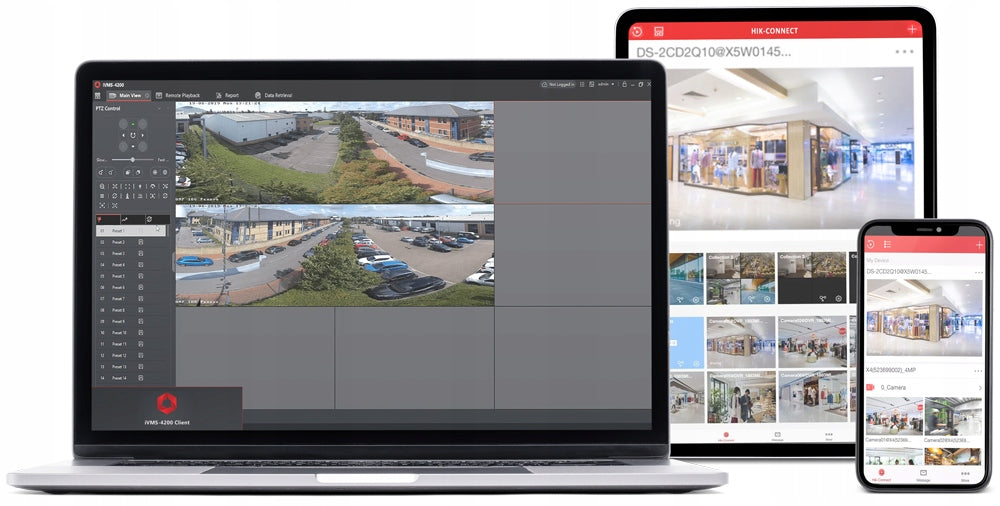

HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• create motion detection scenarios and rules
• Rotary camera control
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The IPC-T240HA-LUC is part of a series of cameras using the innovative Hybrid Light technology - thanks to two types of illuminators on board, the camera allows effective observation at night both in infrared (black and white) and fully color mode.

Thanks to this, it guarantees an even higher level of security, enabling effective identification of objects also after their color, in any lighting conditions.

The camera has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard drive, which positively affects its lifespan.

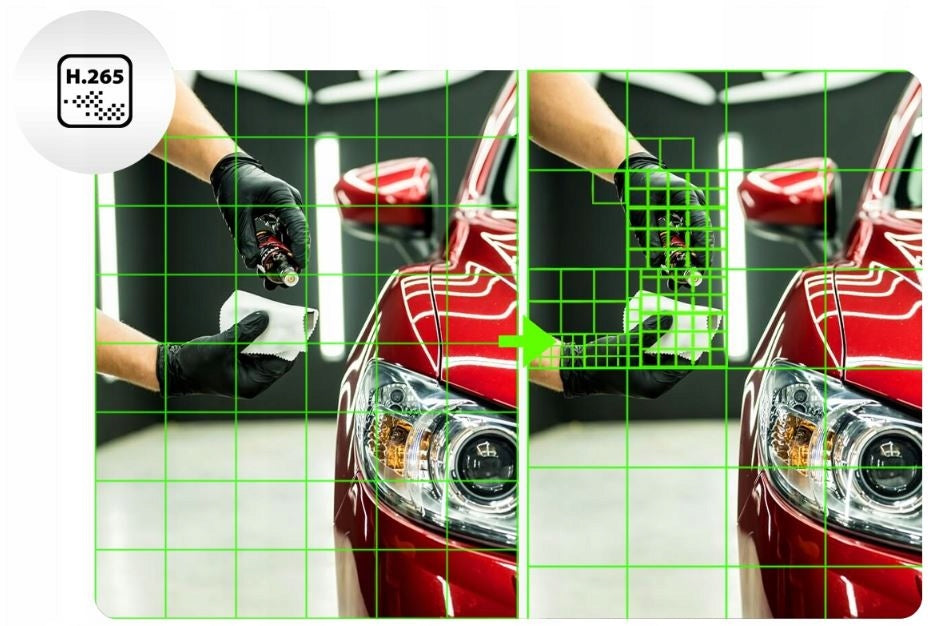

The camera uses an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

Camera

• Sensor: 1/2.8" Progressive Scan CMOS
• Transmission standard: IP
• Max resolution: 2560 x 1440 (4Mpx)
• Sensitivity: Color: 0.01 Lux @ (F2.2, AGC ON), B/W: 0 Lux with IR
• Head adjustment range: Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
• Shutter speed: 1/3 s to 1/100,000 s
• Lens: 2.8mm
• Recording angle (horizontal): horizontal FOV 104°, vertical FOV: 57°, diagonal FOV: 123°

Illuminators

• IR range: up to 20m
• IR wavelength: 850 nm
• White light range: up to 15m

Image compression

• Video compression: Main stream: H.265+/H.264+/H.265/H.264 Sub stream: H.265/H.264/MJPEG
• H.264: Base Profile/Main Profile/High Profile
• H.264+: Main stream
• H.265: Main Profile
• H.265+: Main stream
• Video bitrate: 32 Kbps to 8 Mbps


• Main stream - max. frame rate: 50Hz: 20 fps (2560 × 1440), 25 fps (1920 × 1080, 1280 × 720)60Hz: 20 fps (2560 × 1440), 24 fps (1920 × 1080, 1280 × 720)
• Auxiliary flow - max. frame rate: 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)60Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)
• Image functions: BLC, HLC, 3D DNR
• Wide Dynamic Range: DWDR
• Smart Dual Illumination: Yes
• Image settings: Saturation, exposure, contrast, sharpness, AGC, white balance
• Day/Night Mode: Automatic/Manual Switching

Network

• Network interface: 1x RJ45 Ethernet 10/100 Mbps self-adaptive
• Network protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, SMTP
• Compatibility: ONVIF, ISAPI, SDK
• Featured Features: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Simultaneous viewing: up to 6 channels
• Alarm trigger: Motion detection, video tampering, unauthorized login
• Number of users/hosts: up to 32 users 3 levels of permissions: Administrator, Operator, User
• Client Software: iVMS-4200, HiLook App

General

• Built-in microphone: Yes
• Power supply: 12V DC or PoE (802.3af, class 3)
• Material: plastic
• Tightness class : IP67
• Dimensions: Ø 110 mm × 102.7 mm
