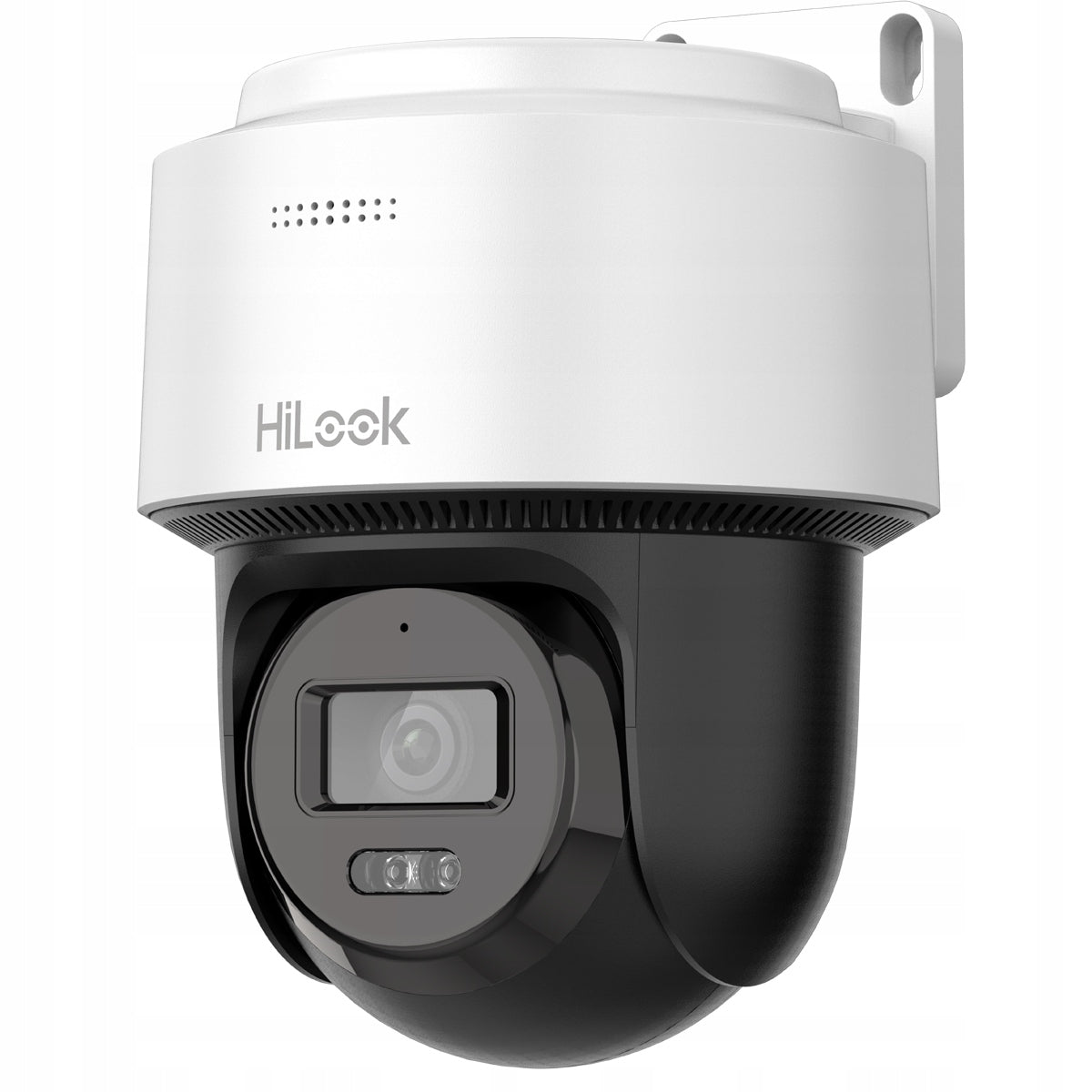

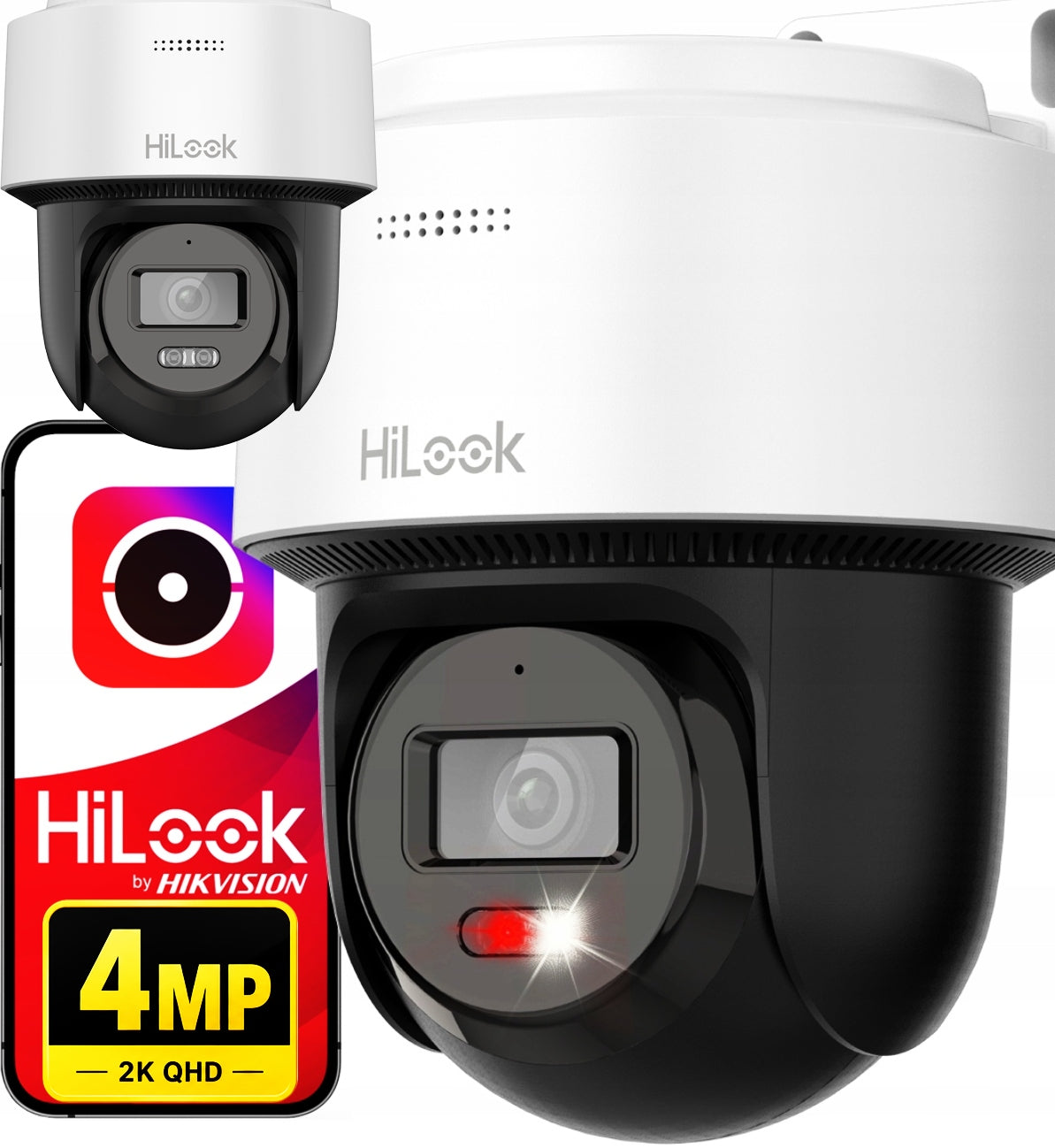

IP kamera HILOOK HIKVISION 4MP PTZ, PoE, automatinis sekimas, dvigubas apšvietimas, garsas

Trumpai apie prekę

Prekė: IP kamera HILOOK HIKVISION 4MP PTZ, PoE, automatinis sekimas, dvigubas apšvietimas, garsas. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: PTZ-N4MP-P HiLook by Hikvision

IP, 4Mpx, Smart Hybrid Light, DWDR, IP66, H.265+, PoE, Microphone, Speaker, Autotracking Lite

IP camera PTZ-N4MP-P is a 4megapixel model rotating with a wide-angle lens 2,8mm, equipped with an infrared illuminator and a white light illuminator with a range 30m. The camera also features a two-way audio system, allowing you to record audio and transmit messages through the speaker.

Thanks to its elegant design, compact dimensions and wide functionality, the camera is ideal for building small and medium-sized IP monitoring systems - e.g. at home, office or warehouse.

A big advantage of the camera is the algorithm for detecting AI motion detecting people's silhouettes. What’s more, the camera has an autotracking function (Autotracking Lite) of people moving within the protected area.

The most important parameters:

• 1/3" CMOS 4 Mpx sensor
• Recording resolution: 2560×1440 @25FPS
• Lens: wide angle 2,8mm
• Digital Zoom: x16
• Head rotation range: PAN: 0° to 340°, Tilt: -5° to 105°
• Smart Hybrid Light Technology: Yes
• Infrared illuminator IR30m
• White light illuminator LED 30m
• Motion detection: Yes - with person detection
• Autotracking: Lite - tracking people moving at normal speed
• Built-in microphone: Yes
• Built-in speaker: Yes
• SD card slot: Yes, up to 512Gb
• Image compression H.265+, H.265, H.264+, H.264
• ONVIF Compliance: Yes
• Image Features: dWDR, DNR, BLC
• Protection class: IP66
• Application: external or internal
• Power supply 12VDC & PoE (not included)
• Material: metal + plastic
• Installation: wall or ceiling
• Sizes: 163.9 mm × 185.8 mm × 131.9 mm

The camera is sold without a 12V power supply. Compatible power supply is available at auction No. 16007754465.

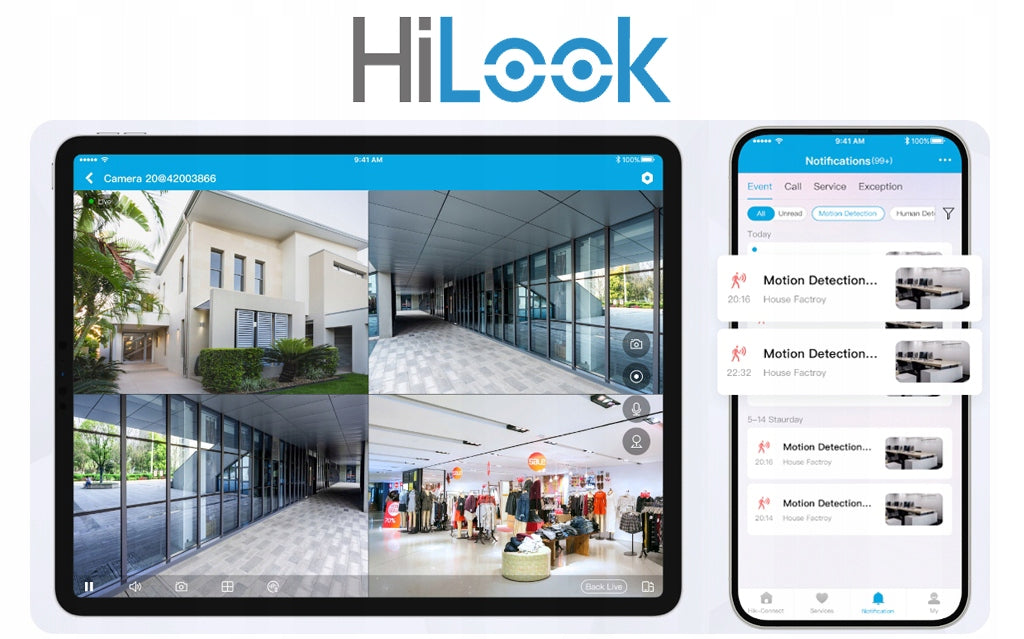

HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The camera belongs to a series of devices using innovative Hybrid Light technology - thanks to two types of illuminators on board, the camera allows effective observation at night both in infrared (black and white) and fully colored mode.

Thanks to this, it guarantees an even higher level of security, enabling effective identification of objects also after their color, in any lighting conditions.

The presented camera model has a built-in motion detection algorithm - when detecting moving objects on stage, the camera can send an emergency notification to the program and application.

What’s more, thanks to the built-in human body detection function, the camera effectively reduces the number of false alarms caused by the movement of irrelevant objects (leaves, animals).

The PTZ-N4MP-P camera not only detects movement - it is also able to follow the head of moving people! This allows for precise observation without the need for a manual rotary head setting.

Important: camera allows you to track people moving at normal speed (without running).

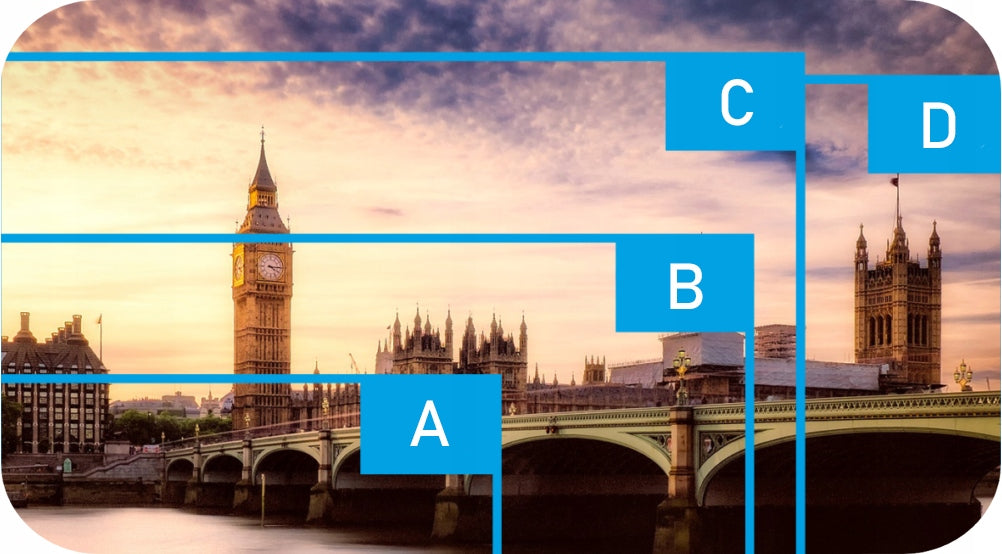

The PTZ-N4MP-P camera operates at 4Mpx resolution, allowing for much more accurate recording of details than standard FullHD models.

• A: HD 1280x720p
• B: FHD 1920x1080p
• C: 3Mpx 2048x1536p
• D: 4Mpx 2560x1440p

• Converter: 1/3" Progressive Scan CMOS
• Transmission standard: IP
• Maximum resolution: 4Mpx @2560 x 1440
• Sensitivity: Colour: 0.01 Lux @(F1.6，AGC ON), B/W: 0 Lux with IR
• Shutter speed: 1/3 s to 1/30,000 s
• Lens: 2,8mm

Illuminators

• IR range: 30m
• White LED range: 30m

Image compression

• Video compression: H.265+/ H.265/ H.264+/H.264
• Video Bitrate: 32 Kbps to 16384 Kbps


• Main stream - max. frame rate: 50 Hz: 20 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Auxiliary stream - max. frame rate: 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• Image functions: BLC, HLC, 3D DNR, DWDR
• Image settings: Rotation mode, saturation, brightness, contrast, sharpness, white balance (adjustable via software or web browser)
• Day/night mode: ICR
• Intelligent functions: motion detection, human body detection, autotracking lite

Network

• Network interface: 1x RJ45 Ethernet 10/100 Mbps self-adaptive
• Network protocols: TCP/IP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
• ONVIF: yes. Profile S, Profile G, Profile T),
• Selected functions: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Simultaneous preview: up to 20 channels
• Number of users / hosts: up to 32 users 3 permission levels: Administrator, Operator, User
• Customer software: iVMS-4200 (lite), HiLook App
• Supported browsers WEB: IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+

General

• Audio communication: Yes, built-in microphone and speaker,
• Power Supply: 12 VDCPoE 802.3af
• Power consumption: Max. 10.8W
• Protection class: IP66
• Mechanical resistance class: N/A
• Slot midroSD : to 512Gb
• Temp. work / Permissible humidity: -30 °C to 65 °C< 90% (non-condensing)

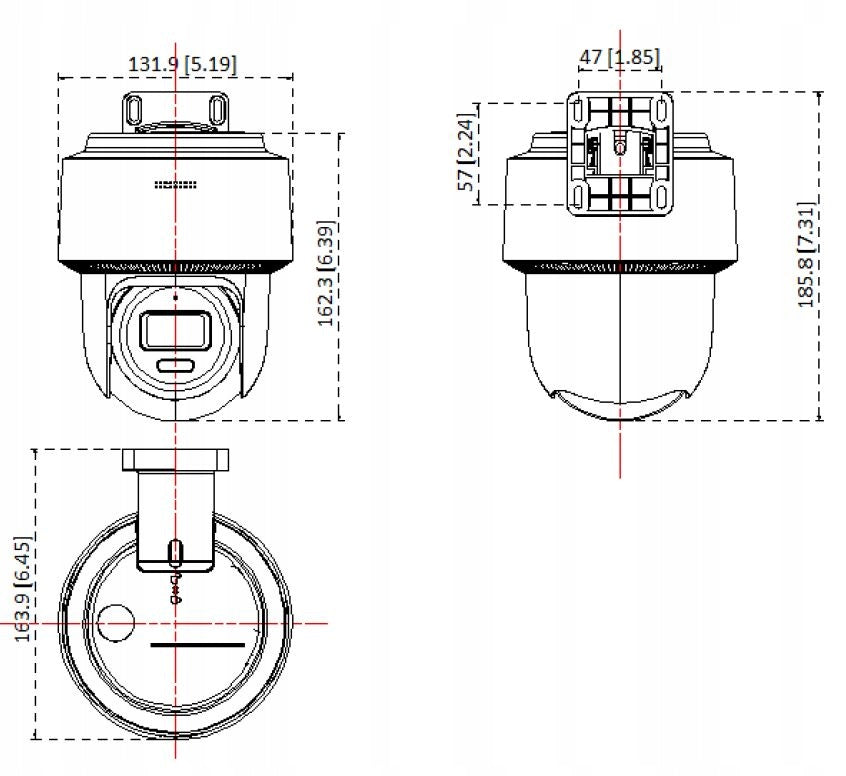

• Dimensions: 163.9 mm × 185.8 mm × 131.9 mm
• Weight: 0,6kg

Specifications
