IP panoraminė kamera 8MPx HiLook IPC-B480HAD-LUF/SL, 180°, dviguba optika, PoE

Trumpai apie prekę

Prekė: IP panoraminė kamera 8MPx HiLook IPC-B480HAD-LUF/SL, 180°, dviguba optika, PoE. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: IPC-B480HAD-LUF/SL

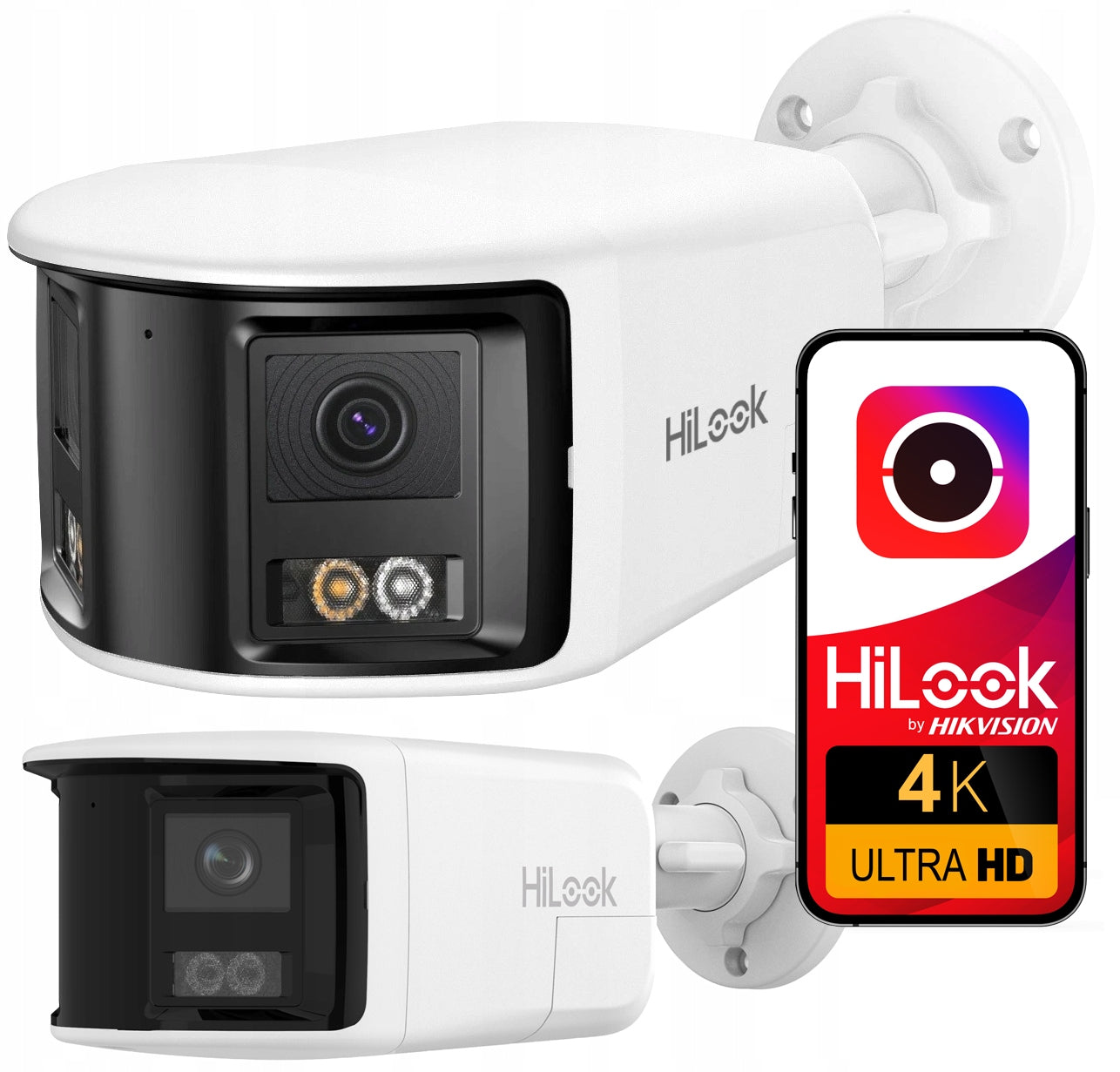

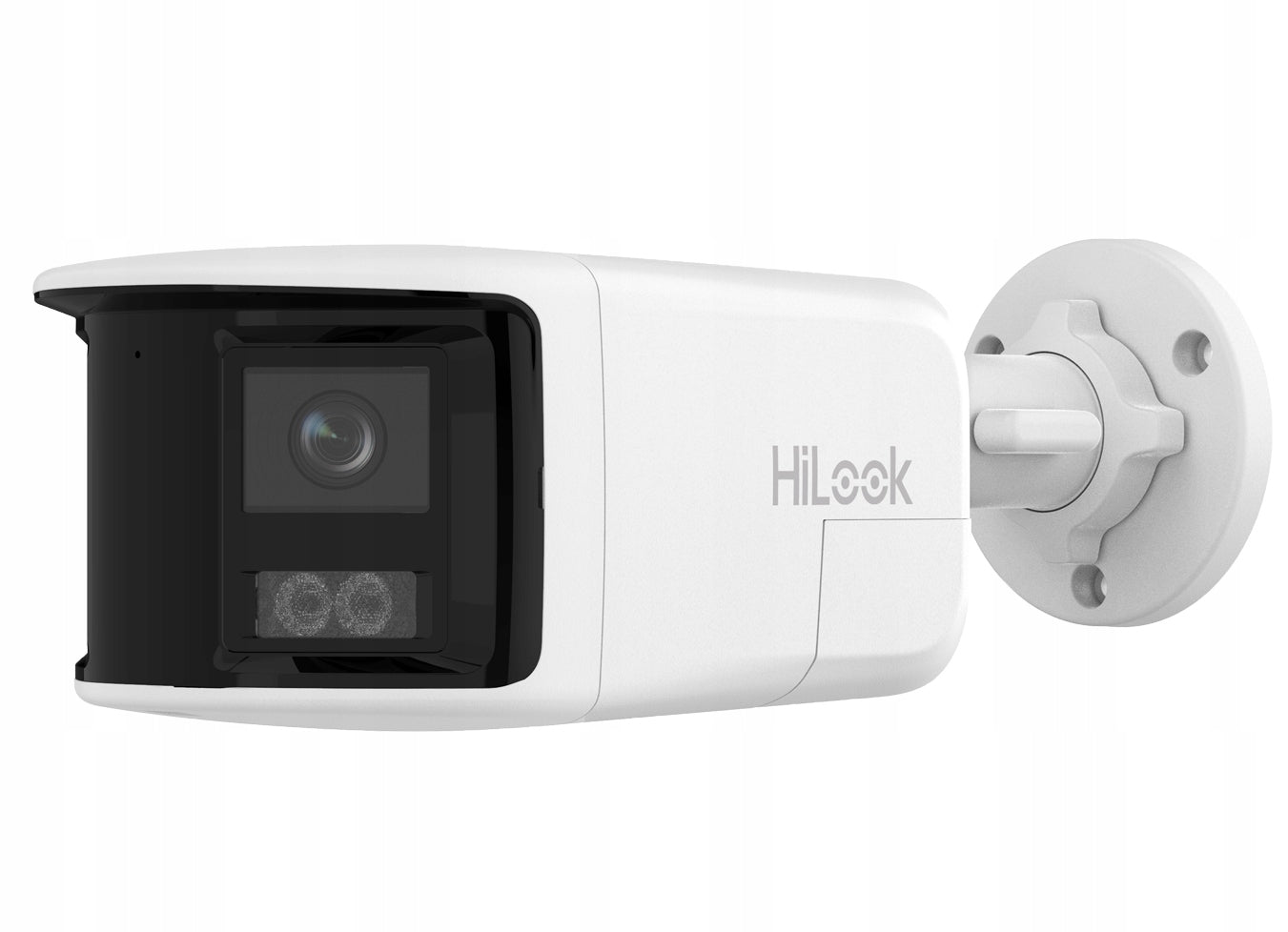

The HiLook IPC-B480HAD-LUF/SL model is a modern bullet-type IP camera. Featuring two lenses and a panoramic 180° view, it allows you to monitor a very wide area with a single device. The camera records in high resolution 8MPx (up to 4256 × 1888px), providing clear scene details – from people and vehicles to surrounding elements.

Thanks to Smart Hybrid Light technology, the camera can operate with both infrared and white light, ensuring good visibility up to 30 m at night in color and black-and-white modes. This solution is ideal for monitoring driveways, parking lots, warehouses, or areas around buildings.

✅ 8MPx resolution (4256 × 1888p) – highly detailed image for easy identification of people, vehicles and events

✅ 180° panoramic image (dual-lens) – one camera can observe a very wide area, limiting dead zones

✅ Smart Hybrid Light technology – automatic switching between infrared and white light for better visibility at night

✅ Colour night vision – the possibility of obtaining a colour recording after dark thanks to LED illumination

✅ Lighting range up to 30 m – effective monitoring even in complete darkness

✅ Intelligent detection of people and vehicles – limitation of false alarms caused by animals or plant movement

✅ Active deterrence of the intruder – built-in light and sound alarm when a threat is detected

✅ Two-way audio communication – microphone and speaker allow you to talk through the camera

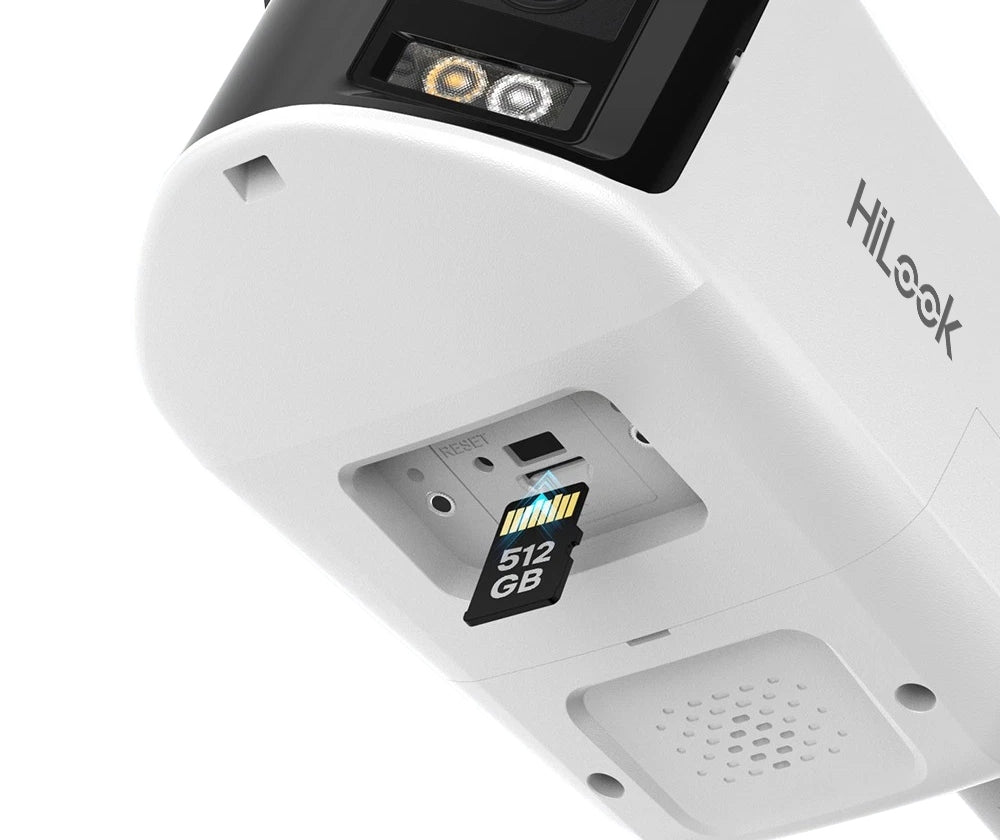

✅ Recording to microSD card up to 512 GB – the ability to save recordings without a recorder

✅ PoE or 12 V DC power supply – flexible installation in various monitoring systems

✅ IP67 resistance – safe outdoor work in rain, snow and dust all year round

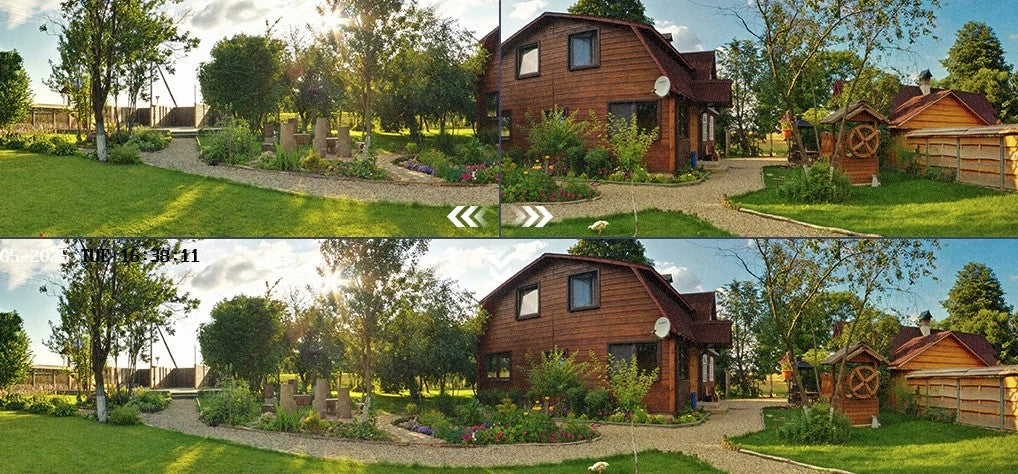

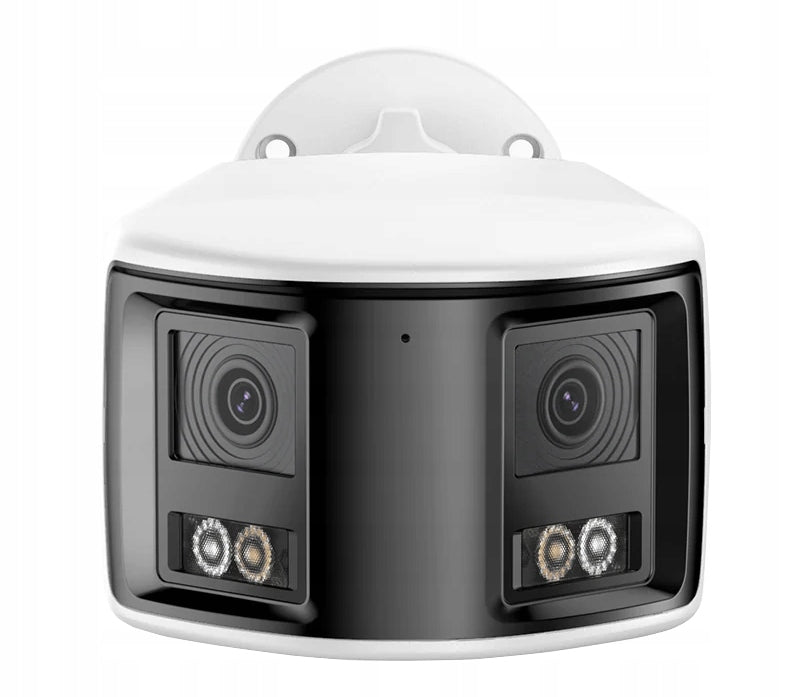

The HiLook dual lens camera intelligently combines images into a panoramic angle of 180 degrees without dead zones, maintaining a 20:9 aspect ratio. The image-joining technology ensures consistent brightness and color reproduction, creating the perfect panoramic view of your property.

Equipped with two high-sensitivity drivers and a 2,8 mm lens, the camera delivers clear color images even in low light.

The intelligent dual lighting system automatically switches from infrared mode to white light when people or vehicles are detected, recording color details at night, and returns to IR mode after the event. With a lighting range of up to 30 meters, the camera provides reliable security around the clock.

The 8MP resolution in the HiLook panoramic camera provides much more detail compared to standard 4 MP or Full HD cameras.

With more pixels, the image is more detailed, making it easier to recognize faces, license plates and small details in the monitored area.

Higher resolution also allows you to cover a larger area with one camera without losing image quality, and also allows digital magnification of fragments of the recording while maintaining good readability. In practice, this means more effective monitoring and greater certainty of event identification.

The HiLook pranoramic camera supports sound and light alarms, which can be triggered automatically by events or manually via a mobile application.

You can choose from 12 built-in alarm sounds or upload your own recording. Effectively deters intruders and increases real-time responsiveness.

The two-way audio system in the IPC-B480HAD-LUF/SL significantly extends its functionality beyond standard image monitoring. The built-in microphone and speaker allow you not only to hear what is happening in the camera environment, but also to actively communicate with people within its range.

In practice, this means the possibility of talking to the courier, issuing instructions to the employee or immediately warning the intruder – without the need for physical presence on the spot. This feature increases control over the facility and realistically increases the level of security, especially when combined with alarms and active deterrence

Technical specification – Hikvision IPC-B460HAD-LUF/SL

• Camera type: network widescreen horn camera
• Converter: 1/2.4" Progressive Scan CMOS
• Maximum resolution: 4256 × 1888
• Effective resolution: 8MP
• Sensitivity: 0.005 Lux @ F1.6, AGC ON / 0 Lux with lighting
• Snapshot: 1 s to 1/100 000 s
• Day/night mode: mechanical IR cut filter
• Adjustable setting: pan 0° to 360°, tilt 0° to 180°, rotate 0° to 360°

Objective

• Lens type: fixed focal length
• Focal length: 2.8 mm
• Angle of view horizontal: 180°
• Vertical viewing angle: 77°
• Lens mount: M12
• Aperture: F1.6

DORI

• Detection: 50 m
• Observation: 20 m
• Recognition: 10 m
• Identification: 5 m

Lighting

• Lighting type: IR + white light
• Lighting range: up to 30 m
• Smart Supplement Light: yes
• IR wavelength: 850 nm

Video

• Main stream: up to 20 fps. /s at 4256 × 1888
• Sub-stream: up to 20 fps. /s at 1200× 536, 960 × 432
• Compression of main stream: H.265+, H.265, H.264+, H.264
• Auxiliary flux compression: H.265, H.264, MJPEG
• Video Bitrate: 32 Kbps to 16 Mbps
• bitrate control: CBR / VBR
• ROI: 1 fixed area for main stream
• SVC: H.264 and H.265

Audio

• Audio type: mono
• Audio compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
• Audio sampling: 8 kHz / 16 kHz
• Ambient noise filtering: yes
• Built-in microphone: yes, 1 pc.
• Built-in speaker: yes, 1 pc.
• Max. speaker power: 2 W
• Max. sound pressure level: 97 dB with 10 cm

Image and image functions

• WDR: 120 dB
• SNR: ≥ 52 dB
• Image functions: BLC, HLC, 3D DNR
• Privacy masks: 4 programmable polygon masks
• Image settings: rotation, saturation, brightness, contrast, sharpness, gain, white balance
• Switching day/night: day/night/auto/schedule

Smart and alarm functions

• Motion detection: yes
• Object recognition: human and vehicle
• Video sabotage: yes
• Supported alarm actions: card save, e-mail, FTP upload, notification to monitoring center, recording, image dump, audible warning, flashing light
• Active deterrence: yes

Network

• Network port: 1 × RJ45 10/100 Mbps
• Protocols: TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
• ONVIF: Profile S, Profile T, Profile G
• API: ISAPI, SDK
• Simultaneous preview: up to 6 channels
• Max. Number of users: 32
• User levels: administrator / operator / user
• Supported applications: iVMS-4200, HiLookVision

Memory and interfaces

• Slot of memory cards: microSD / microSDHC / microSDXC
• Max. Card capacity: up to 512 GB
• Reset button: yes

Power supply

• 12 V DC: ±25%, 0.83 A, max. 10 IN
• PoE: IEEE 802.3af, Class 3, max. 11.5 IN
• Reverse polarity protection: yes

Housing and working conditions

• Material: front metal, housing plastic, handle metal
• Protection class: IP67
• Working temperature: from -30°C to +60°C
• Working humidity: up to 95% non-condensing
• Dimensions: 103.6 × 76 × 234.5 mm
• Weight: approx. 560 g
