IP stebėjimo kamera rinkinys, 8 vnt. 8MP, 2TB, programėlė, jungiklis

Trumpai apie prekę

Prekė: IP stebėjimo kamera rinkinys, 8 vnt. 8MP, 2TB, programėlė, jungiklis. Kategorija: Rinkiniai.

• Gamintojas: Zintronic
• Modelis: 8xIKKP820LV1-IR9S18MP-URUS-2TB

A modern monitoring set based on Zintronic D8 cameras and recorder, ensuring high image quality, intelligent detection and stable 24/7 operation. Branded SONY IMX415 converter guarantees detailed image, smoothness 20kl. /s and reliable performance.

Robust camera design and compact housing ensure durability and aesthetic installation.

🎯 Who is this set for?

• you want to secure your home or property
• you need monitoring company, warehouse or office
• You care about recognition of people and vehicles
• you want to have remote live view from your phone

✅ System fully configured!

✅ Free Application w jez. pol - NO ADS

✅ 8MPx @20kl/s (SONY IMX415)

✅ Wide viewing angle 109°/2.8mm

✅ DUAL LIGHT up to 30 m (IR + colour mode)

✅ Intelligent detection of people and vehicles (AI)

✅ Smart functions - Line, intrusion, sabotage

✅ Recording of sound from cameras

✅ Remote access and management

✅ Metal housing (IP67)

🎧 Technical support: Contact a real specialist

🛡 WHY ZINTRONIC

Securing monitoring does not have to cost several thousand zlotys. We offer proven sets that provide high parameters at a reasonable price.

• Individual selection of components – no mass, truncated sets (so-called. ready-made in one carton)
• The ability to purchase each element separately - cameras without software restrictions also work independently
• Increased durability, functionality and reliability compared to ready-made solutions

👉 This means Better quality, longer service life and real savings in the long run.

🔴 LIVE VIEW FROM ANYWHERE

Have a constant view of your cameras, no matter where you are – at home, at work or away.

The recorder is accompanied by free software in Polish, which allows quick login and convenient monitoring operation on various devices.

📺TV | Computer 💻| Smartphone 📱| Tablet:

• TV / Monitor – directly through the DVR
• Computer – via a browser on a local network, iVMS-320 or Bitvision
• Phone / Tablet – intuitive application Bitvision

📷 D8 8MPx CAMERAS

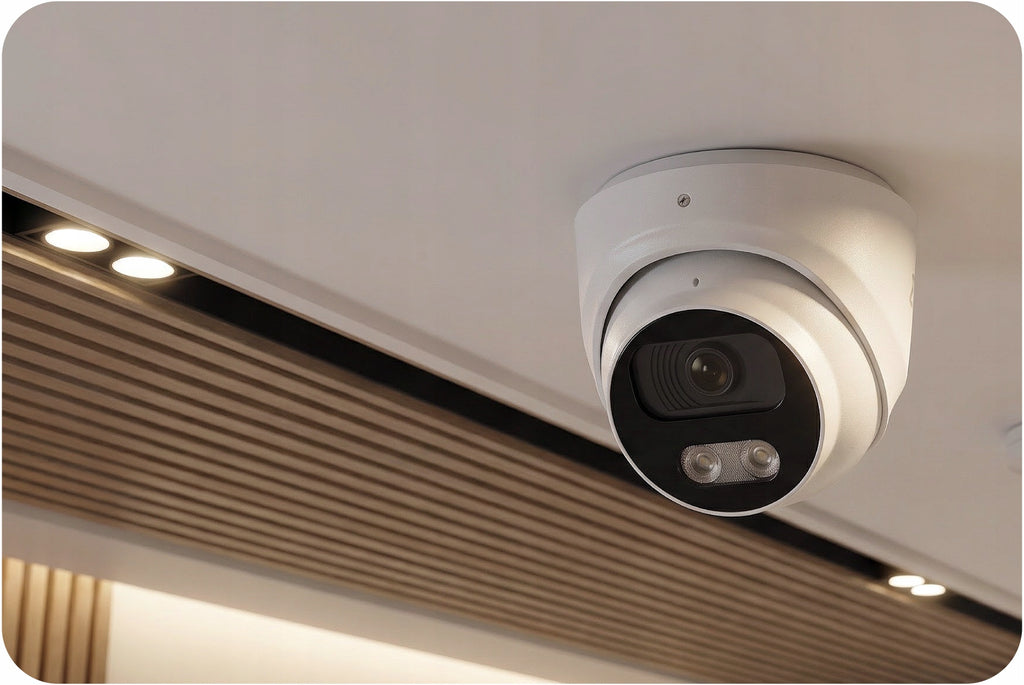

The D8 camera is distinguished by its modern, minimalist design, which fits perfectly with the modern facade of the building.

The compact, metal housing is unobtrusive and at the same time meets the IP67 🛡 standard, providing full resistance to rain, dust, frost and changing weather conditions.

The camera will work both indoors and outdoors, maintaining the aesthetics of installation and high functionality.

✅ SONY STARVIS IMX415 – 8MP premium

The model is based on the original SONY STARVIS IMX415 sensor, which provides clean, detailed image and clearly exceeds the cheap, brandless sensors used in budget cameras.

🎯 Why choose IMX415?

• Real resolution 8MP (3840 × 2160 @20 fps. /s) True 4K Ultra HD – high detail without artificial sharpening and interpolation.
• Higher readability of details clearer license plates, faces and small elements.
• Natural color reproduction good separation of lights and shadows, no "burns" and washed colors.
• Stable, repeatable image quality professional premium sensor used in the higher shelf of devices.
• Full liquidity 20 class. /s natural, smooth movement without the effect of “jumping” the image – crucial when recording dynamic events.

👁 Wide viewing angle

The camera offers a wide-angle image with a viewing angle of 109°, which allows you to cover a large area with one camera.

Fewer dead zones mean more effective monitoring of the driveway, garden or entrance to the building without the need for additional cameras.

🧠 Intelligent detection of people and vehicles

The advanced AI image analysis used in cameras allows for precise discrimination of human and vehicle silhouettes, eliminating false alarms caused by animals, rain or moving branches.

The system responds only to real threats – it detects people and cars, marks them in the image and immediately sends notifications. Thanks to this, you have full control over what is happening on the property, both during the day and at night.

🚧 Crossing the line – intelligent access control

The camera monitors the image in real time and activates the alarm when the user crosses the virtual line designated by the user.

It is an ideal solution for protecting entrances, gates, entrances or technical passages. The feature allows you to quickly respond to unauthorized traffic and maintain full control over the protected area.

🚨 Intrusion detection

The recorder allows you to designate a virtual zone around your home, business or property (e.g. under the window, by the fence or in the parking lot).

The camera recognizes a person’s intrusion into the designated area, ignoring accidental background movement.

This allows us to focus on what is most important, which is the protection of our property.

🛠 Protection against camera tampering

The system automatically detects attempts to cover, rearrange or attempt to damage the camera. If such an event is detected, the user immediately receives a notification, which allows him to react quickly.

This function effectively protects our monitoring system from intentional damage.

🎙 Built-in microphone – audio recording

Each of the 8 cameras is equipped with a built-in, discreet microphone, which allows recording of ambient sound along with video.

This means that the system records not only the image, but also audio, increasing the amount of available information and monitoring efficiency.

☀ WDR – wide dynamic range

WDR automatically brightens too dark places and darkens too bright, making the image clear, detailed and more natural.

This is especially important for:

• entrances to buildings
• reception with large glazing
• entrance gates
• warehouses with an open ramp

WDR increases the effectiveness of identification of persons and license plates in difficult lighting conditions.

Intelligent night light modes

✅ IR mode (infrared)

After dark, the camera works in infrared mode, providing readable, black and white night vision. Intelligent image analysis allows you to detect motion without unnecessary ambient lighting.

✅ White light mode (night color)

When LED mode is activated, the camera illuminates the scene with white light, allowing full-color images also at night – the perfect solution for identifying details.

✅ Smart mode (IR + LED) 🧠💡

Default and most advanced operating mode:

• camera at night works in IR mode,
• when a human is detected, it automatically turns on the white light,
• image switches from black and white to color,
• light also has a deterrent function.

The recorder is the heart of the entire system – it supports simultaneous viewing of up to 9 cameras, ensuring smooth operation thanks to its powerful processor.

The system is complete and supports 8 cameras in the above configuration, so it is ready for operation immediately after installation.

The intuitive interface allows you to fully manage your monitoring from anywhere – on your computer or smartphone, wherever you are.

Recorder functions included:

👀 Local and remote view

You can watch the image from the cameras on a monitor or TV connected to the recorder, as well as remotely on a computer or smartphone – from anywhere, thanks to the free in Polish.

🔔 Email and push notifications

When motion is detected, you will receive a notification on your phone or email, optionally along with a photo from the event.

💾 Recordings on disk

Ability to record continuous, time or only when an event is detected (movement, alarm). You can adjust the recording mode to your needs and disk capacity.

The set includes a disk o capacity 2 TB, which when working 8 cameras with a chapter. 8 Mpx provides up to day 3 of continuous recording.

🔁 Automatic overwriting of recordings

When the disk fills up, the system itself deletes the oldest recordings, thanks to which monitoring works without interruptions.

🔒 Privacy mask

Possibility of covering selected fragments of the image, e.g. adjacent property or public road – you record only what interests you.

BitVision mobile application – monitoring always at hand

The free BitVision in Polish is available to the recorder, which allows you to easily watch the image from the cameras and view the recorded recordings – no matter where you are.

The application is intuitive and convenient in operation, so people without monitoring experience can also easily cope with it. It allows not only live view, but also save photos and videos directly on your smartphone, so you always have the most important recordings at hand.

Main functions of the application:

1. 📡 Live view from cameras from anywhere
2. 🔔 Real-time notifications about events
3. 💾 Browse recordings stored on the recorder disk
4. 🌍 Remote access to recordings from anywhere
5. 📷 Save photos and videos directly on your phone
6. 🔍 Digital image magnification (up to x8)
7. ⚙ Access to settings – full operation and configuration of cameras in the application

With the BitVision app, you get full control over your monitoring system – conveniently, safely and whenever you need it.

📱 The application works in both Android and iOS environments.

👨 👩 👧 👦 Multi-user access

You can add any number of users to the system – e.g. wife, children, father-in-law or other household. Each of them can have a permanent live view on your phone or computer, from anywhere. You decide who has and what permissions, so that everyone is up to date and you have full control over the system.

⚡ PoE power supply – one cable, maximum convenience

Thanks to Power over Ethernet technology, one UTP twisted pair transmits image and power simultaneously. This is:

• simpler and faster installation,
• less cables and lower installation costs,
• No need for additional power supplies for cameras.

PoE operates at a distance of up to 100 m, and the built-in PoE switch in the recorder makes the system ready to operate immediately after connecting.

➡ WHY MONITORING IP

• IP monitoring gives us better quality and more smooth image
• Lower installation costs IP technology uses only one UTP cable,
• Installation is simpler and cheaper to start (just plug the camera into the recorder and the recorder will detect and activate the cameras)
• Increased functionality
• Possibility of connecting cameras over longer distances up to 90m.

⚠ Method of connecting the set – quick installation of the monitoring set:

1. Place the cameras in the scheduled mounting locations and connect the LAN cable to each of them.
2. The other ends of the LAN cables from the cameras connect to the PoE ports of the recorder (order is arbitrary).
3. Connect the recorder to the router with a LAN cable – from the LAN port of the recorder to the LAN port of the router.
4. If you plan to have access to the DVR menu on your TV or monitor, connect it with an HDMI or VGA cable.
5. Connect the power supply from the box to the recorder and to the 230V network.
6. Install the Bitvision mobile application on your Android or iOS phone,create an account (preferably in the domain gmail.com) and add the recorder by scanning the QR code (visible on the sticker on the bottom of the recorder or on the box), entering the login: admin and password: 12345 and the CAPTCHA verification code (from the above-mentioned stickers).
7. The monitoring set is active.

✅ COMPLETE SET – READY TO ASSEMBLE RIGHT OUT OF THE BOX

The kit is fully prepared for installation:

• cameras paired with the recorder,
• 2 TB drive mounted inside
• all ready-to-connect components,
• included readable installation instructions.

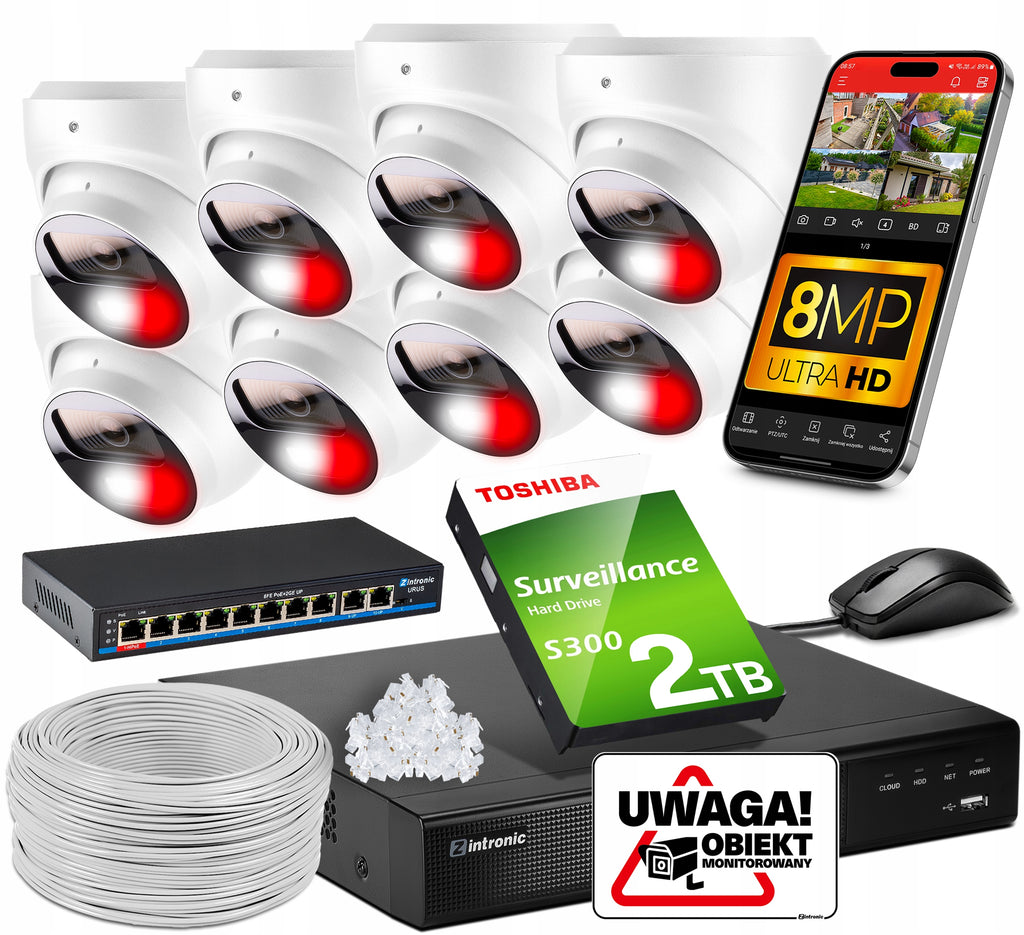

📦 What is included in the monitoring kit:

➡ 9-channel NVR (4× PoE)

• SKU: IR9S18MP
• Number of cameras supported: 9
• Maximum supported resolution: 12MP/4K (4000×3000)
• Number of hard drive inputs: 1 x SATA, (up to 10TB)

➡ SWITCH POE Zintronic URUS 8FE x POE + 2GE UPLINK 120W POE

• SKU: URUS
• 10 RJ45 ports
• 8 PoE ports 802.3 af/at
• 2 GIGABIT UPLINK ports
• PoE support up to 30W per port
• 52V/120W power supply
• Long range PoE mode, up to 250m
• Support for VLAN port isolation

➡ 8× IP Camera D8 / 8MPx 2.8mm

• SKU - IKKP820LV1
• Resolution - 3840x2160 @20kl/s
• Matrix: 1/2.8" SONY Starvis Back-illuminated CMOS sensor
• Transducer: SONY IMX415
• Audio recording: built-in microphone

➡ 2 TB hard drive (for monitoring)

• Toshiba S300 HDWT720UZSVA 2TB

➡ Assembly accessories and wiring

• Ethernet LAN network cable 80m BITNER - SKU: BITK5UTPW
• 20× RJ45 plug - SKU: RJ45/C53
• Table "Monitored object" - SKU: T-25X175Z

ATTENTION! A: It is possible to convert twisted pair to patch cords without additional surcharge.

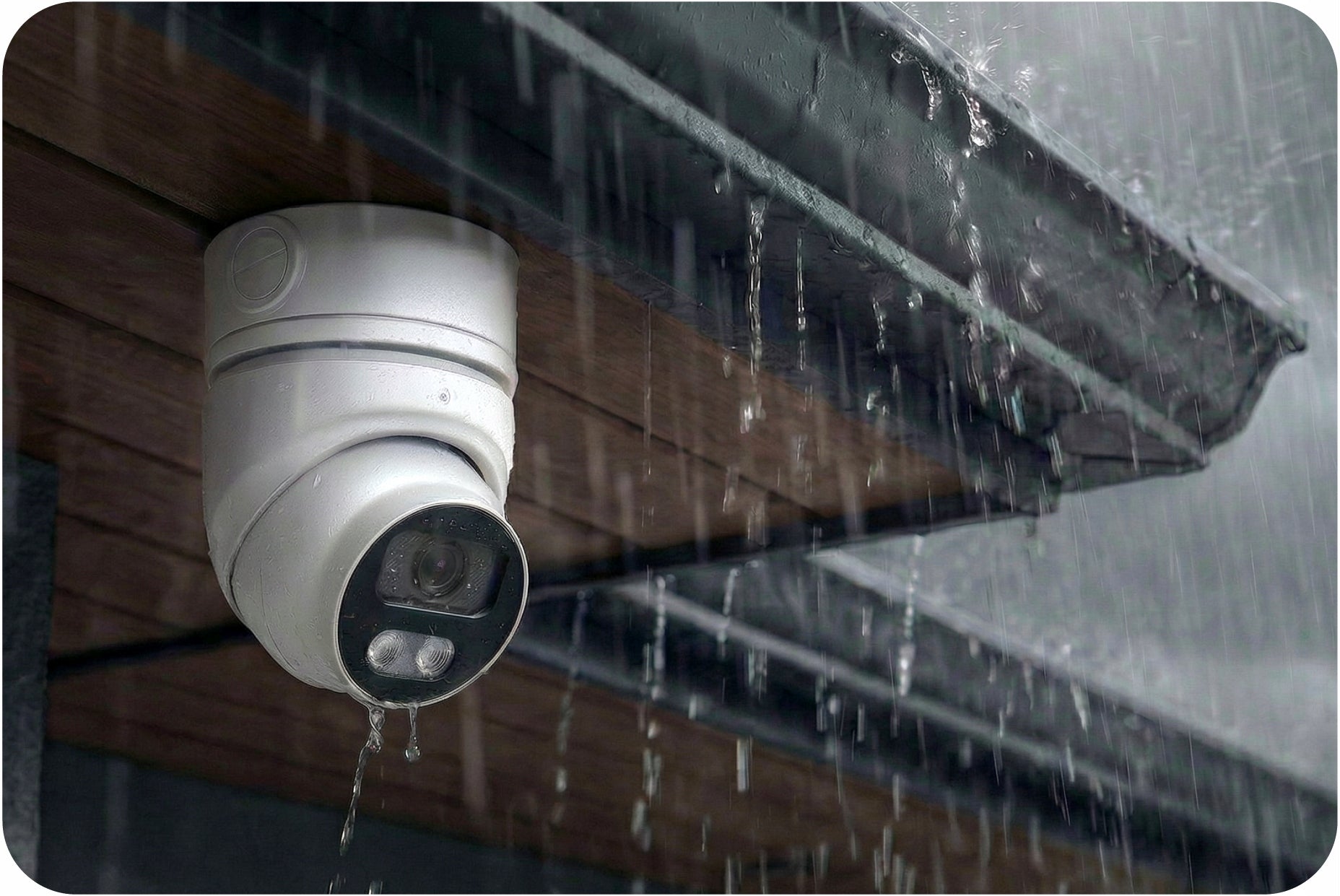

🌡 Wide operating temperature range from -30°C to +60°C

The cameras are adapted to work in difficult weather conditions. They work easily at low temperatures up to -30°C.

Metal, resistant, sealed housing protects devices from rain, snow and frost, ensuring stable operation throughout the year, regardless of the weather.

🧩 Possibility to expand the set with additional accessories

The set can be easily retrofitted with dedicated accessories that increase functionality and convenience of installation.

m.in is available:

• mounting boxes for AKU1V1 cameras (sold separately) auction no.: 9652428780
• additional infrared illuminator OIRB80V1, which increases the illumination range of the scene in the dark, auction no.: 12572014012

(The picture is illustrative – cans are not included in the basic set. )

🎧🛠 Full technical support included in the price

We are a manufacturer of Zintronic equipment in Poland.

Together with the recorder, you get full technical support at every stage of use. We help in the configuration, connection of cameras and operation of the system – before and after purchase. Thanks to this, you can be sure that the monitoring will work properly and without unnecessary problems.

When you buy from us, you can be sure of:

• fast contact with Polish support
• real technical assistance
• availability parts and updates
• security purchase from the official channel.

We focus on long-term cooperation and real support.

🏅Certified quality and safety

Our equipment meets European quality and safety standards, including CE and RoHS.

This is a guarantee that the device is safe in everyday use, compliant with applicable regulations and environmentally friendly.

Specifications
