Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: 3 eur
Aprašymas
Trumpai apie prekę
Prekė: IP stebėjimo rinkinys HIKVISION, 4 kamerų, 4MP, IP67, su įrašymo įrenginiu. Kategorija: Rinkiniai.
- Gamintojas: Hikvision
- Modelis: IPKIT-T4-4CH
4 IP cameras | 4MPX | IP67 cameras | POE recorder | 4 LAN cables | HIKVISION
◾ Code: 7268 ◾
4 IP cameras | 4MPX | IP67 cameras | POE recorder | 4 LAN cables | HIKVISION
Take care of the safety of your property with a complete set of monitoring based on the proven HIKVISION technology. This ready-to-install solution ensures high image quality, reliable operation and convenient remote access.
The reliability of the system is guaranteed by the renowned manufacturer HIKVISION, which is one of the leaders in the security market in the world.
◾ The most important benefits
- Full 24/7 control – live view and access to recordings (after installing the HDD) from anywhere via the mobile application
- High image quality 4Mpx – detailed monitoring for identification of people and events
- Saving disk space – modern H.265+ and H.264+ compression
- Simple and quick installation – PoE technology eliminates the need for additional power supply
- Resistance to weather conditions – IP67 rated cameras for outdoor and indoor applications
◾ Key features of the system
- 4 dome IP cameras with 4Mpx resolution
- Built-in IR lighting – effective monitoring also at night
- Digital Noise Cancellation – Better picture quality in low light
- 4-channel NVR with built-in PoE switch
- Remote operation via smartphone (Android/iOS)
- Stable data and power transmission with one cable (PoE)
◾ Ease of installation
- The kit is designed for maximum simplification of installation:
- Connect cameras with one LAN cable (power + image)
- Built-in PoE switch in the recorder eliminates the need for additional devices
- The included wires allow you to quickly start the system
- Intuitive configuration – commissioning possible even without specialist knowledge
NOTE - In our offer you will find suitable mounting boxes (bases) dedicated to the installation of cameras from the set (allegro auction number: 18521576955). We also have the same set on sale with a 1TB HDD included (allegro auction number:18465277697). We invite you to familiarize yourself with the offer.
❗Instructions for connecting and starting the set❗
A brief instruction on how to install and configure the system is available at the bottom of the description as a PDF file "Operating Instructions".
The step-by-step document will guide you through the entire process of connecting the kit and the first start-up, making installation quick and hassle-free even for those without experience.
◾ The price applies to the whole set ◾

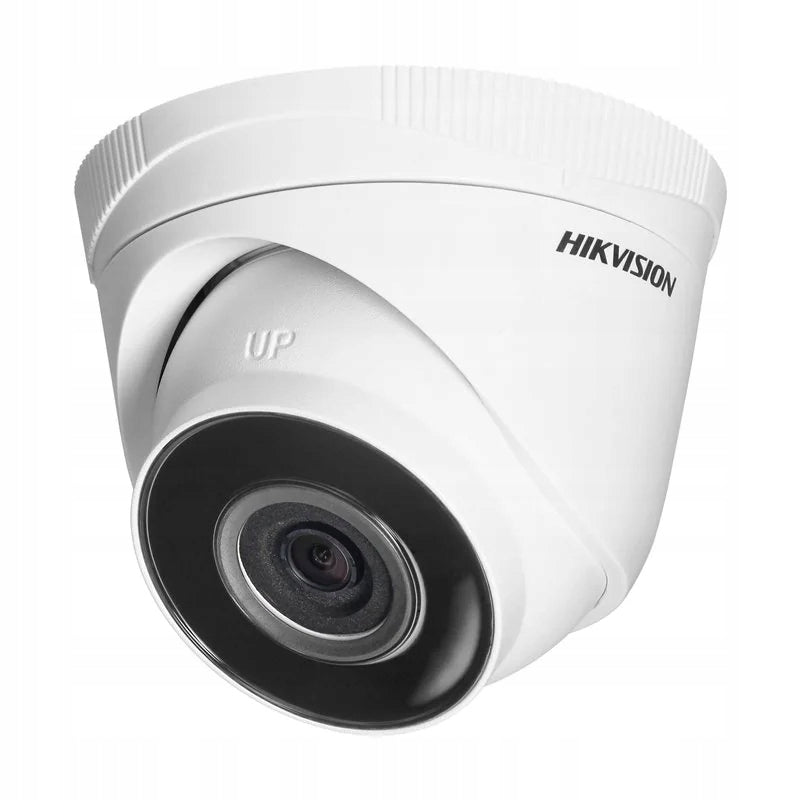

◾Basic technical specification – 2.8 mm (4 MP) camera
- Camera Type: Dome (Turret) IP
- Resolution: 4 MP (2560 × 1440)
- Image sensor: 1/3" Progressive Scan CMOS
- Video compression: H.265+ (saving bandwidth and disk space)
- Power Supply: PoE (Power over Ethernet)
- Protection class: IP67 (water and dust resistance)
- Minimum lighting: Colour: 0.01 Lux (F2.0, AGC ON), Night mode (IR): 0 Lux
- Shutter: 1/3 s to 1/100 000 s
- Day/night mode: mechanical infrared filter (IR Cut)
- WDR: 120 dB (excellent image quality with strong light contrast)
- Noise reduction: 3D DNR (clean and clear image)
- Lens Type: Fixed Focal
- Focal length: 2.8 mm
- Viewing angle:
- 2.8 mm: horizontal: 98.0°, vertical: 53.1°, diagonal: 114.7°
- Mount: M12
- Aperture: F2.0
- Aperture Type: Fixed
- Rotation (Lord): 0° – 360°
- Tilt: 0° – 75°
- Rotation: 0° – 360°
- IR lighting – effective work at night
- Resistance to weather conditions
- Easy installation thanks to PoE technology (one cable for power supply and data transmission)

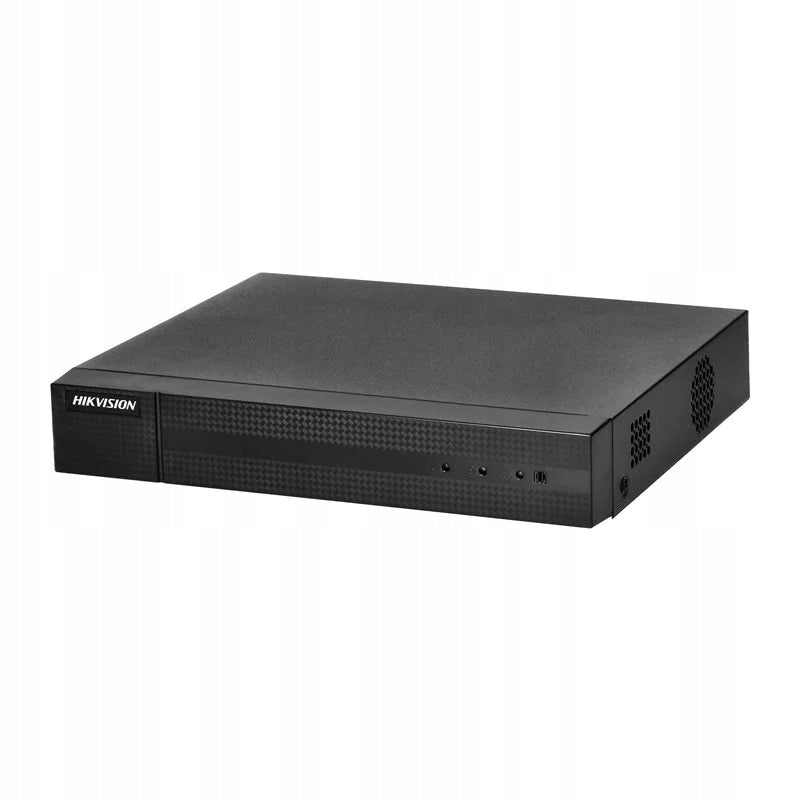

◾ Basic specification of the recorder
- Camera support: up to 4 IP cameras
- Maximum resolution: up to 4 MP
- Video compression: H.265+ / H.265 / H.264+ / H.264
- Input bandwidth: up to 40 Mbps
- Output bandwidth: up to 60 Mbps
- Recording: 4 MP/3MP/1080p/720p and lower
- Synchronous playback: up to 4 channels
- Decoding: 1 channel @ 4 MP, 2 channels @ 1080p
- Video Outputs: HDMI + VGA (Simultaneous)
- Network port: 1 × RJ-45 (10/100 Mbps)
- USB Ports: 2 × USB 2.0
- Number of drives: 1 × SATA
- Maximum capacity: up to 6 TB
- Supported protocols: TCP/IP, DHCP, DNS, DDNS, NTP, SMTP, UPnP
- Mobile application: Hik-Connect
- Online preview and playback of recordings by phone and computer
- Motion detection
- Intelligent search for recordings
- Power Supply: 48 V DC
- Power consumption: approx. ≤10 W (without disk)
- Operating temperature: -10°C to +55°C
◾ Preview from your computer or phone
The system using the application allows convenient live viewing and playback of recordings both on the computer and phone from anywhere with Internet access.

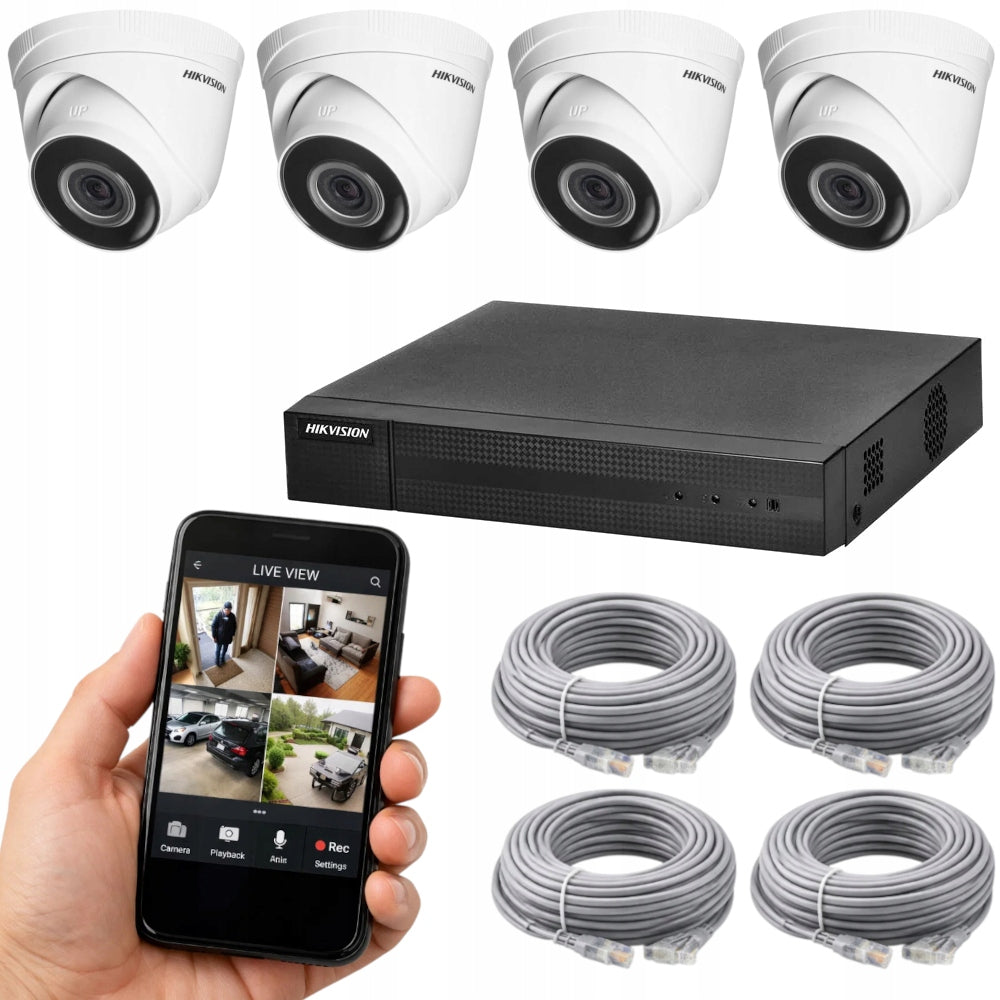

◾ Contents of the set
- 1x NVR recorder (included: mouse, power supply, SATA and power cables)
- 4x IP Dome Camera
- 1x HDMI Cable
- 4x LAN cable cat.5 FTP (18 m)
◾ Application
The set is perfect for:
- single-family homes
- dwellings
- offices
- warehouses
- service premises
◾ How the focal length works in the objective
The focal length in the lens determines how wide or narrow the image can be seen by the camera.
↗ Small focal length (e.g. 1.2 mm – 2.8 mm)
- very wide viewing angle
- covers a large space
- smaller details (objects are further and smaller)
➡ Focal mean (e.g. 4 mm – 6 mm)
- compromise between width and detail
- good for general monitoring
↘ Large focal length (e.g. 8 mm – 12 mm)
- narrow viewing angle
- approximate image (zoom)
- better identification of details over a longer distance
✔ Summary:
- The smaller the focal length – the wider the image.
- The larger the focal length – the greater the approximation and the narrower the viewing angle.
◾ Pictures of the contents of the box:
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | IPKIT-T4-4CH |
| Parametry | Model | IPKIT-T4-4CH |
| Parametry | Brand | Hikvision |
| Parametry | Product weight | 0.15 kg |
| Parametry | Product weight with unit packaging | 0.15 kg |
| Parametry | Technology | IP |
| Parametry | Number of supported cameras | 4 |
| Parametry | Maximum recording resolution | 4 Mpx |
| Parametry | Lens | fixed-focus |
| Parametry | Infrared range | 30 m |
| Parametry | Camera waterproof rating | IP67 |
| Parametry | Maximum number of supported drives | 1 |
| Parametry | Maximum capacity of drives | 6 TB |
| Parametry | Video compression | H.265+ |
| Parametry | Number of USB ports | 2 |
| Parametry | Other ports | LAN (RJ-45) |
| Parametry | EAN (GTIN) | 6931847172619 |
| Parametry | Batteries included | no |
| Parametry | Video outputs | HDMI,VGA |
| Parametry | Functions | phone app,PoE |
