IP vaizdo įrašymo įrenginys Hikvision DS-7604NXI-K1/4P, 4 PoE kameros, Acusense

Trumpai apie prekę

Prekė: IP vaizdo įrašymo įrenginys Hikvision DS-7604NXI-K1/4P, 4 PoE kameros, Acusense. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: Hikvision
• Modelis: DS-7604NXI-K1/4P(D)/PL

DS-7604NXI-K1/4P digital IP surveillance recorder with built-in PoE switch for 4 IP cameras from the Hikvision AcuSense series in resolution up to12 Mpx (8K Ultra HD) and H.265+ compression

The Hikvision DS-7604NXI-K1/4P recorder is a professional digital device designed for extensive video surveillance systems. The device works within the framework of modern IP technology, and its main task is to effectively record video and sound from up to four IP cameras at a maximum resolution of 4000×3000 (12Mpx).

The recorder comes from the latest series of AcuSense EasyIP 4.0 recorders, where a special algorithm was used that allows filtering alarms on all channels.

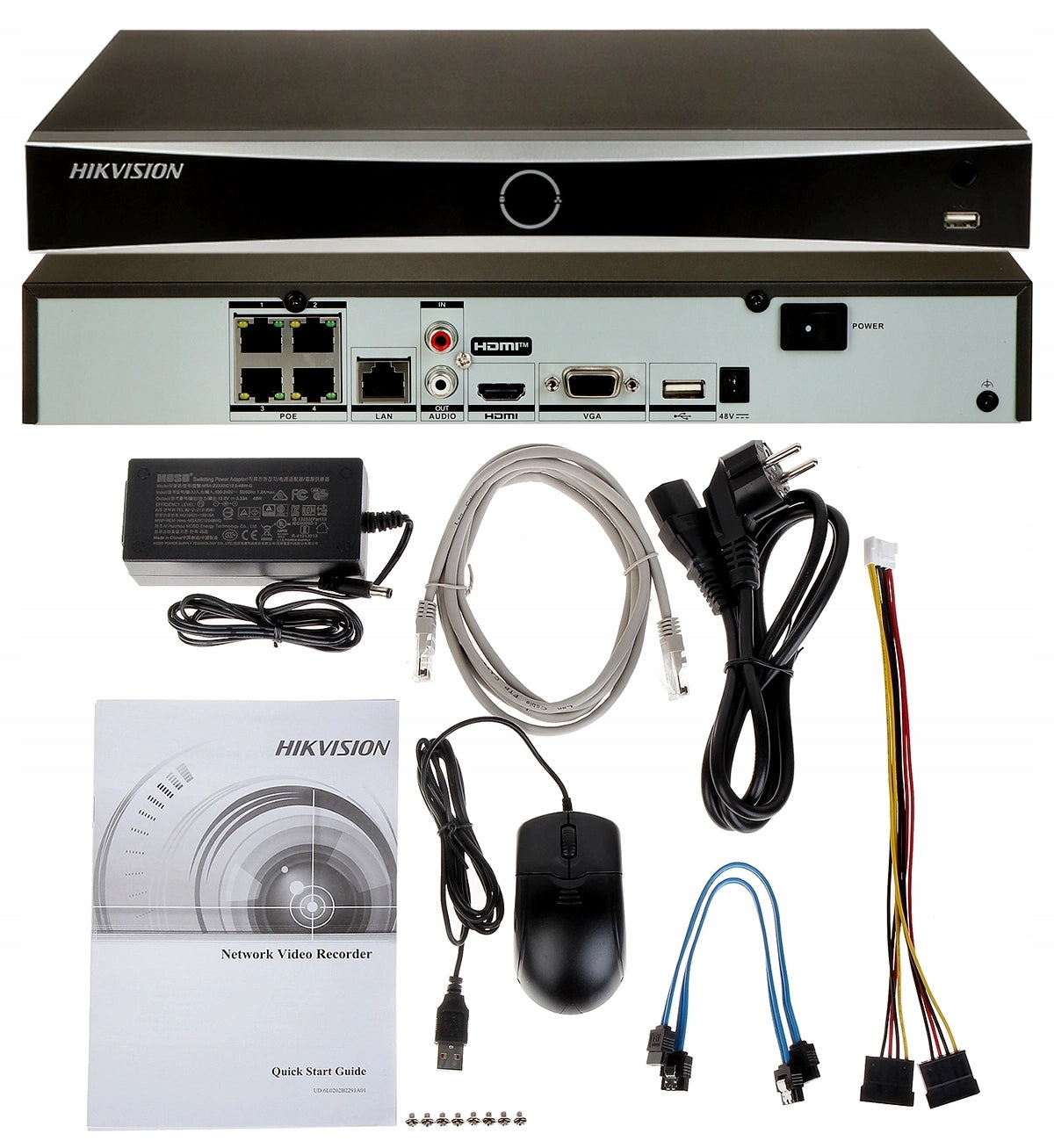

When you buy a recorder in the set, you get:

✅ Mouse for USB control

✅ Cables for connecting the disk

✅ Power supply for DVR

✅ UTP(RJ-45) patch cord for internet connection.

✅ Instruction manual in Polish

Key features:

The HikVision recorder is a modern network device that has been designed to comprehensively support up to 4 IP cameras through an internal PoE switch in very high resolution.

If you are here, you are looking for a recorder that:

✅ records at a resolution of up to 12 MPx - this is the highest quality guaranteeing a wide frame and very high pixel density

✅ enables fast connection of 4 IP cameras via internal PoE switch

✅ advanced perimeter protection features

✅ classification of Acusense objects on all channels: human / vehicle

✅ has remote live view in the manufacturer's application

✅ has HDD space up to 10 TB

✅ archives on external USB media

✅ enables PTZ rotary heads to be controlled

✅ access from mobile phone (android, iOS)

Remote access and management

The manufacturer of Hikvision allows you to use Polish-language free applications for remote management and preview. Access and control from computers is enabled by the program iVMS4200, while remote access from mobile phones is provided by applications Hik-Connect or iVMS4500.

Additionally, it has a function:

✅ sharing the device with other users

✅ playback of video recordings

✅ real-time image capture

✅ remote control of security systems

✅ convenient and secure login using fingerprints

✅ e-map support

✅ display of alarm messages

✅ advanced event search

Filtering false Acusense alarms

The recorder uses artificial intelligence (AI) self-learning technology to distinguish objects appearing in the frame and filter out alarms.

It gives the possibility of trouble-free operation of cameras equipped with intelligent motion detection functions.

This technology can distinguish between a human, a car or a small animal. Small animals, leaf movement, rain or falling shadows do not raise alarms.

Intelligent image analysis

The recorder has support for Intelligent Image Analysis, making it perfect for use with modern IP cameras.

Functions are implemented in cooperation with the recorder with cameras supporting these functions:

✅ advanced perimeter protection functions: intrusion, line crossing, unattended baggage detection

✅ classification of people and vehicles,

✅ face detection,

✅ search for recordings by number / type of license plate

Real-time facial recognition and analysis

✅ Face comparison with images of 6 databases, including 20 000 facial images

✅ Face analysis: determining gender, age and characteristic elements of appearance (glasses, facial hair, mask)

✅ Real-time search of persons based on the provided side information from the range corresponding to the trait device recognized by artificial intelligence

✅ Face base can be used globally or locally for a single video channel - depending on the need

Hikvision H.265+ codec

Signal encoding using the H.265+ algorithm allows you to optimize the basic functions of the camera. The H.265 codec algorithm enables better use of network bandwidth, significantly reduces interference and guarantees long archiving times of recordings without compromising image quality.

Support for Onvif standard

The Hikvision DS-7604NXI-K1/4P network recorder supports the Onvif communication standard used in network monitoring installations. Support for a common information exchange protocol guarantees a seamless connection of devices manufactured by different manufacturers.

PTZ rotary camera control function

Dahua NVRs allow you to manage the basic parameters of PTZ (rotary) network cameras. Control various camera functions such as zoom and focus, rotation speed, manually defining the field of view.

It guarantees control of the monitoring system as much as possible tailored to the needs of the user.

Connection of cameras via PoE switch

In the DS-7604NXI-K1/4P Hikvision recorder, the cameras are connected via an internal PoE switch. This recorder model can support up to 4 IP cameras. Below is an example diagram of connecting cameras with an 8 port PoE recorder.

List of devices:

1. IP camera

2. Audio

3. Mouse

4. Power supply

5. Router/Switch

6. Mobile devices

7. VGA Monitor

8. HDMI receiver

The most important features

• Compression: H.265+/H.265/H.264/MJPEG
• Bitrate: max. 80 Mbps
• Recording/playback: up to 12 Mpx
• Video inputs: HDMI/VGA
• Audio: CINCH
• List of supported functions: face recognition, motion detection 2.0,
• Control of PTZ cameras - Intelligent 3D positioning with PTZ camera
• Privacy masks: capture recordings only from designated areas
• Digital image magnification: zoom in for a more detailed image
• 2 USB 2.0 ports: 1 port on the front panel + 1 port on the back
• Supported hard drives: 1x10TB SATA;
• Working in the P2P cloud: allows you to instantly establish a direct connection to your computer or mobile device (iOS or Android)
• Remote view: HikConnect & iVMS-4200, Web browser
• Passive cooling: no additional fans are needed
• Compatible with ONVIF
• Dimensions: 385 x 322 x 52 mm

Specifications
