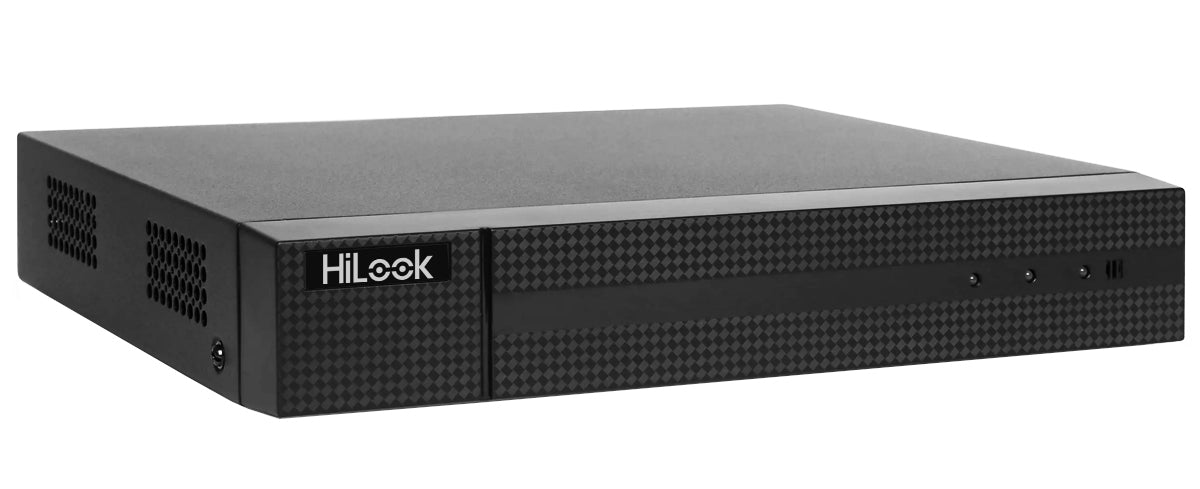

IP vaizdo įrašymo įrenginys Hikvision HiLook, 8 kanalai, 8MPx, 8xPoE, nuolatinė stebėsena

Trumpai apie prekę

Prekė: IP vaizdo įrašymo įrenginys Hikvision HiLook, 8 kanalai, 8MPx, 8xPoE, nuolatinė stebėsena. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: HiLook
• Modelis: NVR-108MH-C/8P(D)

8-channel / 8x PoE / up to 8Mpx / 1 HDD slot / Motion detection 2.0

The most important features of the recorder:

• support for up to 8 IP cameras, with a resolution of up to 8. up to 8Mpx
• built-in image analysis MD2.0 on 4 channels - filtering alarms "man/vehicle"
• configuration and operation of the device is intuitive - through graphic menu, PC program and mobile application
• has the ability to install 1 HDD drive to a capacity of up to 6TB
• enables connection and power supply via PoE 8 cameras
• is equipped with H.265 data compression technology, saving disk space

Technical parameters:

• Model: NVR-108MH-C/8P
• Number of channels: 8 IP channels with PoE power supply
• Resolution supported: up to 8Mpx (4K 3840×2160)
• Decoding: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• Motion detection: Yes, supported
• Intelligent image analysis: on 4 channels, human/vehicle traffic filtering (MD2.0)
• Video outputs: 1xHDMI, 1xVGA
• Video compression: H265+,H265,H264+,H.264
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 6TB
• Mobile application: HiLook App
• PoE power budget: < 75W
• Menu language: Polish, English
• Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
• Ethernet speed: RJ45 10M/100M
• Power Supply: 48VDC

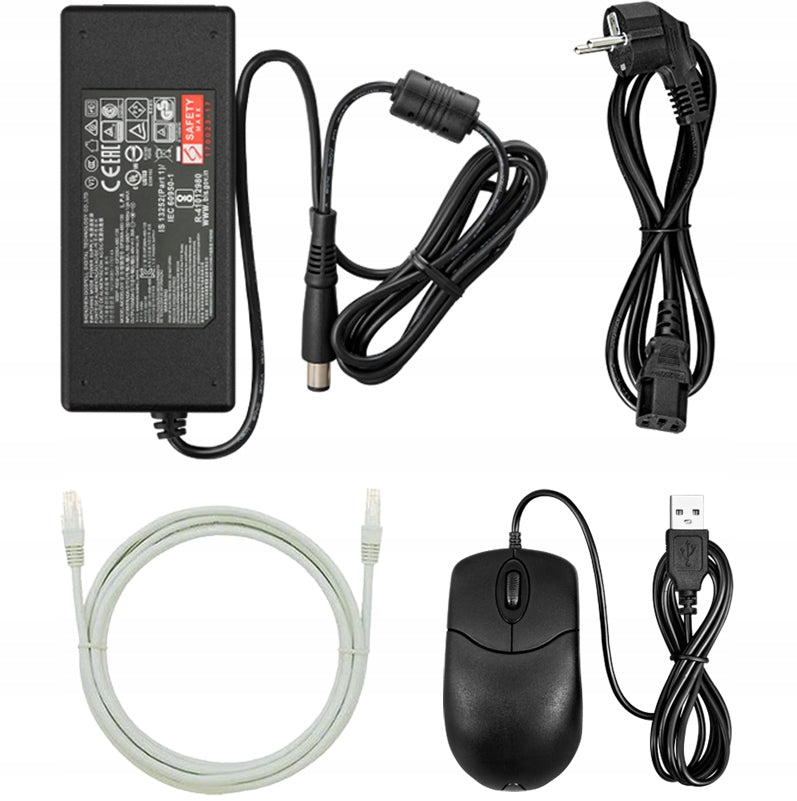

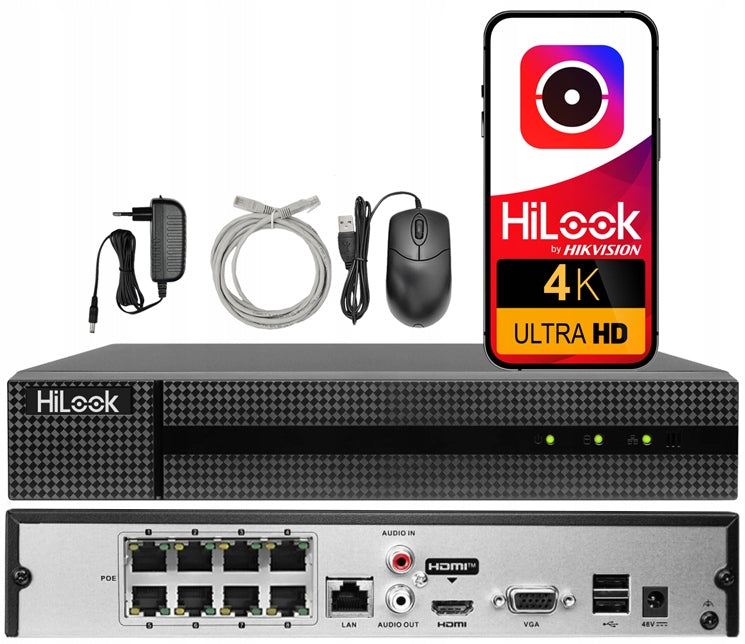

Includes power supply and mouse.

HiLook by Hikvision monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

This recorder supports motion detection from network cameras. This feature allows you to receive instant notifications (in the app or software) when changes are detected in the camera's view. It also allows you to search recordings for detected motion within the monitored area.

The advantage of the recorder is the proprietary technology Motion Detection 2.0, allowing filtering false motion detection alarms and classifying objects on video recordings (human / vehicle).

Detection mode 2.0 is available for 4 channels of the recorder.

The recorder supports an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

• IP Video Input: 8 channels
• Resolution: Up to 8MP
• Bitrate In/Out: 80 / 80 Mbps
• HDMI Output: 1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
• Recording Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Video Compression: H.265/H.265+/H.264/H.264+/MPEG4
• Live View / Playback Resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Simultaneous Playback: 8 channels
• Decoding: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
• Network Protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPTM, HTTPS
• Motion Detection: Supported
• Smart Video Analytics: Human/Vehicle alarm filtering on 4 channels
• SATA Interface: 1
• Capacity: Up to 6 TB
• Network Interface: RJ-45 10/100Mbps Ethernet
• PoE Ports: 8
• Power Budget: < 75W
• USB Ports: 2 × USB 2.0
• Power Supply: 48 VDC
• Operating Temperature: -10 oC to +55 oC (14°F to 131°F)
• Dimensions: 265 × 225 × 48 mm (10.4 x 8.9 x 1.9 inches)
• Weight: ~1 kg (~2.2 lbs)
