Aprašymas
Trumpai apie prekę
Prekė: IP vaizdo įrašymo įrenginys Hikvision HiLook, 8 PoE jungtys, iki 8 Mpx kameroms. Kategorija: Garso įrašymo įrenginiai.
- Gamintojas: HiLook
- Modelis: NVR-8CH-5MP/8P HiLook Series
8-channel / 8x PoE / up to 8Mpx / 1 HDD slot / Hik-Connect / Motion detection 2.0
The NVR-8CH-5MP/8P network recorder is a 8-channel IP model from HiLook, designed to support IP CCTV systems, equipped with an integrated 8-port PoE switch. The device has the ability to record images from max. 8 high definition IP cameras - up to 4K @3840 × 2160p.
Most important features:
- Support for up to 8 IP cameras
- Built-in switch PoE with total power 75W
- Mobile application support via P2P cloud
- High resolution recordings - up to 8Mpx
- Support for motion detection 2.0 - filtering "man/vehicle" alarms
- Support for 1/2/3/4/6TB drives
Technical parameters:
- Model: NVR-8CH-5MP/8P
- Number of channels: 8 IP channels with PoE power supply
- Resolution supported: up to 8Mpx (4K 3840×2160)
- Decoding: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
- Motion detection: Yes, supported
- Intelligent image analysis: on 4 channels, human/vehicle traffic filtering (MD2.0)
- Video outputs: 1xHDMI, 1xVGA
- Video compression: H265+,H265,H264+,H.264
- USB connectors: 2x USB 2.0
- Max. number of disks: 1
- Max. Disk capacity: 8TB
- Mobile application: HiLook App
- PoE power budget: < 75W
- Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
- Ethernet speed: RJ45 10M/100M
- Power Supply: 48VDC

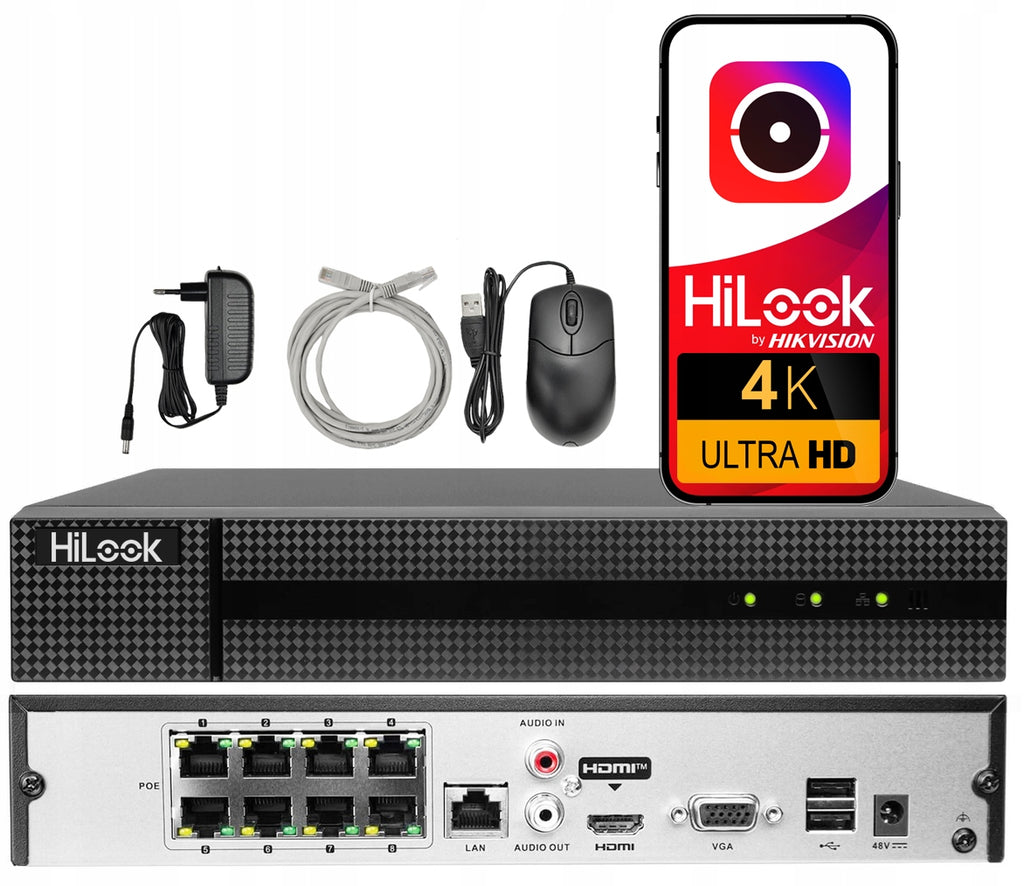

Includes power supply and mouse.
HiLook monitoring systems can be controlled, configured and operated using the intuitive mobile application HiLook App for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:
- live image preview
- remote playback of recordings
- creating motion detection scenarios and rules
- control of rotary cameras
- receiving notifications about events within the system
The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.
The HiLook NVR-8CH-5MP/8P recorder supports motion detection from network cameras. This function allows you to send immediate notifications to the user (in the application or program) about detecting changes in the camera image, and also allows you to search the recordings for detected movement in the area protected by monitoring.
The recorder supports an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.
The advantage of the recorder is the proprietary technology Motion Detection 2.0, allowing filtering false motion detection alarms and classifying objects on video recordings (human / vehicle).
Detection mode 2.0 is available 4 channels of the recorder.
- IP video input: 8-channels
- Resolution: to 8MPx
- Bitrate in/out: 80 / 80 Mbps
- HDMI Output: 1ch, 4K (4096 x 2160)/30Hz, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60Hz, 1600 x 1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz
- Recording resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Video compression: H.265/H.265+/H.264/H.264+/MPEG4
- Live view/playback resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Simultaneous playback: 8-channels
- Image decoding: 1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)
- Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Motion detection: supported
- Intelligent image analysis: filtering human/vehicle alarms on 4 channels
- SATA interface: 1
- Capacity: up to 8 TB
- Network interface: RJ-45 10/100Mbps Ethernet
- Number of PoE ports: 8
- Power budget: < 75W
- USB connectors: 2 × USB 2.0
- Power Supply: 48 VDC
- Working temperature: -10 ºC to +55 ºC
- Dimensions: 265 × 225 × 48 mm
- Weight: ~1 kg
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With VAT invoice |
| Parametry | Manufacturer code | NVR-8CH-5MP/8P Hilook by Hikvision |
| Parametry | Brand | HiLook |
| Parametry | Model | NVR-8CH-5MP/8P HiLook Series |
| Parametry | Product weight with unit packaging | 1.3 kg |
| Parametry | Product width | 26.5 cm |
| Parametry | Product height | 48 cm |
| Parametry | Product depth | 225 cm |
| Parametry | Product weight | 1 kg |
| Parametry | Number of supported cameras | 8 |
| Parametry | Maximum recording resolution | 8 Mpx |
| Parametry | Installed disk capacity | 0 TB |
| Parametry | Maximum number of supported drives | 1 |
| Parametry | Maximum capacity of drives | 8 TB |
| Parametry | Technology | IP |
| Parametry | Video compression | H.265+ |
| Parametry | Number of USB ports | 2 |
| Parametry | Network interface | RJ-45 10/100 |
| Parametry | EAN (GTIN) | 6942160437088 |
| Parametry | Packaging status | original |
| Parametry | Certificates of conformity | CE |
| Parametry | Batteries included | no |
| Parametry | Video outputs | HDMI,VGA |
| Parametry | Other ports | 8x RJ45 10/100,SATA III do HDD |
| Parametry | Functions | phone app,motion detection,advanced search,PoE power supply,digital zoom |
