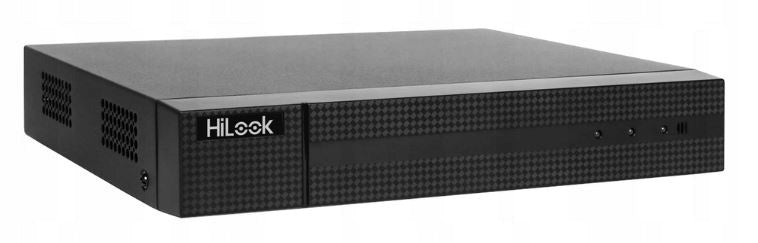

IP vaizdo įrašymo įrenginys HiLook Hikvision, 8 kanalų, 8MP 4K, su HikConnect programėle

Trumpai apie prekę

Prekė: IP vaizdo įrašymo įrenginys HiLook Hikvision, 8 kanalų, 8MP 4K, su HikConnect programėle. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: Hikvision
• Modelis: HWN-4108MH

8-channel / up to 8Mpx / 1 HDD slot / motion detection 2.0 / Hik-Connect app

The most important features of the recorder:

• allows synchronous playback of images from 8 cameras with a maximum resolution of 8Mpx
• configuration and operation of the device is intuitive – via graphic menu, PC program and HikConnect mobile application
• has the ability to install 1 HDD drive to a capacity of up to 8TB
• is equipped with H.265+ data compression technology, saving disk space
• is fully compatible with Hikvision cameras, as well as cameras from other manufacturers through the ONVIF protocol

Technical parameters:

• Model: NVR-108MH-C
• Number of channels: 8
• Recording resolution: up to 8 Mpx (4K Ultra HD)
• Bitrate in/out: 80/80 Mbps
• Video compression: H.265+ / H.265 / H.264+ / H.264
• Video Outputs: 1x HDMI, 1x VGA
• Audio Inputs/Outputs: 1x RCA/1xRCA
• USB ports: 2x USB 2.0
• Network interface: 1x Ethernet 10M/100M Self-adaptive
• Live preview: HIK-Connect / HiLook App, iVMS-4200 (lite)
• Hard drive space: 1x HDD (up to 8TB)
• Power supply: 12 VDC
• Power consumption: 18 W (without 10W drive)
• Dimensions: 315 x 240 x 48 mm
• Weight: 1 kg

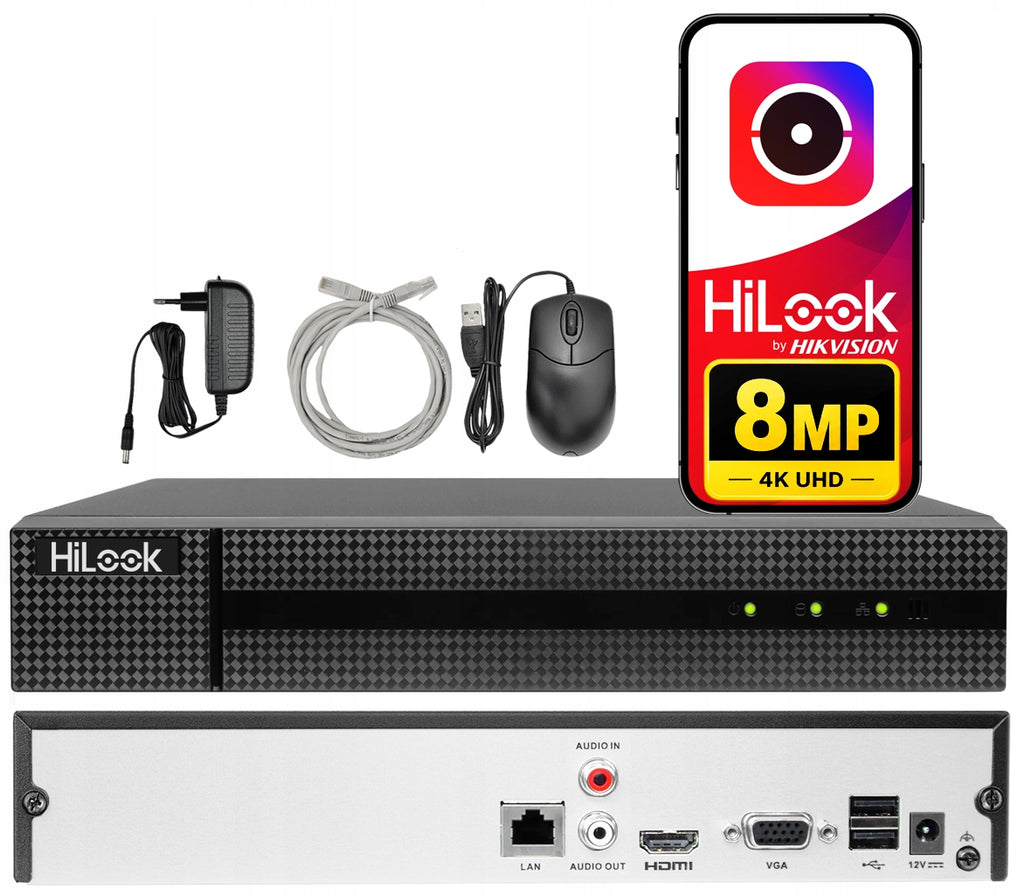

Includes power supply and mouse.

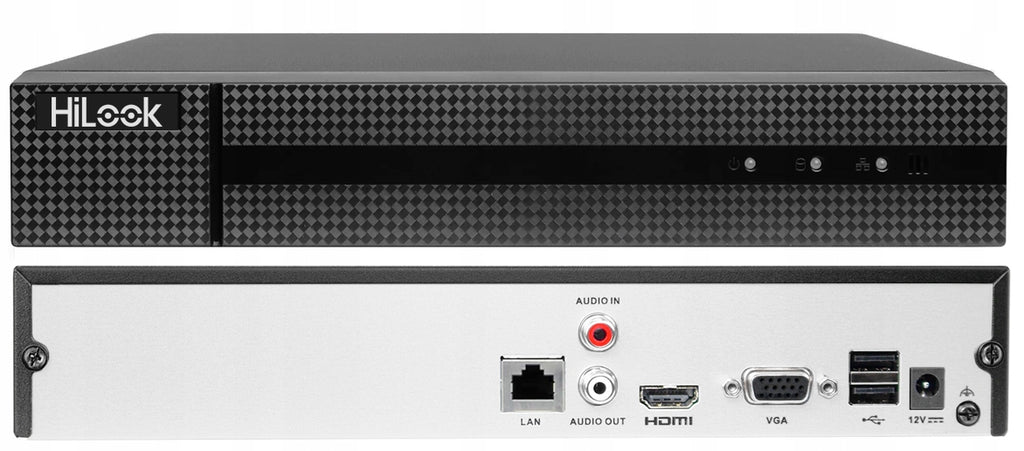

Connectors in the recorder

• A - LAN connector for connection to PoE switch
• B - audio connectors for connecting microphone / speaker
• C / D - HDMI and VGA outputs for connecting the monitor
• E - 2x USB port for connecting the mouse and ripping recordings (e.g. on a pendrive
• F - power socket for connecting the power supply

HiLook surveillance systems can be controlled, configured, and operated using the intuitive HiLook App mobile application for smartphones and tablets, as well as the iVMS-4200 software for PCs. This allows users to have constant control and oversight of the monitored area from anywhere in the world with internet access. The app and software enable:

• Live view
• Remote playback of recordings
• Creation of motion detection scenarios and rules
• Control of PTZ (Pan-Tilt-Zoom) cameras
• Receiving event notifications

The application uses P2P cloud technology, so the system does not require port forwarding on your router.

HiLook recorders by Hikvision support the motion detection function for network cameras. This feature allows for instant notifications to the user (in the app or software) when changes are detected in the camera's image. It also enables searching recordings for detected motion within the monitored area.

The advantage of the recorder is the proprietary technology Motion Detection 2.0, allowing filtering false motion detection alarms and classifying objects on video recordings (human / vehicle).

Detection mode 2.0 is available for 4 channels of the recorder.

The IP recorder is equipped with an efficient image compression standard, designated H.265. This standard is a direct successor to the popular H.264 technology and allows for almost double the bandwidth load. This translates into significant space saving on the hard disk and extending the archiving time of recordings on the disk.

• 8-channel IP video input
• Resolution: up to 8MP
• Incoming bandwidth: 80 Mbps
• Outgoing bandwidth: 80 Mbps
• HDMI output: 1-channel, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;
• VGA output: 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz;
• Recording resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Video compression: H.265/H.265+/H.264/H.264+/MPEG4
• Live view/playback resolution: 8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• 8-channel simultaneous playback
• Decoding capacity: 1-ch @ 8 MP / 4-ch @ 1080p
• Network protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnPTM, HTTPS
• SATA interface: 1
• Capacity: up to 8 TB
• Network interface: RJ-45 10/100/1000 Mbps Ethernet
• USB ports: 2 × USB 2.0
• Power supply: 12 VDC
• Operating temperature: -10 °C to +55 °C
• Dimensions: 315 × 240 × 48 mm

⚠ CHOOSE CONSCIOUSLY⚠

Monitoring systems are an investment in security – not only property, but also data. Therefore, we encourage you to choose your equipment consciously from reputable manufacturers such as Hikvision. Unlike cheap, unverified OEM devices, Hikvision products provide:

✅ Regular device firmware updates to ensure compliance with the latest cybersecurity standards

✅ Stability and reliability of operation HikConnect - mobile application no.1 in the CCTV monitoring systems industry

✅ Advanced data encryption (AES-256, HTTPS, TLS 1.2/1.3) – guarantee of confidentiality of transmission

✅ Meeting strict ISO standards, including ISO 27701 (Personal Information Security Management) and CSA-Star (Cloud Data Security Guarantee)

By choosing Hikvision, you can be sure that your monitoring system meets the highest standards of quality, data protection and reliability.
