IP vaizdo įrašymo įrenginys Imou N118W, 18 kanalų, WiFi

Trumpai apie prekę

Prekė: IP vaizdo įrašymo įrenginys Imou N118W, 18 kanalų, WiFi. Kategorija: Garso įrašymo įrenginiai.

• Gamintojas: Imou
• Modelis: NVR-N118-8A0E-P

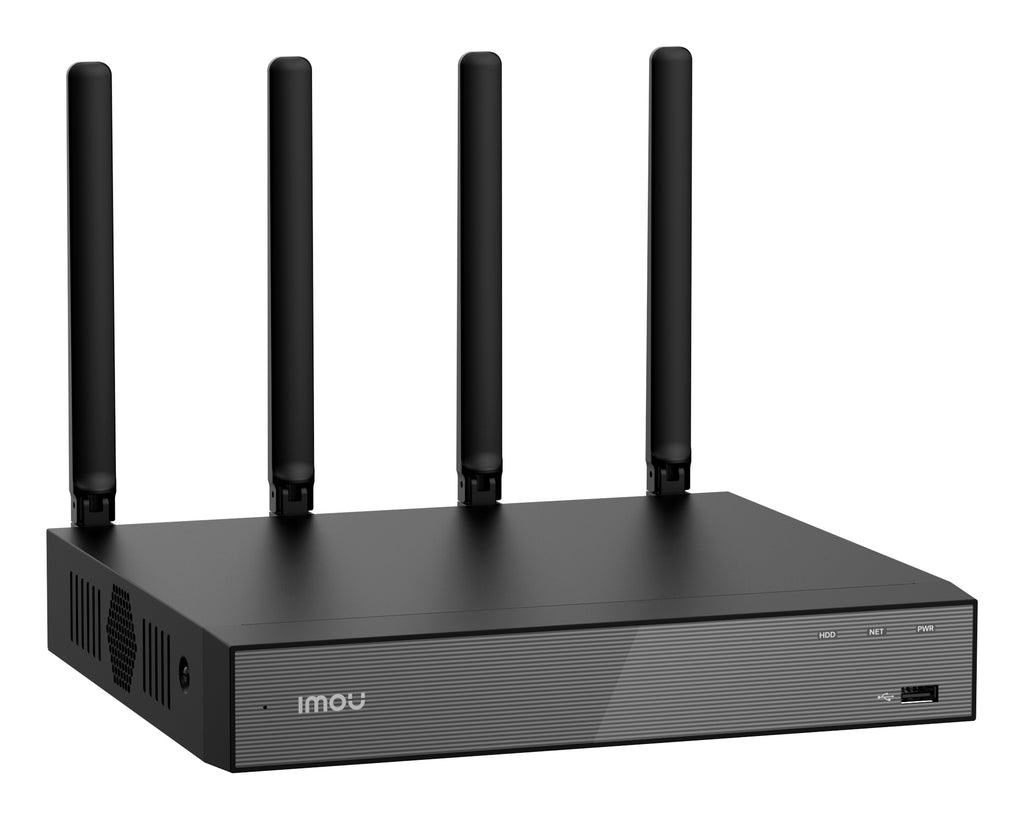

IP Recorder IMOU N118W — 18-channel Wi-Fi Recorder for Monitoring System

The IMOU N118W recorder is a powerful wireless NVR designed for a comprehensive monitoring system for your home, office or small business.

With support for up to 18 IP cameras, built-in Wi-Fi, two-way audio communication and simple integration with the Imou Life application, this model allows you to conveniently manage monitoring and observation in real time – without complicated wiring.

IMOU N118W is the perfect solution for users who expect high-quality recordings, stable operation and easy operation.

Key features:

• Support up to 18 channels — the ability to connect IP cameras with a total of 18 streams/channels.
• Built-in Wi-Fi 6 — wireless pairing of cameras, no need for cables.
• High resolution support up to 8 MP/4K with H.265/H.264 compression.
• Two-way audio — The recorder has a built-in microphone and speaker.
• The Imou Life application — remote access, playback of recordings, configuration.
• Compatibility with ONVIF (T Profiles) — the ability to integrate with cameras from other manufacturers.
• HDMI and VGA outputs — work with different monitors.
• Support SATA drive (up to high capacity) — long-term archiving of recordings

Important note about multi-lens cameras:

-1 lens = 1 channel.

-Camera Imou Dual (2-lens) occupies 2 channels of the recorder.

-The Imou Triple (3-lens) camera occupies 3 channels of the recorder.

This makes it easy to plan the actual number of supported devices.

Support for 18 channels - model N118W

The recorder supports 18 channels (model N118W), which provides full flexibility during the construction and future expansion of the monitoring system. Thanks to this, you can adjust the number of cameras to your current needs, and if necessary, easily expand the installation with more devices – without replacing the entire recorder.

Efficient NVR for maximum performance

The recorder is designed for high-performance surveillance systems, ensuring stable operation even with multiple simultaneously connected cameras.

• Wi-Fi camera support: up to 8 channels of cameras with 5MP resolution — ideal for wireless installations.
• Maximum bandwidth (Wi-Fi/wired): up to 90 Mbps, which guarantees smooth recording and transmission of high-quality images even under heavy loads.

Such parameters make the recorder perfect for extensive IP installations, offering high stability, reliability and comfort of work.

​

Two-way audio – communication without additional equipment

The recorder has a built-in microphone and speaker, thanks to which it allows two-way audio communication without the need for any additional devices. You can listen to audio from the monitored space and speak directly through the NVR – the perfect solution for surveillance of entrances, gates, reception or

Automatic pairing of Imou cameras in seconds

Imou cameras connect to the recorder automatically, without the need for complicated configuration. Simply power your devices and the system will detect and pair them itself – quickly, conveniently and without any technical expertise. This makes the installation of monitoring easier than ever.

Remote access and full control with the Imou Life app

The Imou Life app allows convenient remote access to recordings and live view wherever you are. With one touch, you can add all Imou cameras connected to the NVR, without the need for manual configuration.

With the addition of devices, the user gains access to almost all camera settings — including advanced smart features such as Algo Play and many more. It is a quick and intuitive way to manage the entire monitoring system from your smartphone.

Stable connection with Wi-Fi 6 Dual-Band and four antennas

The recorder uses two-band Wi-Fi 6 technology and four antennas, which provides an extremely stable wireless connection, low latency and greater signal range. This allows the cameras to communicate with the NVR smoothly and reliably, even in environments with multiple network devices.

Up to 4K UHD picture output for exceptional detail

The recorder supports HDMI and VGA outputs, allowing flexible connection to various monitors and screens. With support for 4K UHD resolution, you can enjoy extremely sharp, detailed images, which significantly facilitates the identification of events and increases the effectiveness of monitoring.

Large capacity and efficient compression for longer recording storage

The recorder supports hard drives with a capacity of up to 16 TB, which significantly extends the storage time of video recordings and allows you to archive a large amount of material without the need for frequent data overwriting.

Thanks to the use of H.265 compression, the system provides a smooth live view, faster loading of recordings and up to several dozen percent more recording days at the same disk capacity compared to the H.264 format. It is an ideal solution for installations where maximum efficiency in the use of storage space counts.

​

Multi-channel playback and ONVIF support for fast event analysis

The recorder allows simultaneous playback of up to 4 channels (4-ch × 8MP @ 15fps or 4-ch × 5MP @ 30fps), which allows for convenient analysis of footage from several cameras at once. In addition, it supports scrolling functions with speeds of 2×, 4×, 8× and 16×, making viewing recordings and finding important moments much faster and more efficient.

The recorder is also compliant with the ONVIF (Profile T) standard, which enables integration with cameras from other manufacturers and ensures wide compatibility in professional surveillance systems.

Channels and bandwidth

• Number of channels: 18
• Wi-Fi channels:
• 2.4 GHz — max. 8 channels
• 5 GHz — max. 8 channels
• Max. network bandwidth: 90 Mbps

Playback and compression

• Decode preview/playback:
• 4 × 8MP @ 15fps
• 4 × 5MP @ 30fps
• Video compression: H.265 / H.264
• Audio compression: AAC
• Backup file format: MP4
• Display modes: 1 / 4 / 8 / 9 / 10 channels

Network

• Wired interface: 1 × RJ-45 10/100 Mbps, auto-adaptive
• Wi-Fi:
• IEEE 802.11 b/g/n/ax, Wi-Fi 6
• Bands: 2.4 GHz / 5 GHz

Applications and compatibility

• Mobile application: Imou App (iOS / Android)
• Compliance with ONVIF: Yes, ONVIF General

Connections and interfaces

• Video outputs:
• 1 × VGA
• 1 × HDMI
• Audio input:
• 1 × Microphone (built-in)
• Audio output:
• 1 × Speaker (built-in)
• USB: 2 × USB
• Reset button: Yes
• Network port: 1 × RJ-45 (10/100 Mbps)
• Power supply: DC 12V 2A

Special Features

• Automatically connect to Imou cameras
• Intelligent detection: movement / person / vehicle
• Two-way audio
• Remote update: Yes

Power supply and power consumption

• Average power consumption (with HDD): < 9 W
• Peak power consumption (with HDD): < 19 W

Storage

• Disk support: 1 × SATA, up to 16 TB
• Backup: USB Flash Drive

Working conditions

• Working temperature: −10°C ~ +45°C
• Moisture: < 95% RH

Dimensions and weight

• Dimensions: 241.5 × 260 × 60.2 mm (folded antennas)
• Weight: 890 g (without HDD)
