IP vaizdo kamera 4MP 2K+ DAHUA su FULL COLOR, LED, IR, mikrofonu, PoE ir garsiakalbiu

Trumpai apie prekę

Prekė: IP vaizdo kamera 4MP 2K+ DAHUA su FULL COLOR, LED, IR, mikrofonu, PoE ir garsiakalbiu. Kategorija: IP kameros.

• Gamintojas: Dahua
• Modelis: IPC-PT1439H-PV-0280B

The Dahua IPC-PT1439H-PV-0280B is a compact IP model with 4MPx resolution, designed for effective video surveillance both day and night.

Thanks to the use of advanced image analysis and intelligent detection functions, the camera allows for precise monitoring of space, minimizing the number of false alarms. The device is equipped with Smart Dual Light technology, thanks to which the user can choose from white light mode and IR (infrared) mode.

In addition, the camera has a active deterrence function of intruders using a motion-activated white light LED reflector and siren sound.

• Transducer: 1/2.8" Progressive Scan CMOS
• Resolution: 4MPx 2460x1440p
• Lens: 2.8 mm
• Sensitivity: 0,05Lux (0 lux with IR)
• Illuminator: IR to 30m, white light to 30m
• Smart Lighting Mode: yes - Smart Dual Light
• Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Image Features: AWB, ATW, AGC, BLC, HLC, 2D/3D NR, WDR 120dB, RoI, E-defog
• Intelligent functions: Line crossing, intrusion, area entry, SMD; classification of people and vehicles
• Active deterrence: 2 LEDs flashing (white light), beep (message or alarm)
• Built-in microphone and speaker: Yes
• Remote support: DMSS, Smart PSS, Web interface
• microSD slot: NONE - only recording on FTP or NVR
• Protection class: IP66
• Max. Power consumption: 4W
• Operating temperature: -30...+55 oC
• Dimensions: Ø127,3x128,4mm
• Power supply: 12VDC, PoE
• Weight: 410g

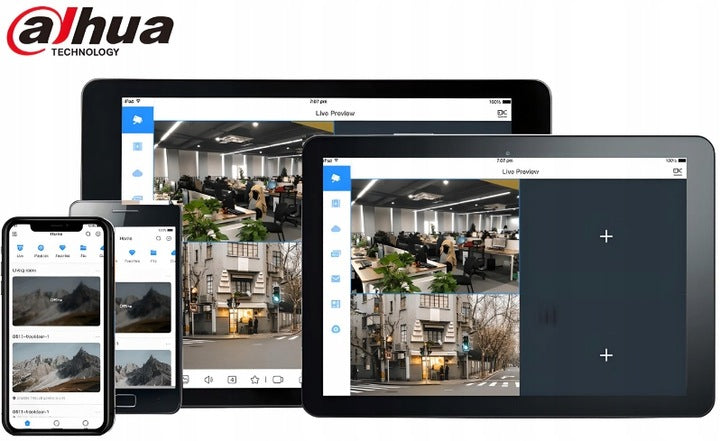

The offered camera can be operated and configured using the intuitive mobile application DMSS (smartphones) and the Smart PSS (PC) program. Thanks to this, the user receives constant access to recordings and live view from anywhere with access to the network. An additional advantage of the software is the ability to receive alarm notifications through the motion detection function in cameras.

The DMSS application is available for smartphones with Android and iOS. The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

Dual Light Technology – Full Color Night Visibility

The camera uses intelligent Dual Light technology, combining two lighting modes: invisible to the eye infrared IR and warm LED light. Thanks to this, the device can flexibly adjust the lighting method to the ambient conditions and the type of event. In Smart mode, the camera operates in infrared (black and white) as standard, but when it detects a human or vehicle – it automatically switches to color mode and activates LED, recording full-color image with more detail. This solution combines discretion, energy saving and high efficiency of night monitoring – you will record what is most important exactly when you need it.

Motion detection and active deterrence

The camera not only captures the image, but also actively protects your property. Thanks to the active deterrence function, when a human or vehicle is detected, the device automatically activates the light signal (flashing LED) and the sound alarm from the built-in speaker. This combination effectively discourages potential intruders from continuing to act, often even before a land infringement occurs.

It is an intelligent solution that not only informs, but also responds in real time, providing a higher level of security without the need for constant supervision.

• Standard: IP
• Resolution: 2560 x 1440 - 4Mpx,1920 x 1080 -1080p,1280 x 720 -720p
• Converter: 1/2.8" Progressive Scan CMOS
• Lens: 2.8 mm
• Angle of view: 94 °
• White light illuminator range (LED): 30 m
• IR illuminator range: 30 m
• Video output: None
• Rotary speed (manual control): 0.1 °/s ... 37.66 °/s (horizontal), 0.1 °/s ... 32.61 °/s (vertical)
• Rotary speed at presets: 0.1 °/s ... 37.19 °/s (horizontal), 0.1 °/s ... 30.82 °/s (vertical)
• Horizontal rotation range: 0 ° ... 345 °
• Vertical rotation range: 0 ° ... 90 °
• Number of presets: 50
• Horizontal scanning: None
• Setting Traffic Routes: None
• Memory card slot: None
• Image compression method: Smart H.265+ /H.265/ Smart H.264+ /H.264H/H.264B/ H.264M /MJPEG
• Emergency Inputs/Outputs: None
• Audio: Built-in microphone, Built-in speaker, Two-way audio support, Sound detection
• Main stream transmission speed: 25kl/s- 4Mpx
• Interface: 10/100 Base-T(RJ-45)
• WEB Server: Built-in, NVR compatible
• Max. Number of users online: 20
• ONVIF: Yes
• Intelligent image analysis: line crossing, intrusion, human detection, vehicle detection
• Access from mobile phone: Android: Free DMSS app, iOS (iPhone): Free DMSS app
• Default IP address: 192.168.1.108
• Default administrator login/password: admin / -Administrator password should be set at first startup
• Web access ports: 80, 37777
• App access ports on PC: 37777
• Mobile app access port: 37777
• Port ONVIF: 80
• RTSP URL: rtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 - Main streamrtsp://admin:password@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 - Auxiliary stream

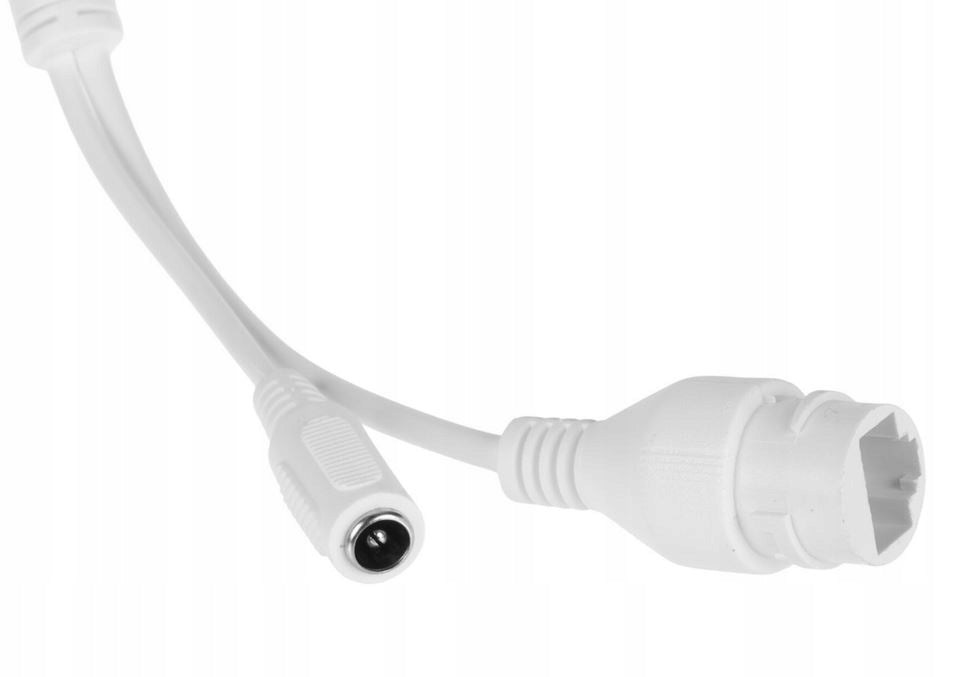

• Power Supply: PoE (802.3af), 12 VDC/ 1 A
• Power consumption: max. 12 W @ PoE, max. 11 W @ 12 V
• Housing: Dome, Plastic
• Color: White + Black
• Protection class: IP66
• Working temperature: -30 °C ... 55 °C
• Weight: 0.41 kg
• Dimensions: Ø 127 x 128 mm

Selected functions:

• Smart Dual Light - When Smart Dual Light is active, the white light will turn on automatically only when an object is detected in the monitored area, which effectively improves image quality
• Active deterrence function - Active deterrence of intruders works on the principle of flashing white light and sound alarm
• Intelligent motion detection (with distinction between people and vehicles)
• Intelligent Object Tracking
• WDR - 120 dB - Wide range of lighting dynamics
• 2-DNR, 3-DNR - Digital Noise Reduction in Images
• F-DNR (Defog) - Noise reduction associated with precipitation
• Day/night mode (color/b&w/auto) - automatic ICR filter
• BLC - reverse light compensation (background)
• HLC - Strong light compensation (point)
• WB - White Balance (ATW/AWB/manual/internal/external)
• AGC - Automatic image gain adjustment
• ROI - improving the quality of selected image fragments
• Image rotation and mirroring
• Indication of sabotage

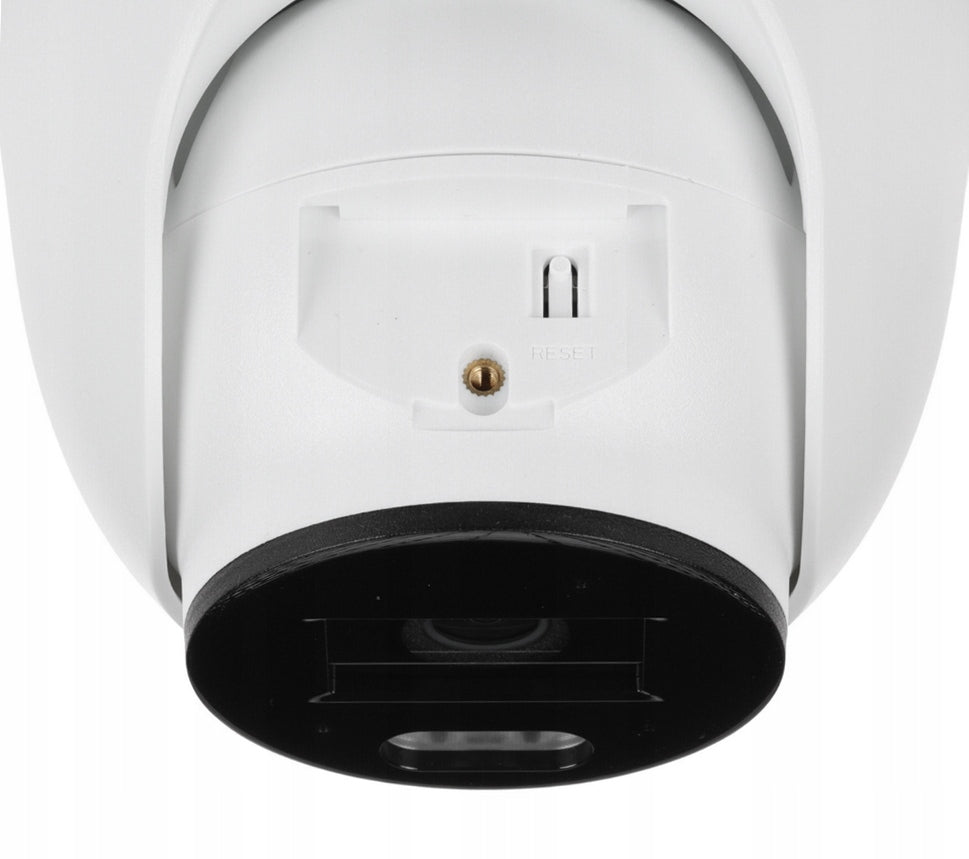

• RESET button
• Protection against atmospheric discharges: 2 kV
• Surge protection
