IP vaizdo stebėjimo kamera HiLook TandemVu PTZ-N2D400M-DE/14, 8MP, 4K (4MP+4MP), PoE

Trumpai apie prekę

Prekė: IP vaizdo stebėjimo kamera HiLook TandemVu PTZ-N2D400M-DE/14, 8MP, 4K (4MP+4MP), PoE. Kategorija: IP kameros.

• Gamintojas: HiLook
• Modelis: PTZ-N2D400M-DE/14 HiLook by Hikvision

The PTZ-N2D400M-DE/14 rotary camera is an innovative IP model, combining two cameras in one housing - a rotary camera and a fixed-position camera. Thanks to this design, it allows you to see a wide range of the observed area at the same time, as well as see small details through a large close-up.

The camera is equipped with the Smart Hybrid Light system, which allows you to record day and night in full color and infrared. What’s more, it is equipped with a speaker and microphone, thanks to which you can talk to people at the camera, as well as deter potential intruders!

The Autotracking (solid version) used in the rotary camera will guarantee full autonomy of the camera.

• Converter: 2x 1/2,8" PS CMOS
• Recording resolution: 2x 4MPx @2540x1440p
• Lens: 2.8mm (panorama) + 8mm (PTZ)
• Sensitivity: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
• IR illuminator: 2x 30m
• White light illuminator: 2x 30m
• Smart Hybrid Light: Yes
• Smart functions: movement detection with human/vehicle classification, autotracking (lite)
• Privacy masks: Yes 4 for PTZ, 4 for panorama
• Video compression: H.265/H.264/Smart264/Smart265
• Image functions: BLC,HLC,3D DNR, DWDR
• Built-in microphone and speaker: Yes - two-way audio
• Network interface: 1x RJ45 10/100Mbps
• Remote support: Hik-Connect, HiLookVision, iVMS-4200, Web Interface
• Housing tightness class: IP66
• Working temperature: -30 °C to 50 °C
• Power supply: 12V DC (max. 9W), PoE
• Housing material: metal + plastic
• Dimensions: 134 mm × 213.5 mm × 291.7 mm
• Weight: 1000g

Properties of the rotating part:

• Rotation/tilt range: 0° to 345°, 0° to 80°
• Rotation speed: from 4°/s to 25°/s
• Tilt speed: from 4°/s to 20°/s
• Number of presets: 300

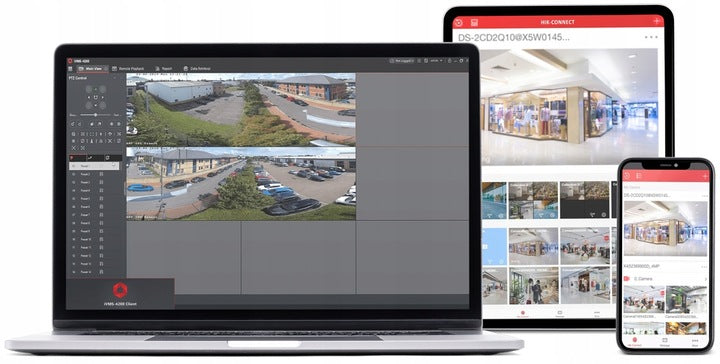

HiLook by Hikvision cameras can be controlled, configured and operated using the intuitive mobile application HiLook App / HikConnect for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has constant control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• creating motion detection scenarios and rules
• control of rotary cameras
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

The camera belongs to a series of devices using innovative Smart Hybrid Light technology - thanks to two types of illuminators on board, the camera allows effective observation at night in three modes:

• Infrared mode
• In color mode
• In mixed mode (the camera starts color mode when motion is detected)

Thanks to this, it guarantees an even higher level of security, enabling effective identification of objects also after their color, in any lighting conditions.

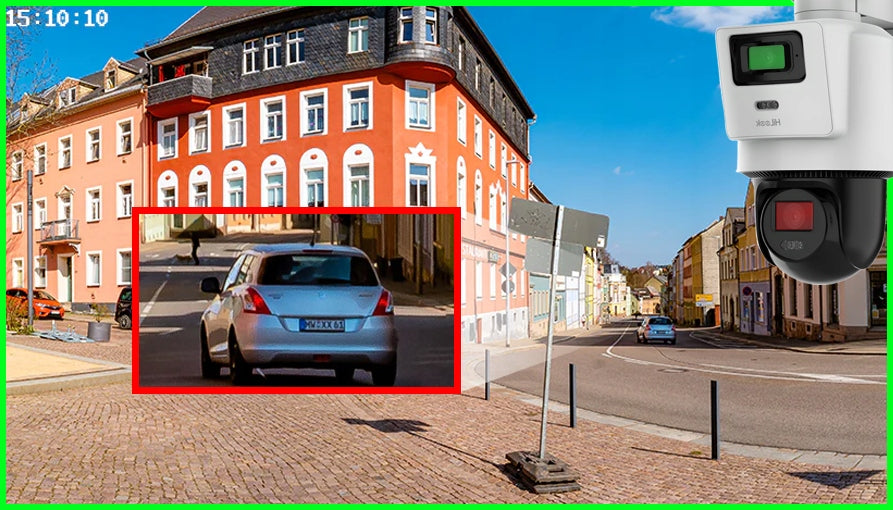

The PTZ-N2D400M-DE/14 rotary camera belongs to the TandemVu series of solutions, distinguished by the integration of multiple lenses in one housing. Thanks to this design, one camera enables simultaneous recording of a wide plan and detailed close-up to key areas.

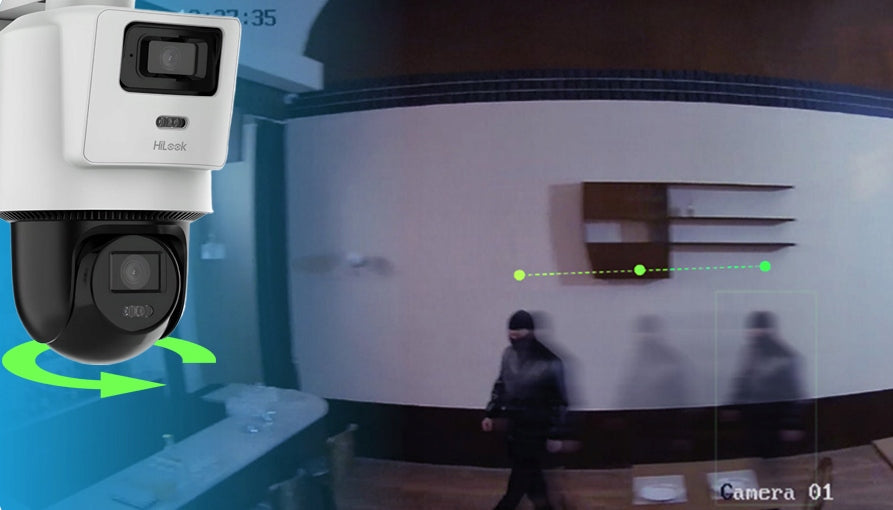

The PTZ-N2D400M-DE/14 camera not only detects movement - it is also able to follow the head of moving people! This allows for precise observation without the need for a manual rotary head setting.

Important: camera allows you to track people moving at normal speed (without running).

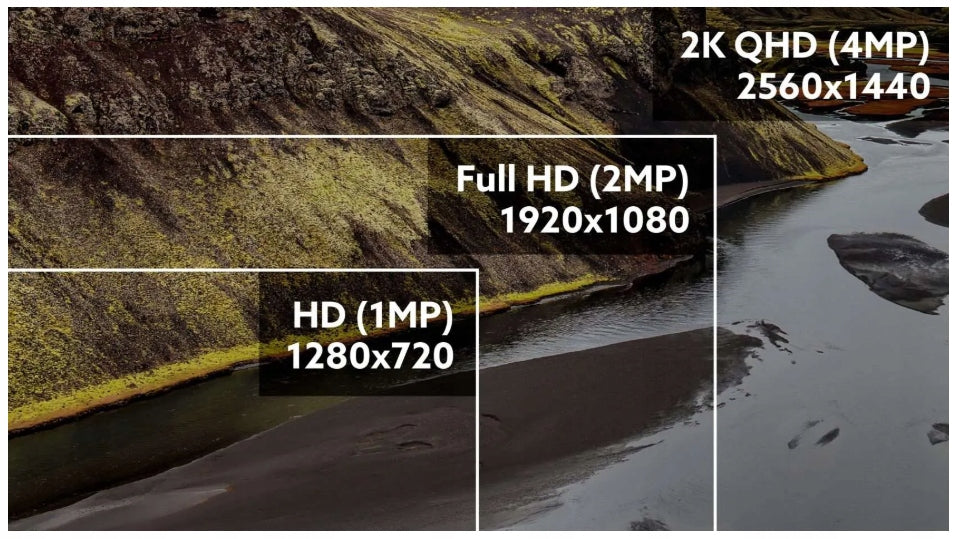

The TandemVu PTZ-N2D400M-DE/14 camera operates at 4Mpx resolution, allowing for much more accurate recording of details than standard FullHD models.

Camera

• Image Sensor: 2x 1/2.8" CMOS Progressive Scan
• Transmission Standard: IP
• Maximum Resolution: 4MP + 4MP @2560x1440p
• Sensitivity: Color: 0.005 Lux @ (F2.0, AGC ON), B/W: 0.005 Lux @ (F2.0, AGC ON), 0 Lux with IR
• Shutter Speed: 1/3 s to 1/30,000 s
• Slow Shutter Mode: Supported
• Lens: 2.8 mm + 8mm (PTZ)
• Viewing Angle: Panorama: Horizontal FOV 94°, Vertical FOV 49°, Diagonal FOV 114°. PTZ: Horizontal FOV 44°, Vertical FOV 24°, Diagonal FOV 51°

IR Illuminator and White Light

• IR Range: Panorama: 30m, PTZ: 30m
• IR Wavelength: 850 nm
• White Light Range: Panorama: 30m, PTZ: 30m

Image Compression

• Video Compression: Main Stream: H.265/H.264/Smart264/Smart265. Sub-stream: H.265/H.264/MJPEG
• H.264: Baseline Profile/ Main Profile/ High Profile
• H.265: Main Profile
• Video Bitrate: 32 Kbps to 4 Mbps

PTZ

• Pan/Tilt Range: 0° to 345°, 0° to 80°
• Pan Speed: Configurable from 4°–25°/s
• Tilt Speed: Configurable from 4°–20°/s
• Main Stream - Max. Frame Rate: 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
• Sub-stream - Max. Frame Rate: 50 Hz: 25 fps (640 × 480, 640 × 360), 60 Hz: 30 fps (640 × 480, 640 × 360)
• Image Functions: BLC, HLC, 3D DNR
• Wide Dynamic Range: DWDR
• Smart Hybrid Light: Yes
• Image Settings: Saturation, Exposure, Contrast, Sharpness, AGC, White Balance
• Day/Night Mode: Automatic / Manual Switching

Smart Features

• Motion Detection: Yes, with human/vehicle object classification
• Autotracking: Supported - Lite version; tracks people moving at a normal walking speed

Network

• Compliance: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Selected Features: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
• Simultaneous Preview: Up to 6 channels
• Alarm Trigger: Motion detection, video tampering, illegal login
• Number of Users / Hosts: Up to 32 users. 3 permission levels: Administrator, Operator, User
• Client Software: iVMS-4200, Hik-Connect, HiLookVision
• Supported Web Browsers: IE10+, Chrome 57.0+, Firefox 52.0+

General

• Built-in Microphone: Yes
• Built-in Speaker: Yes
• Built-in SD Card Slot: Yes, microSD card up to 512G
• Power Supply: 12 VDC PoE (802.3af, class 3)
• Power Consumption: 12 VDC ± 25%, 1.5 A, max. 18 W. PoE: IEEE 802.3at, Class 4, max. 21.5 W
• Material: Metal + Plastic
• IP Rating: IP66
• Operating Temp. / Allowable Humidity: -10 °C to 40 °C < 90% (non-condensing)
• Dimensions: 134 mm × 213.5 mm × 291.7 mm
• Weight: 1.00kg

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Product weight with unit packaging	0.99 kg
Parametry	EAN (GTIN)	5906667304497
Parametry	Manufacturer code	PTZ-N2D400M-DE/14
Parametry	Brand	HiLook
Parametry	Model	PTZ-N2D400M-DE/14 HiLook by Hikvision
Parametry	Packaging status	original
Parametry	Certificates of conformity	CE
Parametry	Batteries included	no
Parametry	Kind	internal,external
