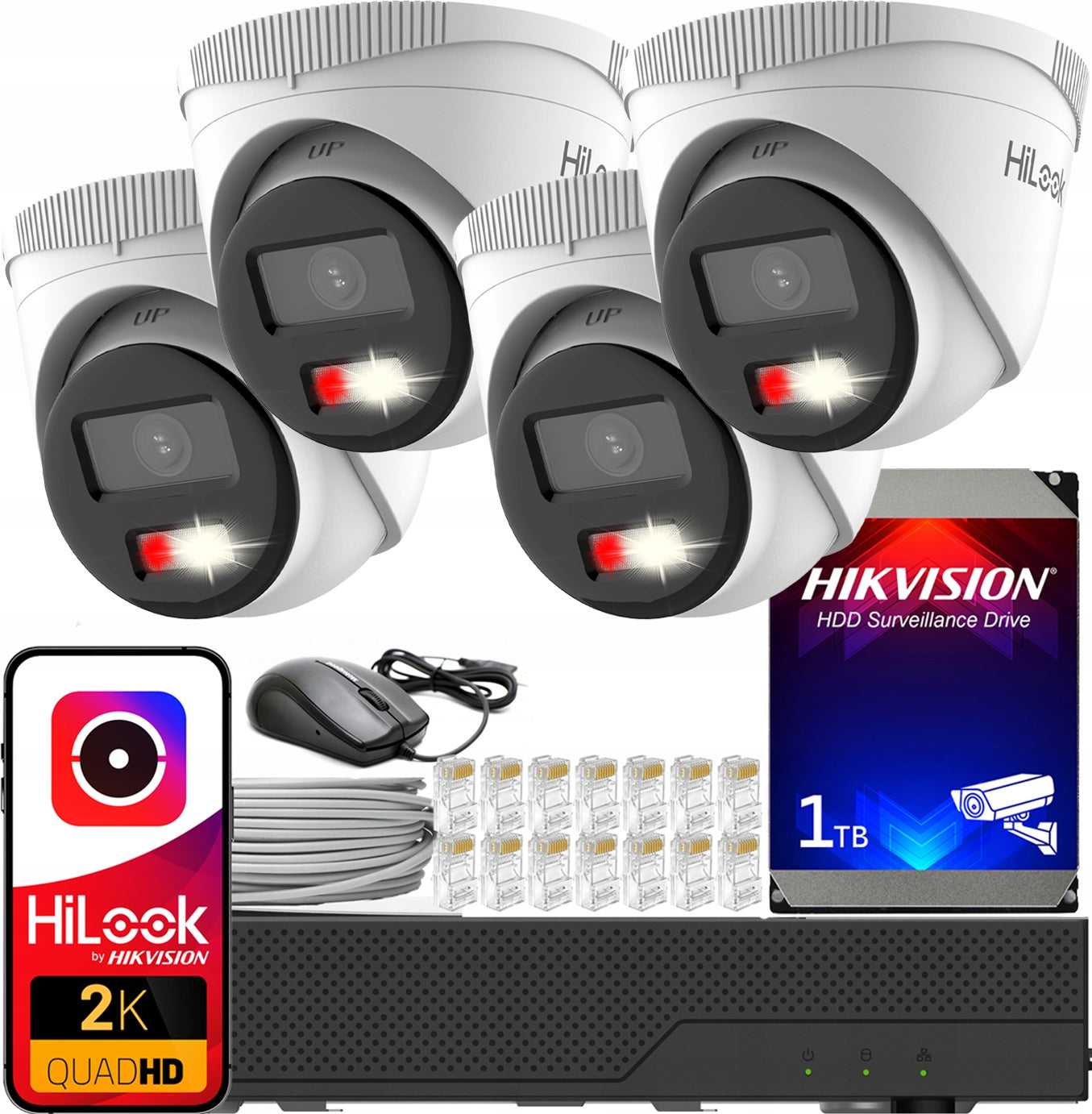

IP vaizdo stebėjimo rinkinys Hikvision HiLook, 4 išorinės 4MPx PoE IP kameros, 2K+

Trumpai apie prekę

Prekė: IP vaizdo stebėjimo rinkinys Hikvision HiLook, 4 išorinės 4MPx PoE IP kameros, 2K+. Kategorija: Rinkiniai.

• Gamintojas: HiLook
• Modelis: IPC-T240HA-LUC (x4) KIT HiLook by Hikvision

4x IP Camera 4MPx IP67 | 4CH HiLook Recorder by Hikvision | PoE Switch | 1TB Drive | Mounting Accessories

This reliable and easy-to-use network monitoring kit includes two HiLook by Hikvision network cameras with a resolution of 4MPx @2560x1440p. The kit is ideal for use as a surveillance system in:

• Offices
• Small shops
• Parking lots
• Small industrial facilities

Kit Features:

✅ Provides continuous surveillance of the monitored area, both day and night - in color and infrared (IR illuminator and white light up to 20m)

✅ Guarantees high image quality with a 4Mpx 2560×1440 resolution

✅ Uses Power over Ethernet (PoE)

✅ Allows for 24/7 recording archiving on a hard drive in the recorder

✅ Can be operated from a mobile app via smartphone or from a computer

✅ Includes all necessary cabling and accessories to speed up installation

In the set we offer you get a complete, ready to install set based on high quality, branded components.

This set includes:

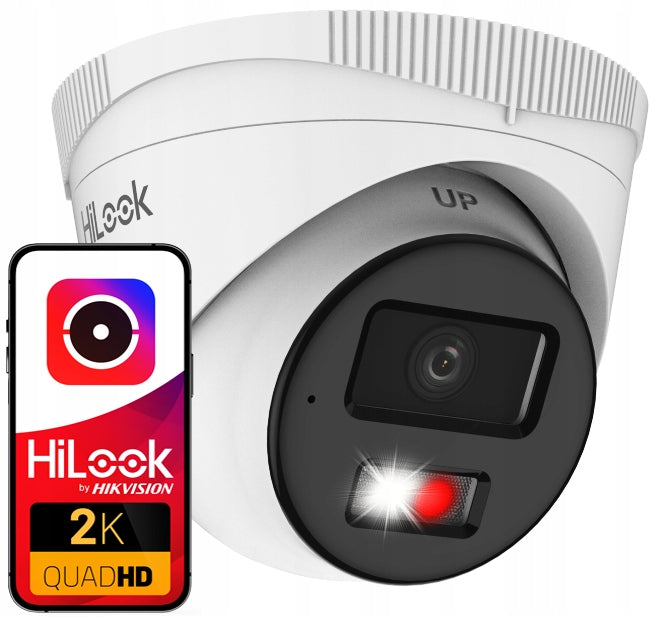

• 4x Dome camera 4Mpx (2560x1440 2k) - IPC-T240HA-LUC HiLook by Hikvision

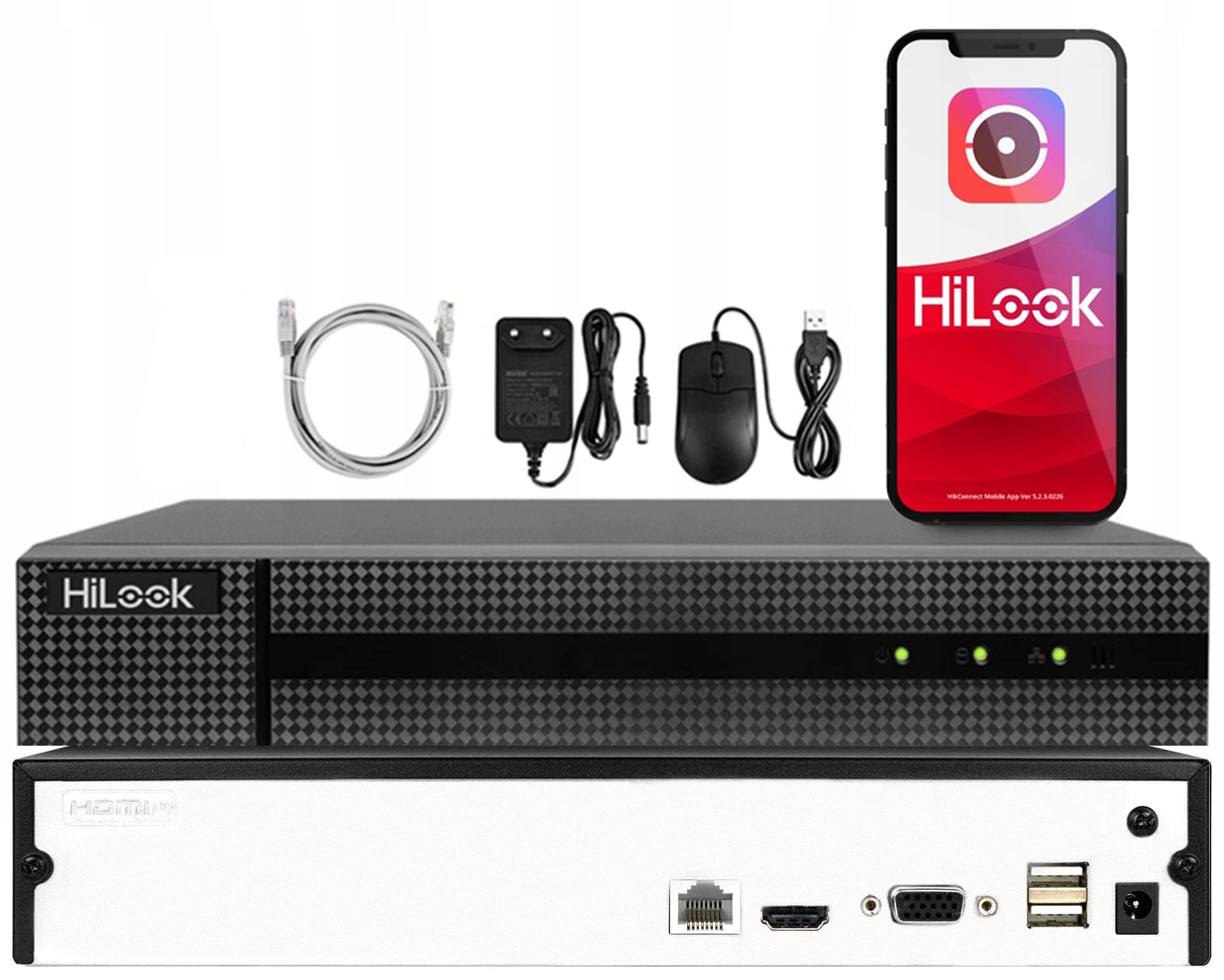

• 1x 4-channel IP recorder - NVR-104MH-D HiLook by Hikvision
• 1 x PoE Switch 4+2 to power cameras EI-H1064PL
• 1x Drive hard to CCTV ( 24/7 recording) - Hikvision 1TB (built-in DVR)
• 1x UTP twisted pair cable - 20 meters
• 8x RJ45 plug

The HiLook by Hikvison monitoring systems have been designed to make their installation as simple and intuitive as possible. The instructions included in the kit will guide you step by step through the process of installing and configuring the kit.

⚠ CHOOSE CONSCIOUSLY⚠

Monitoring systems are an investment in security – not only property, but also data. Therefore, we encourage you to consciously choose equipment from reputable manufacturers such as Hikvision. Unlike cheap, unverified OEM devices, Hikvision products provide:

✅ Regular device firmware updates to ensure compliance with the latest cybersecurity standards

✅ Stability and reliability of operation HikConnect - mobile application no.1 in the CCTV monitoring systems industry

✅ Advanced data encryption (AES-256, HTTPS, TLS 1.2/1.3) – guarantee of confidentiality of transmission

✅ Meeting strict ISO standards, including ISO 27701 (Personal Information Security Management) and CSA-Star (Cloud Data Security Guarantee)

By choosing Hikvision, you can be sure that your monitoring system meets the highest standards of quality, data protection, and reliability.

Key features of the set:

HiLook by Hikvision monitoring systems can be controlled, configured and operated using the intuitive Hik-Connect mobile application for smartphones and tablets and the iVMS-4200 program for PCs. Thanks to this, the user has control and supervision over the monitored space from anywhere on earth with access to the network. The application and program allow you to:

• live image preview
• remote playback of recordings
• create motion detection scenarios and rules
• Rotary camera control
• receiving notifications about events within the system

The application uses the P2P cloud, so that the system does not have to have redirected ports on the router.

IPC-T240HA-LUC cameras from the set belong to a series of cameras using innovative Hybrid Light technology - thanks to two types of illuminators on board, the camera allows effective observation at night both in infrared (black and white) and fully color mode.

Thanks to this, it guarantees an even higher level of safety, enabling effective identification of objects also by their color, in any lighting conditions.

The cameras have a built-in motion detection algorithm - when moving objects are detected on stage, the camera can send an alarm notification to the program and application.

What’s more, recording in motion detection mode, the camera allows you to save a very large amount of space on the hard drive, which positively affects its lifespan.

The advantage of the detection system in the IPC-B140HA-LUC camera is also the ability to recognize the silhouettes of people, which allows you to reduce false alarms by moving irrelevant objects.

The cameras included in the kit are equipped with PoE (Power over Ethernet) power supply, making their installation extremely simple. Each camera with a recorder is connected using a single UTP cable.

• Converter: 1/2,8” 4MPx CMOS
• Recording resolution: 2560×1440 @20FPS
• Lens: wide-angle 2,8 mm
• Sensitivity: 0,01Lux (0 lux with IR)
• Night mode: Yes, in color or black and white (Smart Hybrid Light)
• IR illuminator: Yes, range up to 20 m
• White light illuminator: Yes, range up to 15 m
• Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
• Wide dynamic range: dWDR
• Selected image functions: BLC, HLC, 3D DNR
• Built-in microphone: Yes
• Intelligent image analysis: Motion detection, classification of the object "human"
• Remote support: iVMS-4200, Hik-Connect, HiLook App
• Leak-proof class: IP67
• Max. Power consumption: 6.5W
• Working temperature: -30 to +45 oC
• Dimensions: Ø 110 mm × 102.7 mm
• Power Supply: 12VDC, PoE
• Weight: 340g

• Number of channels: 4 IP channels with PoE power supply
• Resolution supported: up to 4Mpx 2560x1440p
• Decoding: 1-ch @ 4 MP / 2-ch @ 1080p
• Motion detection: Yes, supported
• Video outputs: 1xHDMI, 1xVGA
• Video compression: H265+,H265,H264+,H.264
• USB connectors: 2x USB 2.0
• Max. number of disks: 1
• Max. Disk capacity: 6TB
• Mobile application: HiLook App
• Remote support: IVMS-4200, WEB Interface, application
• Switch PoE: Built-in
• PoE power budget: < 50W
• Supported protocols: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™,HTTPS
• Ethernet speed: RJ45 10M/100M
• Power Supply: 48VDC

The EI-H1064PL model by EIFLEX is a universal POE switch with a large power budget (65W) dedicated to connecting and powering network devices, such as IP cameras or IP video intercoms.

Parameters:

• Number of ports: 6
• PoE ports: 4x 10/100Mbps RJ45
• Uplink ports: 2x Uplink 10/100Mbps RJ45
• Switch type: Unmanaged
• Network protocols: IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3x
• PoE power standard: IEEE 802.3af/at PoE+
• Single port power: up to 30W
• Total PoE power: 65W
• Capacity: 1.6Gbps
• EXTEND mode: Yes - transfer up to 250m @10Mbps
• Dimensions: 140*115*40mm
• Weight: 0.4kg
• Power supply: AC100-240V (built-in power supply)

The recorder has a built-in hard drive, dedicated to 24/7 operation in CCTV monitoring systems.

Technical parameters:

• Capacity: 1 TB
• Cache: 64 MB
• Interface: Smart SATA 6 Gb/s
• Size: 3,5”
• revolution /min: 5700 rpm. /min

UTP cable included is a high-quality category 5E twisted pair computer cable, with four pairs of asymmetrically twisted conductors

The set includes a set of necessary accessories, allowing you to install, power, and connect the system:

• 1x wired mouse
• 1x UTP cable for DVR
• 1x 48V power supply for DVR
• 8x RJ45 plug
• A set of instruction manual
• Sticker "Monitored Object" by EC System

The presented set guarantees trouble-free and smooth operation of the monitoring system. Hikvision systems are solutions valued all over the world, having unbeatable operating parameters and the best value for money.
