Įrankių rinkinys MICHNOSYSTEM, 21 dalis, L80, su grafiniais žymėjimais

Trumpai apie prekę

Prekė: Įrankių rinkinys MICHNOSYSTEM, 21 dalis, L80, su grafiniais žymėjimais. Kategorija: Oro kondicionieriai.

• Gamintojas: no brand
• Modelis: PPL80

MICHNO T SYSTEM PPL80

connectors for fixing panels on walls, ceilings, attics and floors

• fast mounting system for g-k and OSB boards
• smooth adjustment of the distance from 1 cm and the angle of inclination of the housing
• allows for easy leveling of curvatures and unevenness of substrates

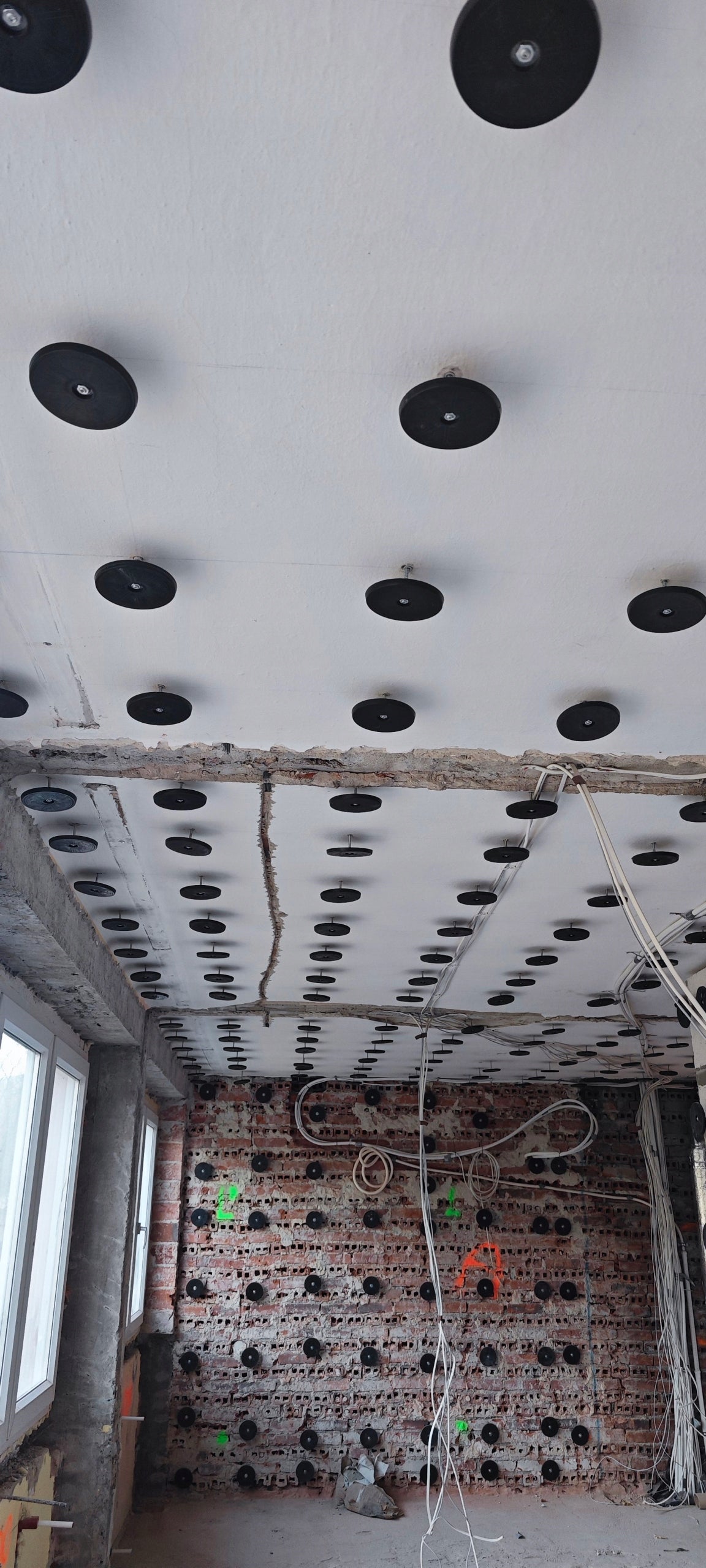

• for installation of flat ceilings in a wide range of spacers, multi-level

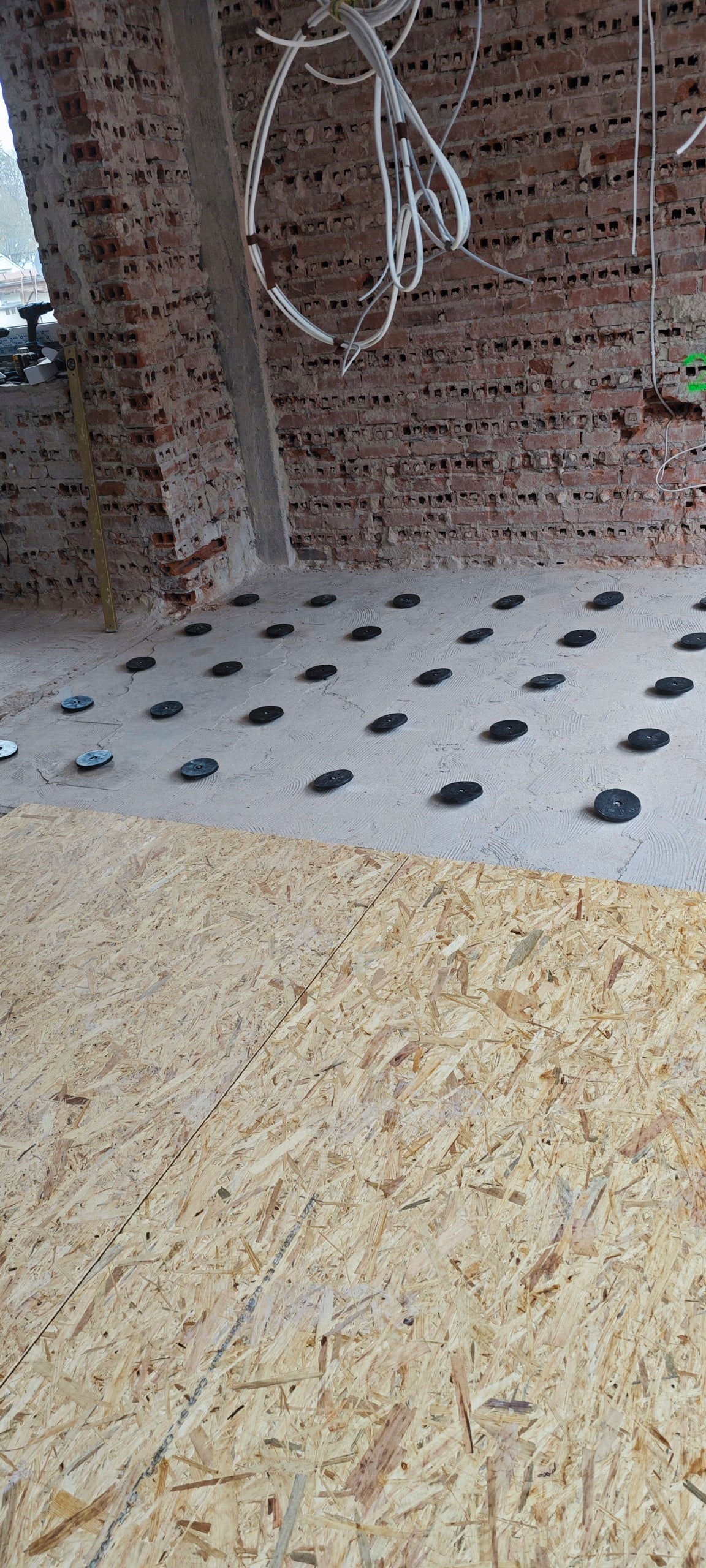

• for the installation of raised floors on sleepers, joists and ceiling beams
• recommended for building chessboards, attics, etc.
• enables simultaneous installation of thermal, acoustic insulation, vapor barrier

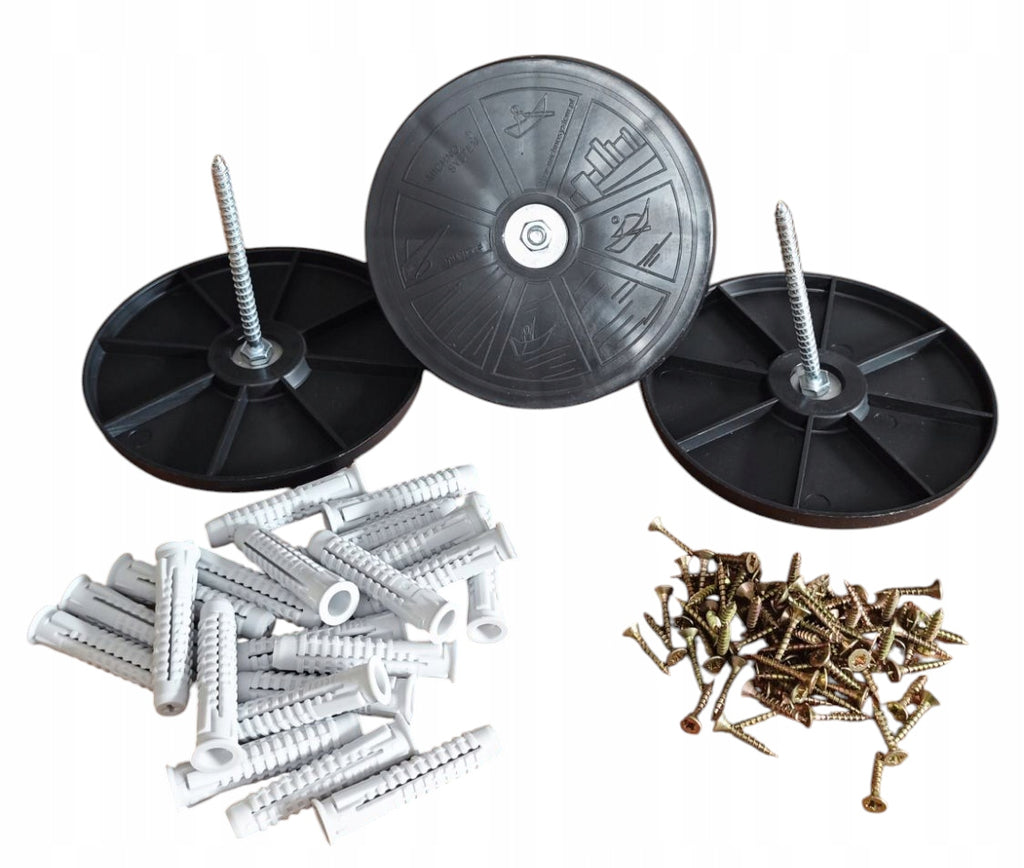

In the package:

• 21 pcs. Ready-to-use point profiles (polypropylene) model 2025 with self-aligning graphics with plastic socket M6/FI6 L80 from the ground from 1-5 cm
• 21 pcs. Plastic expansion sleeves with diameters of 8-10 mm. It is possible to exchange for metal bushings with universal diameters of 6-8mm (the price does not change, but please let us know in the "message to the seller").
• 84 pcs. steel screws for fixing plates to point profiles with a diameter of 3,5 /20mm (4 pcs. on the profile).
• Instruction.

Main properties

• easy installation- spot mounting allows one person to perform work (assembly of point profiles and cladding plates)
• very fast progress of work – fixing a full-size plate is limited to two stages: making several holes in which point profiles should be fixed, and to screwing the plate to point profiles using screws included in the set
• smooth adjustment of the distance between the plate and the ground and the angle of inclination of the plating plates (±35°) – the distance of the plates from the ground can be freely adjusted, regardless of the geometry of the walls or plastering expeditions, in the range of 10-500 mm, and after the use of extension elements in the case of ceilings up to over 1500 mm. Allows installation of panel cladding at an angle (max ±35°)
• The substrate (both mineral and wooden) for fixing MICHNO T SYSTEM point profiles should be stable and load-bearing. Does not require preparatory work: leveling, forging cracked plastering expeditions, priming, etc. – the system enables precise installation of boards on very uneven or cracked plastering expeditions, in places where wall faults occur, etc.
• possibility of correcting the geometry of walls in the case of concave or convex corners with an angle other than 90° –

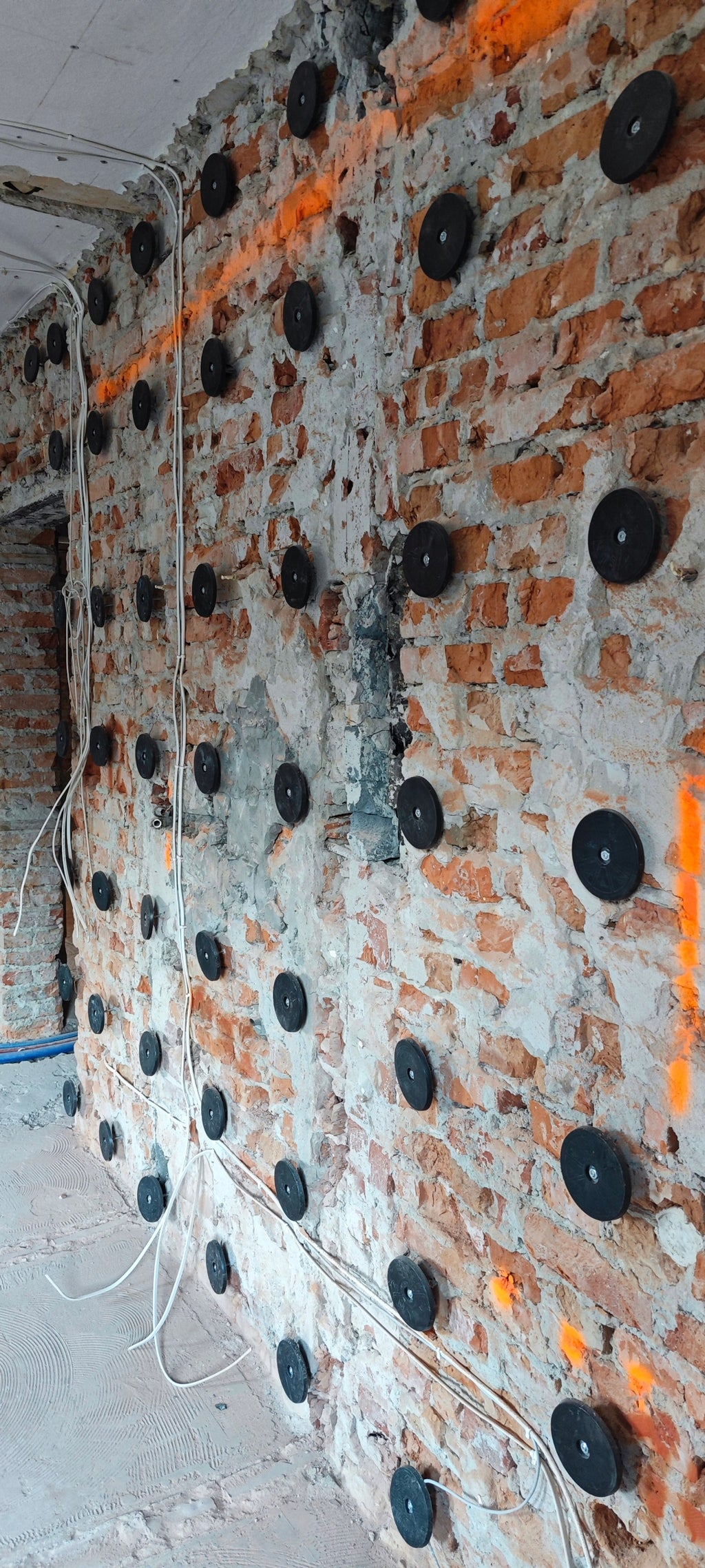

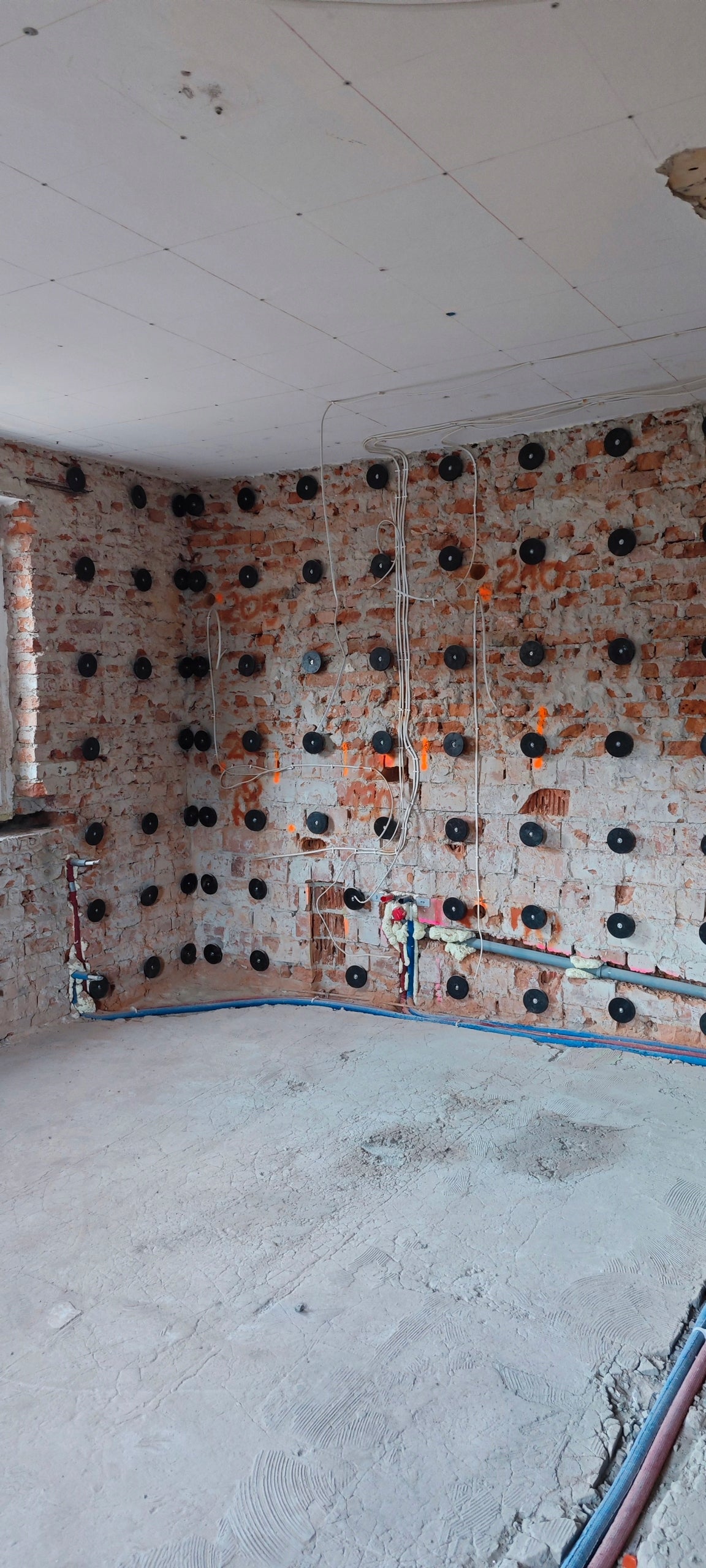

• possibility of collision-free distribution of electrical, water and sewage systems and ventilation ducts under the surface of the panel cladding - in the case of existing piping or wiring, they give the possibility of quick installation of plates while maintaining the required mounting stability
• stress compensation – thanks to the point fixing of individual plates; plates after sealing form a rigid shield, which eliminates the occurrence of further stresses between them and prevents the formation of scratches on the joints; the disc is separated in relation to the cladding of adjacent walls and ceiling, having the freedom of deformation
• fast installation of elements of plasterboard enclosures - lowered ceilings on parts of their surface, elements of enclosures on the walls of rooms, etc. They can be quickly installed on designated areas of walls and ceilings, adjacent to previously finished plastering expeditions, complementing the interior finish
• fast installation of floors on existing floors without the need for demolition work, excluding wet stages of work and technological breaks - without additional load on the ceiling structure
• the possibility of reducing the distance between the plating and the ground to 1 cm - which allows you to minimize the loss of room volume
• NEW IS THE INSTALLATION OF INSULATION ON POINT PROFILES

INSTRUCTIONS FOR MOUNTING POINT PROFILES (ROUND) MICHNO T SYSTEM IN THE GROUND

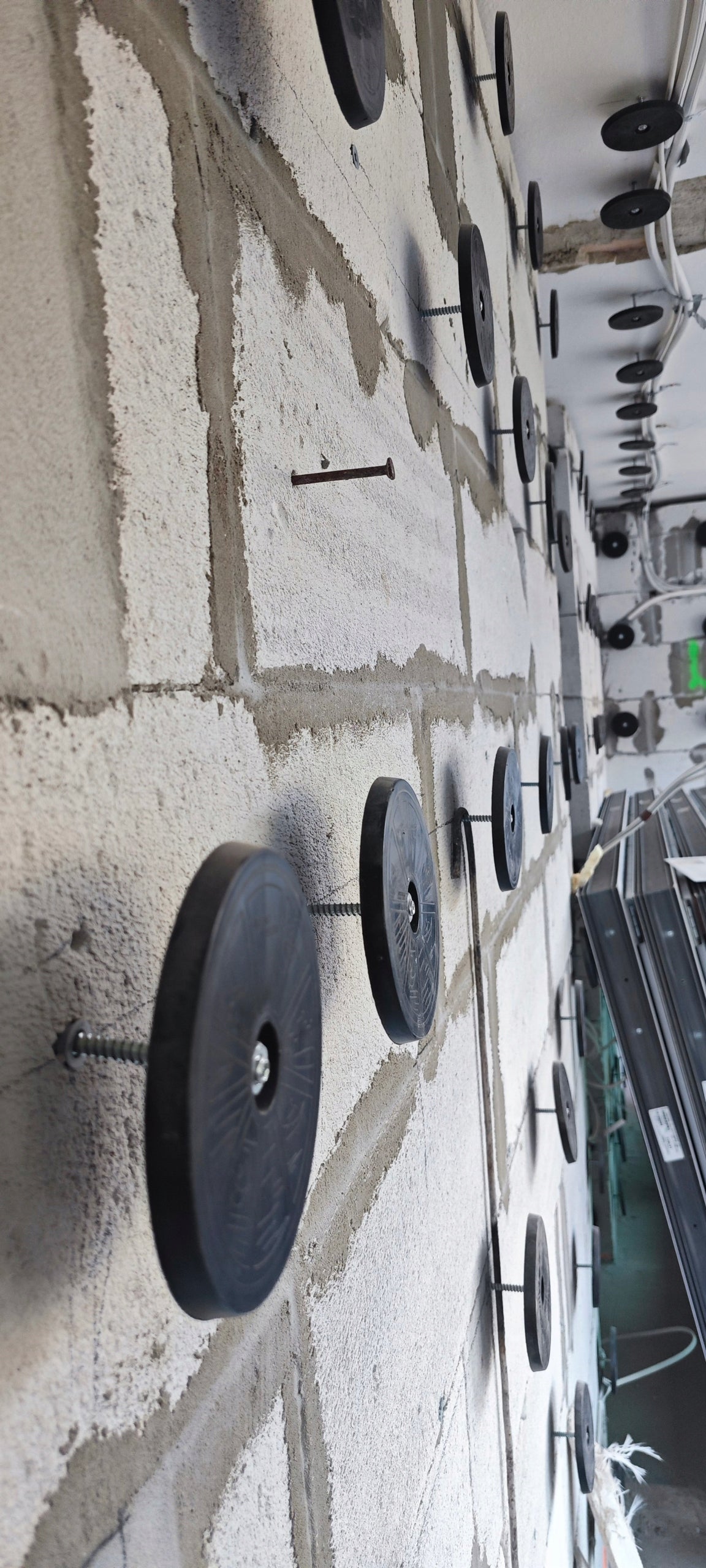

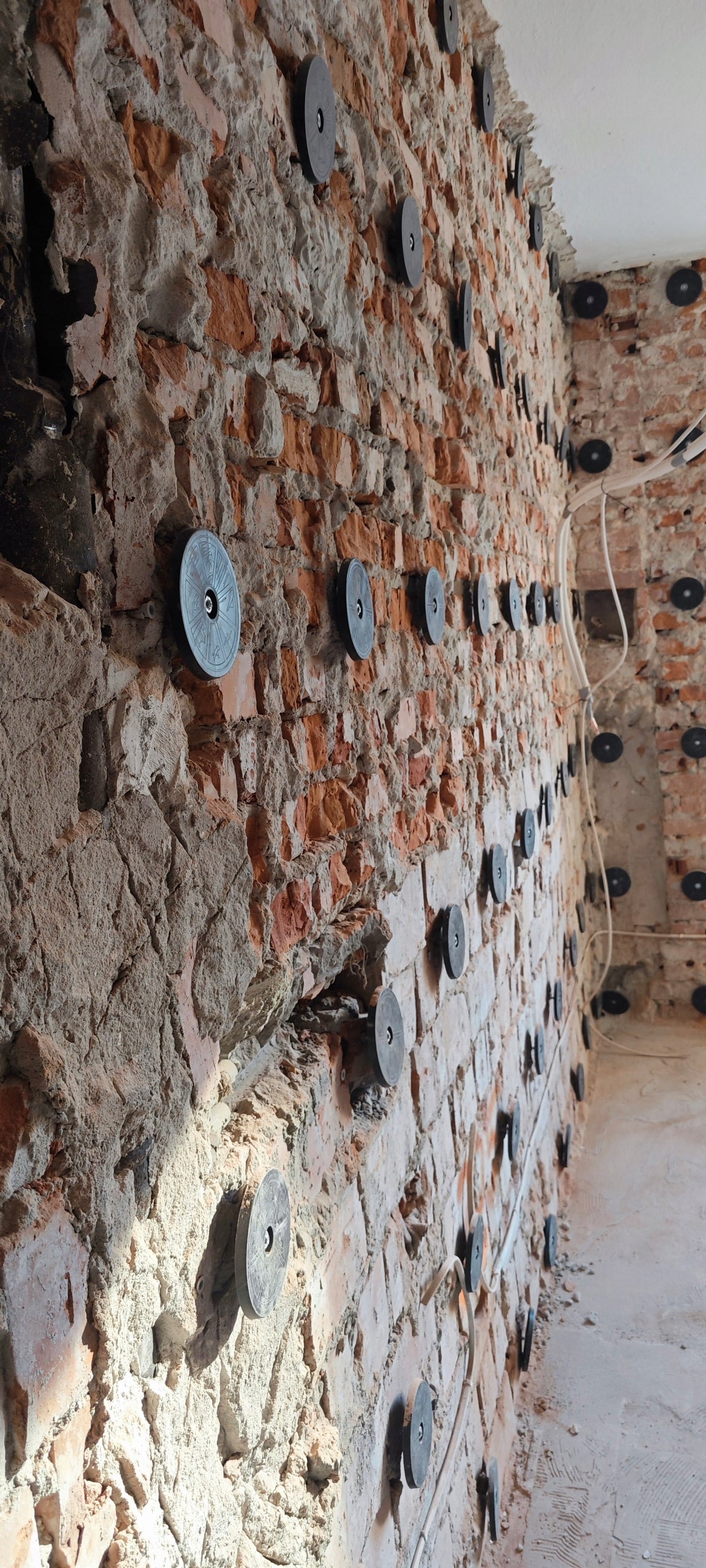

Installation of point profiles begins with making a mesh of holes in which plastic or metal dowels will be placed accordingly or direct mounting will be used without the use of dowels, e.g. in wood

We do it with a measuring cup, laser level, template, compass.

The recommended spacing between the joints depends on the type of cladding and the place of application (ceiling, wall, floor) and loads. The proposed spacing is: 40cmx40cm.

The first point should be determined 10 cm from the edge of the corner of the laid surface.

After determining all points, we proceed to drill holes in the ground with a depth of 100 mm. The diameter depends on the anchor element in a given substrate, e.g. plastic sleeve Ø10 e.g. SX10, DP10,RA10 we use drill Ø 10. Drilled holes clean from dust, screw directly the fixing element or insert the plastic expansion sleeve, then screw the fixing element to the depth according to the adjustment range of the point profile.

The self-alignment of the point profile corrects errors caused during drilling holes and allows the cladding to be mounted at an angle. Point profiles are planeed (vertical/horizontal/bevel) using a level, laser level, patch, by screwing and unscrewing the point profile at a given distance. For point profiles we install the cladding with screws. To determine on the plate the places of profiles under the plate to which we will attach it, we attach the patch to the protruding profiles and draw vertical and horizontal lines in their center. Then, at the intersection points, screw in the screws. We can also do it with a measure, compass determining the distance every 40 cm, from the center of the profile.

We follow the following rules:

-g-k, osb,mfp, fermacell, mgo and other floor coverings for ceiling walls, floors are mounted to fasteners with appropriate screws.

-remember to keep the expansion joint from the wall at least 1 cm

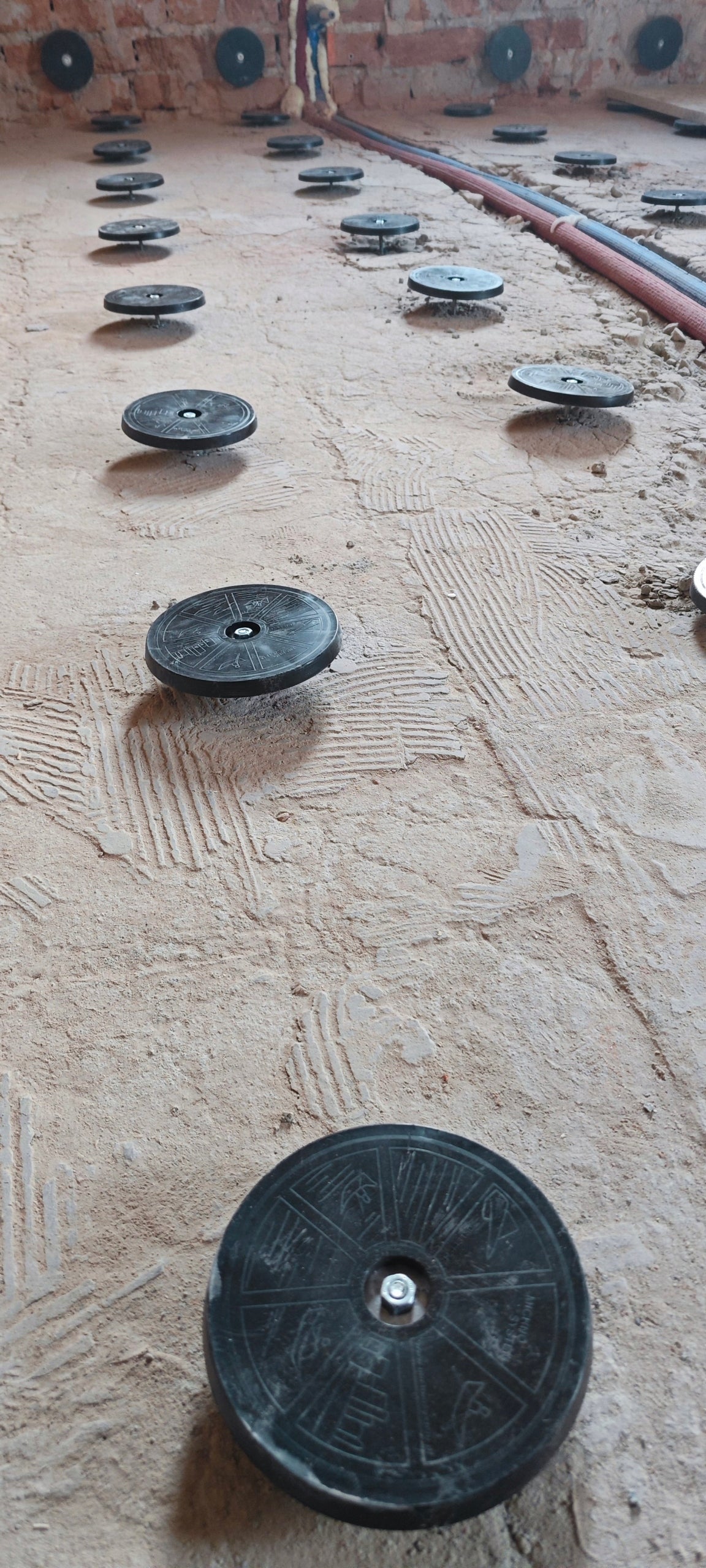

The average consumption of point profiles in the spacing of 40x40 cm is 7 pcs/m2. When installing profiles on the floor, we remember to use a counter from the ground.
