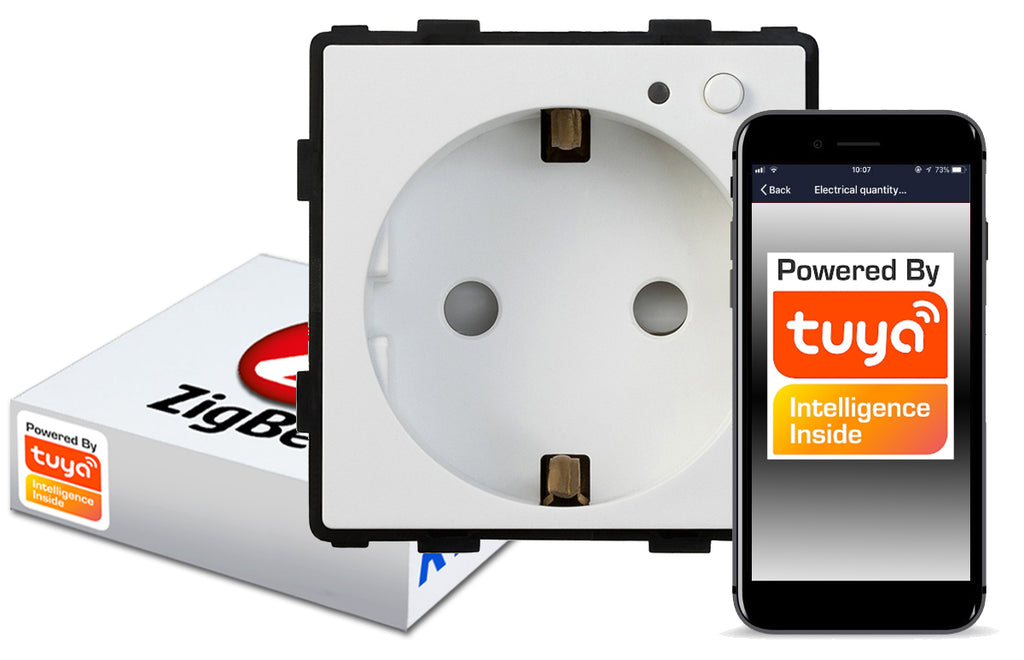

Išmanioji sieninė rozetė ZigBee TUYA RTX SH

Trumpai apie prekę

Prekė: Išmanioji sieninė rozetė ZigBee TUYA RTX SH. Kategorija: Automatizavimo moduliai.

• Gamintojas: RTX
• Modelis: HZPEW

A set of controlled socket, which after replacing the traditional outlet will enable the implementation of intelligent control of devices and remote operation on a smartphone by the most popular smart home application - TUYA Smart Life.

The product is part of the RTX Smart Home(SH) system, which can be combined according to individual requirements.

• Outlet module without frame (available in a separate offer)
• Enables automatic control of electrical devices
• Energy measurement with data archiving
• Work according to the weekly schedule
• Possibility to set the scenario from selected current parameters np.wyconnecting the outlet after exceeding the set power consumption value
• Script action depending on the operation of other elements of the system or conditions, e.g. motion sensor, time of day, etc.
• Control remote smartphone or local button
• Works with WiFi router as part of the Tuya Smart Life app

To operate ZigBee devices, it is necessary to have a ZigBee gateway that is a "node" between the system elements and the Tuya Smart cloud server.

We offer gates in separate offers:

• WiFi gateway, offer no. 9054486387
• LAN gateway, offer no.: 9291747069

The system consists of compatible devices of the RTX SmartHome(SH) series, which can be combined with each other according to individual requirements.

Within the system are available:

• Lighting switches with 1-, 2- or 3-circuit glass touch panel
• Lighting dimmers with glass touch panel
• Roller shutter controllers with glass touch panel
• Glass and aluminium frames 1-,2-,3- or 4-field
• Sockets
• USB 2,1A and 3A (Fast Charge) sockets
• LAN sockets (RJ45)
• TV and radio sockets
• Audio Connectors (RCA)

All these solutions, as well as other elements of the ZigBee Tuya system are available in our offer - should be entered in the Allegro search: RTX SH

The socket has the ability to measure current and archive data

In the application, the user can check the current consumption (A), power (W), voltage (V).

It is also possible to check the measurement data up to a year back.

Safety above all else!

The socket has a hole protection against children placing objects in them

The unified dimensions of the RTX SH system modules allow you to connect several different ZigBee devices in one frame with a selected number of half.

Using e.g. Two wall openings in which light switches have been installed so far, now you can realize a double light switch and an outlet.

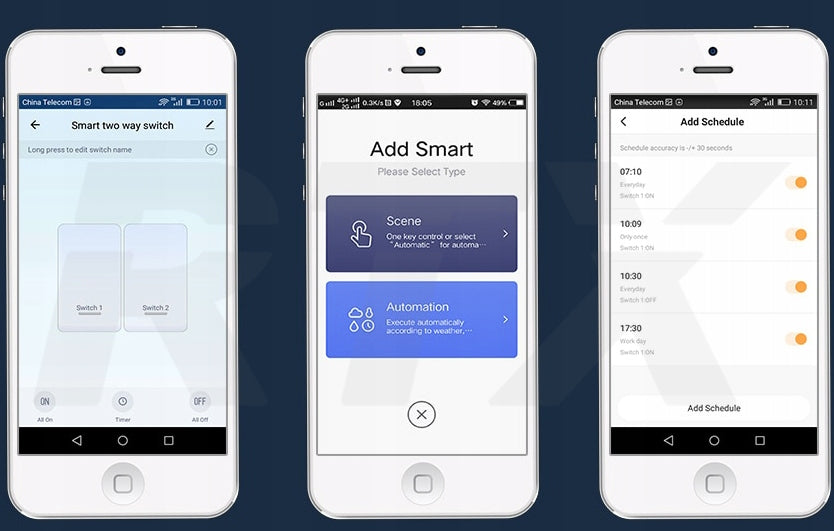

The Tuya Smart app gives you great opportunities to automate the operation of lighting in your Smart Home.

• work according to the schedule - you can set the time of automatic switching on and off of lighting depending on the time and day of the week
• work according to the scenario- the device works depending on other devices, maybe e.g. turn on the lighting when motion is detected or control the lighting depending on the time of day
• regardless of the settings of automation , the user can always control the lighting by touching the switch panel or screen on the smartphone

Speed of operation, stable and safe communication and low power consumption are the main advantages of ZigBee

ZigBee is an open standard of radio communication supported by leading manufacturers of consumer electronics associated within the Zigbee Alliance.

The current version – ZigBee 3.0 – was developed for Internet of Things systems and smart home systems.

Process automation between system elements is carried out in the control panel, not in the cloud, thanks to which individual actions are performed much faster.

The lattice topology (mesh) provides stable communication between the gate and individual elements of the system, because each receiver is a transmitter. Damage to a single device does not stop the entire network.

Low power consumption needed for the system components to work, so ZigBee battery devices can usually run for many years on a single battery.

Due to its advantages ZigBee gains new users at a very fast pace

There are more and more compatible elements of the system, whose common feature is reliability and small dimensions, which is possible thanks to negligible power consumption, and thus - no need for large battery sets.

ZigBee devices should be used where certainty of operation of automated processes is essential.

Since automation management is carried out by the control panel (gateway), the programmed rules will be implemented regardless of access to the WiFi network orin the absence of Internet connectivity.

Tuya Smart Life joined ZigBee Alliance thanks to which huge possibilities of expanding the system with new elements were opened.

• integration of more than 11000 different devices
• 30 categories (control, air conditioning, monitoring, etc.)
• 10000 manufacturers of smart devices
• develops new features and supported devices every day
• available for free for Android and iOS

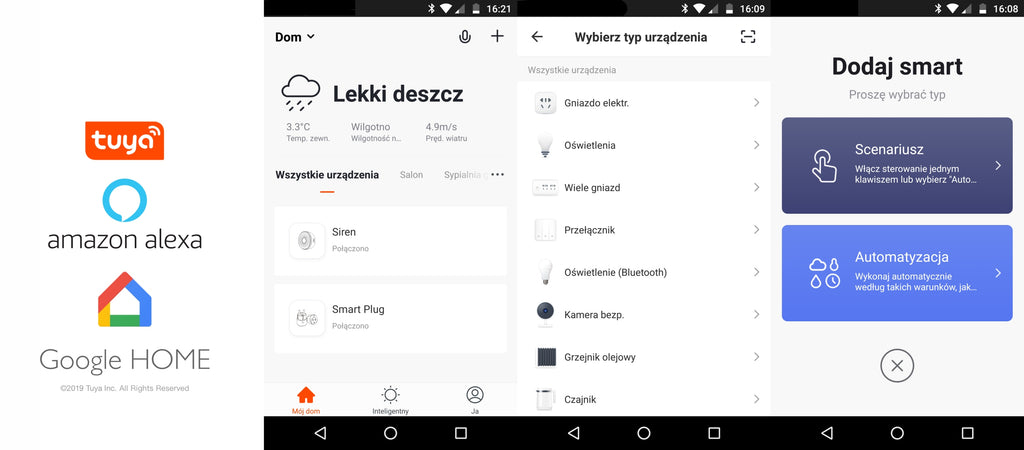

Dedicated Tuya Smart Life app - easy installation and hassle-free operation.

Wherever you are, you can control the safety of your property!

Technical specification:

• ZigBee protocol: version 3.0 by standard: 802.15.4
• Power: 3680 Watts
• Antenna type: built-in
• Number of controlled circuits: 1
• Status indicator: LED
• Power supply: 230V
• Dimensions: 5 x 5x 4cm
• Application: Tuya or Smart Life

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	wall socket
Parametry	Series	SmartHome
Parametry	Power supply	mains
Parametry	Communication	ZigBee
Parametry	Brand	RTX
Parametry	Manufacturer code	HZPEW
Parametry	EAN (GTIN)	5903794122864
Parametry	Batteries included	no
