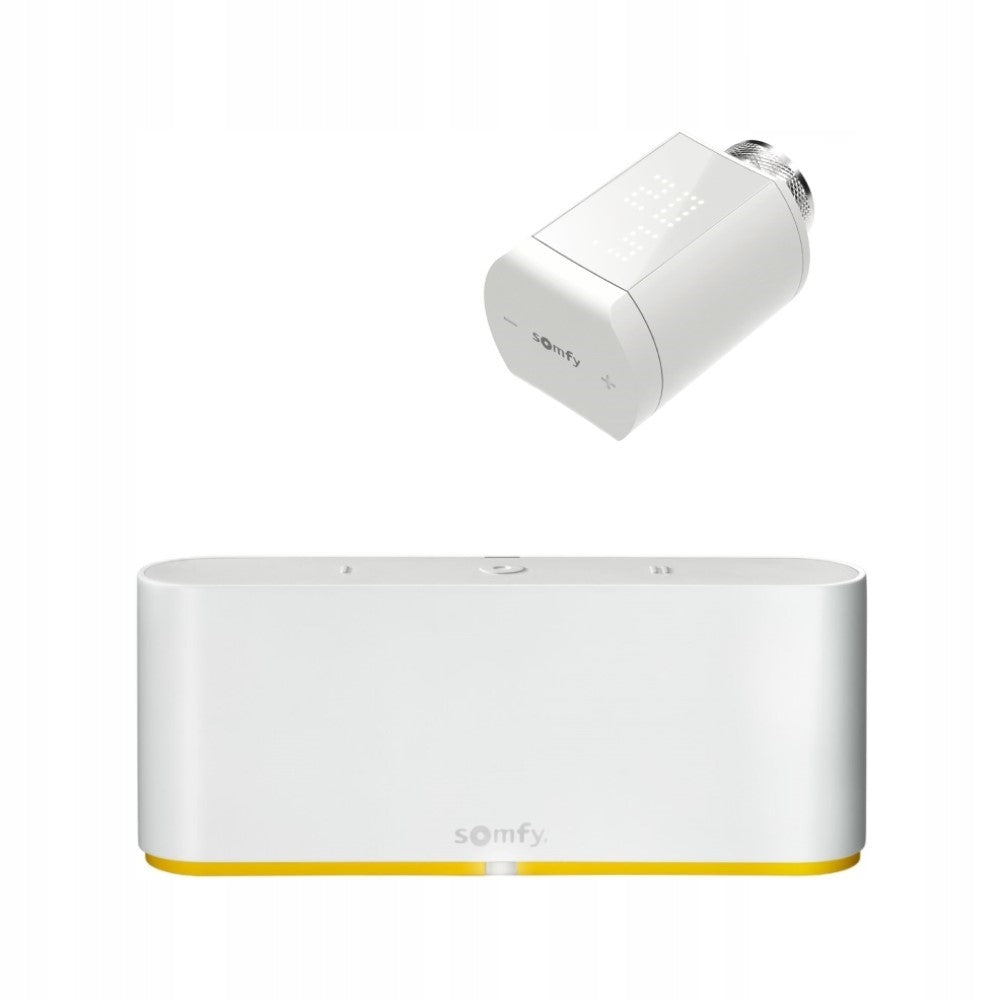

Išmanioji šildymo sistema Somfy TaHoma Switch su termostatine galvute ir WiFi

Trumpai apie prekę

Prekė: Išmanioji šildymo sistema Somfy TaHoma Switch su termostatine galvute ir WiFi. Kategorija: Centriniai blokai.

• Gamintojas: Somfy
• Modelis: 1870595-1870508

TaHoma switch is a step towards a more comfortable life! Control multiple home devices with the mobile app on your phone. Free yourself from monotonous activities and enter a new level of home automation. Comes bundled with a thermostatic head, so you get remote control over the thermal comfort in your home.

TaHoma:

• TaHoma mobile app (iOS and Android)
• Integrated radio protocols io, RTS, Zigbee 3.0
• Up to 40 scenarios and schedules can be created
• Two manual buttons to play programmed scenarios
• Connectivity to the Internet via WiFi
• Range up to 200 m in open ground

Thermostatic head:

• Two mechanical buttons and LCD display
• Provides the best heating performance
• Modern algorithms predicting heating time so that the required temperature is reached within the prescribed time
• Open window detection function
• Room analysis function to adjust the ideal temperature
• Child mode - from the application the ability to lock manual buttons
• MIN and MAX temperature settings – selecting the range of the desired temperature (default from 5°C to 26°C)

Every day, the headquarters takes care of safety and comfort of residents. It communicates devices and controls their operation in the most economical and effective way. It was created to help users perform everyday and monotonous activities!

Universality – TaHoma control panel is compatible with devices of leading manufacturers, m.in. Sonos, Philips, Schneider, Velux and ZigBee, RTS or io-homecontrol protocols. The convenience of controlling the smart home with voice commands provides the ability to connect the control panel with voice assistants Google Assistant, Apple Homekit or Amazon Alexa.

Ideal thermal comfort – when connected to the TaHoma control panel, it is possible to create weekly schedules in the TaHoma application, which are perfectly tailored to the needs and lifestyle of residents, as well as guarantee optimal thermal comfort.

Saving – based on advanced algorithms, the head precisely determines the time needed to obtain the required temperature and adjusts the operation of the device to achieve it in the most economical way possible. This, in turn, translates into lower energy charges.

Saving – based on advanced algorithms, the head precisely determines the time needed to obtain the required temperature and adjusts the operation of the device to achieve it in the most economical way possible. This, in turn, translates into lower energy charges.

Prevention of heat loss – thanks to the open window detection function, the thermostatic head will automatically turn off the heating when the temperature drops by 2°C in less than ten minutes and turn it back on when the temperature rises by 0,5°C at the same time

Simple and intuitive management of a smart home automation system, at any time, from anywhere on Earth is provided by the TaHoma application. With just one click, you can find out what’s currently happening at home and control your devices remotely.

Schedule function will allow you to plan the work of individual smart products. Create advanced scenarios, e.g. "WAKE-UP CALL" that will make the house wake up with you m.in. exposing blinds or turning on the heating in the toilet.

On the control panel there are two manual buttons, which play pre-programmed scenarios. You no longer have to turn on the app when leaving the house, just press one of them and TaHoma will trigger a sequence of events e.g. It will cover the blinds, turn off the light or lower the temperature.

Content description:

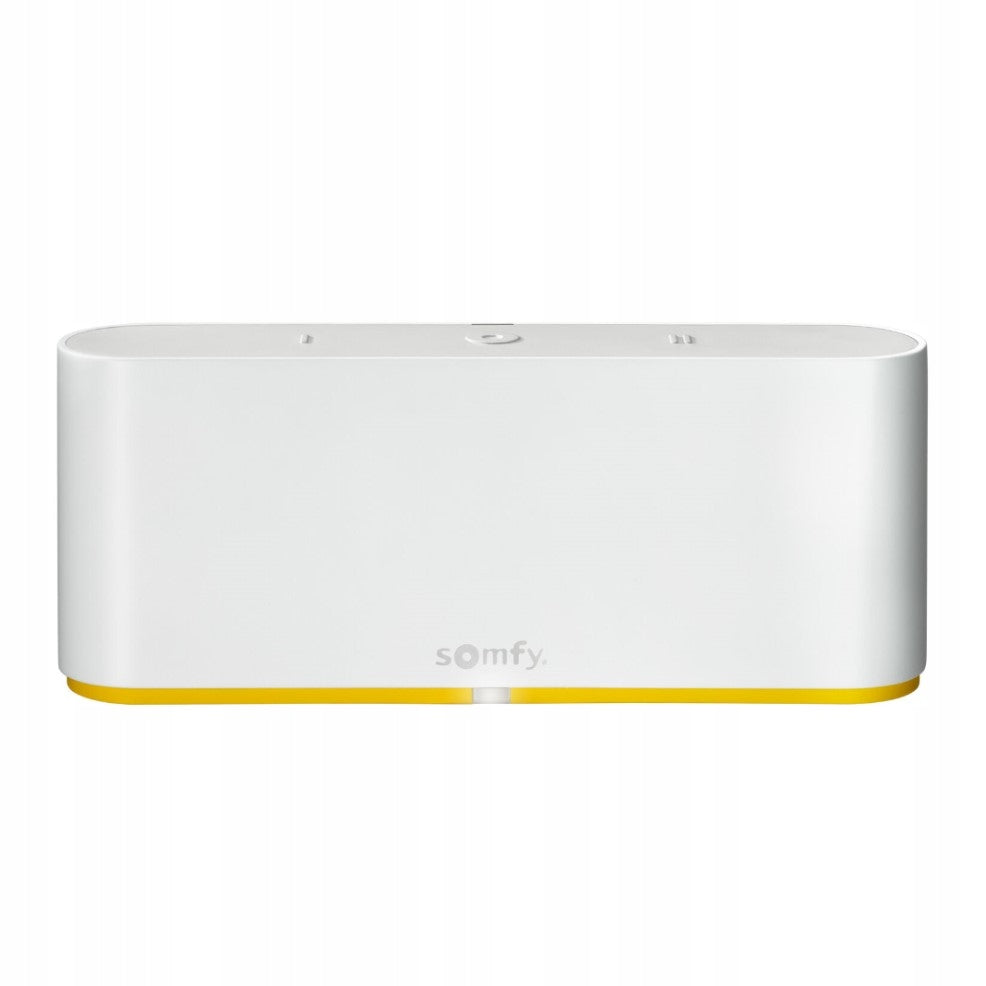

• 1x TaHoma Switch control panel
• 1x Power Cable
• 1x Thermostatic head
• 1x Adapter
• 1x Pattern
• 1x Adapter Selection Guide
• 1x Batteries

Technical specification

TaHoma:

• - io - 2 ways (868-870 MHz) io-homecontrol® tri-band two-way,with LBT (Listen Before Talk) · 868.000 MHz - 868.600 MHz -ERP < 25 mW · 868.700 MHz - 869.200 MHz - ERP < 25 mW · 869.700 MHz -870.000 MHz - ERP < 25 m

  - RTS (433Mhz) · 433.050 MHz -434.790 MHz - ERP < 10 mW

  - Zigbee 3.0 (2.4Ghz) · IEEE 802.15.4-2011 2.4000 – 2.4835 GHz – ERP < 100mW Wi-Fi (2.4Ghz) IEEE 802.11bgn · 2.4000 GHz -2.4845 GHz -ERP < 100 mW MHz

• Control in the mobile application via smartphone or tablet
• Maximum number of io devices: up to 200
• Maximum number of RTS devices: up to 50
• Maximum number of Zigbee 3.0 devices: up to 50
• Maximum number of sensors: up to 50
• Maximum number of scenarios: 40
• Maximum number of days in the weekly schedule function: 40
• Dimensions (W) X H X D. ): 162 x 67,5 x 34 mm
• Weight: 213g
• Range: 200 m in open ground
• Color: White
• Power Supply: 230V/5V DC - 1A
• Degree of protection: IP 30
• Integrated radio protocols: RTS, io, Zigbee3.0 (lighting only)

Thermosatic head:

• Ergonomics: 2 mechanical buttons (temp. change +/-; pairing; reset functions), LCD display (matrix 60 white LEDs)
• Compatibility: natively M30x1,5; 3 adapters: M28x1,5, RA, RAV
• Functions: locking (child mode), open window detection
• Temperature - measurement:

1. Range: -10°C to 50°C
2. Accuracy: +/- 0,1°C

• Temperature - range of regulation

1. Range: 5°C to 26°C
2. Height: 0.5°C

• Humidity measurement repeatability: +/- 0,2%
• Radio Frequency: io-homecontrol® 868-870 MHz
• Power Supply: 2x AA battery - included
• Degree of contamination: Category II
• Degree of protection: IP20
• Dimensions / weight: 87 x 55 x 48 mm / 160 g
• Operating temperature: 5°C to 40°C
