Išmanusis bevielis WiFi rėlė TUYA, be įtampos

Trumpai apie prekę

Prekė: Išmanusis bevielis WiFi rėlė TUYA, be įtampos. Kategorija: Automatizavimo moduliai.

• Gamintojas: Sone
• Modelis: 583

Can module, controller without potential WiFi Tuya NO / NC for ON/OFF control:lighting, gates, actuators, door control, button signaling, computer control, access control, boilers, furnaces, gate or any device that needs a signal without potential or 230V. All these functions will be used with the help of mobile devices, installation is very simple and intuitive.

Control the lighting, gate, boiler with schedules, scenes, from the app or classically from the button on the wall.

With Wi-Fi connectivity, you can control the light or device connected to the relay without potential, directly from the app on your smartphone.

Wi-Fi control is done using the Tuya or Smart life application or another application. (free download for Android and iOS). The device works with applications and voice assistants: Google Home, Amazon Alexa and Home Assistant.

• Free App
• Wireless remote control without potential - you can also provide 230V as in a normal relay
• Ability to control any voltage from 0V to 240V
• Ability to control any motor
• NO/NC CONTROL - normally open/normally closed
• Small size 40x40x18mm
• Maximum power: 1 x 1200W or 1 x 5A
• Cooperation with classic switches
• Control from anywhere in the world with WIFI
• Works with MONOSTABLE and BISTABLE connectors (selectable in the application)
• Reading Parameters in the application (whether the light is on)
• Our device has settings and status memory after power loss!
• Easy pairing
• Installation recessed (in a can) or anywhere else
• Timer - countdown time
• It will work as a relay to control the furnace (relay type NO - normally open)
• Schedule - setting specific hours of covering and uncovering the blind
• Scenes (automations) - control against specific conditions, e.g. Turn on outdoor lighting every day 30 minutes after sunset.

Remote controlled module for controlling WiFi lighting, up to power up to 1200W per channel. It will allow you to control the light while connected to a Wifi network or remotely from anywhere in the world. In addition, you can set a schedule, timer or stopwatch functions that will save on bills automatically turning off the lighting, as well as smart scenes such as turning on several lights at the same time or turning off the light after a set time. The compact size of 39,2x39,2x18mm will also allow you to install in a flush-mounted box (for convenient installation - we recommend 60mm depth).

• Control of switching on the gas boiler or heat pump
• Additional functionality of opening the gate
• Turn on and turn off outdoor lighting specific time (Schedule)
• Turn off the lighting when leaving the house based on location settings
• Control several lights with one switch, e.g. Going to sleep.
• Turning off all lighting in the house when going to sleep, or going to work - a very useful feature that saves energy

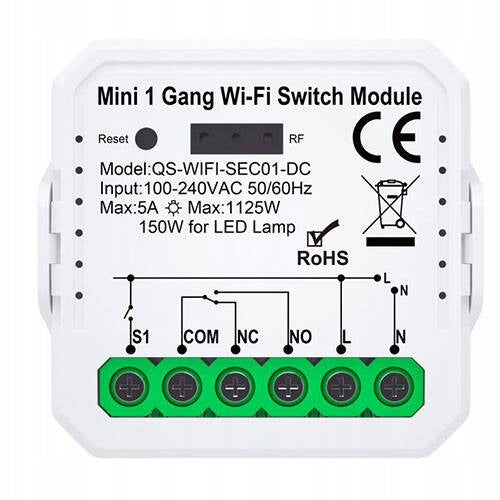

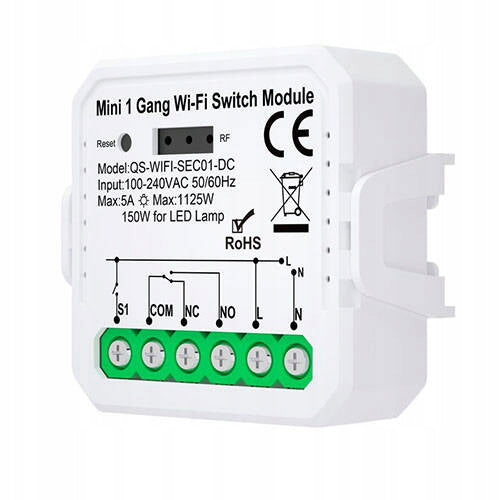

• COM - Common - common contact
• NO - open standards - nomally open, this contact is open without supplying power (also in the absence of electricity)
• NC - normal close - nomally closed, this contact is closed without supplying power (also in the absence of electricity)

The isolated relay will work wherever you need to control a circuit other than 230.

For example, the use of this module and e.g. The temperature sensor allows heating to be switched on based on the temperature set in the scenario.

Some of the many uses are:

• Control of boiler C.O
• Control of the Heat Pump
• Aggregate control
• Direct current motor control
• Lighting control
• Control of low-voltage devices 5V, 12V, 24V 48V, etc. - using an external power supply

• Turn on/off the remote light using the app
• Turn on/off the local light manually with the button
• Timer - setting the time to turn on
• Schedule - on/off according to the set plan
• Scene - setting the control dependence on the time of day or other factors selected by us
• OUR CONTROLLER PROVIDES A PREVIEW OF WHETHER THE RELAY IS SHORTED (ATTACHED)
• Assembly in flush-mounted box (for convenience - we recommend 60mm depth)
• State memory in case of power loss

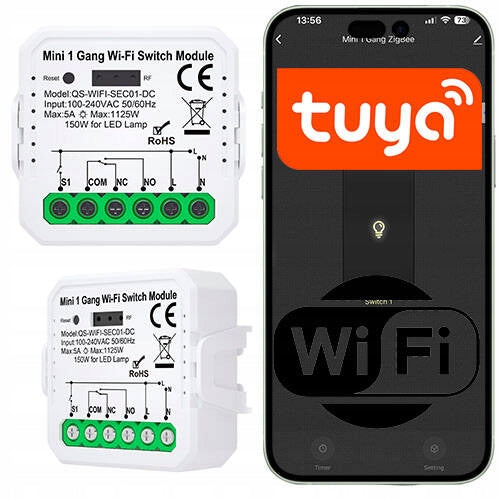

The device works with Tuya Smart and Smart Life – popular applications for IoT devices (Internet of Things)

Simple addition of the device - just hold down the button on it and search for it in the application.

The TUYA and SMART LIFE ecosystems are:

• The application works in Polish, you can add and control various smart devices in it
• The application works with a very wide range of devices
• Nearly 10 000 manufacturers
• 310 000 devices compatible with the app
• 30 categories that can include, among others: lighting, monitoring, air conditioning, heating
• The application is free and constantly developed with new features.
• Applications can be downloaded to iOS and Android devices.

And above all, intuitive operation and simple installation
