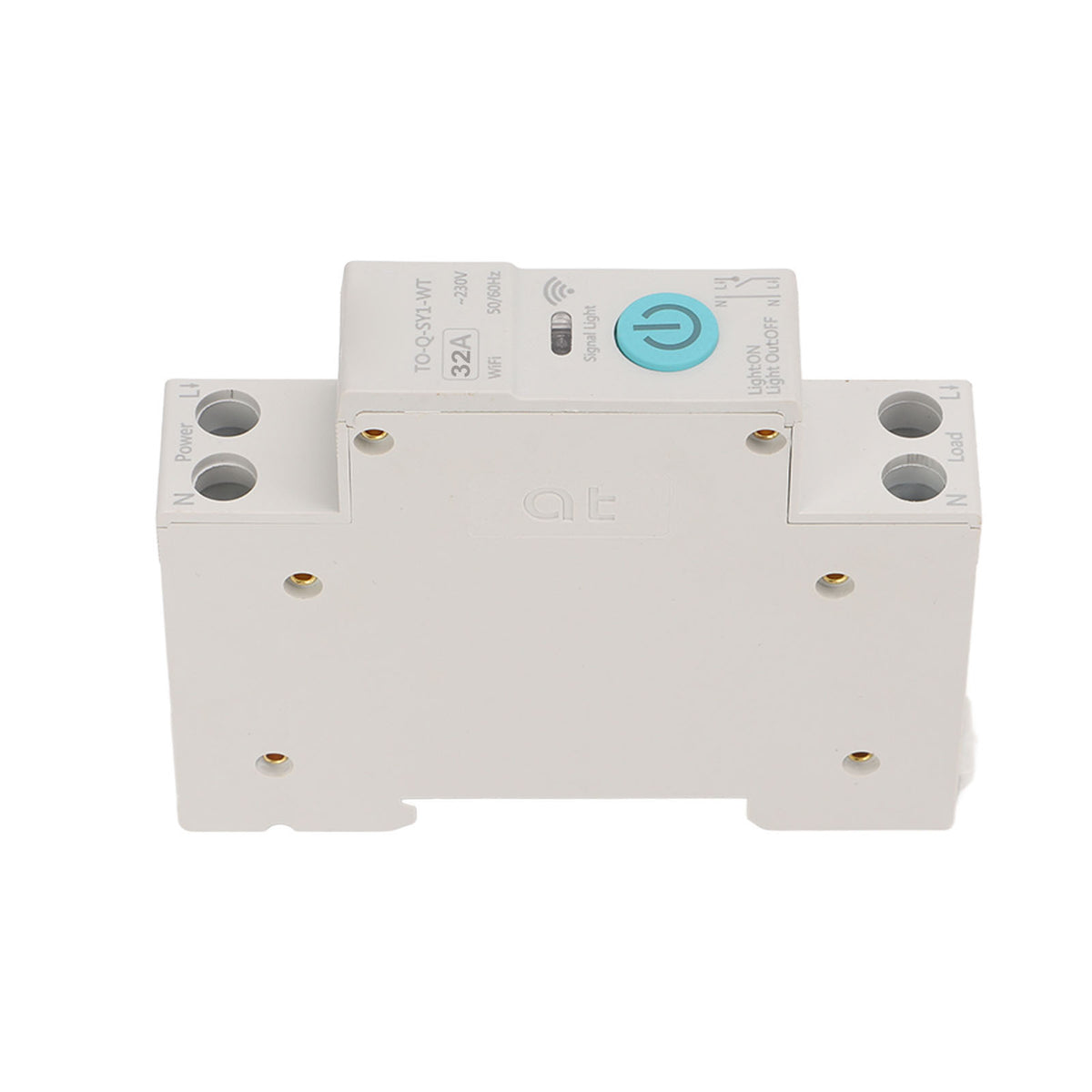

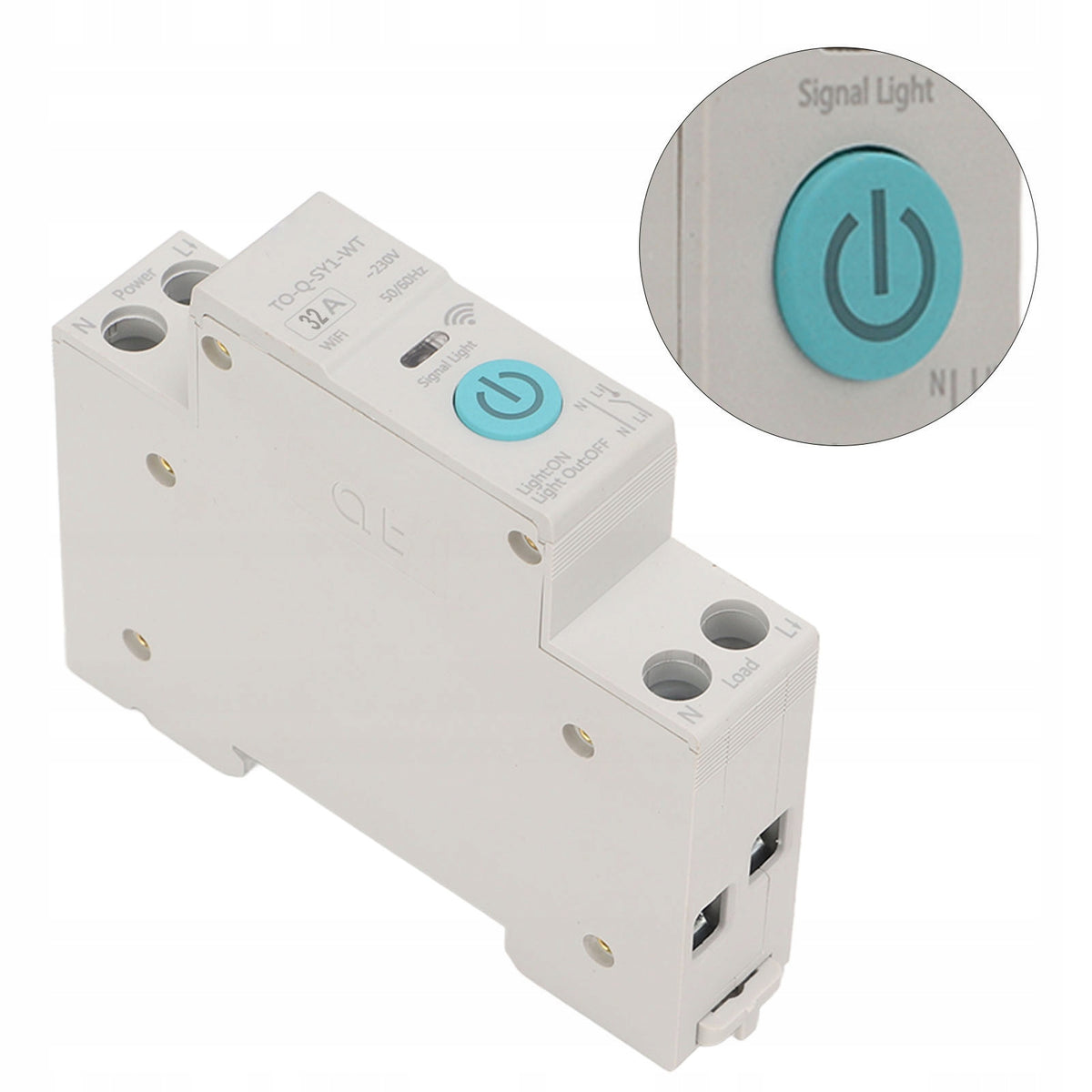

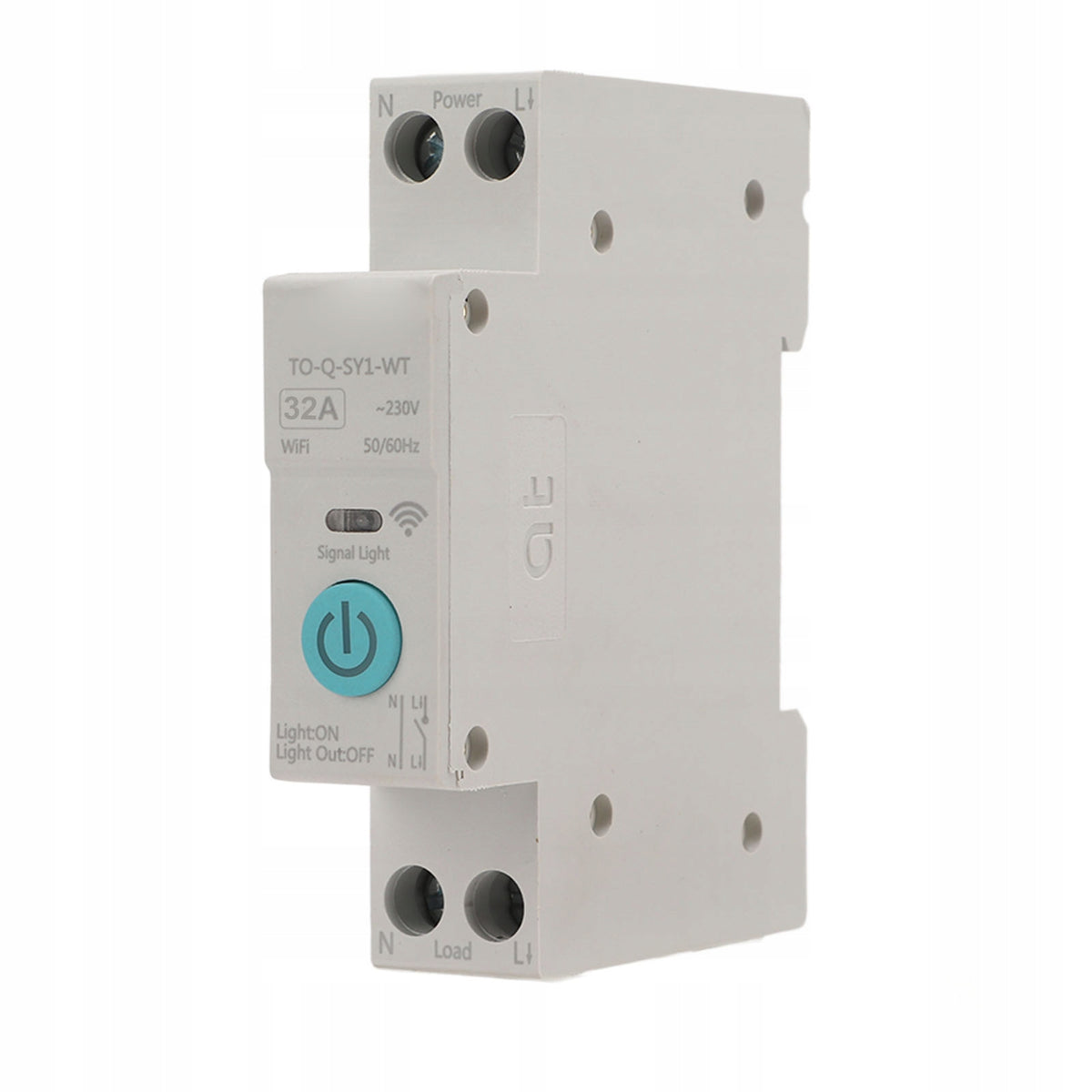

Išmanusis DIN35 WiFi jungiklis Zigbee, 32A

Trumpai apie prekę

Prekė: Išmanusis DIN35 WiFi jungiklis Zigbee, 32A. Kategorija: Centriniai blokai.

• Gamintojas: no brand
• Modelis: WQVKF8512

1. Intelligent protection: Set the status of the equipment switch in different scenarios and remotely monitor the load status of electrical equipment in real time.

2. Smart Life: You can monitor the use of all your home devices using the wireless switch module and remotely control and schedule control to make your life smarter.

3. 3 timing modes: Designed for timing mode, countdown mode, cycle time measurement mode, use with smartphones to adapt to the actual situation.

4. Countdown function: When you leave work, you can set the time to turn on the air conditioner in advance or set other equipment, leading a better and more comfortable life.

5. Flame retardant material: made of red copper and PA66 material, which is heat resistant and flame retardant, which effectively improves the safety of use.

Item Type: Smart Circuit Breaker

Material: red copper, PA66

Application: Intelligent home control

Applicable app: for Tuya Smart

Rated operating voltage range: ~230V

Control Type: Remote Control, Manual

Poles: 1P+N (pole N through)

Control method: for SigMesh, for ZigBee

Rail: DIN35

Product Size: approx. 82x68x18mm/3,2x2,7x0,7 inch

Package List: 1 x Intelligent Circuit Breaker

Description of lighting:

1. The LED indicator lights up with a constant blue light, indicating that the switch is on.
2. The LED is off, which means that the switch is off or in network mode. (In offline mode, the manual switch has no status indicator, please pay attention to the safety of operation).
3. The LED indicator flashes slowly blue, indicating that the product is in pairing mode.

Steps:

1. Connect the wire from the top end of the circuit breaker to the bottom end, make sure the wiring is correct and the WiFi signal is strong.
2. Turn on Bluetooth and WiFi on your phone, open the app, then press and hold the POWER button, wait about 5-10 seconds, the LED indicator will start flashing blue slowly.
3. After a moment of waiting, a pop-up window will appear, click the + sign in the upper right corner, then select the ADD DEVICE button and wait for the device to be recognized.
4. Enter your Wi-Fi account password and click Next, wait for your network connection
5. Connect to the network.
