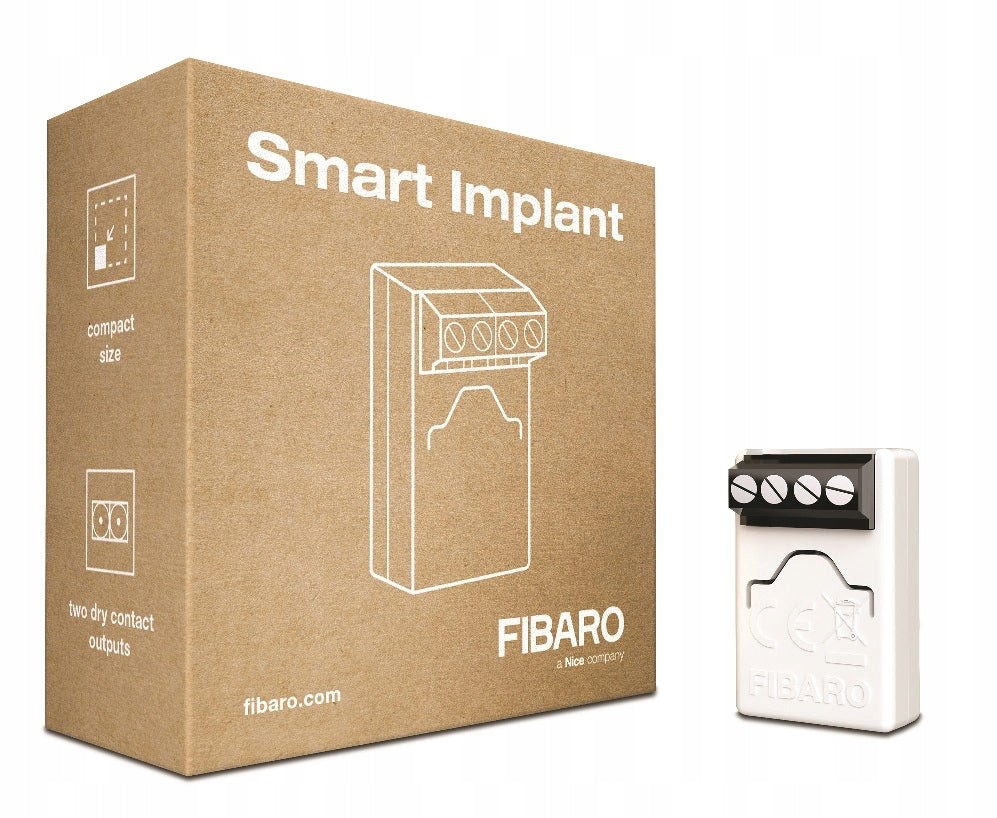

Išmanusis modulis FIBARO SMART IMPLANT

Trumpai apie prekę

Prekė: Išmanusis modulis FIBARO SMART IMPLANT. Kategorija: Jutikliai.

• Gamintojas: FIBARO
• Modelis: FGBS-222

SMART IMPLANT is intelligence in a nutshell, which applied to the device extends its operation with intelligent functions. Smart Implant is currently the only such comprehensive solution on the market that turns ordinary devices into devices compatible with the Fibaro smart home.

POWER SUPPLY AND ASSEMBLY

Power supply voltage of the device 9-30V DC

Operating temperature 0-40°C

APPLICATION

Inputs :

2 0-10V analog or binary inputs

1 1-Wire serial input (including for DHT22 or DS18B20 sensors)

Outputs:

2 potential-free (for controlling external systems)

Supported digital sensors: 6 DS18B20 or 1 DHT22

Maximum Output Voltage: 150mA

Maximum Output Voltage: 30V DC/20V AC

Measuring range of built-in temperature sensor:-55°C – 126°C

COMMUNICATION

Radio protocol: Z-Wave (500 series chip)

Transmission power: EIRP max. 7dBm

Radio Frequency:

868,4 or 869,8 MHz EU

908,4 or 908,42 or 916 MHz US

921,4 or 919,8 MHz ANZ

869.0 MHz RU

Reception:

up to 50 m in open area

up to 30 m in buildings (depending on building materials, layout and structure of the building and terrain)

The device works with Fibaro: Home Center Lite, Home Center Lite 3, Home Center 2 and Home Center 3
