Išmanusis relė Shelly Pro 3, WiFi, 3 kanalų, DIN bėgeliui, 240V, 16A

Trumpai apie prekę

Prekė: Išmanusis relė Shelly Pro 3, WiFi, 3 kanalų, DIN bėgeliui, 240V, 16A. Kategorija: Automatizavimo moduliai.

• Gamintojas: Shelly
• Modelis: 3800235268094

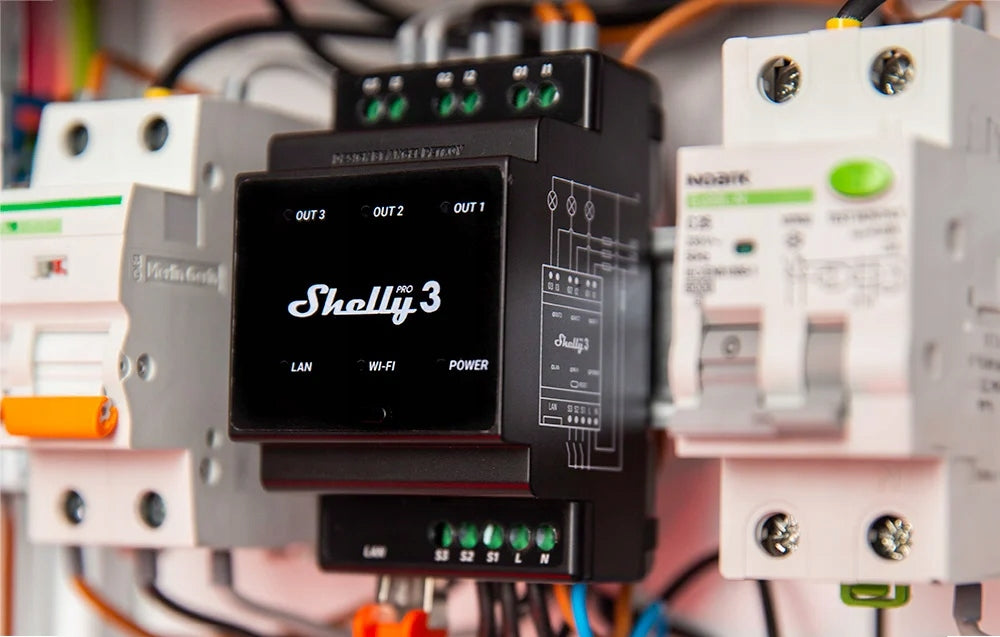

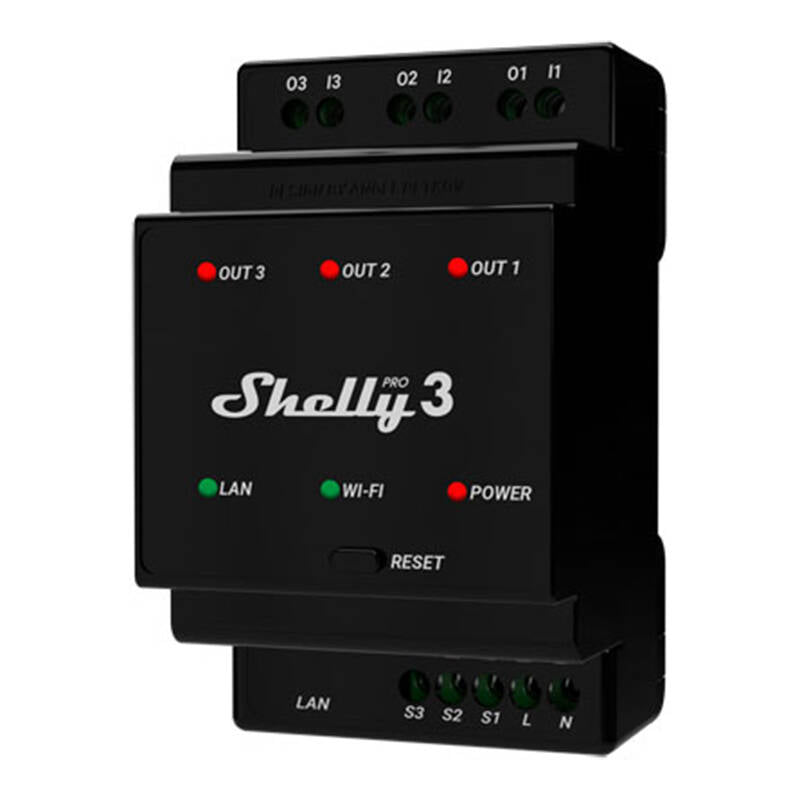

Shelly Pro 3 is an advanced relay mounted on a DIN rail with three independent channels. Each channel supports a load of up to 16 A, and the total capacity is up to 48 A. With support for WiFi, LAN and Bluetooth , it is perfect for both home and building automation. It also integrates with popular assistants such as Google Assistant, Samsung SmartThings and Amazon Alexa, enabling even easier control of your home. Equipped with potential-free contacts provides great flexibility in the area of handling various voltages and a wide range of possibilities in home automation. What’s more, scripting features allow you to create custom automation scenes based on various events, such as weather forecasts.

• Manufacturer: Shelly
• Model: SPSW-003XE16EU
• AC supply voltage: 110 - 240 V
• Energy consumption: < 3 W
• Maximum switching voltage AC: 240 V
• Maximum switching voltage DC: 30 V
• Maximum switching current AC: 16 A per channel, 48 A total
• Maximum switching current DC: 16 A per channel, 48 A total
• Internal temperature sensor: Yes
• Wi-Fi protocol: 802.11 b/g/n
• Wi-Fi range: Up to 30 m inside and up to 50 m outside
• Bluetooth protocol: 4.2
• Bluetooth range: Up to 10 m inside and up to 30 m outside
• CPU: ESP32-D0WDQ6
• Flash memory: 8 MB
• Dimensions: 96 x 53 x 59 ±0.5 mm
• Assembly: DIN rail
• Housing material: Plastic
• Ambient temperature: from -20°C to +40°C
• Moisture: from 30% to 70% RH
• Maximum height: 2000m

✔ Three independent channels: The relay offers three independent channels supporting loads up to 16 A each, resulting in a total capacity of up to 48 A. This functionality provides great flexibility in managing electrical devices and allows you to operate more devices.

✔ Support for different voltages: Equipped with potential-free contacts, which provides great flexibility in the area of handling different voltages, both alternating (AC) and constant (DC). Thanks to this, the relay can be used in a variety of electrical systems.

✔ Support for various communication protocols: The product has support for WiFi, LAN and Bluetooth, which allows it to be integrated with both home and building automation. The ability to integrate with popular voice assistants such as Google Assistant, Samsung SmartThings, and Amazon Alexa further eases control over your devices.

✔ Script functions: They allow you to create custom automation scenes based on different events, which gives users additional flexibility and the ability to personalize the operation of the relay.

✔ Built-in temperature sensor: The built-in temperature sensor allows you to monitor the temperature inside the relay, which can be useful in home automation systems for making decisions based on ambient conditions.

✔ Solid construction and wide application: DIN rail-mounted relay, made of durable plastic, designed to work in a variety of ambient conditions from -20°C to +40°C, which makes it ideal for both indoor and outdoor applications.

Gain full control of your home. Shelly Pro 3 is perfect for a variety of applications. Thanks to it, you can remotely manage the lighting in your home, safely lock and unlock doors, adjust the operation of the bathroom fan to the detected motion, automate the swimming pool pump or control garden irrigation. With Shelly Pro 3, your home will become even smarter!
