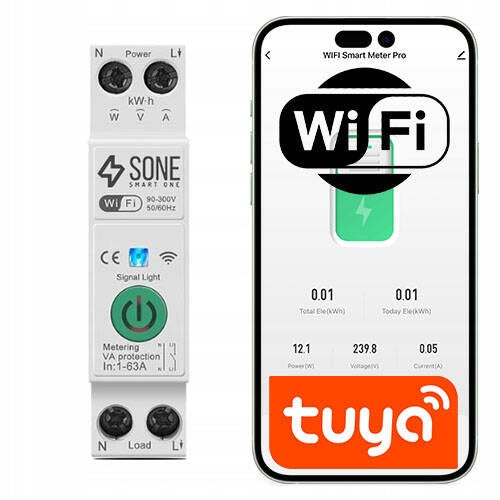

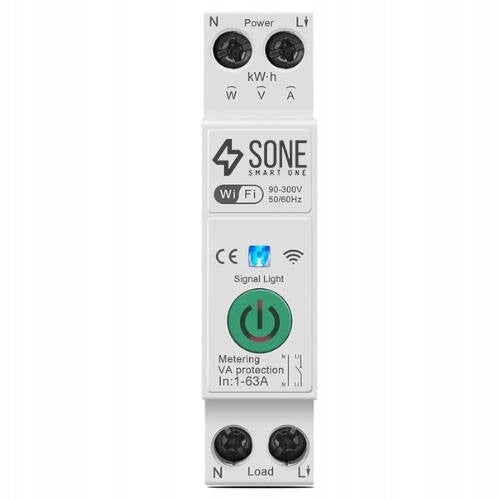

Išmanusis relė TUYA, 63A, WiFi, su DIN bėgelio montavimu ir nuotoliniu valdymu

Trumpai apie prekę

Prekė: Išmanusis relė TUYA, 63A, WiFi, su DIN bėgelio montavimu ir nuotoliniu valdymu. Kategorija: Automatizavimo moduliai.

• Gamintojas: Sone
• Modelis: Przekaźnik WIFI 16A TUYA SMART BEZPIECZNIK

The module enables remote control of electrical devices and monitoring of energy consumption through TUYA or Smart Life applications. With a built-in electricity meter and advanced security features, you can track and protect your electrical network. The relay offers a wide range of automation, work schedules and alarms, providing full control over the power supply.

It should be remembered that the relay must work in an electrical network protected by an overcurrent circuit breaker and a residual current circuit breaker.

The most important information:

• Free app
• Remote control via Tuya app and Smart Life
• Measurement of electricity
• Communication: WiFi 2,4GHz
• Security: Overload, rise and fall voltage
• Compatibility: Apps available for Android and iOS
• Automation: Work schedules, scenes
• Dimensions: 18 x 50 x 82mm, for DIN rail 35mm
• Operating temperature: -20°C to +60°C
• Maximum current: 63A (short-term),
• Maximum continuous current: 16A
• Supply voltage: AC 90V – 300V
• Measurements: Voltage, current, power, electricity consumption
• Our device has a state setting after a voltage failure
• Indicator diode
• Recording of events
• Service security - attachment lock
• Our device has settings and status memory after power loss!
• Easy pairing
• Control from anywhere on earth

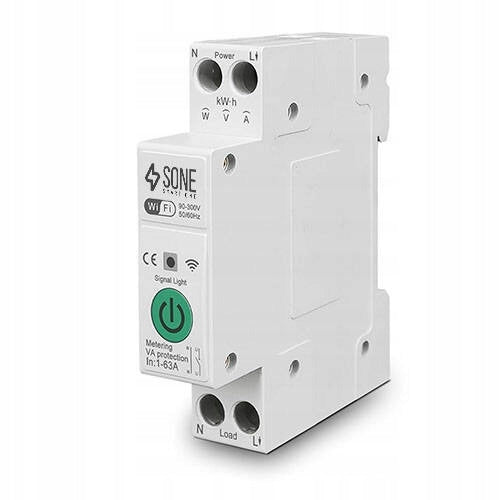

Assembly and dimensions

The relay is mounted on a standard DIN rail with a width of 35mm. Please note that the relay must operate in an electrical network protected by an overcurrent circuit breaker and a residual current circuit breaker.

Dimensions: 18 x 50 x 82mm.

Supported functions

• Remote control of electrical devices
• Measurement of electricity
• Protection against overload, voltage rise and fall
• Communication via WiFi 2,4GHz
• Compatible with TUYA and Smart Life apps
• Automation of work schedules
• Alarms and notifications
• Timer the ability to set a countdown that will turn off or on after a set time
• Scenes and automations – controlling the device on the basis of conditions, e.g. turn on after sunset
• Monitoring and recording of events
• Cyclic shutdown mode
• Our device has settings and status memory after power loss!
• Protection against accidental disconnection

Connection diagram

Our relays are the perfect solution for a wide range of applications, including operation of light bulbs, heaters or submersible pumps. Thanks to their versatility and automation capabilities, users can conveniently control the operation of these devices, ensuring optimal conditions for their operation and energy savings.

Security and Measurements

Our relay offers advanced security and the possibility of accurate measurements. It monitors current, voltage, and power while protecting against overload and voltage fluctuations. In addition, it allows for measurement of electricity consumption, which enables efficient energy management.

Safeguards against

• power increase (High power alarm) - range from 1KW~ 63KW
• overcurrent alarm1A~82A
• voltage increase (Over-voltage alarm) - range from 220V ~ 265V
• voltage drop (Under-voltage alarm)- range from 76V ~ 240V

Automatic shutdown

Our relay with each protection has a visible function "breaker tripping", which is responsible for turning off the relay after exceeding the set maximum value for the device.

Measurement

• Voltage measurement
• current measurement
• power measurement
• electricity

Schedule

• Schedule - allows you to schedule specified hours turn devices on and off.
• Sunset and Sunrise - control devices based on hours of sunrise and sunset. This allows the user to automatically schedule devices to turn on and off in harmony with the natural cycles of the day.
• Cyclic shutdown mode

Settings

• Timer (countdown) the ability to set a countdown that will turn off or on after a set time
• Relay status settings after power loss - on/off/remember state
• Backlighting of the button
• Protection against accidental disconnection

Technical data:

• Power supply voltage: AC 90V – 300V
• Relay Rated Current (Short): 63A
• Maximum continuous current: 16 A
• Frequency: 50/60Hz
• Power consumption of the device: < 0.3W
• Device dimensions: 18 x 50 x 82mm
• DIN rail mounting: 35mm
• Operating temperature: -20°C to +60°C
• Communication: WiFi 2,4GHz
