Išmanusis valdiklis Shelly 1 Mini Gen4 Zigbee Matter, nuotolinis valdymas

Trumpai apie prekę

Prekė: Išmanusis valdiklis Shelly 1 Mini Gen4 Zigbee Matter, nuotolinis valdymas. Kategorija: Automatizavimo moduliai.

• Gamintojas: Shelly
• Modelis: 1MiniGen4

Manufacturer: Shelly

Product Code: 1MiniGen4

Specification:

• Manufacturer: Shelly
• Model: 1MiniGen4

• Dimensions: 29 x 34 x 16 ±0.5 mm / 1.34 x 1.11 x 0.63 ±0.02 inch
• Weight: 19 ±1 g / 0.65 ±0.04 oz
• Maximum tightening torque of screw terminals: 0.4 Nm / 3.5 lbin
• Cable cross-section: 0.2 to 2.5 mm² / 24 to 14 AWG (solid, multi-wire, bushings)
• Cable isolation length: 6 to 7 mm / 0.24 to 0.28 inch
• Assembly: Wall box
• Housing material: Plastic
• Housing color: Blue
• Connection Color: Grey

• Working temperature: from -20°C to 40°C / -5°F to 105°F
• Working humidity: from 30% to 70% RH
• Maximum altitude: 2000 m / 6562 ft.

• Power supply: 110 - 240 VAC
• Relay: Potential-free, NO contact, 1-pole, µ contact
• Power consumption: < 1.2 W
• External protection: Characteristics of triggering B or C, rated current max. 10 A, switch-off capacity min. 6 kA, energy limitation class 3

• Maximum switching voltage: 240 VAC / 30 VDC
• Maximum switching current: 8 A / 240 VAC, 5 A / 30 VDC
• Maximum output power: 2000 W / 240 VAC, 150 W / 30 VDC
• Protection against surges: None
• Current protection: None
• Protection against power overruns: None

• Internal temperature sensor: Yes

• Protocol: 802.11 b/g/n/ax
• RF band: 2412 - 2472 MHz
• RF power: < 20 dBm
• Range: Up to 30 m inside / 50 m outside (depending on local conditions)

• Protocol: 5.0
• RF band: 2402 - 2480 MHz
• RF power: < 4 dBm
• Range: Up to 10 m inside / 30 m outside (depending on local conditions)

• Protocol: 802.15.4
• RF band: 2400 to 2483.5 MHz
• RF power: < 20 dBm
• Range: Up to 100 m inside / 300 m outside (depending on local conditions)

• CPU: ESP-Shelly-C68F
• Flash memory: 8 MB

• Schedules: 20
• WebhookS (URL actions): 20 with 5 URLs per webhook
• Scripts: Yes
• MQTT: Yes

Driver Shelly 1 Mini Gen4 Zigbee/Matter

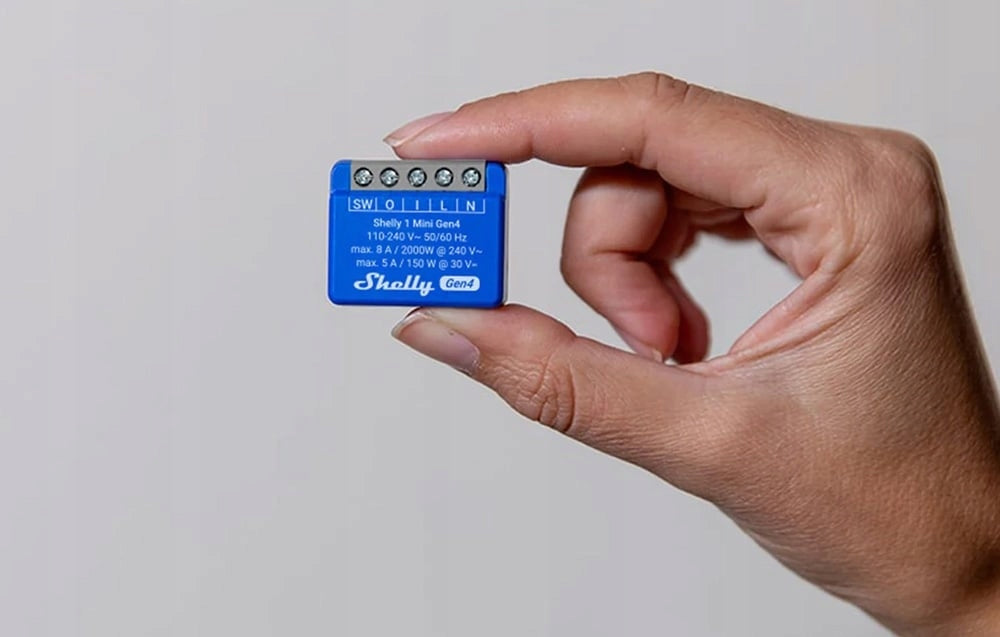

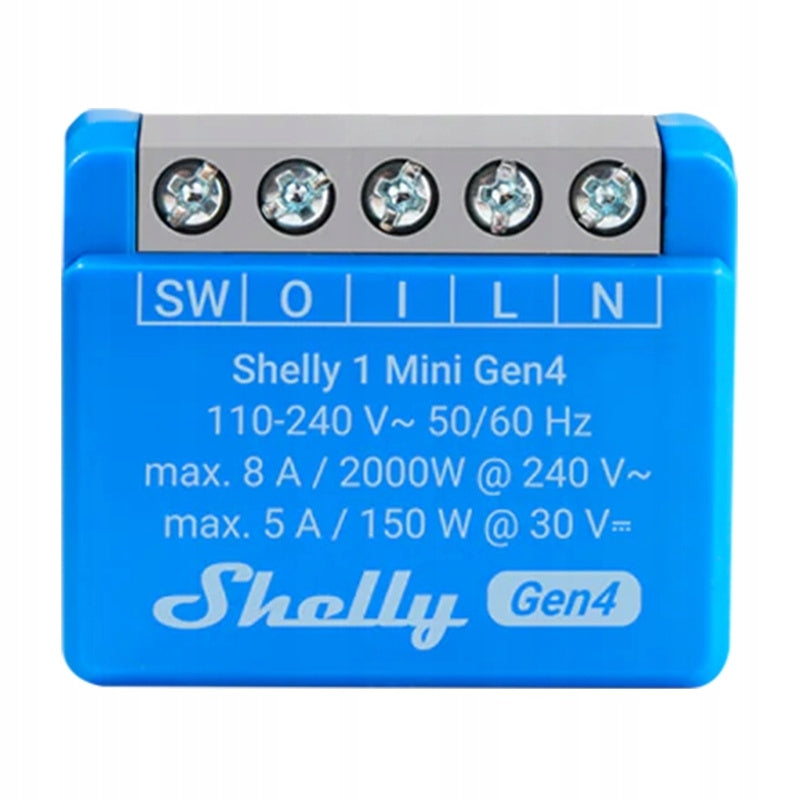

Shelly 1 Mini Gen4 is an extensive relay controller that, despite its small size (29 x 34 x 16 mm), offers support for many communication standards, including Wi-Fi, Zigbee, Bluetooth and Matter. It can be mounted in installation boxes, behind outlets and in places where installation space is limited. Thanks to potential-free contacts, the device can be used in applications that require galvanic separation of circuits, e.g. to control the gate, relay, bell or automation system regardless of their operating voltage. It also supports schedules, scenes, scripts and integrates with home automation systems such as Google Home, Alexa, and Samsung SmartThings.

Broad connectivity and Matter protocol compatibility

The Shelly 1 Mini Gen4 controller offers Wi-Fi (802.11 b/g/n), Zigbee (802.15.4) and Bluetooth 5.0 communication. The device also acts as a BLE gateway and Wi-Fi and Zigbee signal amplifier for other IoT devices. With its compliance with the protocol, Matter can be integrated into any ecosystem that supports this standard, enhancing its versatility and making it easy to set up in a variety of home environments.

Potential-free contacts and operation with different voltages

The advantage of Shelly 1 Mini Gen4 is the ability to control both low voltage (30 VDC) and mains (up to 240 VAC) powered devices. Thanks to the presence of potential-free contact, it can also be used in situations requiring an isolated relay, e.g. to control gates, bells or lighting.

Advanced Schedule and Scene Features

The Shelly 1 Mini Gen model allows you to set up to 20 schedules, thanks to which you can schedule automatic switching on or off of equipment at specific times on selected days of the week. In addition, it supports the creation of scenes, i.e. sets of actions run simultaneously or sequentially in response to an event, e.g. Enabling several devices when motion is detected. Schedules and scenes are configured using the Shelly Smart Control app, available free of charge for mobile devices and computers.

Integrations and full local or remote control

The device can be integrated not only with the systems of major voice assistant manufacturers, but also with local systems via HTTP/HTTPS, MQTT, WebHooki or KNX net/IP APIs. Shelly 1 Mini Gen4 works both on-premises (without cloud access) and over the Internet, allowing full control regardless of where the user is located. The built-in web interface allows direct configuration from the browser.

High installation flexibility

The controller housing is made of plastic and allows installation in installation boxes. Despite its compact dimensions, the device houses an advanced ESP-Shelly-C68F microcontroller with 8 MB of flash memory, allowing you to handle scripts and functions in real time.

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With VAT invoice
Parametry	Kind	control panel
Parametry	Series	1MiniGen4
Parametry	Brand	Shelly
Parametry	Manufacturer code	1MiniGen4
Parametry	EAN (GTIN)	3800238070786
Parametry	Packaging status	original
Parametry	Batteries included	no
Parametry	Certificates of conformity	CE
