Išmanusis valdymo pultas 6,2" juodas, Zigbee, Bluetooth, Tuya vartai

Trumpai apie prekę

Prekė: Išmanusis valdymo pultas 6,2" juodas, Zigbee, Bluetooth, Tuya vartai. Kategorija: Centriniai blokai.

• Gamintojas: Automat-on
• Modelis: AUT001170

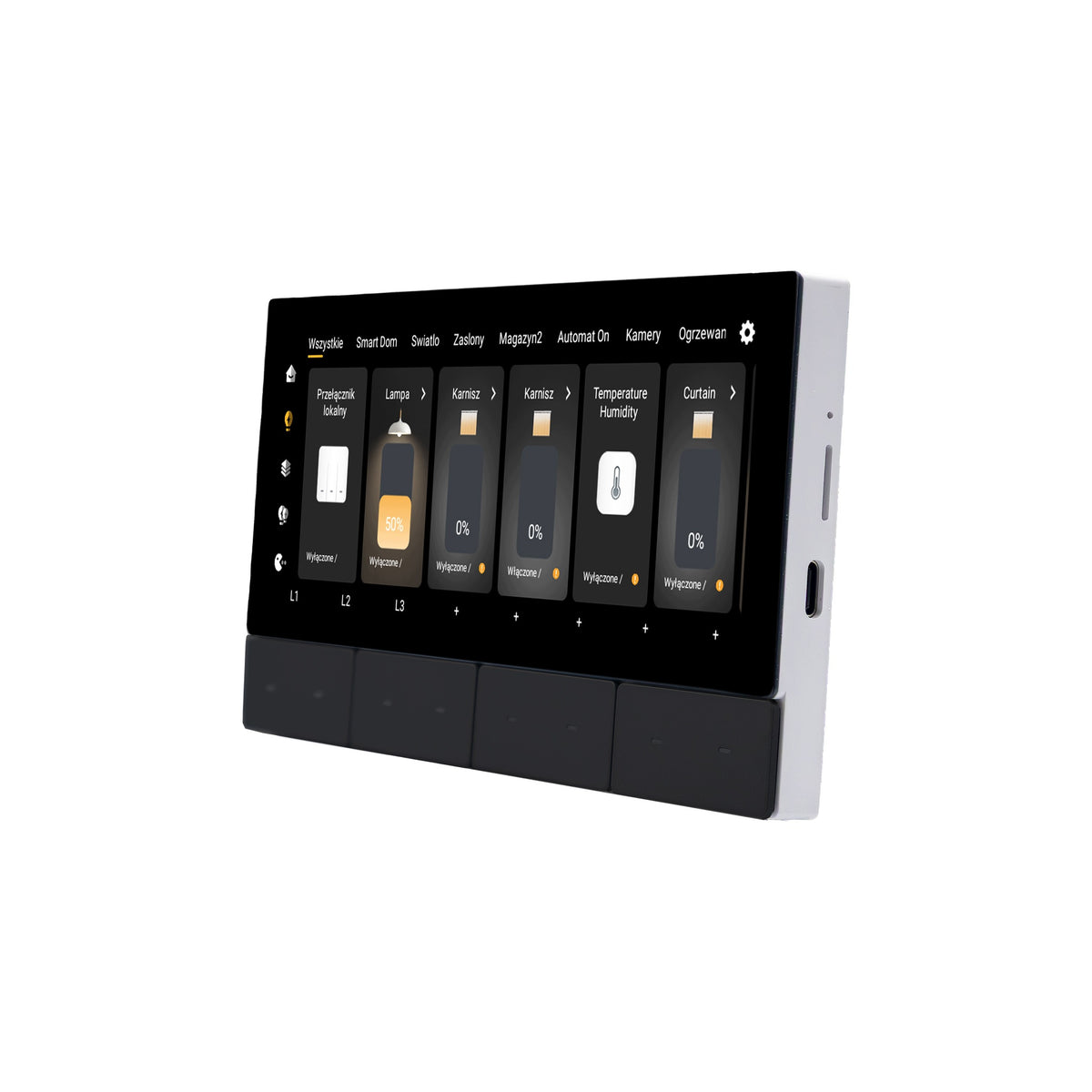

Smart Control Panel Screen 6.2" Black Zigbee Bluetooth Tuya Gateway

Intelligent Control Panel Screen 6.2 Black Remote Control Gate Zigbee WiFi Bluetooth Tuya is a convenient home automation management center in Tuya ecosystem. The device combines the function of wall panel, control panel and gate, thanks to which it allows you to operate many smart home elements from one place. Support via Wi-Fi, Zigbee and Bluetooth makes it easy to integrate with lighting, scenes, sensors and other devices running in the Tuya Smart/Smart Life app.

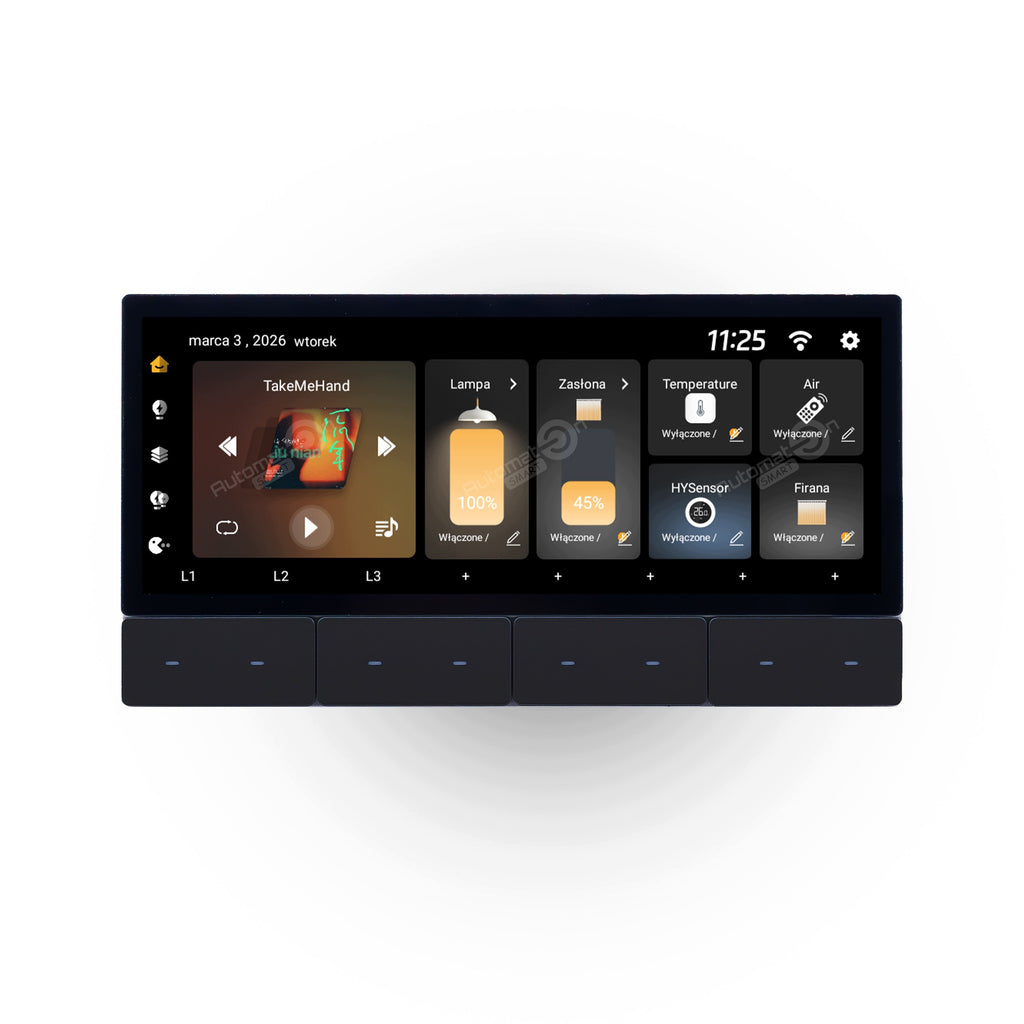

Touch screen and fast function operation

The panel is equipped with a touch screen IPS LCD with a resolution of 960 × 360, which provides clear and quick access to the most important functions. An additional advantage is the 8 configurable physical buttons, thanks to which you can conveniently run the most frequently used scenes, lighting control or other assigned functions without having to reach for your phone.

Technical parameters

• Processor: ARM Quad-Core Cortex-A53
• Display: IPS LCD 6.2
• Screen resolution: 960 × 360 px
• Color: Black
• RAM: 2 GB
• ROM: 8 GB
• Connectivity: Wi-Fi, Zigbee, Bluetooth
• Built-in ZigBee gate - no need for additional control panel
• Lighting control: 3 circuits L1/L2/L3
• Local control: 8 configurable physical buttons
• Additional control: built-in IR remote control
• Power supply: AC 100 – 240 V
• System: Android 11
• Certificates: CE, RoHS

Lighting control in 3 zones

The device allows you to control three independent lighting circuits L1/L2/L3, which allows you to conveniently divide the light into zones and better match the operation of the installation to the daily use of the room. It is a practical solution for the living room, hallway, bedroom, office or modern interiors where quick and convenient service counts.

Multimedia features and additional capabilities

The panel also offers multimedia functions and supports music playback from various sources, such as Bluetooth, Wi-Fi, microSD card, USB 2.0 and local storage. Built-in Android also allows you to stream music of applications such as e.g. Spotify and timer functions, which further expands the possibilities of using the device in everyday use. It also has RS485, a communication interface used in automation and installation integrations, which increases the potential for system expansion.

Smart home in one app

Intelligent control panel Screen 6.2 works with free applications Tuya or SmartLife which are also used to control the most important devices in Smart Home applications, m.in. sockets, lighting, monitoring, air conditioning, heating or irrigation of gardens. This allows you to control your smart home using a single application.

Expanded integration capabilities

A big advantage of the panel is also built-in IR support, thanks to which you can also control selected infrared devices, such as air conditioning, fan or TV. In the background, it is also worth mentioning the presence of RS485, a wired communication interface used in automation and installation integrations.

DOWNLOADS:

48VDC internal two-phase power supply connection diagram

48VDC external three-circuit power supply connection diagram
