Išmanusis WiFi jungiklis SONOFF MINIR4, 4 vnt., suderinamas su eWeLink, Alexa, Google

Trumpai apie prekę

Prekė: Išmanusis WiFi jungiklis SONOFF MINIR4, 4 vnt., suderinamas su eWeLink, Alexa, Google. Kategorija: Automatizavimo moduliai.

• Gamintojas: Sonoff
• Modelis: MINIR4

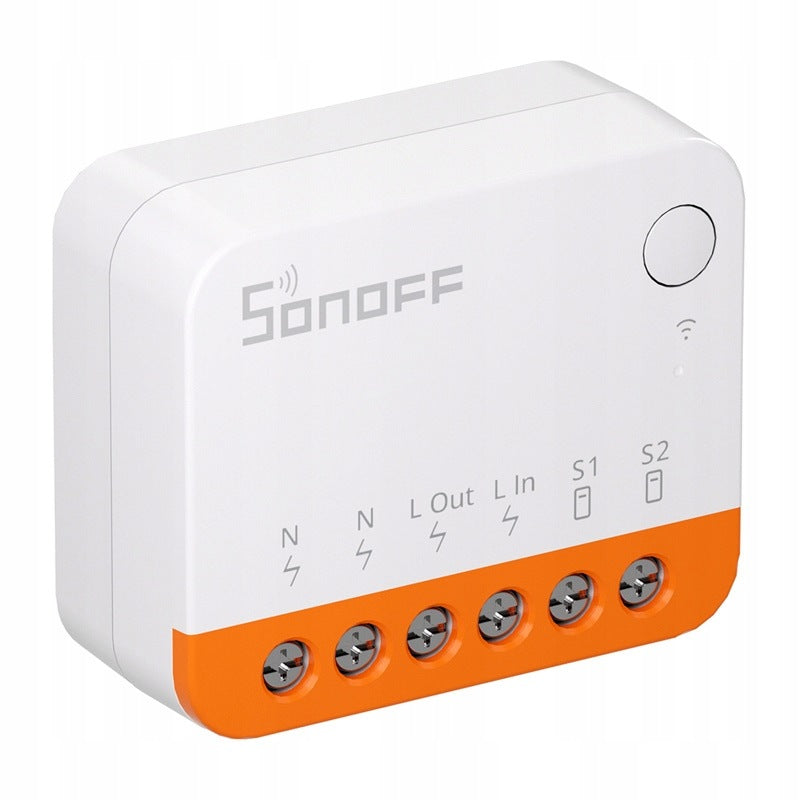

The SONOFF MINIR4 is a compact Wi-Fi switch that allows you to turn traditional electrical installations into a smart home component. The device allows you to automate lighting and other electrical devices, providing convenient control from the application and voice assistants. With dimensions of only 39,5 × 33 × 16,8 mm, the module easily fits into various installation boxes, including those with a small amount of space. It is 40% smaller than the MINIR2 and 60% smaller than the MINIR3, which also makes it easier to install in the smallest European standard cans. The housing made of PC V0 material with the highest flame retardant class increases resistance to high temperatures, and the relay used has been adapted to up to 100 000 switching cycles.

⚙ Specification:

• Manufacturer: Sonoff
• Model: MINIR4
• Input voltage: 100 – 240 V~, 50/60 Hz, 10 A max.
• Output voltage: 100 – 240 V~, 50/60 Hz, 10 A max.
• Maximum power: 2400 W
• Wi-Fi connectivity: IEEE 802.11 b/g/n 2,4 GHz
• Working temperature: From -10°C to 40°C
• Working humidity: 5 to 95% RH, non-condensing water vapour
• Housing material: PC V0
• Dimensions: 39,5 × 33 × 16,8 mm

⭐Included:

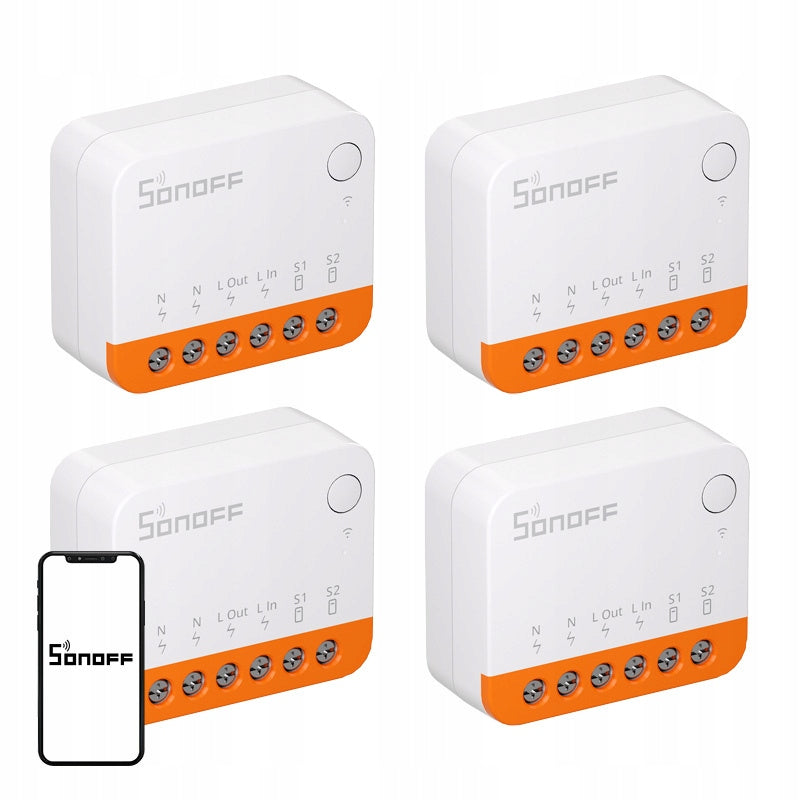

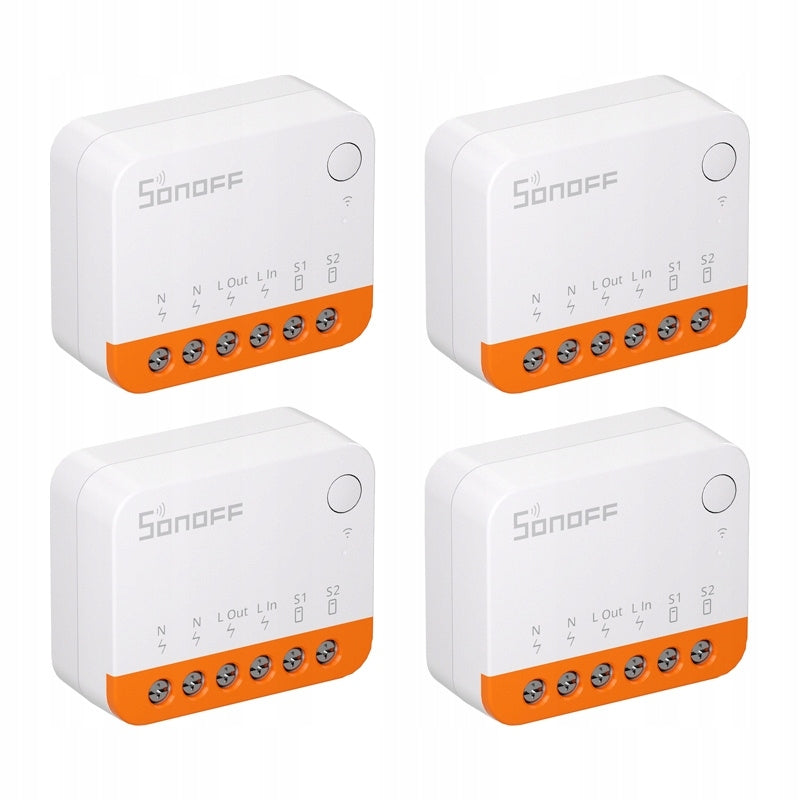

• Switch SONOFF MINIR4 x4
• User manual

⭐Efficient operation and wide compatibility⭐

The heart of the device is a dual-core ESP32 chip, ensuring fast and stable operation and efficient operation of automation functions. MINIR4 works with bell buttons, classic light switches, SPDT switches, output buttons and sensors with potential-free contact, making it easy to integrate with both new installations and existing control systems.

⭐Smart scenes and convenient controls⭐

The switch can work with motion sensors, door and window sensors, and other smart home devices to create advanced automation scenarios, such as automatically turning on lighting when motion is detected or the door is opened. Supports time schedules, countdowns and cyclical timers. When paired with SONOFF R5 or S-MATE devices, they can act as local control remote controls, communicating with MINIR4 via the eWeLink-Remote signal. Additionally, the device works with Amazon Alexa and Google Home voice assistants.

⭐Flexible configuration and protection after power failure⭐

MINIR4 is equipped with Detach Relay mode, which separates the state of the connected switch from the state of the relay, so that the use of a physical switch does not have to affect the operation of the device controlled by the module. The switch also features a delayed start function when the power returns, which helps to reduce the risk of high starting currents resulting from the simultaneous start-up of multiple receivers.

⭐Integration with Home Assistant and cloud services⭐

MINIR4 can be integrated into the Home Assistant platform, expanding the possibilities of smart home automation. In addition, cooperation with eWeLink Web and IFTTT as part of the eWeLink Advanced plan allows you to create more advanced scenarios.
