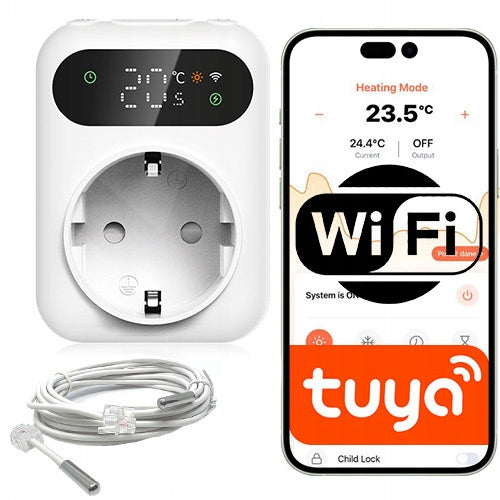

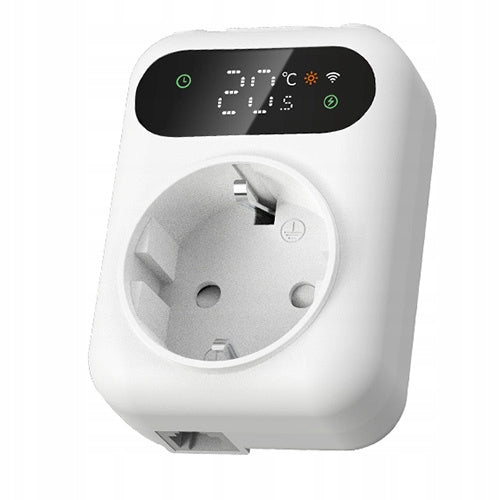

Išmanusis WiFi lizdo termostatas, 16A, su dviem jutikliais ir LED ekranu

Trumpai apie prekę

Prekė: Išmanusis WiFi lizdo termostatas, 16A, su dviem jutikliais ir LED ekranu. Kategorija: Automatizavimo moduliai.

• Gamintojas: Sone
• Modelis: SB1209

Modern and functional, the smart outlet with built-in thermostat is the perfect solution for heating and cooling systems. Thanks to the included two sensors (5 cm and 300 cm long) and high precision measurement 10K Ω ± 1%, the outlet provides unparalleled accuracy in temperature control.

You can control your device using voice commands or remotely over the internet using the Tuya/Smart life app – no matter where you are. It is an indispensable tool that combines advanced technology with the convenience of everyday use, guaranteeing comfort and energy savings.

The most important information:

• No need for additional gateways - just Wi-Fi coverage
• Wireless remote controlled outlet On/Off
• Maximum load 16A (16 Ampere)
• Maximum power of connected device 3680 W = 3,68 kW
• Setting an alarm about a drop or exceed the designated temperature
• WIFI control and manual with buttons
• Temperature measurement (sensor connection required)
• IP67 temperature sensor - waterproof
• Includes two sensors: 5cm and 300cm, which you can connect to the outlet
• Option to turn on heating or cooling to a certain temperature (Thermostat)
• LED Display
• History of temperature measurements
• History of on/off
• Dedicated free app - Tuya/Smart Life
• Remote control from anywhere in the world
• Easy pairing
• Dimensions: 78x57x37,5mm
• Timer - countdown time to turn off or on
• Indication of switching on the diode
• Schedule - setting specific on and off times
• Scenes (automations) - control against specific conditions, e.g. When the temperature sleeps below 20 degrees turn on the heating
• Child lock - a protection that blocks direct control of the socket.
• Calibration of temperature from -15°C to 15°C
• Hysteresis from 0,1 to 10°C

Outlet size and control

Our 78 x 57 x 37,5 mm smart socket provides convenient and intuitive control. You can manage it not only using the app, but also directly from the device – thanks to the built-in LED screen, which displays all the most important information in a clear way.

Construction of socket:

1. Minus
2. Undo
3. Go back to menu
4. LED screen
5. Socket
6. Temperature sensor (5cm and 300 cm sensors included)
7. Power supply
8. Status of the nest
9. Wifi status
10. Mode
11. Plus

The most popular applications:

• Control of electric heaters
• Temperature control in the aquarium
• Control of incubators
• Air conditioning management
• Temperature control in terrarium
• Control of the furnace or heat pump
• Measure outdoor temperature with IP67 wired sensor!

Hysteresis and temperature calibration

Thanks to the temperature difference setting function, you can precisely define at what temperature range the socket should activate heating or cooling devices. This prevents devices from turning on and off too often, which protects them from wear and tear, optimizes energy consumption and ensures stable maintenance of comfortable conditions.

The calibration feature allows you to adjust the temperature readings from the sensors to the real-world conditions in your environment. This way you can be sure that the device works precisely and responds to temperature changes in a way that exactly suits your needs.

Smart Outlet Features

• Heating:

The socket allows precise control of heating devices. You can set specific temperatures to be maintained by the connected device, ensuring the right temperature in the room.

• Cooling:

The cooling function allows you to control cooling devices such as air conditioners or fans. Thanks to the ability to adjust the temperature, you can effectively cool rooms at selected times, taking care of comfort in hot weather.

• Programming:

The programming function allows to schedule the operation of devices for selected hours and days of the week. You can set up to 6 time intervals during the day, specifying what temperatures are to be maintained in these okresach.To ideal solution that allows you to adjust the operation of heating or cooling systems to your schedule, e.g. warmer mornings, cooler afternoons or different settings for working days and weekends.

• Cycle Timer:

The cyclic timer allows programming of the device operation in repetitive time cycles. This is a great solution for controlling devices that need to operate at specific intervals, e.g. pumps, fans or air circulation systems.

• Outlet function:

In addition to advanced temperature control functions, the socket can be used as a standard device to power any electrical equipment. Additionally, it allows you to monitor the operation of connected devices and remotely control them using the application, ensuring maximum convenience.

Supported functions:

• Setting the screen backlight time and brightness
• setting of hysteresis
• Temperature calibration
• Cooling delay
• Protection against freezing
• Temperature overrun alarm
• Alarm with too low temperature
• Scene - setting the control dependence on the time of day
• Child Lock - child lock
• Enabling/Disabling LED backlighting
• Heating/cooling function
• Programming specific temperatures on specific days
• Cyclic on and off function

Technical specification:

• Power Supply: 100-240V
• Maximum load: 16A
• Communication: 2,4GHz Wi-Fi
• App: Tuya/Smart Life
• Resistance Class: IP20
• Temperature measurement range: -30°C ~ 110°C
• Sensor sensitivity: 10K Ω ± 1%

Included:

• Socket with built-in thermostat
• Sensor 5 cm
• Sensor 300cm
• Instruction in English

How do I add an outlet to the Tuya app?

To connect the outlet to the application, just follow a few simple steps:

1. Introduction of the outlet into pairing mode

• Hold down the MODE button (at the top of the outlet) for about 3 seconds until the display says "OF".
• Then hold down the SET button until the outlet goes into pairing mode - a flashing square will appear on the display.

2. Add a device in the Tuya app

• Open the Tuya app and click the "+" icon in the upper right corner
• Select the "add device" option and wait for the outlet to be detected
• When your device appears in the list, click its icon.

3. Wi-Fi network configuration

• Enter the password for your 2,4GHz Wi-Fi network and confirm.

4. Ready!

• Your outlet has been successfully added to the app and is ready to use.

The device works with Tuya Smart – a popular application for IoT devices (internet of things) The application works in Polish, you can add and control various smart devices of the NeO brand and other brands cooperating with Tuya. The application works with a very wide range of devices, the offer of nearly 10 000 manufacturers includes almost 310 000 devices compatible with the application from as many as 30 categories, which include, among others: lighting, monitoring, air conditioning and many others. The application is free and constantly developed with new features. Applications can be downloaded to iOS and Android devices.
