Išmanusis WiFi relė TUYA su srovės matavimu, 63A energijos skaitiklis

Trumpai apie prekę

Prekė: Išmanusis WiFi relė TUYA su srovės matavimu, 63A energijos skaitiklis. Kategorija: Automatizavimo moduliai.

• Gamintojas: Adelid
• Modelis: MPM-PL MIERNIK TUYA SMART NA SZYNĘ

Device for remote control of electrical devices and measurement of electricity consumed by connected devices. It communicates with the WiFi network thanks to which it allows you to remotely view the current power consumption using the TUYA or Smart Life application.

✅ Product Description

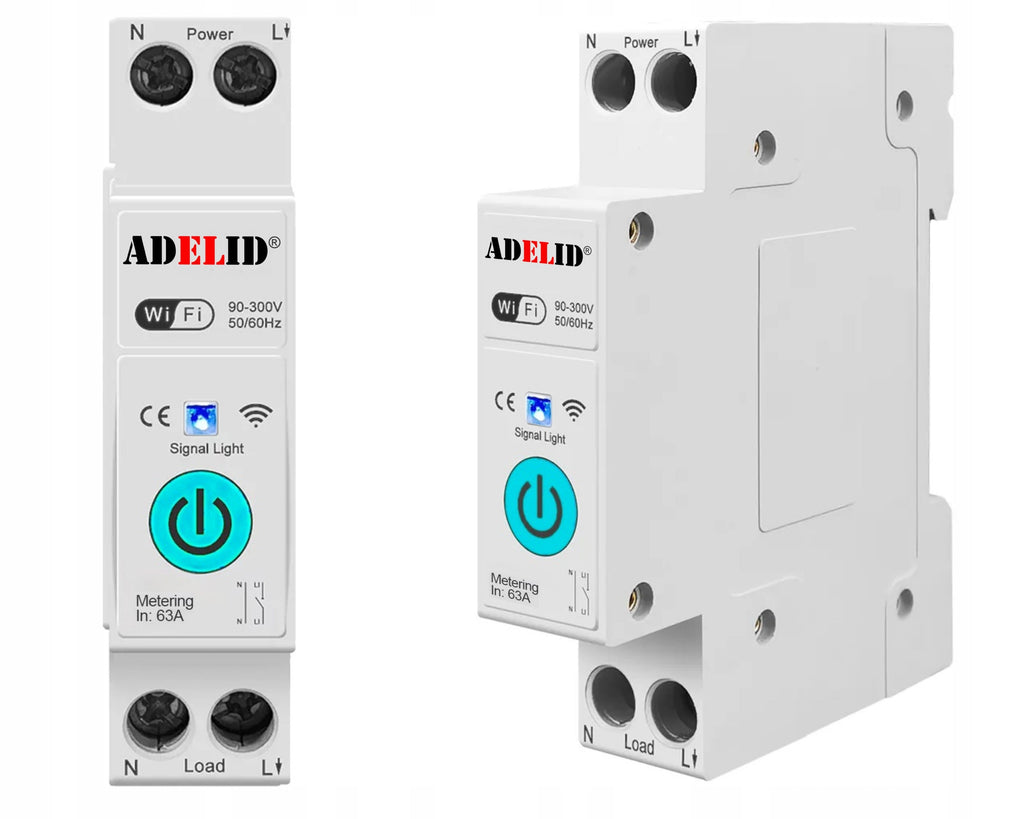

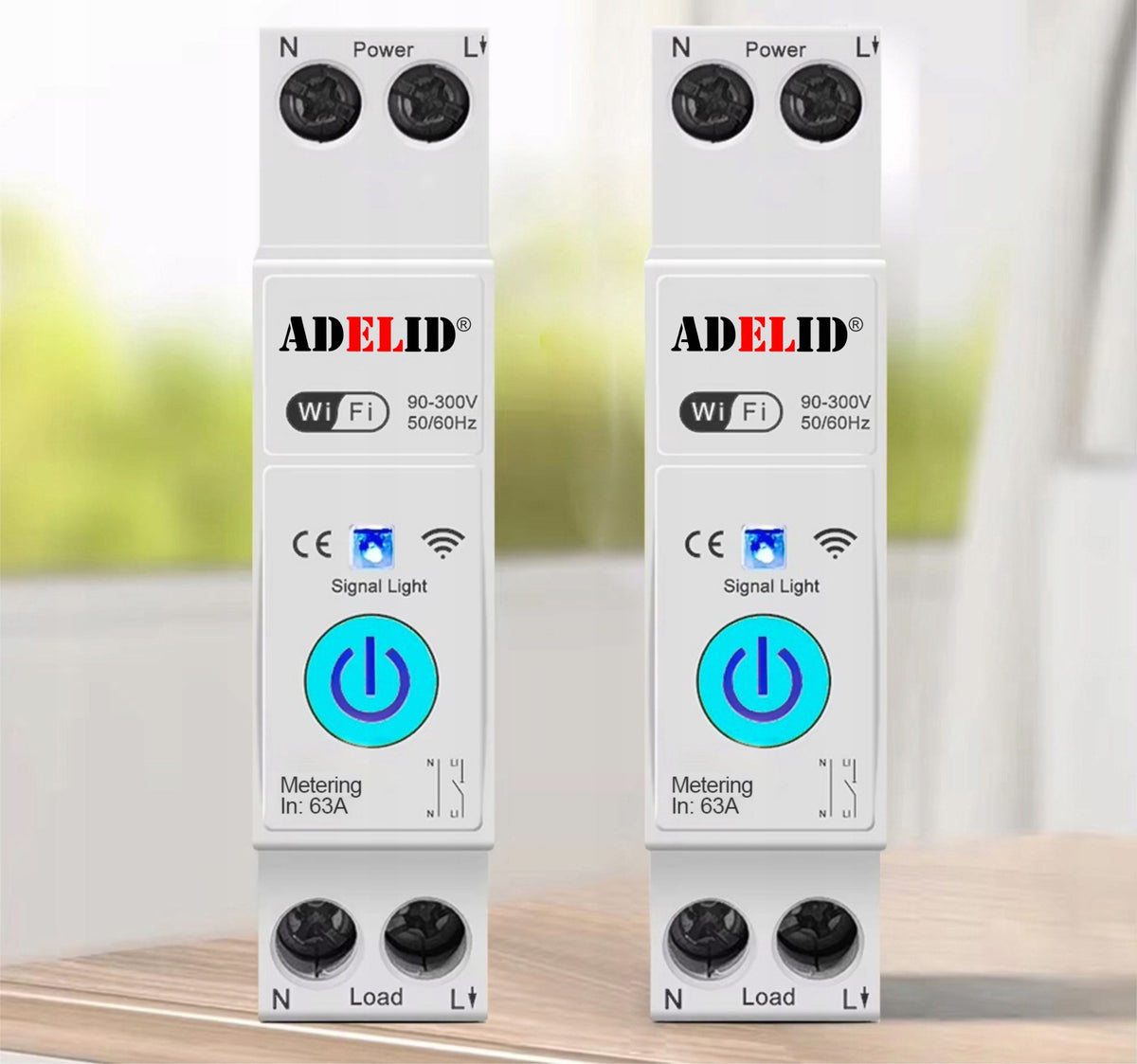

• Single-phase electricity meter - with DIN rail holder
• MPM relay - remote control of devices or entire electrical circuits
• Wireless communication - the device can be connected to any 2,4GHz WiFi network
• Remote controlled - the ability to remotely turn the device on and off and view the current power consumption using the TUYA or Smart Life application
• Manual control - the button on the device housing allows you to manually turn on and off the power supply,
• Wide compatibility - the application is available for Android and iOS devices.
• Schedule - in the application you can set a daily schedule according to which the device will work.
• Protection against energy theft - real-time preview allows you to notice the current energy consumption.

✅ SPECIFICATION

• Supply voltage: AC 90V – 300V,
• Load capacity: max 63A,
• Frequency: 50/60Hz,
• Power consumption of the device: < 0.3W,

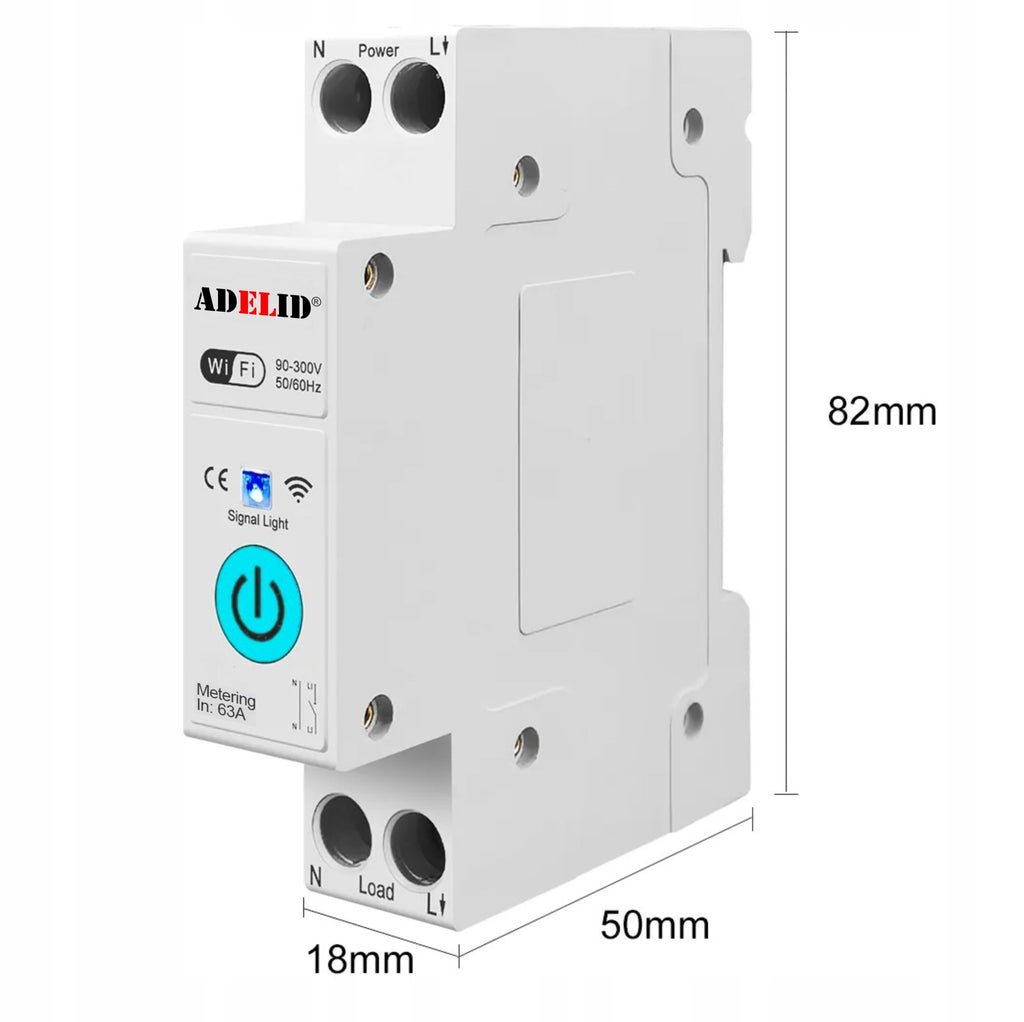

• Dimensions: 50 x 82 x 18mm,
• DIN rail: 35mm,
• Width: 1 module,
• Operating temperature: -20C - +60C.

✅ Measurements

• voltage measurement,
• current measurement,
• power measurement,
• electricity.

✅ Detailed data

• Temporary indication,
• The sum of daily consumption,
• Monthly summary,
• Annual history of measurements,
• Energy consumption charts.

✅ Schedules and Timers

Do you want to fully automate the operation of your electrical appliances and not wonder if you have turned something on or off? Set an outlet schedule! You can choose from:

1. Countdown - countdown - one-time shutdown after a set time
2. Schedule - schedule - switching on and only at specific times of selected days.
3. Circulate - work in the on/off loop. For example: turned on for 1 minute, turned off for 2 minutes - in a continuous loop, at certain times and days.
4. Sunset and Sunrise - socket control based on sunrise and sunset. Possibility to set exactly at the time of sunrise/west, setting time before east/west, setting time after entry/west

✅ Relay condition after voltage failure

The socket has the ability to set the state of the relay after a voltage failure (e.g. momentary power outage):

• relay off
• relay switched on
• condition before the loss of voltage

✅ Indicator diode

The socket allows you to change the settings of the notification diode:

• relay operation signalling (on/off)
• highlights when off (switch location indication)
• backlight always off
• backlight always on

✅ RECORD OF EVENTS

The device records each change:

• power supply - on or off
• alarms - notifications about the execution of the scene
• settings - registration of any change in the device setting
