Išorinė aktyvi DVB-T2 antena VAYOX, tinka 4K, MUX8, VHF, UHF, apsauga nuo LTE, antžeminei televizijai

Trumpai apie prekę

Prekė: Išorinė aktyvi DVB-T2 antena VAYOX, tinka 4K, MUX8, VHF, UHF, apsauga nuo LTE, antžeminei televizijai. Kategorija: Antenos.

• Gamintojas: Vayox
• Modelis: VA0023
• Spalva: black

UHF and VHF enables MUX 1, MUX 2, MUX 3, MUX 4 and MUX 8 reception

✅ Antenna in a compact housing adapted to receive the latest H.265 DVB-T2 encoding

📽 Antenna presentation and installation instructions in video form: https://youtu.be/-QKrvKcfEwY

Model: VA0023 DigiActiv

• Compact design with enhanced components
• Fully resistant to weather conditions and UV
• Effective range up to 100km (depends on transmitter strength)
• Compatible with DVB-T2 4K standard
• Suitable for all multiplexes including MUX8
• Receives VHF and UHF frequencies
• Maximum output signal level: 100dbuv
• Built-in antenna AMPLIFIER
• Antenna gain: 28dB
• Built-in LTE filter (GSM)
• Noise level < 3 dB
• Possibility of rotation of the antenna in the range of 360 degrees
• Simple installation with no tools required
• Total length only 34cm!
• Polish brand Vayox

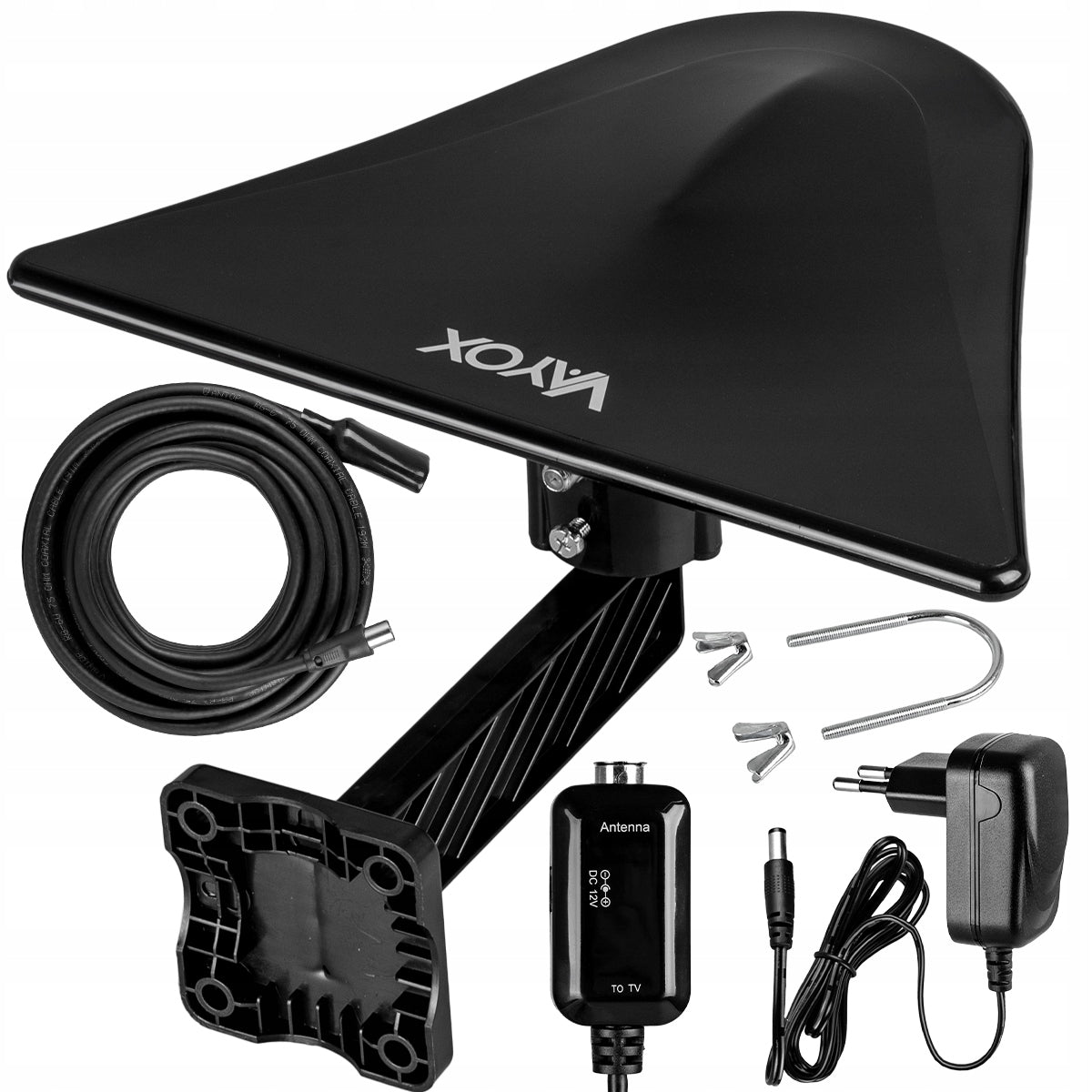

Comes with

• DigiActiv antenna
• Amplifier (built into antenna)
• 12V Antenna Power Supply
• Power adapter
• Antenna cable (f plug - antenna plug) 8m
• Mounting cybant
• Wall mount
• Antenna installation instructions

This antenna was designed by the Polish brand Vayox specifically for the Polish market, making it ideal for local conditions. It is designed for receiving digital terrestrial television signals DVB-T2, including MUX8, in the UHF and VHF frequency bands. The antenna's design ensures consistent amplification of received signals across the full frequency range. This active antenna is recommended for areas with varied reception conditions. The reception range is approximately 100 km from the transmission station, though actual reception depends on signal strength in the specific area.

• Maximum output signal level: 100 dBuV
• Antenna gain: 28dB

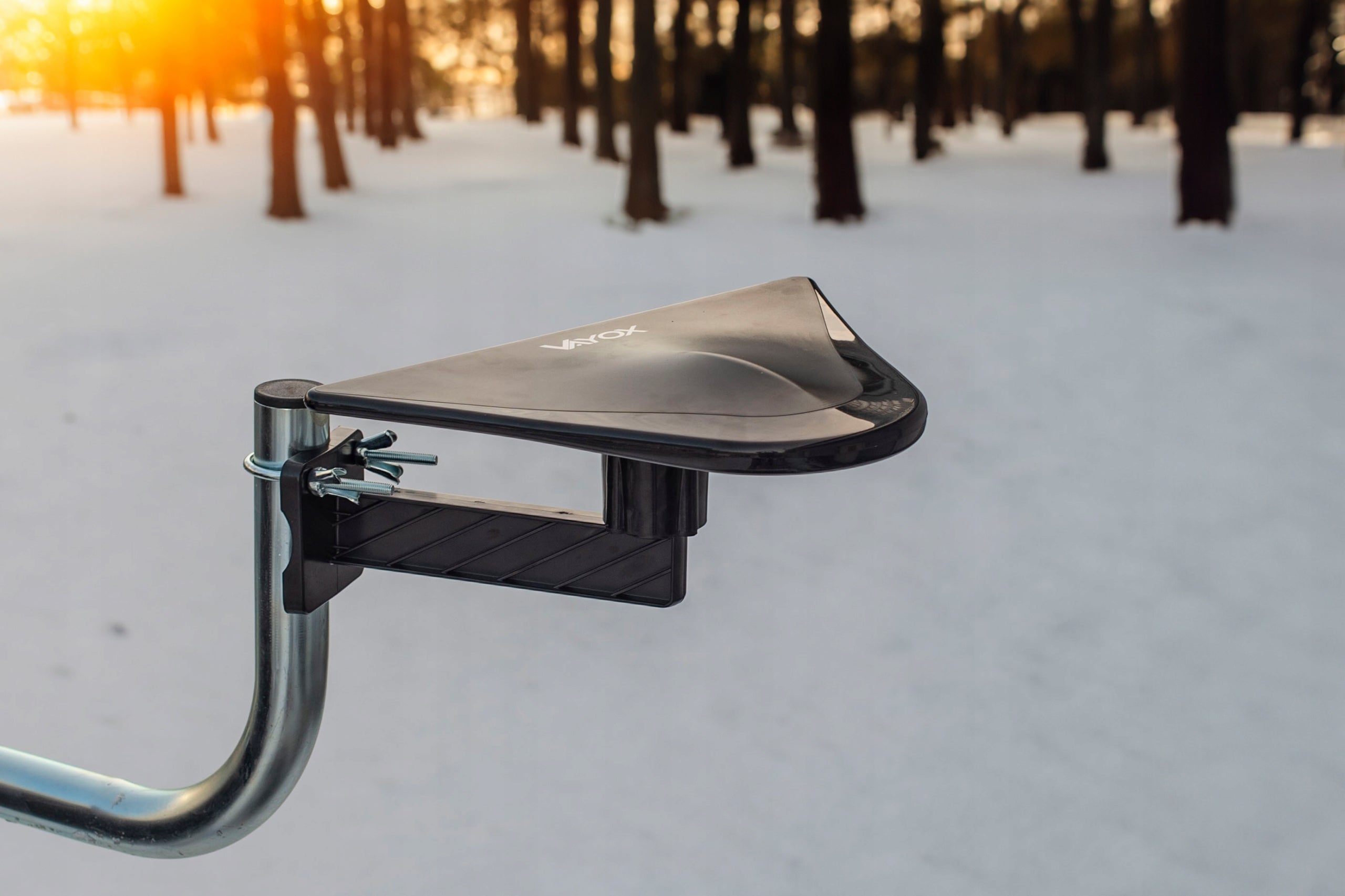

The high value of the rear/front radiation coefficient guarantees the antenna is insensitive to signals reflected from obstacles behind the antenna. The DigiActiv antenna is designed for horizontal mounting on building walls, balconies, roofs. It can also be mounted on wagons and caravans.

The anti-interference LTE filter allows you to get rid of problems with the DVB-T2 signal caused by the fact that LTE wireless internet frequencies are also frequencies used by the DVB-T2 digital TV signal. In this case, there may be an overlap of the most important frequencies and lead to a problem with the signal, and thus interference. This filter eliminates interference generated by m.in. Mobile phones and 4G networks and allows for seamless DVB-T2 signal reception without interference.

You can set the antenna according to your needs, you can rotate it in the range of 360 degrees.

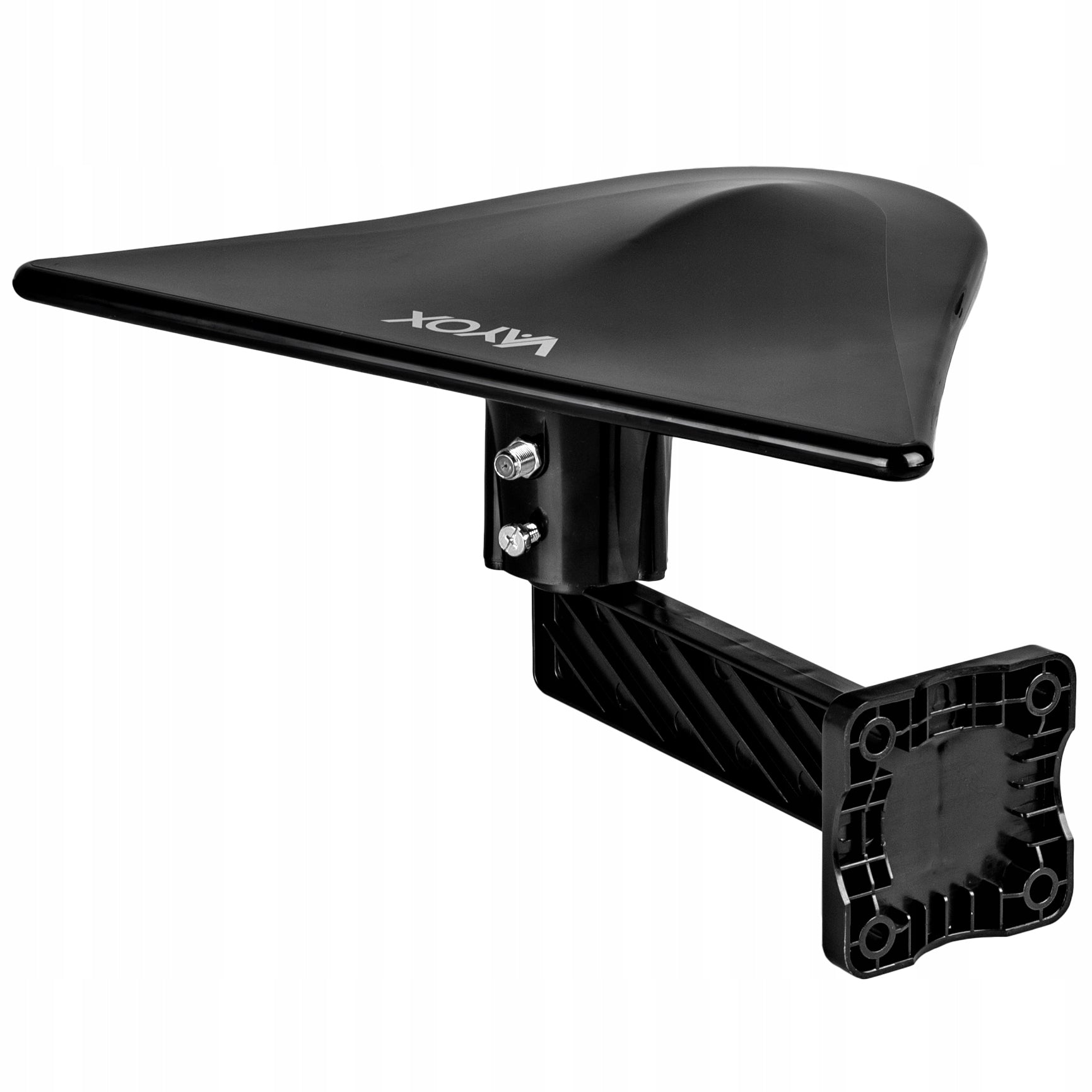

With the included mount, you can drill the antenna directly into the facade of your building, and the included cybant will allow you to screw the antenna directly into the antenna mast or balcony railing.

📽 Quick installation instructions in video form available at the link: https://youtu.be/-QKrvKcfEwY

DigiActiv has a built-in digital amplifier with a power of 28db

• The antenna has a waterproof housing made of ABS
• The antenna is coated with a radiation resistant coating UV
• The set includes a coaxial cable with a special cap for the F socket

• Integrated circuit made in SMD technology, affecting better properties at high frequencies.
• Compatible with all UHF and VHF bands. Compatible with 4K digital terrestrial television signal.

Very often we hear the question whether compact antenna is as effective as directional antennas?

• We answer, of course, that YES

Below is a link under which the video and comparison of the VA0023 antenna to the directional antenna are available:

https://www.youtube.com/watch?v=JSJ0-1NMaL4&t=978s

• DigiActiv antenna
• 12V Antenna Power Supply
• Power adapter
• 8m Antenna Cable
• Amplifier (built-in antenna)
• Mounting cybant
• Wall Mount
• Antenna installation instructions

Specifications
