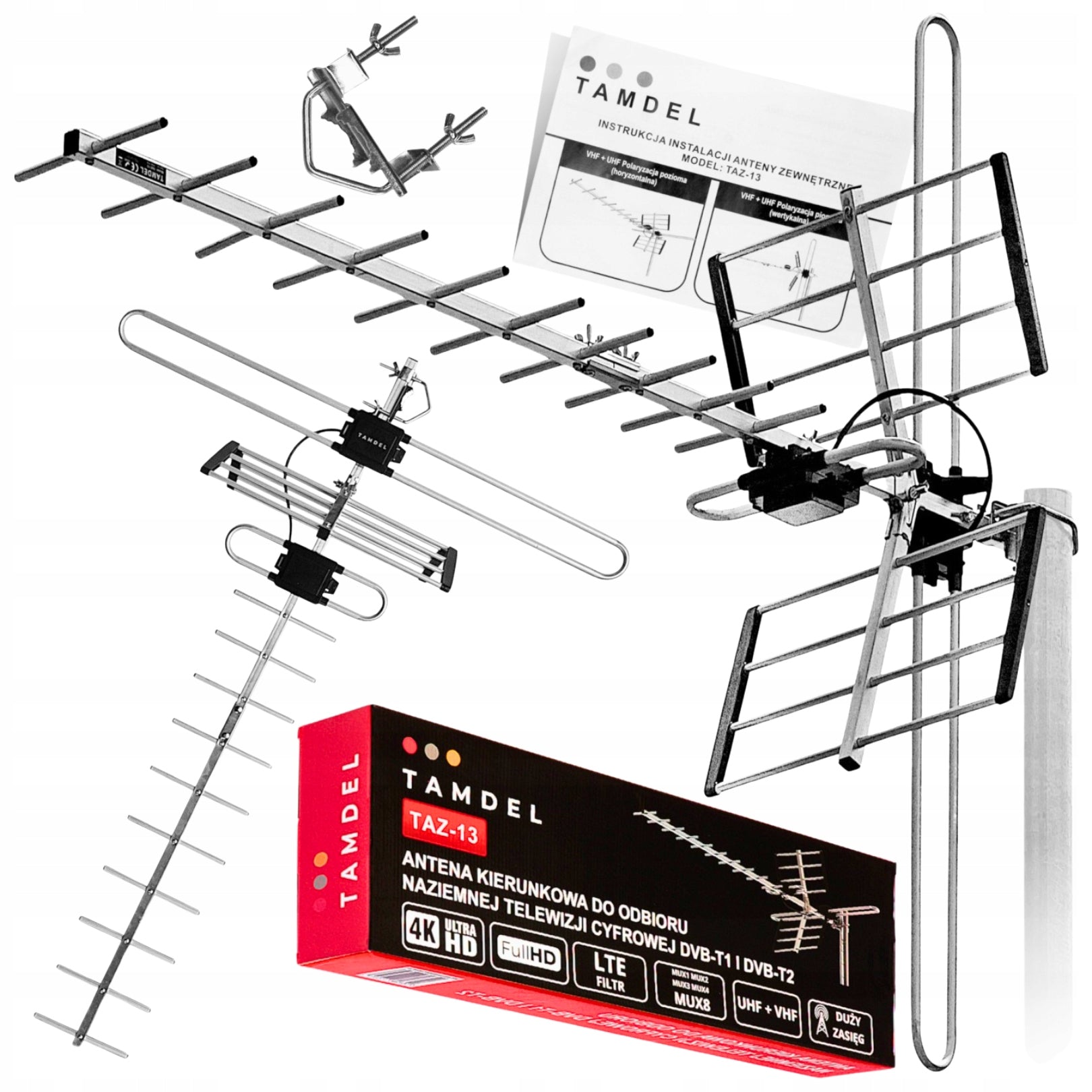

Išorinė antžeminė TV antena DVB-T2 LTE 4K COMBO

Trumpai apie prekę

Prekė: Išorinė antžeminė TV antena DVB-T2 LTE 4K COMBO. Kategorija: Antenos.

• Gamintojas: TAMDEL
• Modelis: TAZ-13
• Spalva: silver

▶ Passive directional antenna for receiving free DVB-T / DVB-T2 terrestrial television.

▶ Receives MUX-1 / MUX-2 / MUX-3 / MUX-4 and MUX-8 — VHF + UHF band.

▶ Possibility of receiving MUX-8 in horizontal and vertical polarization – depending on the setting of the VHF element.

▶ Reception range up to 80 km — in favourable terrain conditions and with the correct antenna positioning.

▶ Without amplifier and without power supply — works when the antenna cable is connected to the TV or set-top box.

▶ LTE filter reduces interference from mobile networks.

▶ Design adapted to external assembly.

📡 DVB-T2 / HEVC / 4K – compliant with the current standard

▶ Supports DVB-T / DVB-T2 with H.265 / HEVC compression.

▶ Allows you to receive Full HD and 4K channels if they are broadcast in a given location.

▶ For DVB-T2/HEVC reception, a TV or decoder supporting this standard is required.

📳 LTE filter – less signal interference

▶ Built-in LTE filter reduces interference from mobile networks, including LTE 800 MHz.

▶ Helps improve the stability of DVB-T / DVB-T2 reception in areas exposed to interference.

▶ Particularly useful near buildings, GSM masts and base stations.

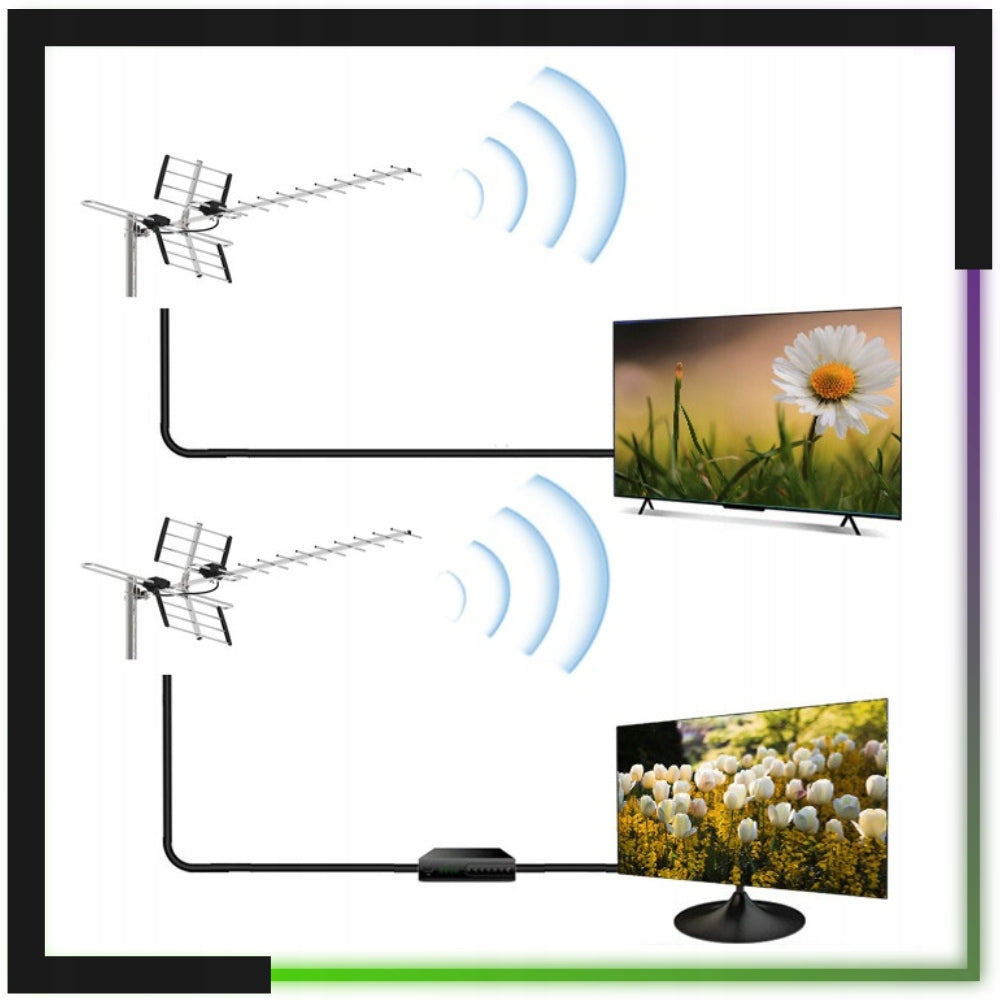

🛠 Simple installation and connection

▶ Mount the antenna outside — preferably as high as possible, e.g. on the mast, balcony or facade.

▶ Set the antenna to the nearest DVB-T / DVB-T2 transmitter.

▶ Connect the antenna cable to the TV or decoder.

▶ Enable automatic DVB-T / DVB-T2 channel search.

🔄 How to set the antenna to receive MUX-8?

In many regions, MUX-8 is broadcast in vertical polarization. In this case, set the larger VHF element in an upright position.

▶ The larger dipole is responsible for receiving MUX-8 in the VHF band.

▶ The smaller dipole is responsible for receiving MUX-1 / MUX-2 / MUX-3 / MUX-4 in the UHF band.

▶ If the MUX-8 transmitter is operating in vertical polarization, turn the larger VHF dipole 90°.

▶ No need to rotate the entire antenna – just change the setting of the VHF element.

▶ Before installation, it is worth checking the direction of the transmitter and the polarity of the MUX-8.

🌦 Weather resistant

▶ Aluminium construction – lightweight and corrosion resistant.

▶ The antenna box protects the antenna connection from moisture.

▶ Outdoor-mountable design – rain, sun and variable weather conditions.

⚙ Technical specification – TAMDEL TAZ-13

▶ Antenna type: directional, external

▶ Operating system: passive, without amplifier

▶ Compatibility: DVB-T / DVB-T2 / HEVC H.265

▶ Supported bands: VHF + UHF

▶ Multiplexes: MUX-1 / MUX-2 / MUX-3 / MUX-4 / MUX-8

▶ LTE filter: yes

▶ Installation: mast, balcony, facade

▶ Impedance: 75 Ohms

▶ Working channels: 5 to 57

▶ Frequency Range:

• VHF: 168 – 230 MHz

UHF: 470 – 790 MHz

▶ Antenna gain:

• VHF: 6 to 8 dB

• UHF: 16 to 18 dB

▶ Dimensions: according to the graphic below

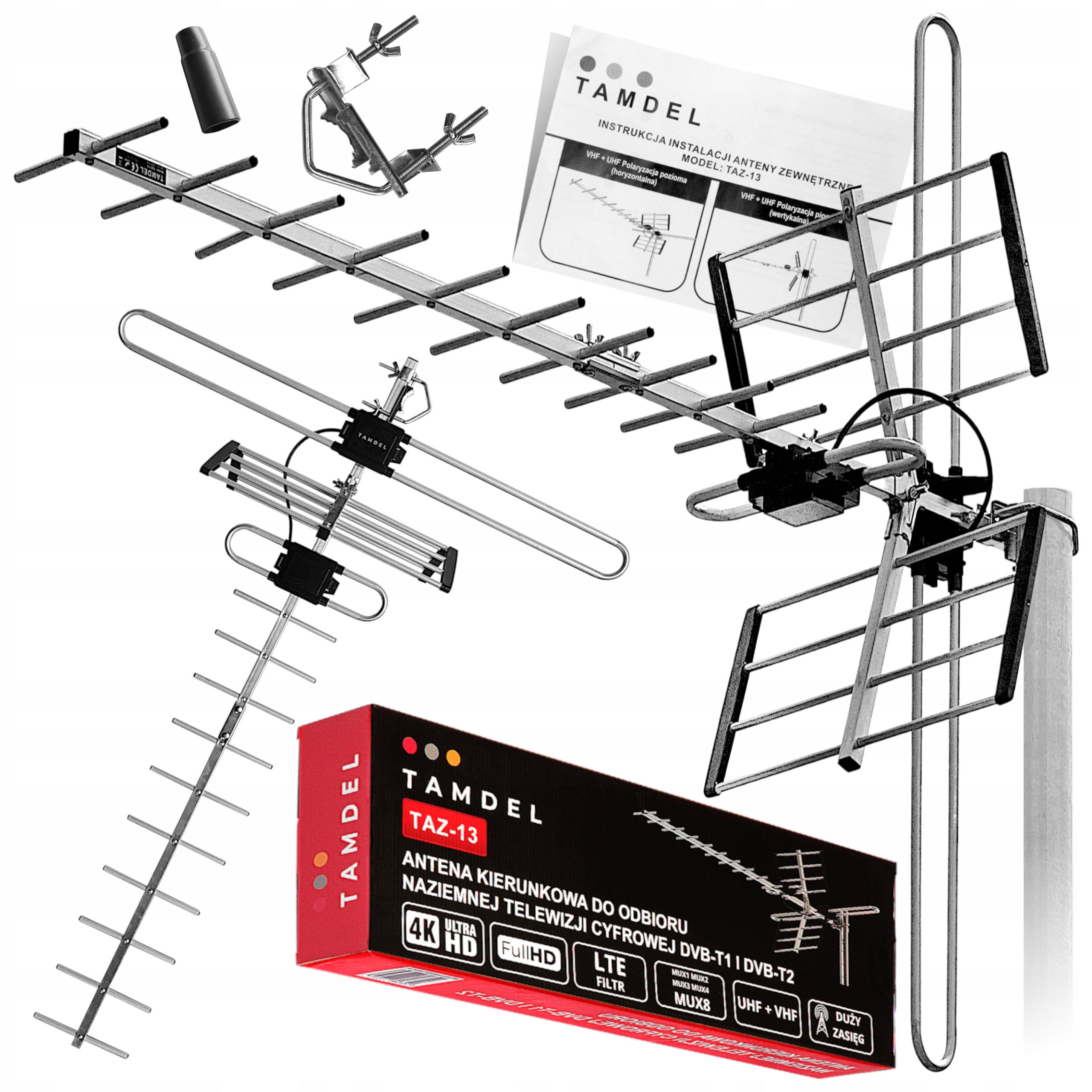

📦 Set includes

▶ Outdoor Directional Antenna TAMDEL TAZ-13

▶ Set of mounting elements — handle and screws

▶ Assembly instructions in Polish

▶ Original manufacturer packaging
