Išorinė baterija, 4x18650, 2x USB-A, QC 18W, SCP 22.5W, PD

Trumpai apie prekę

Prekė: Išorinė baterija, 4x18650, 2x USB-A, QC 18W, SCP 22.5W, PD. Kategorija: Išorinės baterijos.

• Gamintojas: no brand
• Modelis: KBR Games K354
• Spalva: multicolor

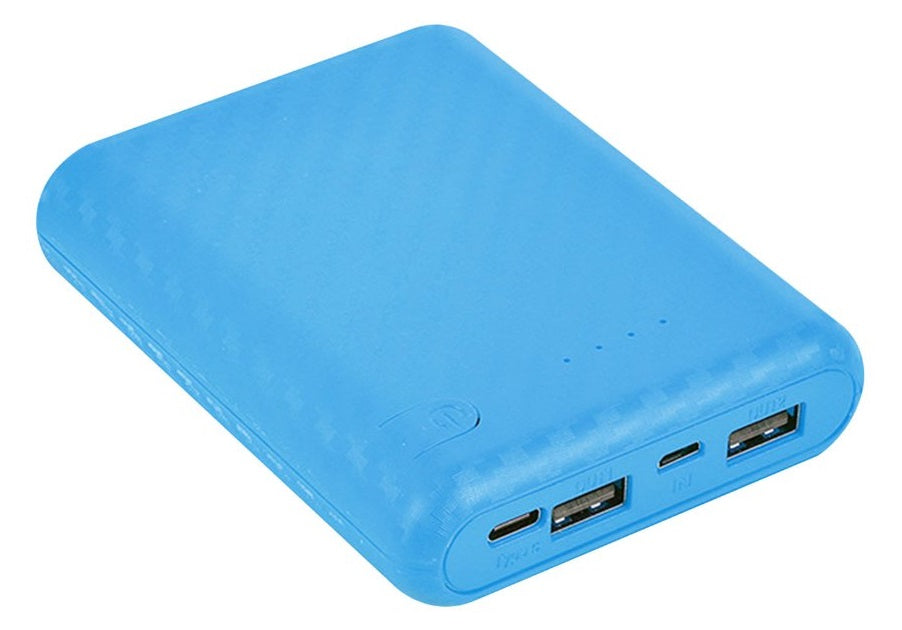

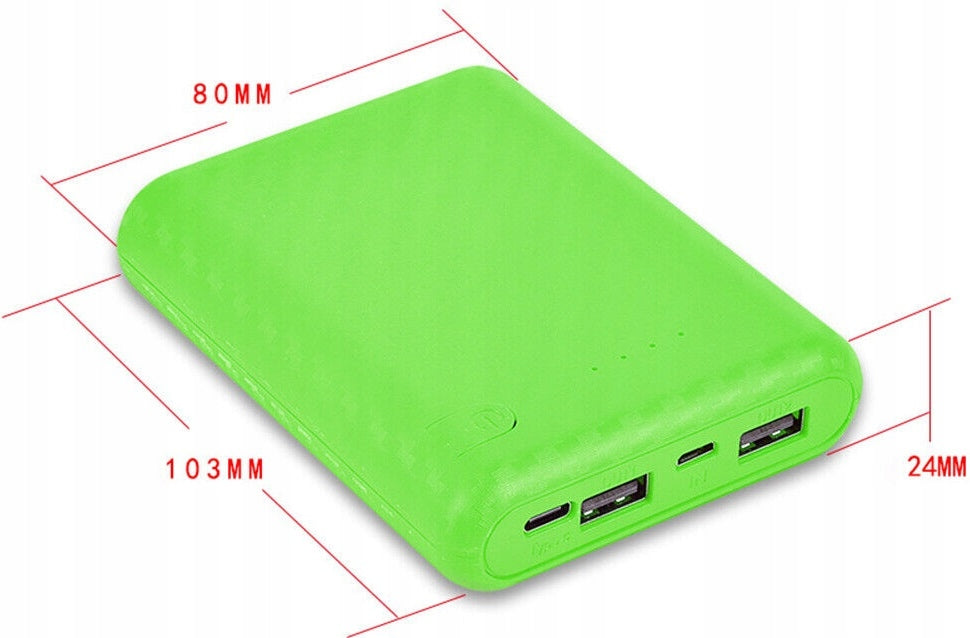

The PowerBank 4x 18650 is a practical and versatile solution for creating your own portable power source.

Assembly of cells does not require soldering a, the housing can also be used as a charger for cells.

Enclosure equipped with two USB A ports for charging devices(e.g. phone) and micro USB and USB-C socket for charging the power bank itself.

the housing is twisted - damaged or worn cells can be replaced very easily - just unscrew the housing.

The enclosure supports QC, PD and SCP technologies (explanation of concepts below), thus offering great benefits in terms of charging speed, safety and compatibility with various devices. It is a convenient solution for charging various devices in shorter time and with greater energy efficiency.

Technical data:

• Battery type: 18650 (flat, unprotected cells (flat-top) resistance < 50 mΩ, voltage 3,3 – 4,2V Min.1200 mAh).
• 2x USB-A output: (USB 1 - SCP SUPPORT 22.5W 5V/3A | USB 2 - QC SUPPORT 18W 5V/3A)
• Input: USB-C - Support PD 20W and MICROUSB - Both for charging the power bank itself.
• Colors: Blue
• Charge indicator: 4-level. Recommended batteries with stable voltage – weaker ones can cause a faster drop in the charge level.
• Connection configuration: Parallel - The capacity of cells is summarized (e.g. 4 cells 3000 mAh = 12000 mAh at 3,7 V).
• Protection against incorrect installation: The motherboard protects against damage in the event of a reverse battery installation. Correct installation is enough.
• Disassembly: Without soldering - the housing is twisted. Possibility to replace batteries (not included).
• Quantity: 1 piece;
• Packaging: Oem (Bag)

The auction concerns:

• 1x Blue Housing for QC SCP PD cells;
• 1x Screwdriver - needed to twist the housing;
• 7x mounting screws;

BRAK LINKS INCLUDED!

Comments:

1. Do not mount reverse pole batteries or damaged/old batteries to avoid short circuit.
2. In case of charging problems, replace with a battery with a higher load index.
3. If the battery heats up, replace it immediately – the risk of spontaneous combustion.

Explanation of terms:

QC (Quick Charge 18W) – Technology that enables fast charging of mobile devices. Quick Charge automatically adjusts voltage and current to ensure the fastest possible charging, while maintaining safety

PD(Power Delivery 20W - For charging CELLS IN THE HOUSING) - It allows you to transfer higher power and provides greater versatility than Quick Charge.

SCP (SuperCharge 22.5W) - is optimized to work with Huawei devices and allows you to achieve charging power up to 22,5W, which means that these devices can be charged much faster than with standard chargers (For proper operation, the charging device must be compatible with this technology).
