Išorinė DVB-T2/DVB-T aktyvi antena su 360° kryptiniu stiprintuvu, Full HD

Trumpai apie prekę

Prekė: Išorinė DVB-T2/DVB-T aktyvi antena su 360° kryptiniu stiprintuvu, Full HD. Kategorija: Antenos.

• Gamintojas: Blow
• Modelis: ATD12
• Spalva: white

❗❕ Active TV Antenna with Amplifier for receiving terrestrial digital television DVB-T and DVB-T2. Enables reception of channels in Full HD and 4K Ultra HD quality. Features a compact, moisture-resistant housing, making it suitable for indoor and outdoor use. The antenna rotates 360° for easy signal optimization. Can be mounted on a base, bracket, or magnetic base. ❕❗

✅ Key features

✔ Active antenna with signal amplifier

✔ DVB-T and DVB-T2 digital TV reception

✔ Full HD, HDTV and 4K Ultra HD support

✔ Reception of MUX1, MUX2, MUX3, MUX4 and MUX8 multiplexes

✔ Built-in LTE filter to reduce interference

✔ High-quality materials

✔ Ultrasonically welded moisture resistant housing

✔ SMT chip adapted to receive HD digital TV

✔ Possibility of rotation of the antenna in the range of 360°

✔ Can be installed inside and outside the building

✔ Three ways to mount the antenna

✔ Modern and stylish design

➡ LTE filter stable signal reception

The antenna is equipped with an LTE filter, which eliminates interference from mobile network transmitters. The SMT 4G PROTECT system effectively reduces signal interference, which allows for stable reception of digital terrestrial television even in places exposed to interference.

✔ Thanks to this, the image remains clear and the reception of TV programs is stable.

➡ Powerful amplifier better reception quality

The amplifier used is characterized by a high level of signal amplification and low noise. This allows you to receive digital TV in high-quality images, including Full HD and 4K Ultra HD.

✔ Thanks to this, the antenna allows you to comfortably watch your favorite TV programs even in places with a weaker signal.

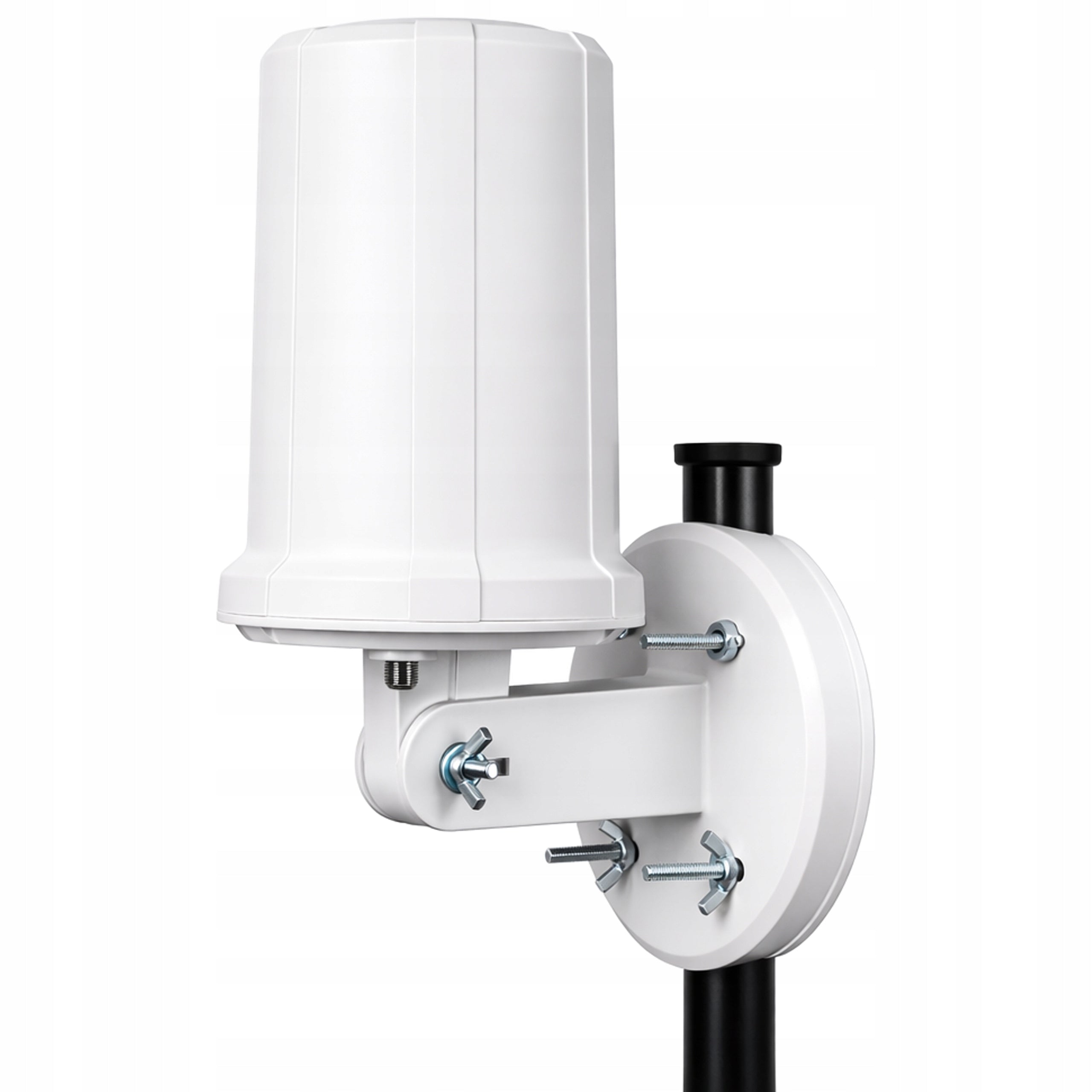

➡ Mount the antenna as you need

The antenna can be mounted in several ways, making it easy to fit into your installation location.

✅ Possible mounting methods:

• setting on a flat surface using the base
• mounting on the handle using cybants
• magnetic mounting

The modern design makes the antenna look good in rooms such as the living room, kitchen, office or room, and at the same time it can be easily mounted also outside the building.

⚙ Technical specification

• Power Supply: 5V DC/50mA
• Working Band: UHF/VHF
• Frequency Range: 170 – 860 MHz
• UHF gain: 30 dB
• VHF gain: 30 dB
• Impedance: 75 Ohms
• Antenna rotation: 360°

⚙ Dimensions:

• Height: 285 mm
• depth: 165 mm
• Width: 130 mm

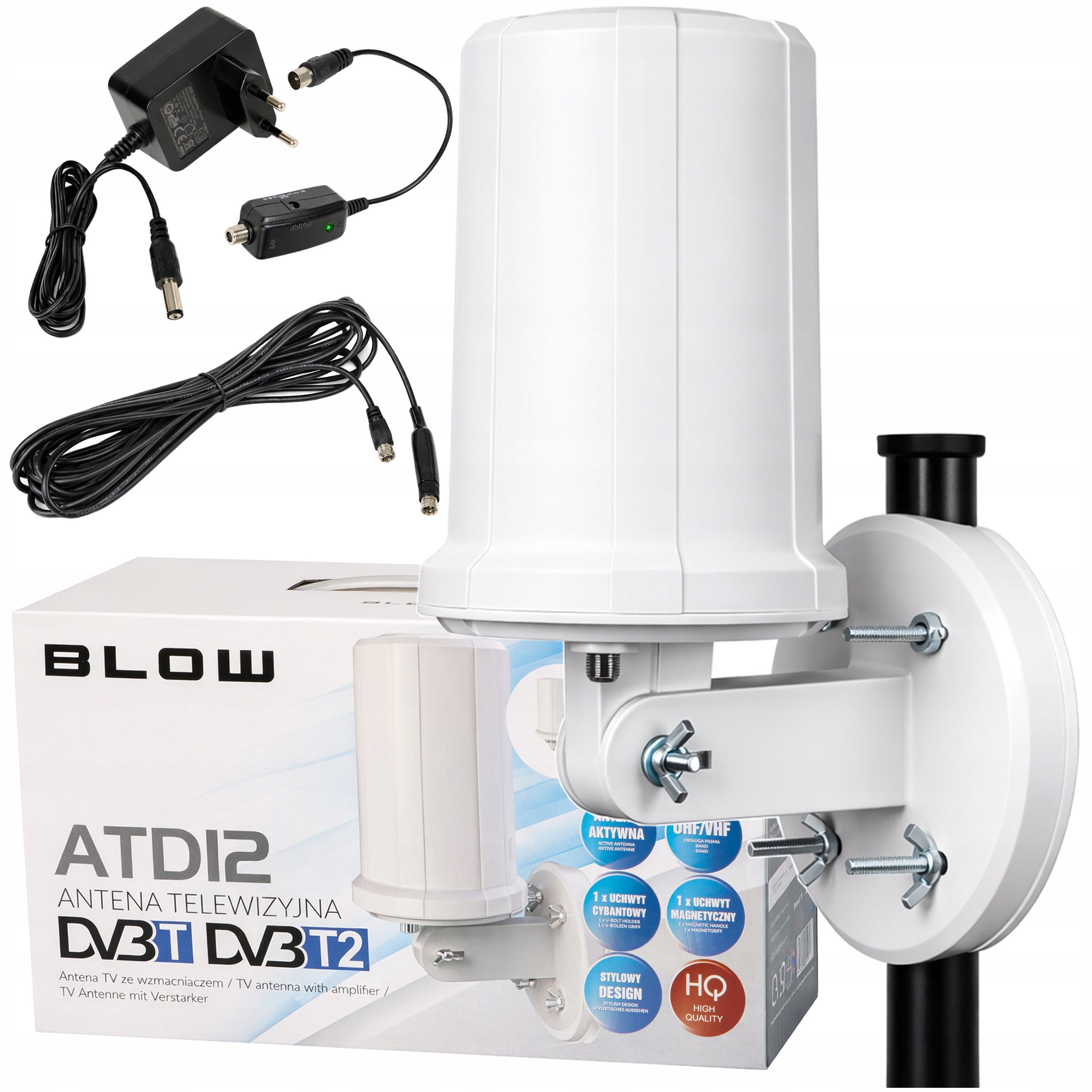

⚙ Contents of the set

• TV Antenna
• AC adapter
• Antenna cables
• Operation and assembly manual
