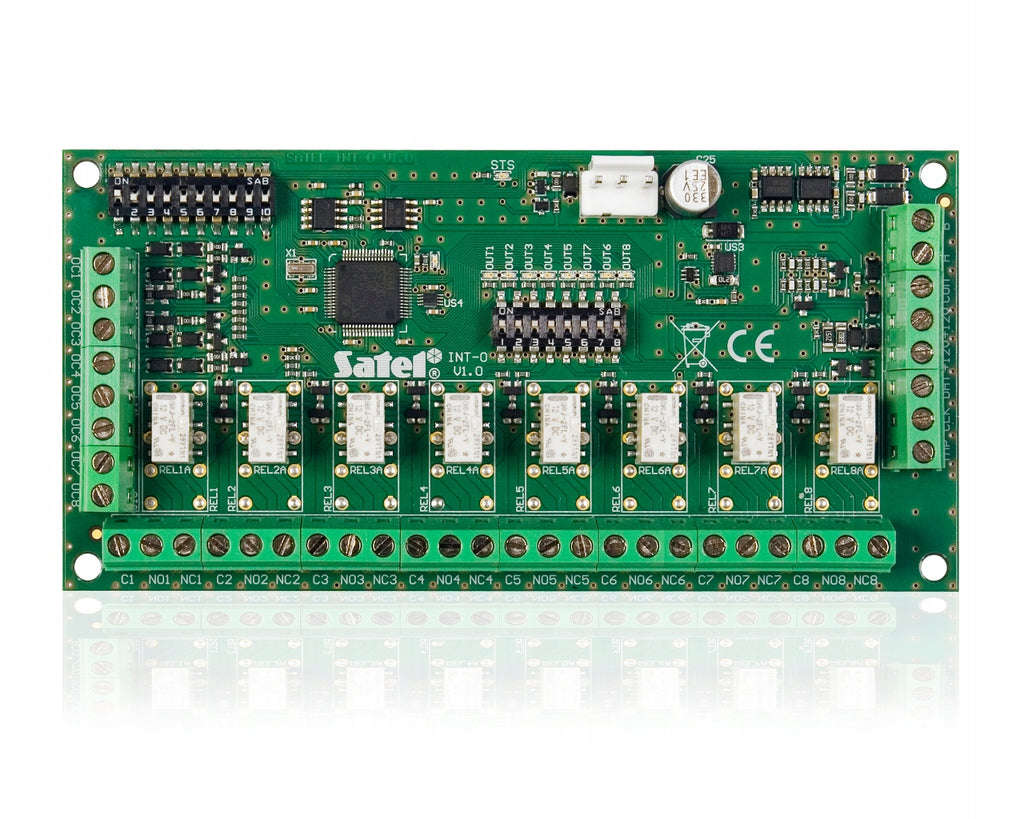

Išplėtimo modulis SATEL INT-O, 8 relės / OC išėjimai

Trumpai apie prekę

Prekė: Išplėtimo modulis SATEL INT-O, 8 relės / OC išėjimai. Kategorija: Išoriniai moduliai.

• Gamintojas: Satel
• Modelis: INT-O

Description:

The module extends the Integra alarm system by an additional 8 outputs. Other features include:

• 8 low-current OC outputs
• up to 8 relay outputs
• each OC type output connected in parallel with the relay output
• possibility of lowering power consumption by disabling the operation of selected relay outputs
• possibility of connecting to RS-485 bus (updating software via bus)

Technical specification:

• Supply voltage (±15%) 12 V DC
• Operating temperature range -10 °C...+55 °C
• Current consumption at standby 30 mA
• Maximum current consumption 160 mA
• Weight 90 g
• Maximum humidity 93±3%
• Current consumption by active 16 mA relay
• Dimensions 140 x 68 mm
• Environmental class according to EN50130-5 II
• Output load capacity type OC 50 mA / 12 V DC
• Load capacity of relay outputs (resistance load) 2 A / 24 V DC
• Output load capacity +12V 2,5 A / 12 V DC
• Protection grade according to EN 50131 (without power supply) Grade 3
• Protection grade according to EN 50131 (with APS-412 power supply) Grade 2

The set includes:

• Expander Satel INT-O

______________________________________________________

Security compliance and alerts (GPSR)

Installation and installation should be carried out by qualified personnel in the field of alarm systems and electrical engineering. Protect against moisture, flooding, condensation of water vapor and direct sunlight. Do not use in environments with an increased risk of fire or explosion. Protect communication wires from mechanical damage and cutting. Store in a dry and ventilated place away from heat sources.
