Pristatymo terminas visoje Lietuvoje: 5-7 d.d.
Pristatymo kaina nurodytu adresu: Pristatymas nemokamas
Aprašymas
Trumpai apie prekę

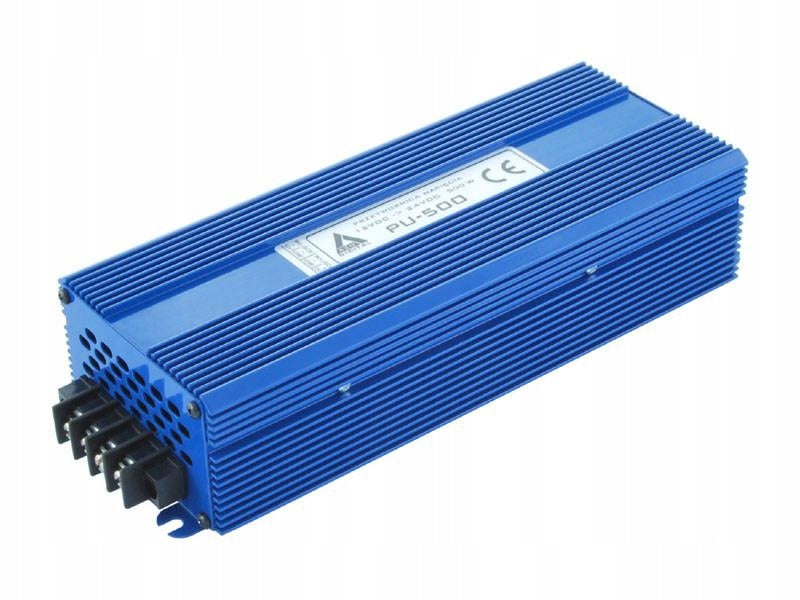

Prekė: Įtampos keitiklis 10–20 V DC / 48 V DC PU-500, 500 W. Kategorija: Įtampos keitikliai.
- Gamintojas: AZO Digital
The converter used to increase the voltage in 10VDC ÷ 20VDC installations has an electronic overload-short circuit protection. Power 500W
Basic features of the product:
- TYPE: DC/DC
- Supply Voltage: 10÷20 VDC
- Output Voltage: 48 VDC
- Continuous power: 500 W
- Galvanic Isolation: No
- Cooling: Active fan
Polish Product - 5 years warranty!
Technical data Input voltage [VDC]: 10÷20 Output voltage [VDC]: 48 Power [W]: 500 Max. current output. continuous [A]: 12 Protection - fuse 12V [A]: 2 x 30 Protection of power input [V]: NO Current consumption without load:below 60mA Output interference: below 50mV Input interference: below 50mV Operating temperature:-25°C ~ +55°C Galvanic insulation: NO Efficiency: 92% Cooling: Active Leads: M4 Connector Housing:Aluminium Degree of protection: IP21 Dimensions LxBxH [mm]: 250x95x55 Weight [kg]: 1.1 Product code: 5905279203396
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Effective power | 500 W |
| Parametry | Input voltage | 48 V |
| Parametry | Product weight with unit packaging | 1.1 kg |
| Parametry | Brand | AZO Digital |
| Parametry | EAN (GTIN) | 5905279203396 |
