Įtampos keitiklis 12V (11-16V) į 24V, 10A

Trumpai apie prekę

Prekė: Įtampos keitiklis 12V (11-16V) į 24V, 10A. Kategorija: Įtampos keitikliai.

• Gamintojas: no brand

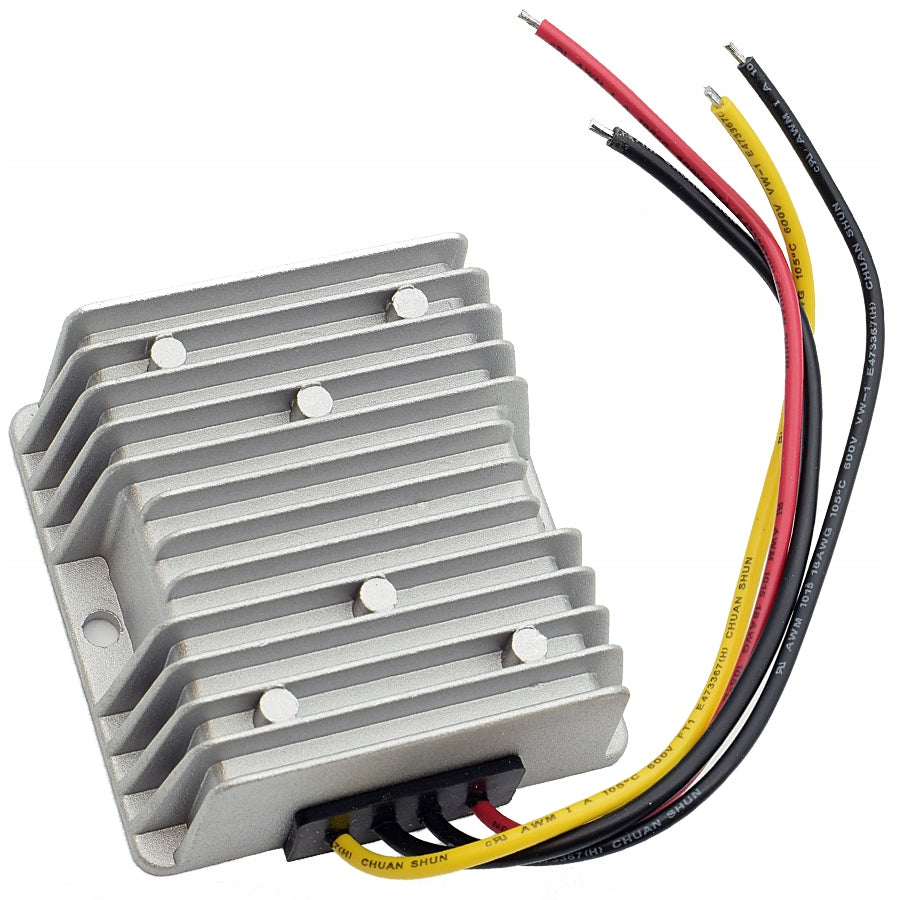

12V (11-16V) TO 24V 10A STEP UP VOLTAGE CONVERTER

MAG: PS12V-24V-10A

INPUT:

• Overvoltage protection: Automatic protection of the output circuit when exceeding the maximum input voltage (>16V).
• Rated Voltage: 12V DC
• Narrow, safe operating voltage range: from 11V to 16V DC (ideally suited to the voltage prevailing in the installation of a well-functioning passenger car, both when the engine is turned off and on).

OUTPUT:

• Voltage ripple: 400 mV p-p (standard level for efficient high-power voltage booster systems).
• Output voltage: 24V DC (stabilized, with high accuracy +/- 1,5%).
• Maximum output current: 10A (Ampers).
• Maximum load power: 240W (continuous maximum power).
• Suggested minimum load: 0,5A (12W).

TECHNICAL PARAMETERS AND CONSTRUCTION

• Converter Type: DC/DC (Direct Current/Direct Current)
• Voltage Change Type: Step-Up (Voltage Raising)
• Maximum energy efficiency: 95%
• Operating temperature: -20°C to +60°C
• Operating Frequency: 43 kHz
• Cooling: Passive (casting the housing of ribbed aluminum acts as an efficient heat sink).
• Protection class: IP68 – completely waterproof and dustproof (the system is completely flooded with epoxy resin, resistant to harsh weather conditions, moisture, mud and strong vibrations).

INTEGRATED PROTECTION SYSTEMS

• Overload and short-circuit protection of outputs: Automatic shutdown of the converter for the duration of overload or short circuit.
• Thermal protection: Limitation of the output current after exceeding the maximum operating temperature (until the system cools down).
• Output circuit protection: Advanced protection of connected receiving devices against voltage spikes.

CONNECTION INSTRUCTIONS (INTEGRATED WIRES)

The device has factory-extracted installation cables with a length of 165 mm, which ensures quick and convenient installation:

1. INPUT SECTION (Low supply voltage 12V):
2. RED cable: Plus (+) power supply (connect to + 12V installation)
3. Cable BLACK: Minus (-) power supply / Weight
4. OUTPUT SECTION (High Voltage 24V for Receivers):
5. YELLOW cable: Plus (+) output (connect to + 24V device)
6. Cable BLACK: Minus (-) output / Weight

NOTE: Black wires are internally connected on a common mass. Incorrect polarity at the input [replacement of plus with minus] can lead to permanent damage to the converter itself).

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Effective power	240 W
Parametry	Input voltage	12 V
Parametry	Brand	no brand
Parametry	EAN (GTIN)	5905527411351
