Aprašymas
Trumpai apie prekę

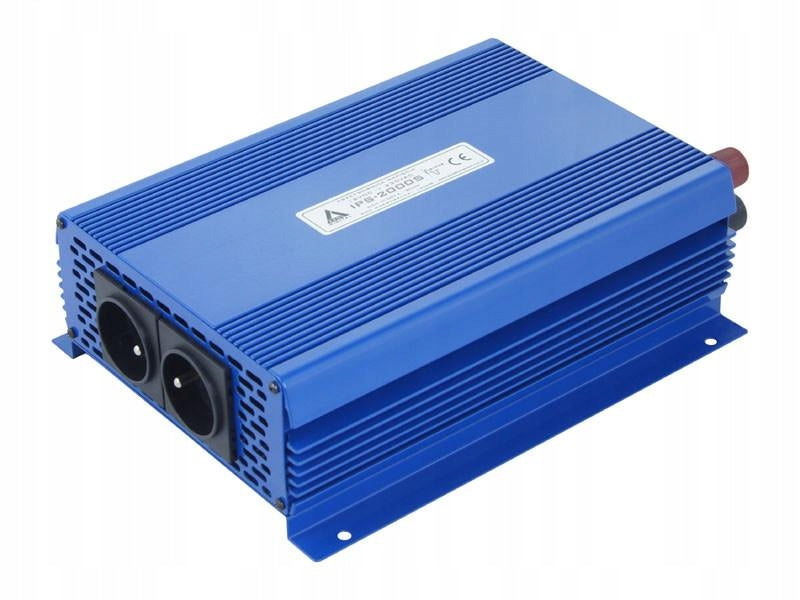

Prekė: Įtampos keitiklis 12V į 230V SINUS ECO 2000W. Kategorija: Įtampos keitikliai.
- Gamintojas: AZO Digital
Voltage converter SINUS used to power electrical devices requiring alternating voltage 230V from batteries and automotive installations with constant voltage 12V.
It can also be successfully used as an emergency power source for devices requiring continuous power supply, such as furnaces and CO pumps. In addition, it is equipped with a soft start algorithm of induction motors without the need to oversize the power.
Inverters are perfect for places where there is no possibility of direct connection to the power grid.

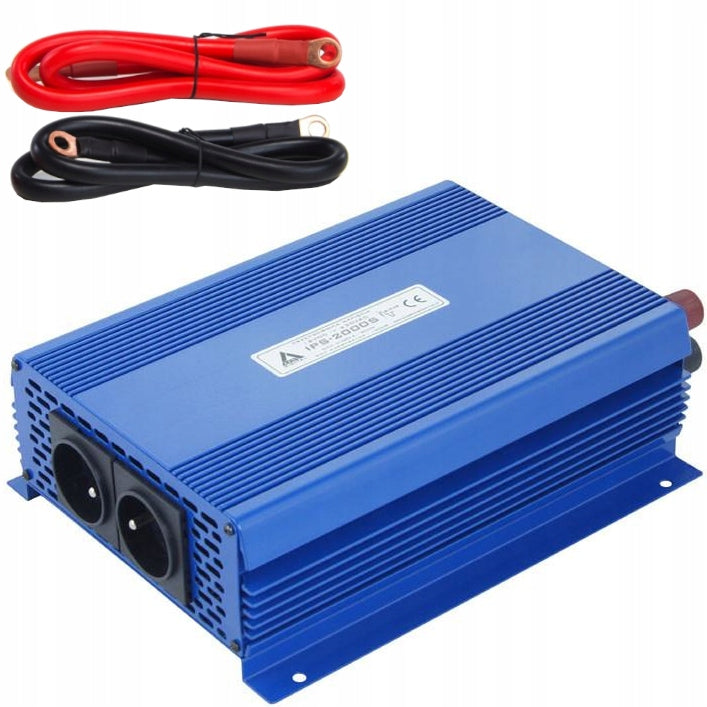

- Voltage converter
- Power cables
- User manual
The product produces a pure sinusoidal output signal, identical to that in the power grid.
With this solution, the converter is compatible with m.in. with: refrigerators, CO pumps, furnaces, household appliances and electronics, lighting, computers and many other devices.
- Continuous power: 1100 W
- Maximum power: 2000 W
- Instantaneous power ~ 30 seconds: 1300 W
- Type: DC/AC
- Supply Voltage: 11÷15 VDC
- Output Voltage: 230 VAC
- Output voltage waveform: PURE SINUS
- ECO MODE function
- Cooling: active - fan
- ECO MODE function – very low power consumption in standby mode (0.15A), automatic detection of connection of receivers with power greater than 1W
- Advanced soft start algorithm for induction motors, guaranteeing 100% start-up of motors with power corresponding to the continuous power of the converter, without the need to oversize the power
- Operating mode designed to operate refrigerators, compressors and pumps - "soft" restart when a significant load change is detected
- Separate operating mode dedicated to power electronic devices such as TVs, players, computers, printers and lighting (fluorescent lamps, LEDs, classic bulbs)
- Very high reliability and reliability
- Processor control of shape and output voltage
- Auto restart with soft start mode ideal for powering refrigerators and refrigerators
- Indication of too low and too high supply voltage and deep battery discharge state
- Intelligent smooth fan control
- High efficiency
- Low power consumption without load
The product can be used to protect and power devices such as:
- Motorhome and caravan equipment
- Office equipment (computers, monitors, printers, scanners)
- Powering chargers (phones, smartphones, laptops, etc. )
- RTV devices (TVs, tuners, speakers, projectors)
- Household appliances (refrigerators, microwaves, dishwashers, stoves, freezers)
- Power tools (drills, saws, grinders, machine tools, etc. )
- Pumps, compressors (water, heat, air conditioners)
- Incandescent, LED and fluorescent lighting
- Solar, photovoltaics
A number of protections are responsible for the safe operation of the product protecting both the connected devices and the power supply itself:
- overload protection
- thermal protection 80°C
- short-circuit protection
- overvoltage protection of power supply 15 VDC
Inverters of the SINUS type produce an alternating voltage with a sinusoidal waveform at the output, identical to that in the power grid. The converter allows you to power devices equipped with electric motors and transformers, such as power tools, pumps and small and medium power household appliances.
Typical, low-cost inverters actually produce a voltage with a rectangular waveform, often mistakenly called a "modified sine wave", which is not suitable for powering devices of an inductive or capacitive nature and can cause damage to them.
The converter was entirely manufactured and designed in Poland. In the production process, of the highest quality materials were used, and the final product was subjected to requiring quality control.
The level of execution is unrivaled in relation to products imported from China or Taiwan.
By buying at this auction you support Polish technological thought and domestic capital!
- Symbol: AZO00D1095
- Input voltage [VDC]: 11÷15 VDC
- Output voltage [VAC]: 230 VAC
- Maximum power: 2000 VA
- Instantaneous power ~ 30 seconds: 1300 VA
- Continuous power: 1100 VA
- Output Voltage Mileage: Sinusoidal
- Soft start induction motors: YES
- Overload Protection: YES
- Short-circuit protection: YES
- Thermal protection: 80°C
- Tooth. Overvoltage power supply: 15 VDC
- ECO MODE no-load current consumption: Standby current consumption 0.15A automatic detection of connection of receivers with power greater than 1W.
- Battery discharge warning: YES
- Operating temperature: -25°C ~ +55°C
- Efficiency: >92%
- Cooling: Active
- Power Connector: M8 screw connector
- Output socket 230V: 2 x E (with pin)
- Housing: Aluminium
- Degree of protection (IP): IP21
- Dimensions LxWxH [mm]: 340x210x85
- Weight [kg]: 3.40 kg
- Power supply "+" (12V or 24V)
- Power supply "-" (12V or 24V)

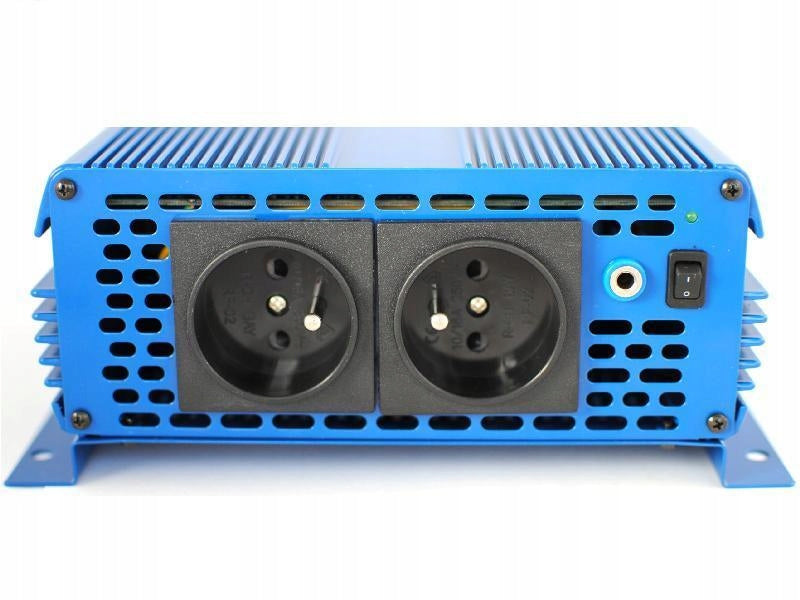

- Fans
- Main switch
- 25.5 cm
- Socket 230V
- Indicator diode
- Ventilation holes
AZO Digital is a Polish technology company engaged in the design, manufacture and implementation of innovative products in the field of electronics and energy.
The company is present in the fields of rail, road and sea transport and for several years has been creating and developing technologies for use in the photovoltaic industry, as well as outdoor and industrial lighting.
All devices offered by AZO Digital are characterized by the best, proprietary technical solutions. Experienced engineering staff of AZO Digital , applying quality standards resulting from the ISO9001:2008 certification, performs device designs corresponding to current market needs.
All manufactured products have the necessary certificates and safety certificates.
Specifications
| Group | Name | Value |
|---|---|---|
| Parametry | Condition | new |
| Parametry | Invoice | With a VAT invoice |
| Parametry | Effective power | 2000 W |
| Parametry | Input voltage | 12 V |
| Parametry | Product weight with unit packaging | 3.4 kg |
| Parametry | Brand | AZO Digital |
| Parametry | EAN (GTIN) | 5905279203013 |
| Parametry | Packaging status | original |
