Įtampos keitiklis 24V/230V 300/600W G17011 Sinus

Trumpai apie prekę

Prekė: Įtampos keitiklis 24V/230V 300/600W G17011 Sinus. Kategorija: Įtampos keitikliai.

• Gamintojas: no brand

CHARACTERISTIC:

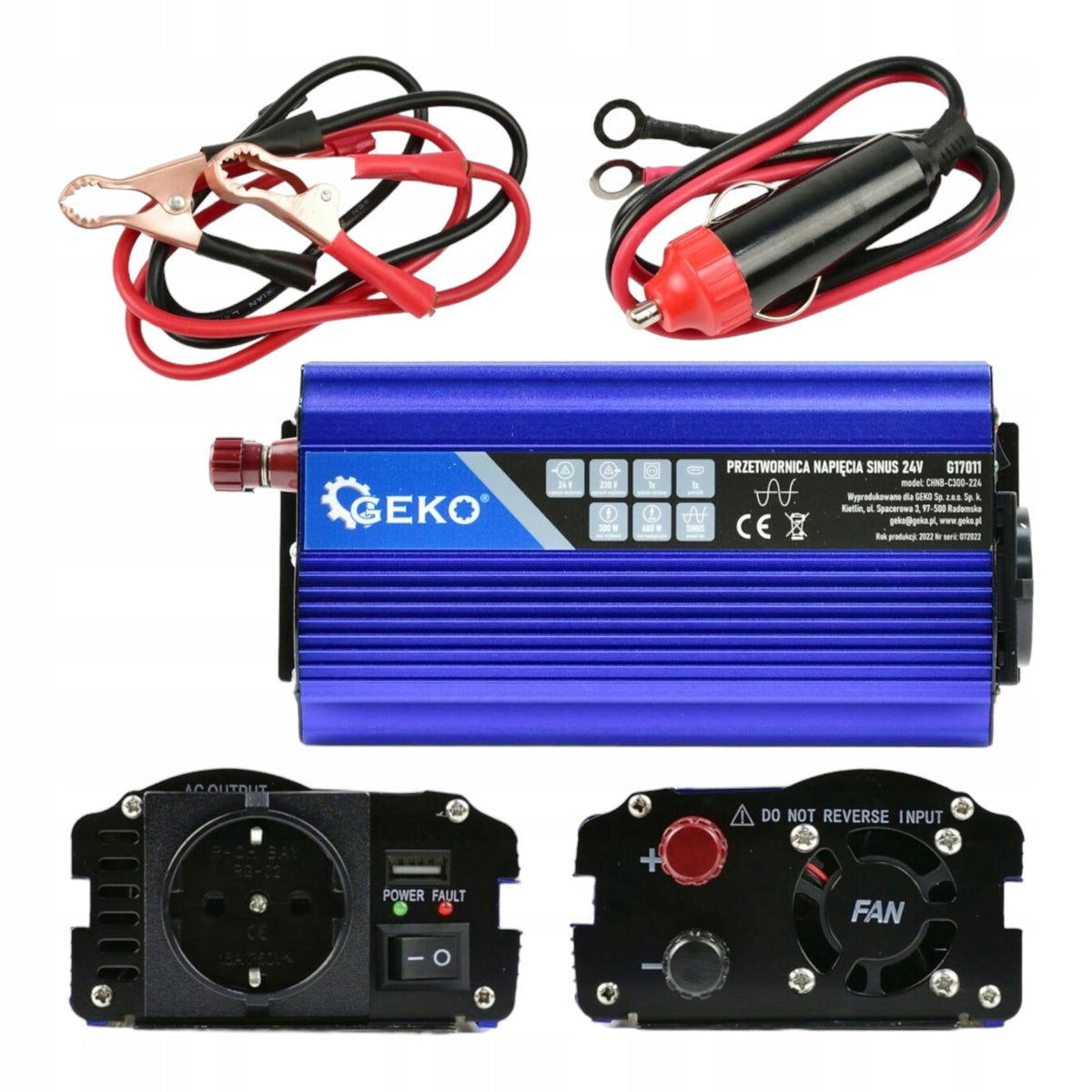

24V/230V 300/600W VOLTAGE CONVERTER

24V/230V 300/600W voltage converter – pure sine.

Voltage converters are designed to change direct current from 24V batteries to 230V alternating current. The device is equipped with a USB port designed to power and charge mobile devices.

Sinus converters, unlike classic AC/DC converters, produce an alternating voltage at the output from the sinusoidal waveform (the same as in the power grid). These types of inverters are perfect for powering devices such as e.g. power tools, pumps, pre-TV and household appliances.

Product characteristics:

• Voltage converter that produces pure sine

• Perfect for powering devices such as refrigerators, TVs, computers/laptops, etc.

• Ideal for trucks and motorhomes with 24V electrical system

• has a USB port designed to power and charge mobile devices

•equipped with a type F socket

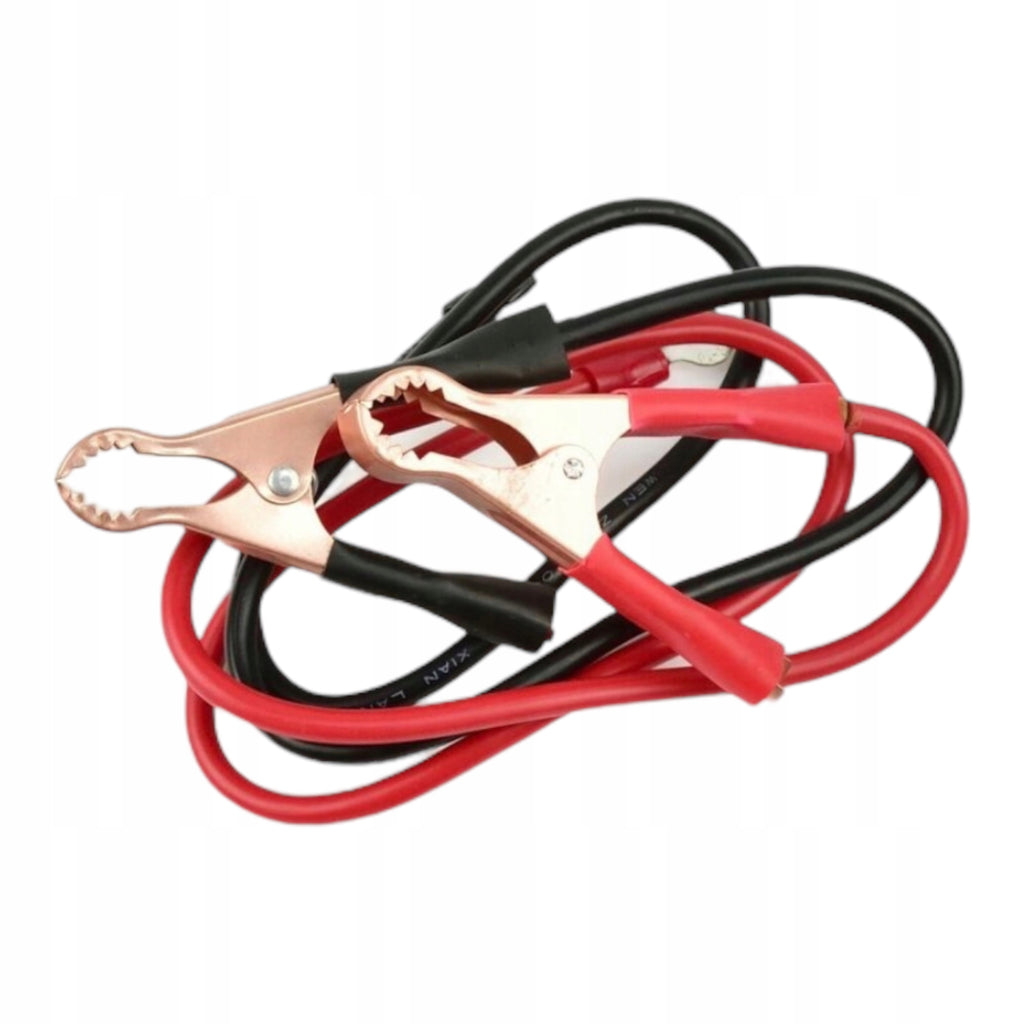

• two wires are included after connecting the converter: carriage terminated with a car plug and cable terminated with crocodile clamps

TECHNICAL DATA:

Input voltage(DC)

•Maximum current voltage: 30V

•Nominal input voltage: 24V

• Rated voltage: 24V

•Minimum voltage for power supply: 21V

•Input voltage range: 21 - 30V

Output voltage data(AC)

•Maximum output power: 600W

•Continuous output power: 300W

•Output voltage range: 220-250V

•Nominal voltage: 220, 230, 240V

•Shape of tension: pure sine wave

•Voltage frequency: 50,60 Hz

• Efficiency: 93 %

•USB port: 5V / 500mA

General data

•Dimensions(Height x Sz. x L ): 224x100x60 mm

• Net weight: 0,88 kg

•Transformer: high frequency transformer

• Cooling: fan

• Degree of protection (IP): IP20

•Working temperature: 0-40°

Safety features

• Fuse: 1 x 30A

• Protections: Reverse polarity protection, low voltage protection, overvoltage protection, overload protection, short circuit protection, overheating protection

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Effective power	300 W
Parametry	Input voltage	24 V
Parametry	Brand	no brand
Parametry	EAN (GTIN)	5905937903682
Parametry	Packaging status	original
