Įtampos keitiklis 36V/48V (30–60V) į 12V, 10A

Trumpai apie prekę

Prekė: Įtampos keitiklis 36V/48V (30–60V) į 12V, 10A. Kategorija: Įtampos keitikliai.

• Gamintojas: no brand

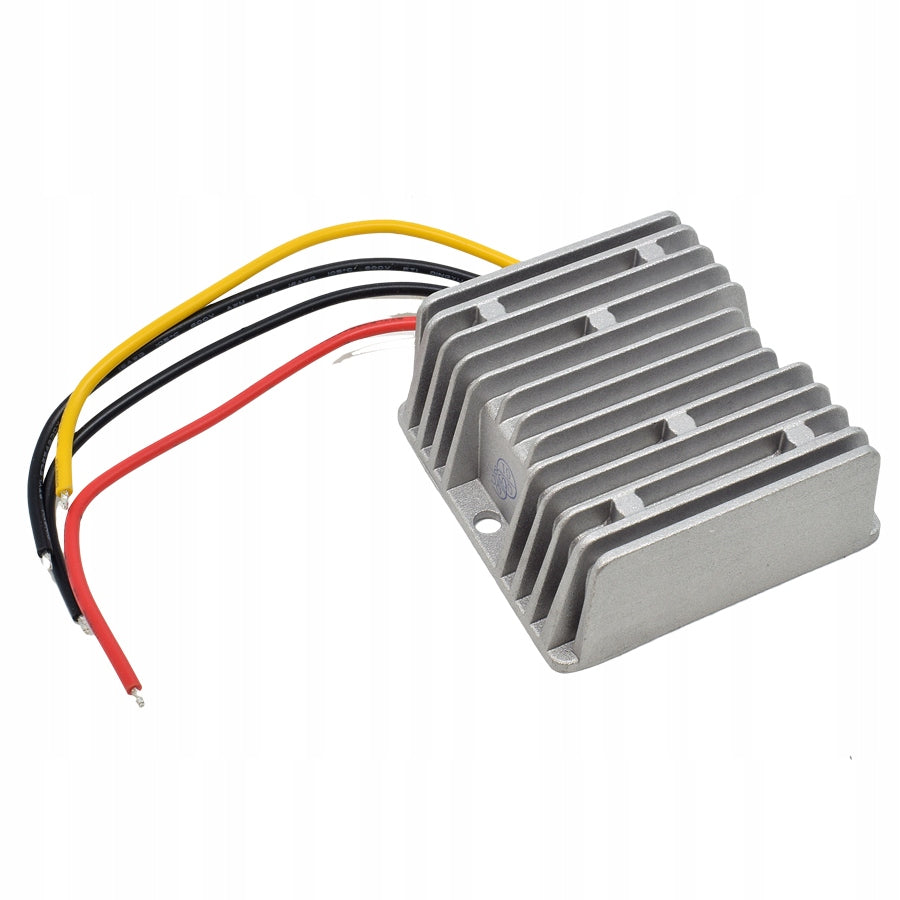

VOLTAGE CONVERTER 36/48 36V / 48V (30-60V) 12V 10A STEP DOWN

MAG: PS48V-12V-10A

INPUT:

• Protection: Automatic cut-off of the output circuit when exceeding the maximum input voltage (>60V).
• Rated Voltage: 36V / 48V DC
• Wide operating voltage range: from 30V to 60V DC (the converter operates stably even with large voltage fluctuations on the power battery).

OUTPUT:

• Output voltage: 12V DC (stabilized, with very high accuracy +/- 1,5%).
• Maximum output current: 10A (Ampers).
• Maximum load power: 120W (continuous maximum power).
• Voltage ripples: very low, only 120 mV p-p (guarantees safe operation of sensitive electronics).

TECHNICAL PARAMETERS:

• Converter Type: DC/DC (Direct Current/Direct Current)
• Voltage Change Type: Step-Down (Lowering)
• Rated Input Voltage: 36V / 48V DC
• Input voltage range: 30V – 60V DC
• Output voltage: 12V DC (accuracy +/- 1,5%)
• Maximum Output Current: 10A
• Maximum load power: 120W
• Suggested minimum load: 0,5A (6W)
• Output voltage ripple: very low, only 120 mV p-p
• Cooling: Passive (through aluminum housing)
• Leak-proof class: Hermetic (flooded with resin)

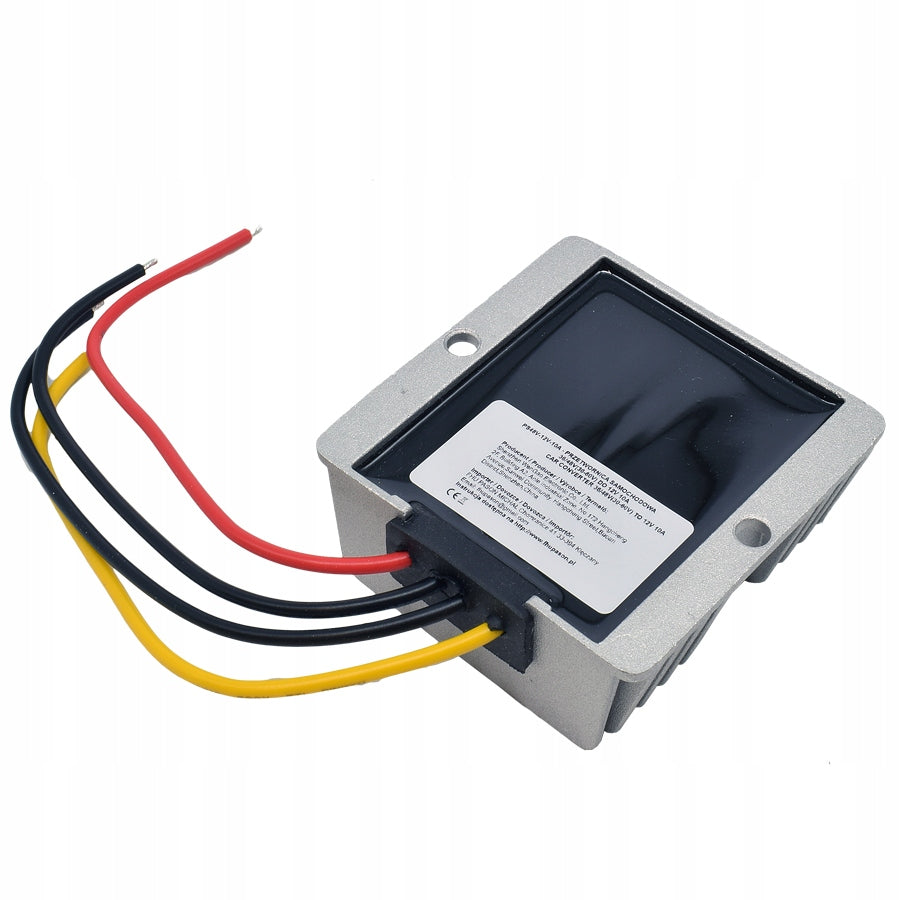

The device has integrated factory wires, which facilitates and accelerates installation:

INPUT (High supply voltage):

• RED cable: Plus (+) power supply (connect to + 36V/48V battery)
• Cable BLACK (input): Minus (-) power supply / Weight

OUTPUT (12V low voltage for receivers):

• YELLOW cable: Plus (+) output (connect to + 12V device)
• Cable BLACK (output): Minus (-) output / Weight

(Note: Black wires are internally connected on a common mass.) DIMENSIONS AND ASSEMBLY

• Construction: Die-cast aluminum, cross-ribbed
• Diameter of mounting holes: 5,3 mm
• Mounting hole spacing: 65,1 mm
• Convenient mounting ears allow you to securely screw the converter to the frame or body of the vehicle.

Input voltage: 36/48 V DC (range 32-60 V DC) Output voltage: 12 V DC, max. 10A Efficiency: 95%

Specifications

Group	Name	Value
Parametry	Condition	new
Parametry	Invoice	With a VAT invoice
Parametry	Effective power	120 W
Parametry	Brand	no brand
Parametry	EAN (GTIN)	5901479203044
Parametry	Input voltage	24 V,48 V
