Įtampos keitiklis automobiliui, DC-DC, 24V į 12V, 30A, 360W

Trumpai apie prekę

Prekė: Įtampos keitiklis automobiliui, DC-DC, 24V į 12V, 30A, 360W. Kategorija: Įtampos keitikliai.

• Gamintojas: no brand

✅ 24V to 12V 30A 360W HE30-12 DC-DC Car Inverter

It allows you to power 12V devices from a 24V car installation. The HE30-12 voltage lowering converter supports 20 to 35V DC input voltage and provides 12V DC output voltage. It is suitable for powering automotive audio systems, navigation systems and other 12V DC devices whose voltage and power requirements are in accordance with the parameters of the converter.

✅ Product advantages

• 24V to 12V conversion to power automotive equipment

Converts 24V to 12V constant voltage. Suitable for trucks, buses and other vehicles with 24V installation. Before use, check that the requirements of the powered device are in accordance with the parameters of the converter.

• Output current 30A and output power 360W

It facilitates the selection of power supply to the needs of connected devices. When connecting several devices, their total load and inrush current should be taken into account, so as not to exceed the permissible parameters of the converter.

• Input voltage range DC 20 to 35V

It works with DC sources with voltage in this range, lowering them to 12V to power compatible devices.

• Clear input and output markings

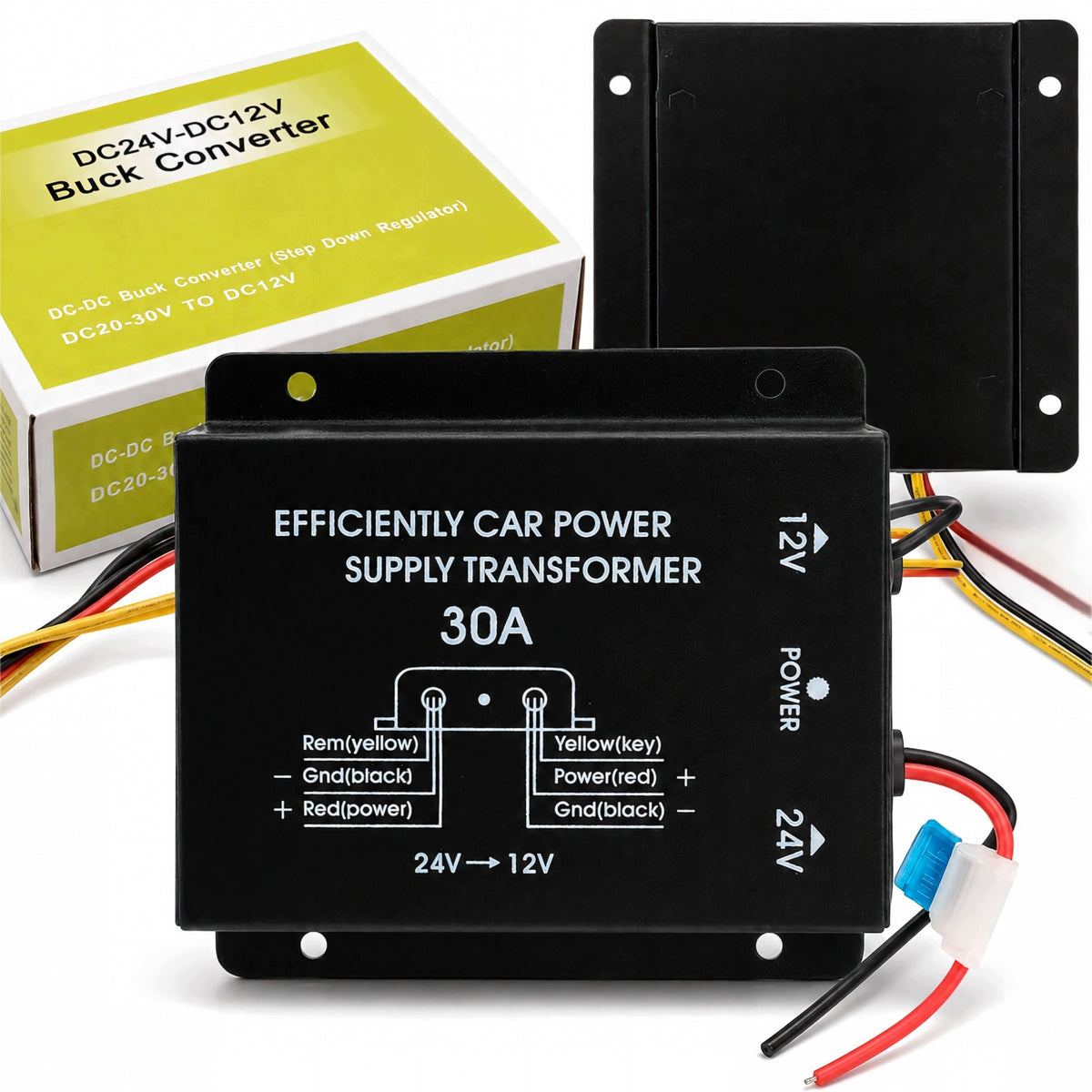

The housing has 24V input and 12V output markings and a power indicator light, making it easy to recognize connections and check the power status.

• Compact housing for easy installation

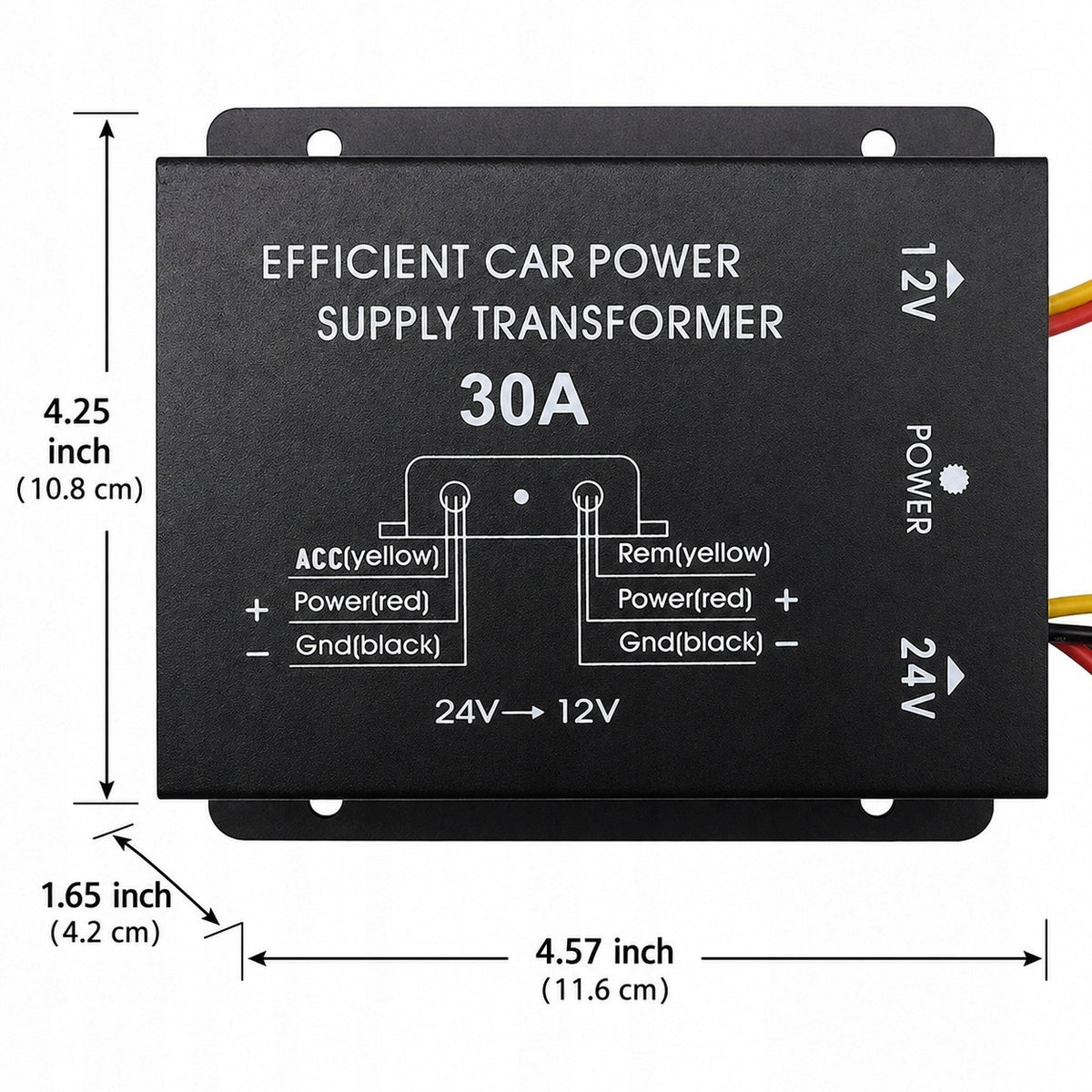

The dimensions of the device are 116×108×42 mm, and the net weight is 257 g. The housing is equipped with mounting holes that make it easy to choose the mounting place depending on the available space in the vehicle.

• Conversion efficiency 95%

According to the manufacturer’s data, the efficiency is 95%, which helps to reduce energy losses during voltage processing.

• Application

The converter is used to power 12V devices from a 24V car installation, such as automotive audio systems, navigation, and other compatible DC devices. Connected devices must be adapted to supply 12V DC voltage, and their power and current demand must be within the acceptable range of inverter parameters.

✅ Technical data

• Model: HE30-12

• Product type: DC voltage-lowering converter

• Voltage conversion: from 24V to 12V

• Input voltage: DC 20 – 35V

• Output voltage: DC 12V

• Output current: 30A

• Output power: 360W

• No-load current consumption: 45mA

• Efficiency: 95%

• Operating temperature: from -30°C to +60°C

• Product Dimensions: 116×108×42 mm

• Net weight: 257 g

• Colour: black

✅ Contents of the pack

• Car voltage lowering converter HE30-12 × 1

✅ Assembly and use instructions

1. Before installation, disconnect the power supply and check the input voltage, the power supply voltage of the connected device and the load requirements.

2. Distinguish 24V input and 12V output according to the markings on the housing. Before connecting the wires, make sure that the polarity is correct.

3. Connect the yellow control cable according to the product connection scheme. Do not confuse it with the main power cord.

4. The installation site should be dry and well ventilated. Leave adequate space for heat dissipation.

5. The product is used to reduce DC voltage. Do not connect it directly to the 220V AC mains.
